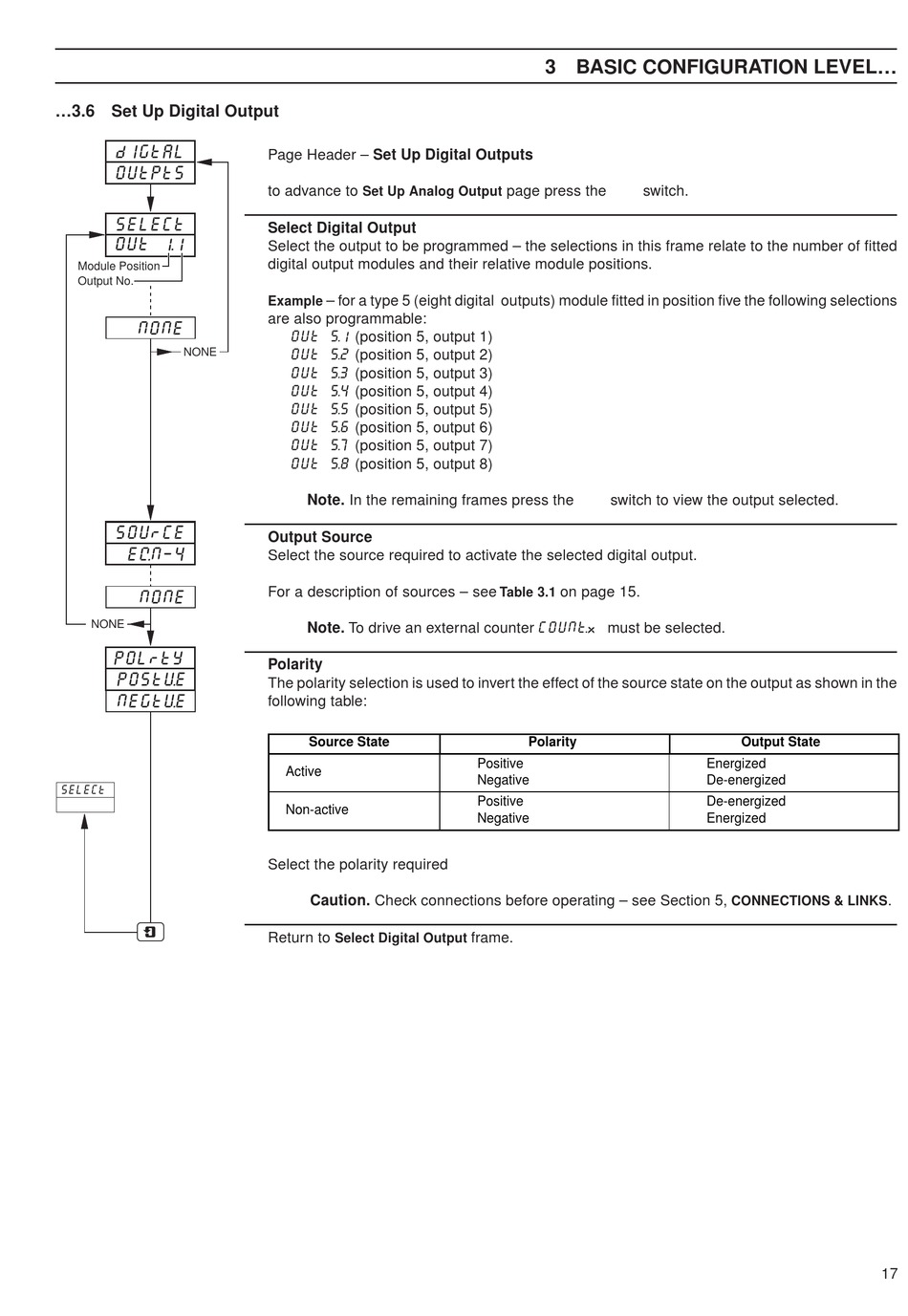

...3.6 Set Up Digital Output

dIGtAL
OUtPtS
SELECt
OUt 1. 1
Module Position
Output No.
NONE
NONE
SOUrCE
EQN–4
NONE
NONE
POLrtY
POStVE
NEGtVE
SELECt
Page Header – Set Up Digital Outputs
to advance to
Set Up Analog Output
Select Digital Output
Select the output to be programmed – the selections in this frame relate to the number of fitted
digital output modules and their relative module positions.
– for a type 5 (eight digital outputs) module fitted in position five the following selections
Example
are also programmable:
OUt 5. 1 (position 5, output 1)
OUt 5. 2 (position 5, output 2)
OUt 5. 3
(position 5, output 3)
OUt 5. 4
(position 5, output 4)
OUt 5. 5
(position 5, output 5)
OUt 5. 6 (position 5, output 6)
OUt 5. 7
(position 5, output 7)
OUt 5. 8 (position 5, output 8)
Note. In the remaining frames press the
Output Source
Select the source required to activate the selected digital output.
For a description of sources – see
Note. To drive an external counter
Polarity
The polarity selection is used to invert the effect of the source state on the output as shown in the
following table:
Source State
Active
Non-active
Select the polarity required
Caution. Check connections before operating – see Section 5,
Return to
Select Digital Output
3 BASIC CONFIGURATION LEVEL...
page press the
switch to view the output selected.
on page 15.
Table 3.1
COUNt. x must be selected.
Polarity
Positive
Negative
Positive
Negative
frame.
switch.
Output State
Energized
De-energized
De-energized
Energized
CONNECTIONS & LINKS
.
17
