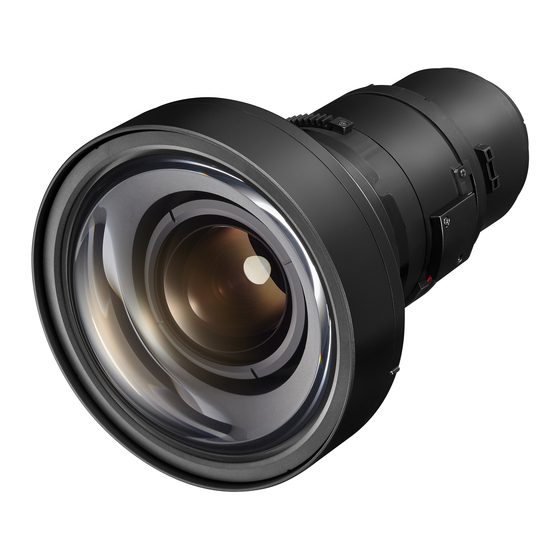

ET-ELT30
ET-ELW30
Thank you for purchasing this Panasonic Product.
Q Before operating this product, please read the instructions carefully, and
save this manual for future use.
Q Before using your projector, be sure to read "Read this first!"
( x page 3).
Q Please save this manual for future use.
Operating Instructions
Zoom Lens Commercial Use
Model No.
ET-ELT30
ET-ELT31
ET-ELW30
ET-ELW31
ET-ELT31
ENGLISH
ENGLISH
ET-ELW31
DPQX1001ZA/X1
Advertisement
Table of Contents
Related Manuals for Panasonic ET-ELW30
Summary of Contents for Panasonic ET-ELW30
- Page 1 ENGLISH ENGLISH ET-ELW30 ET-ELW31 Thank you for purchasing this Panasonic Product. Q Before operating this product, please read the instructions carefully, and save this manual for future use. Q Before using your projector, be sure to read “Read this first!”...
-
Page 2: Table Of Contents
Making adjustments ........6 Adjusting the Focal Balance (Only for ET-ELW30, ET-ELW31)..6 Specifications . -
Page 3: Read This First
Read this first! Always follow these precautions WARNING: Before replacing the projection lens, be sure to turn the power off and disconnect the power plug from the wall outlet. Unexpected projection of light may cause injury to eyes. Replacing without removing the power plug may result in electrical shock. CAUTION: When moving or holding up the projector, be careful not to hold the projection lens or the openings beside the projection lens. -
Page 4: Before Use
Before Use Supported projectors PT-EZ590, PT-EW650, PT-EW550, PT-EX620, PT-EX520 Note Models other than the above may also be supported. Refer to the operating instructions of the projector you are using. In this document, the alphabet letters at the end of the projector part numbers are omitted. Supplied Accessories Make sure that the following has been provided. -
Page 5: Detaching The Lens
Detaching the lens / Attaching the lens (continued) * The illustration for the next procedure uses PT-EZ590 as an example. Detaching the lens Before removing the projection lens, if the lens release Lens release button fixing screw button cannot be released the lock even if you press it, proceed the step 1) and 2). -
Page 6: Making Adjustments
Making adjustments Adjusting the Focal Balance (Only for ET-ELW30, ET-ELW31) The focal balance between the center and periphery of the projected image changes depending on the size of the projected image. The lens is equipped with a focal balance adjustment function for the screen periphery. -
Page 7: Dimensions
Dimensions Unit: mm Model No. Dimensions ET-ELT30 205.1 (8-1/16”) ET-ELT31 214.5 (8-7/16”) ET-ELW30 194 (7-5/8”) ET-ELW31 194.5 (7-21/32”) ENGLISH - 7... - Page 8 Information for users in the European Union Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 11, 22525 Hamburg, Germany Product information (for Turkey only) AEEE Yönetmeliğine Uygundur.
