Thank you for purchasing this Panasonic product.
■ Please read these operating instructions and the projector operating instructions carefully, and then use
this product correctly.
■ Before using this product, be sure to read "Read this fi rst!" (
■ Please save this manual for future use.
Product information (for Turkey only)
EEE Yönetmeliğine Uygundur.
EEE Complies with Directive of Turkey.

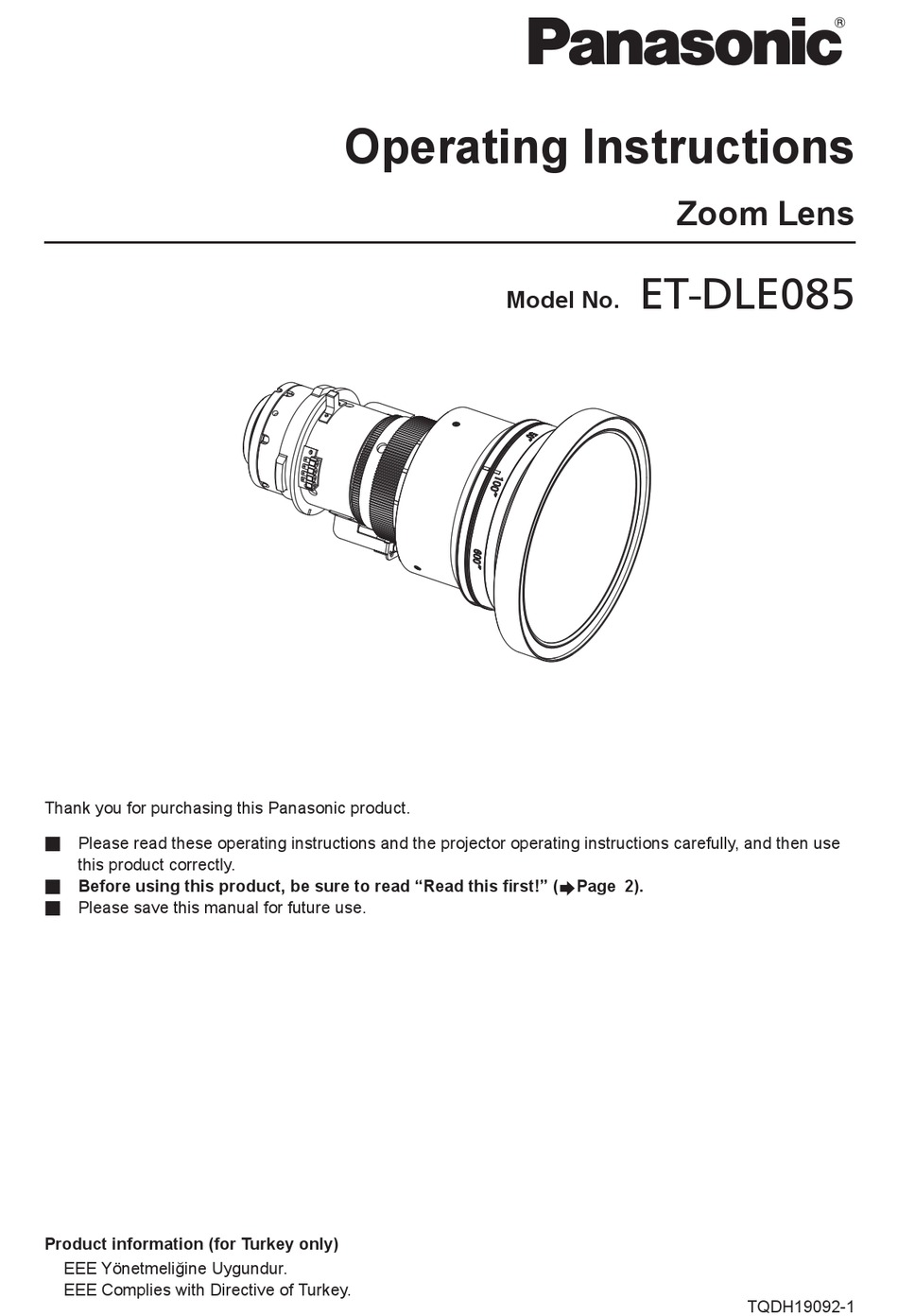

Operating Instructions
Model No.

Zoom Lens

ET-DLE085
Page 2).
TQDH19092-1

Advertisement

loading

Summary of Contents for Panasonic ET-DLE085

  • Page 1: Zoom Lens

    Zoom Lens ET-DLE085 Model No. Thank you for purchasing this Panasonic product. ■ Please read these operating instructions and the projector operating instructions carefully, and then use this product correctly. ■ Before using this product, be sure to read “Read this fi rst!” ( ...
  • Page 2: Read This First

    Read this fi rst! Always follow these precautions WARNING: Before replacing the zoom lens, be sure to turn the power off and disconnect the power plug from the wall outlet.  Otherwise, an electrical shock may result. CAUTION: Supplied accessories and consumables: Do not open the desiccant bag.
  • Page 3: Attaching The Lens / Detaching The Lens

    Attaching the Lens / Detaching the Lens Before replacing the projection lens Return the projection lens to the home position before replacing or removing it. For details on how to return the lens to the home position, refer to the operating instructions of the projector. Attention ...
  • Page 4: Detaching The Lens

    Periphery focus adjustment ring Note  The projected image sizes and scale shown on the periphery focus adjustment ring are an approximate guide.  For details on the projection distance, see the projector specifi cations (https://eww.pavc.panasonic.co.jp/projector/extranet/main/spec/index.html). 4-ENGLISH...
  • Page 5 Specifi cations the Lens Lens Type Zoom lens F value 1.85 - 2.20 Focal Length (f) 11.8 mm (15/32 inches) - 14.6 mm (9/16 inches) Width 140 mm (5-1/2 inches) Height Dimensions 140 mm (5-1/2 inches) Depth 206 mm (8-1/8 inches) Net Weight 1.3 kg (2.87 lb) Note...
  • Page 6 Information for users in the European Union Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Center Winsbergring 15, 22525 Hamburg, Germany Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.
