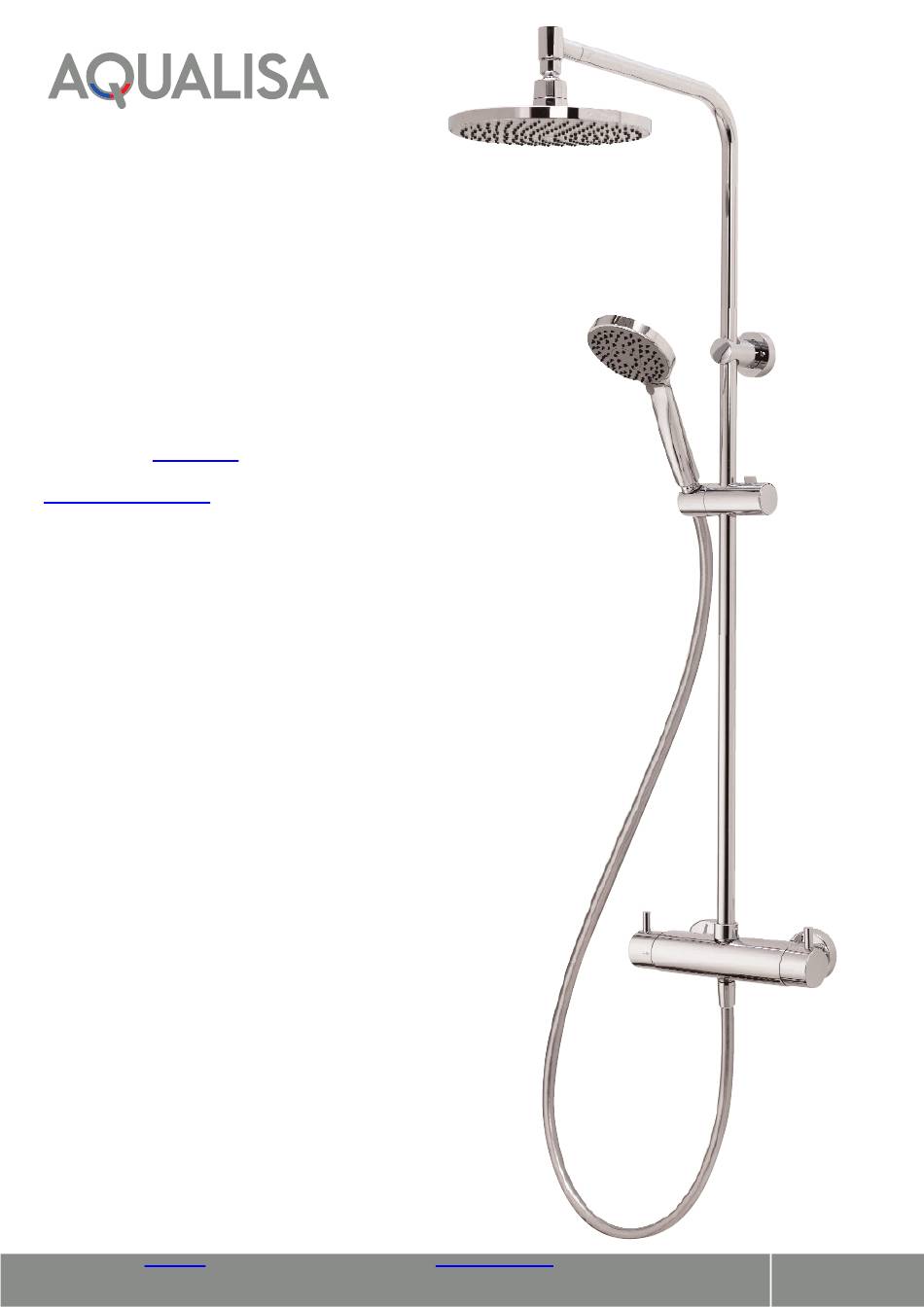

- Page 1 Dual Exposed shower with fixed and adjustable shower heads Dual exposed shower with fixed and adjustable shower heads installation instuctions page 1...
- Page 2 Shower systems Exposed shower with fixed and adjustable shower heads Dual exposed shower with fixed and adjustable shower heads installation instuctions page 2...
- Page 3 Components Dual exposed shower with fixed and adjustable shower heads installation instuctions page 3...
- Page 4 Pressures The Dual cartridge is designed to operate from the mains at a maximum of 10 bar. If the mains pressure exceeds 5 bar a ‘drop tight’ PRV must be fitted on the supply pipe after the main stopcock. A setting of 3 bar is recommended. It should be noted that daytime pressures approaching 8 bar can rise above the stated maximum overnight.
- Page 5 Combination boiler/multipoint system The Dual product is suitable for use with combination boiler systems. The combination boiler MUST have a minimum rating of 24kW (80,000 Btu) and be of the type fitted with a fully modulating gas valve. This is sufficient to operate one outlet point at a time.
- Page 6 Ensure the ¾” supply connections are temporarily capped to prevent any dirt or dust ingress into the pipe work during the making good process. Remove the caps prior to connecting the shower valve. Dual exposed shower with fixed and adjustable shower heads installation instuctions page 6...
- Page 7 Remove the cover plate and pass the straight riser tube through the wall fixing bracket. Dual exposed shower with fixed and adjustable shower heads installation instuctions page 7...
- Page 8 Place the fixing plate into position and mark and prepare the fixing points using the fixings provided, if suitable. Secure the fixing plate to the wall using the screws provided, if suitable. Dual exposed shower with fixed and adjustable shower heads installation instuctions page 8...
- Page 9 Carefully tighten the shower head with a suitable tool taking care not to overtighten. Dual exposed shower with fixed and adjustable shower heads installation instuctions page 9...
- Page 10 However, it may be necessary, especially for showers fitted to high pressure systems, to tighten the tension as required. Tighten the screw inside the handset station taking care not to overtighten. Dual exposed shower with fixed and adjustable shower heads installation instuctions page 10...
- Page 11 Shower operation 1. The Dual product features temperature control on the right hand side of the valve when viewed from the front. When the lever is pointing upwards, the valve is in the mid blend position. To change the showering temperature rotate the control away from the wall to increase the temperature and towards the wall to decrease the temperature, using the markings as a guide.
- Page 12 12. Secure the knob to the valve and refit the temperature control lever assembly. ! If required, the flow control knob can be removed following the above procedure. Dual exposed shower with fixed and adjustable shower heads installation instuctions page 12...
- Page 13 (PRV) in accordance with the installation guide Poor flow rate Twisted hose Check and clear as Debris in shower head necessary Debris in filters Dual exposed shower with fixed and adjustable shower heads installation instuctions page 13...
- Page 14 Part No:649601 Issue 01 Nov 10 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
