IAI PCON-CA User Manual

Applicable to Fieldbus
PCON-CA/CFA/CB/CFB/CGB/CGFB,
ACON-CA/CB/CGB, DCON-CA/CB/CGB
First Step Guide Seventh Edition
Thank you for purchasing our product.
Make sure to read the Safety Guide and detailed Instruction Manual (DVD) included with the product in addition to
this First Step Guide to ensure correct use. This First Step Guide is original manual written by only this product.
Warning : Operation of this equipment requires detailed installation and operation instructions which are
provided on the DVD Manual included in the box this device was packaged in. It should be retained
with this device at all times.
A hardcopy of the Manual can be requested by contacting your nearest IAI Sales Office listed at
the back cover of the Instruction Manual or on the First Step Guide.
• Using or copying all or part of this Instruction Manual without permission is prohibited.
• The company names, names of products and trademarks of each company shown in the sentences are registered
trademarks.
Product Check
The standard configuration of this product is comprised of the following parts.
If you find any fault with the product you have received, or any missing parts, contact us or our distributor.
1. Parts
No. Part Name Model
Refer to "How to read the model plate",

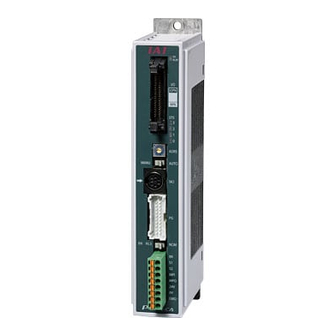

1 Controller Main Body
"How to read the model of the controller"
Accessories
MSTB2.5/5-STF-5.08AU (CC-Link)
2 Field Network Connector
MSTB2.5/5-STF-5.08AUM (DeviceNet)
FMC1.5/8-ST-3.5
3 Power Connector
(Supplier : PHOENIX CONTACT)
4 Dummy plug DP-5
5 Absolute Battery (Option) AB-7 or SEP-ABU*
6 Serial Absolute Battery (Option) AB-5
7 First Step Guide
8 Instruction Manual (DVD)
9 Safety Guide
2. Teaching Tool (to be purchased separately)
A teaching tool, such as PC Software, is necessary when performing programming and commissioning, such
as editing position data or parameters.
Please utilise any of the following teaching tools.
(Note) TB-01/01D/01DR are not applicable for CC-Link IE.
No. Part Name
PC Software
1
(with RS232C converter adapter + external equipment communication cable)
PC Software
2
(with USB converter adapter + USB cable + external equipment communication cable)
3 Touch Panel Teaching TB-01 (Standard / with Deadman Switch Attached on the Left/ Right side)
4 Touch Panel Teaching TB-02 (Standard / with Deadman Switch Attached)
5 Data Setter TB-03
3. Instruction Manuals related to this product, which are contained in the Instruction Manual (DVD).
No. Name
1 PCON-CA/CFA Controller Instruction Manual
2 PCON-CB/CFB Controller Instruction Manual
3 ACON-CA, DCON-CA Controller Instruction Manual
4 ACON-CB Series Contoroller, DCON-CB Series Contoroller Instruction Manual
5 PC Software RCM-101-MW/RCM-101-USB Instruction Manual
6 Touch Panel Teaching TB-01/TB-02/TB-03 Position Controller Instruction Manual
7 Instruction Manual for the Serial Communication [for Modbus]
8 CC-Link Instruction Manual
9 DeviceNet Instruction Manual
10 PROFIBUS-DP Instruction Manual
11 CompoNet Instruction Manual
12 MECHATROLINK-Ⅰ/Ⅱ Instruction Manual
13 MECHATROLINK-Ⅲ Instruction Manual
14 EtherCAT Instruction Manual
15 EtherNet/IP Instruction Manual
16 PROFINET-IO Instruction Manual
17 MECHATROLINK-Ⅲ Instruction Manual
18 CC-Link IE Instruction Manual
4. How to read the model plate
Model
Model *********
SER NO. *********
Input DC24V A *
Serial number
Output 0-24Vac,3ph,0-333Hz, * A
Actuator *****
CAUTION: Connect the wiring correctly and
properly, use IAI specified cables
or min 60°C Cu wire.
5. How to read the model of the controller
PCON
P C O N - C A - 5 6 P W A I - E P - 2 - 0 - A B U - D N - * *
<Series>
<Type>
CA/CB : Standard Type
CFA/CFB : High-Thrust Actuator
Connection Type
CGB : Sagety Categories Complied Type
CGFB : High-Thrust Actuator
Connection Sagety Categories
Complied Type
<Detail of Connected Axis>
[Motor Type]
20P : 20□ pulse motor, 20SP : 20□ pulse motor
28P : 28□ pulse motor, 28SP : 28□ pulse motor
35P : 35□ pulse motor, 42P : 42□ pulse motor
42SP : 42□ pulse motor, 56P : 56□ pulse motor
56SP : 56□ pulse motor, 60P : 60□ pulse motor
86P : 86□ pulse motor
[Encoder Type]
WAI : Incremental / Battery-less Absolute Shared
SA : Simple Absolute
<I/O Type>
NP : NPN Type (Sync. Type) (Standard),
PN : PNP Type (Source Type),
PLN : Pulse Train Control NPN Type (Sync. Type),
PLP : Pulse Train Control PNP Type (Source Type),
DV : DeviceNet Connection Type,
PR : PROFIBUS-DP Connection Type, CN : CompoNet Connection Type
PRT : PROFINET-IO Connection Type,
EP : EtherNet/IP Connection Type,
ML3 : MECHATROLINK-Ⅲ Connection Type (Except for PCON-CA/CFA)
CIE : CC-Link IE Type (PCON-CB/CFB/CGB/CGFB only)
Reference
ACON
A C O N - C A - 3 0 I - E C - 2 - 0 - A B - D N - * *
Prepare for separately except for CC, <Series>
DV type.
<Type>
Recommended cable size AWG16 to 20
CA/CB : Standard Type
2
(1.25 to 0.5mm )
CGB : Safety Categories Complied Type
For the safety category compliant type
<Detail of Connected Axis>
If applicable for Simple Absolute Type
[Motor Type]
If applicable for Serial Absolute Type
2 : 2W AC servo motor
(for ACON only)
5 : 5W AC servo motor
10 : 10W AC servo motor
20S : 20W AC servo motor
20 : 20W AC servo motor
30 : 30W AC servo motor
[Encoder Type]
WAI : Incremental / Battery-less Absolute
shared (CB only)
I : Incremental
[Option]
HA : High Acceleration/Deceleration Type
Model
LA : Low Power Consumption Type
No description : Standard Type
RCM-101-MW
<I/O Type>
RCM-101-USB
NP : NPN Type (Sync. Type) (Standard), PN : PNP Type (Source Type),
PLN : Pulse Train Control NPN Type (Sync. Type),
TB-01/01D/01DR
PLP : Pulse Train Control PNP Type (Source Type),
TB-02/02D
DV : DeviceNet Connection Type,
PR : PROFIBUS-DP Connection Type, CN : CompoNet Connection Type
TB-03
PRT : PROFINET-IO Connection Type,
EP : EtherNet/IP Connection Type,
Manual No.
ML3 : MECHATROLINK-Ⅲ Connection Type (Except for ACON-CA)
ME0289 CIE : CC-Link IE Type (ACON-CB/CGB only)
ME0342
ME0326
DCON
ME0343
D C O N - C A - 3 I - E P - 2 - 0 - D N - * *
ME0155
ME0324/ME0355/ME0376 <Series>
ME0162
<Type>
ME0254
CA/CB : Standard Type
ME0256
<Detail of Connected Axis>
ME0258
[Motor Type]
ME0220
3 : 2.5W DC Brushless motor
ME0221
[Encoder Type]
ME0317 I : Incremental
ME0273
<I/O Type>
ME0278
NP : NPN Type (Sync. Type) (Standard), PN : PNP Type (Source Type),
ME0333
PLN : Pulse Train Control NPN Type (Sync. Type),
ME0317
PLP : Pulse Train Control PNP Type (Source Type),
DV : DeviceNet Connection Type,
ME0389
PR : PROFIBUS-DP Connection Type, CN
PRT : PROFINET-IO Connection Type,
EP : EtherNet/IP Connection Type,
ML3 : MECHATROLINK-Ⅲ Connection Type (Except for DCON-CA)
CIE : CC-Link IE Type (DCON-CB only)
IP20
<Identification for IAI use only>
* There is no identification in some cases.
<Type of Installation>
(Not Specified) : Screw Attachment Type
DN
<Applicable to Simplified Absolute Unit>
(Not Specified): Incremental
AB : Simple Absolute Type
(With the Absolute Battery)
ABU : Simple Absolute Type
(With the Absolute Battery Unit
(SEP-ABU))
ABUN : Simple Absolute Type
(With no Absolute Battery)
<Power-supply Voltage>
0 : 24V DC
<I/O Cable Length>
0 : Equipped with no cable
2 : 2m (Standard)
3 : 3m
5 : 5m
CC : CC-Link Connection Type
EC : EtherCAT Connection Type
ML : MECHATROLINK-Ⅰ/Ⅱ Connection Type
<Identification for IAI use only>
* There is no identification in some cases.
<Type of Installation>
(Not Specified) : Screw Attachment Type
DN : DIN Rail Mounting Type
<Applicable to Simplified Absolute Unit>
AB : Simple Absolute Type
(With the Absolute Battery)
ABU : Simple Absolute Type
(With the Absolute Battery Unit
(SEP-ABU))
ABUN : Simple Absolute Type
(With no Absolute Battery)
<Power-supply Voltage>
0 : 24V DC
A : Serial Absolute
<I/O Cable Length>
0 : Equipped with no cable
2 : 2m (Standard)
3 : 3m
5 : 5m
CC : CC-Link Connection Type
EC : EtherCAT Connection Type
ML : MECHATROLINK-Ⅰ/Ⅱ Connection Type
<Identification for IAI use only>
* There is no identification in some cases.
<Type of Installation>
(Not Specified) : Screw Attachment Type
DN : DIN Rail Mounting Type
<Power-supply Voltage>
0 : 24V DC
<I/O Cable Length>
0 : Equipped with no cable
2 : 2m (Standard)
3 : 3m
5 : 5m
CC : CC-Link Connection Type
: CompoNet Connection Type
EC : EtherCAT Connection Type
ML : MECHATROLINK-Ⅰ/Ⅱ Connection Type
Basic Specifications
PCON List of Specifications
Item
Number of controlled axes 1-axis
Power-supply Voltage 24V DC ±10%
Load RCP2 Motor 20P, 28P, 28SP MAX. 1A
Capacity RCP3 Type
: DIN Rail Mounting Type 35P, 42P, 56P MAX. 2.2A
(including
60P, 86P
control side
RCP4 Motor 28P, 35P, 42P, High-thrust function
current
RCP5 Type 56P is disabled
consumption)
/ Battery-less Absolute (Note1) RCP6
High-thrust function
is enabled
56SP, 60P, 86P
Power Supply for Electromagnetic Brake
24V DC ±10% 0.15A (MAX.)
(for actuator equipped with brake)
Heat Generation RCP2 , RCP3 5W
RCP4 to RCP6 3W
Rush Current (Note2) 8.3A
Transient Power Cutoff Durability MAX. 500μs
Motor Control System Weak field-magnet vector control
Corresponding RCP2 to RCP5 Incremental Encoder, Battery-less Absolute Encoder Resolution 800pulse/rev
Encoder
RCP6 Battery-less Absolute Encoder Resolution 8192pulse/rev
Actuator Cable Length MAX. 20m
Serial Communication Interface RS485 : 1 CH (based on Modbus Protocol RTU/ASCII)
(SIO Port) Speed : 9.6 to 230.4Kbps
Control available with serial communication in the modes other than the pulse train
External PIO Type Signal I/O dedicated for 24V DC (selected from NPN/PNP) ... Input 16 points max.,
Interface output 16 points max.
Cable length MAX. 10m
Fieldbus Type DeviceNet, CC-Link, PROFIBUS-DP, CompoNet, MECHATROLINK-Ⅰ/Ⅱ,
EtherCAT, EtherNet/IP, PROFINET-IO, MECHATROLINK-Ⅲ*, CC-Link IE*
(* Some types cannot connect it.)
Data Setting and Input PC Software, Touch Panel Teaching, Teaching Pendant, Data Setter
Data Retention Memory Saves position data and parameters to non-volatile memory
(There is no limitation to the number of times data may be written.)
Operation Mode Positioner Mode/Pulse Train Control Mode (selected by parameter setting)
Number of Positions in Positioner Mode Standard 64 points, MAX. 512 points (PIO Type)
(Note) Number of positions differs depending on the selection in PIO pattern.
Pulse Input Pulse Frequency Differential System (Line Driver System) : MAX. 200kpps
Train Cable length MAX. 10m
Interface
Open Collector System : Not applicable.
* If the host applies the open collector output, prepare AK-04 (option) separately to
convert to the differential type.
Command Pulse Multiplying Factor 1/50 < A/B < 50/1
(Electrical Gear : A/B) Setting Range of A and B (set to parameter) : 1 to 4096
Feedback Pulse Output None
LED Display SV (GN)/ALM (RD)
(mounted on Front Panel) STS0 to 3
RDY (GN)/ALM (RD) : Absolute function in normal / absolute function error (for the
1, 0 (GN) (RD)
Electromagnetic Brake Compulsory Release Switching NOM (standard)/BK RLS (compulsory release)
Switch (mounted on Front Panel)
Insulation Resistance 500V DC 10MΩ or more
Protection Function against Electric Shock Class I basic insulation
Weight Incremental Type Screw fixed type : 250g or less
(Note3) DIN rail fixed type : 285g or less
Simple Absolute Type Screw fixed type : 450g or less
(including 190g for battery) DIN rail fixed type : 485g or less
Cooling Method Natural air-cooling
Screw fixed type : 35W×178.5H×69.6D
External dimensions
DIN rail fixed type : 35W×185H×78.1D
Environment Surrounding Air Temperature 0 to 40°C
Surrounding Humidity 85%RH or less (non-condensing)
Surrounding Environment [Refer to Installation Environment]
Surrounding Storage -20 to 70°C (Excluding battery)
Temperature
Usage Altitude 1000m or less
Protection Class IP20
Vibration Durability Frequency 10 to 57Hz / Swing width : 0.075mm
Frequency 57 to 150Hz / Acceleration 9.8m/s
XYZ directions Sweep time : 10 minutes Number of sweep : 10 times
Note1 Add an additional 0.3A inrush for Fieldbus Types.
Note2 In-rush current will flow for approximately 5msec after the power is turned on (at 40°C).
Note that the value of in-rush current differs depending on the impedance of the power supply line.
Note3 Add an additional 30g for CA/CB/CGB Fieldbus Type. Add an additional 10g for CFA/CFB/CGFB Fieldbus Type.
ACON, DCON List of Specifications
Item
Number of controlled axes 1-axis
Power-supply Voltage 24V DC ±10%
Load Series Motor Type
Rated
Capacity
(It does
RCA, 2W 0.8A
not
RCA2,
including
5W 1.0A
RCL
control
10W (RCL) 1.3A
side
current
10W (RCA/ RCA2) 1.3A
consump
20W 1.3A
tion) (Note1)
20W (Model: 20S) 1.7A
30W 1.3A
RCD 3W
Power Supply for Electromagnetic
Brake (for actuator equipped with brake) 24V DC ±10% 0.15A (MAX.)
Heat Generation 8.4W
Rush Current (Note2) 10A
Transient Power Cutoff Durability MAX. 500μs
Description
PCON-CA/CB/CGB PCON-CFA/CFB/CGFB
MAX. 6A
MAX.2.2A
Rated 3.5A /
MAX. 4.2A
MAX. 6A
26.4W
10A
: Servo ON/Alarm generated
: Status display
simple absolute type)
: Absolute function status display (for the simple absolute type)
Screw fixed type : 270g or less
DIN rail fixed type : 305g or less
Forced air-cooling
Screw fixed type : 35W×190H×69.6D
DIN rail fixed type : 35W×196.5H×78.1D
2
Description
ACON-CA/CB/CGB DCON-CA/CB/CGB
Max. Power
Consumption MAX. (Note5) Rated MAX.
4.6A
6.4A
6.4A
2.5A 4.4A
2.5A 4.4A
3.4A 5.1A
2.2A 4.0A
0.7A 1.5A
4W
