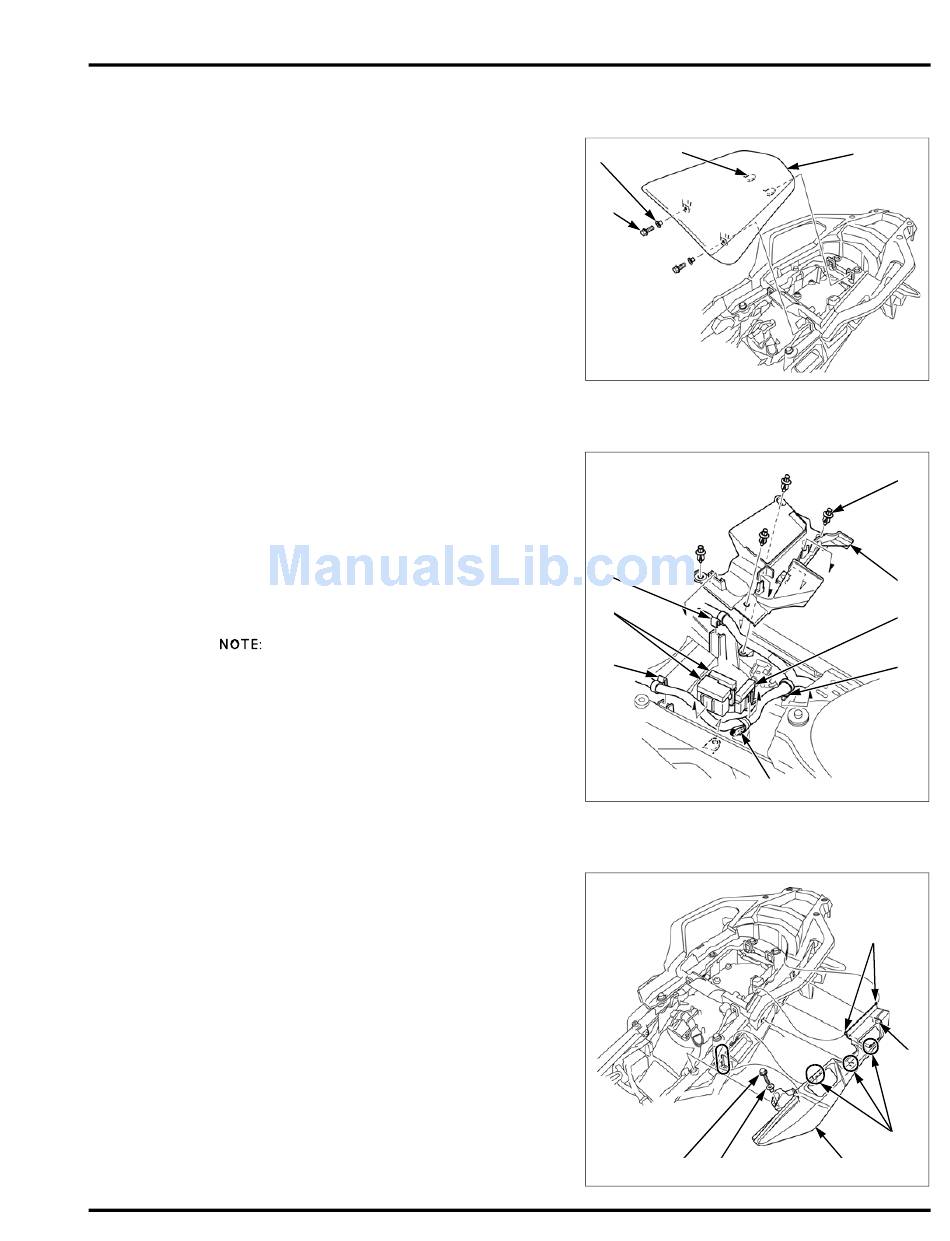

PILLION SEAT
REMOVAL/INSTALLATION
Remove the main seat (page 2-4).
Remove the bolts [1] and collars [2].
Release the tab [3] and remove the pillion seat [4] by
pulling forward.
Installation is in the reverse order of removal.
ETC TRAY
REMOVAL/INSTALLATION
Remove the seat catch stay (page 2-4).
Release the following:
– Fuse box 1/2 [1]
– Fuse box 3 [2] (CRF1000D)
– Main wire harness clip [3]
– HISS 2P (Red) connector [4]
– Main wire harness clamps [5]
Remove the trim clips [6] and ETC tray [7]
Installation is in the reverse order of removal.
• Route the wire harnesses properly (page 1-26).
SIDE COVER
REMOVAL/INSTALLATION
Remove the pillion seat (page 2-11).
Remove the flange bolt [1] and collar [2].
Release the tabs [3] of side cover [4] from the rear
carrier.
Remove the side cover by releasing the snap fit [5] and
tabs [6].
Installation is in the reverse order of removal.
FRAME/BODY PANELS/EXHAUST SYSTEM
[3]
[2]
[1]
[5]
[1]
[5]
[1]
[4]
[4]
[3]
[6]
[2] [4]
2-11
