Instruction Manual for Self-learning
model RMC-600 & Y2K10L
Note: If the existing remote is code hopping you will not be able to clone it
successfully.

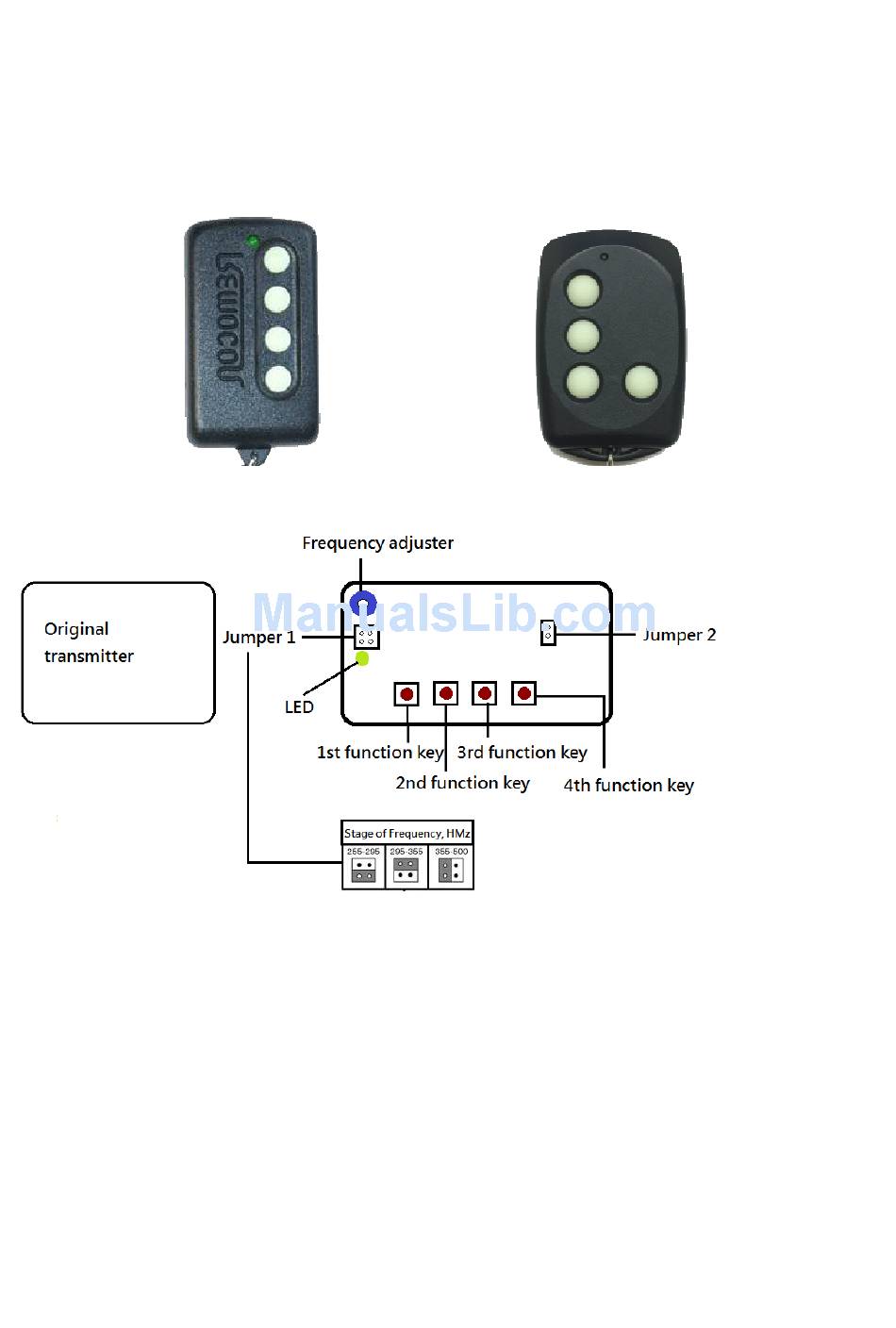

1). Setting the frequency (Using our adjusted bar).
a. Make sure jumper 2 is installed and place 2 remotes(existing remote and
REMOCON remote) within 1 cm of each other. Press any button of both
remotes and hold until the LED of REMOCON remote flashes 3 times.
b. Still hold the buttons and increase the distance of both remotes to about 3
cm apart and observe the brightness of LED of REMOCON remote. Adjust the
frequency until the LED show maximum brightness.
c. If you can't find a suitable adjustment, change the jumper 1 to the next
position and repeat from step a.
RMC-600
Y2K10L
1
Advertisement
Table of Contents
Related Manuals for Remocon RMC-600
Summary of Contents for Remocon RMC-600
- Page 1 1). Setting the frequency (Using our adjusted bar). a. Make sure jumper 2 is installed and place 2 remotes(existing remote and REMOCON remote) within 1 cm of each other. Press any button of both remotes and hold until the LED of REMOCON remote flashes 3 times.
- Page 2 REMOCON remote that you want to copy to and wait until the LED of Remocon remote flashes 3 times. Repeat above step for the rest buttons you wish to copy.
