INSTALLATION/CONNECTION

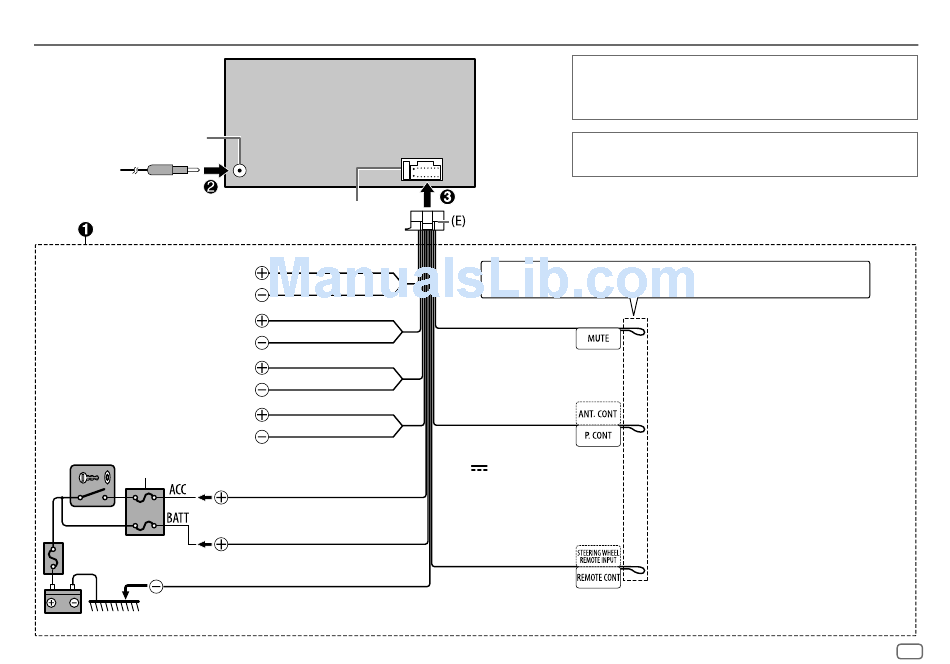

Wiring connection

Antenna terminal
To front speaker (left)
To front speaker (right)
To rear speaker (left)
To rear speaker (right)
Ignition switch
Car fuse box
Car fuse box
Black (Ground wire)
To the metallic body or chassis of the car
Battery
Fuse (10 A)
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Red (Ignition wire)
Yellow (Battery wire)
IMPORTANT : We recommend installing the unit with a commercially
available custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
When connecting to an external amplifier, connect its ground wire to the
car's chassis to avoid damaging the unit.
If no connections are made, do not let the wire come out from the tab.
Brown
(Mute control wire)
Blue/White
(Power control wire/
Antenna control wire)
(12 V 350 mA)
Light blue/yellow
(Steering remote control
wire)
To connect the Kenwood navigation system, refer your
navigation manual
To the power control terminal when using the optional
power amplifier or to the antenna control terminal in
the vehicle
To the steering wheel remote control adapter
