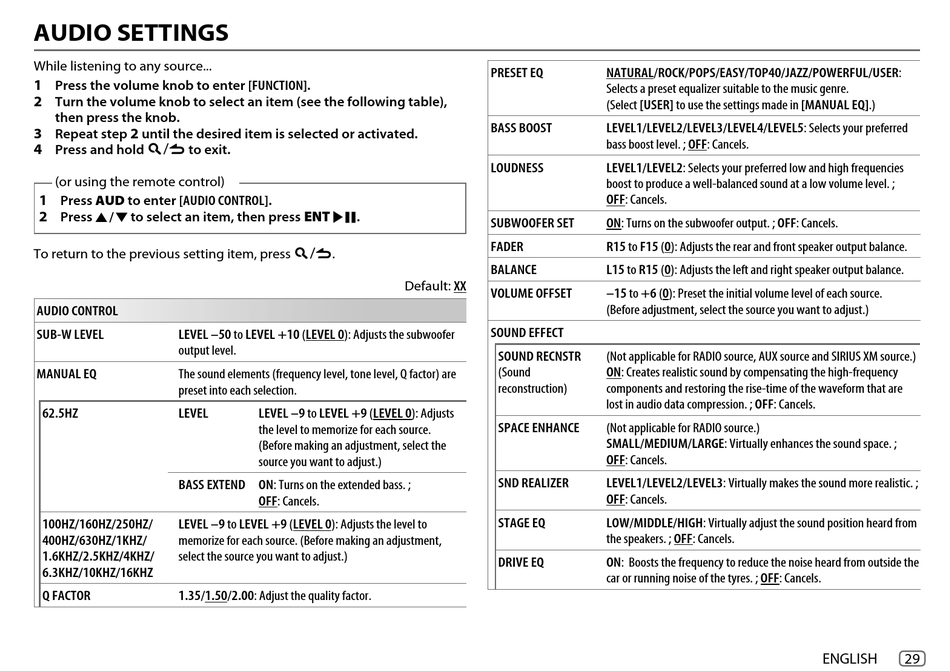

Audio Settings - Kenwood DPX593BT Instruction Manual

AUDIO SETTINGS

While listening to any source...
1
Press the volume knob to enter [FUNCTION].
2
Turn the volume knob to select an item (see the following table),
then press the knob.
3 2
Repeat step until the desired item is selected or activated.
4 Press and hold to exit.
(or using the remote control)
1 Press AUD to enter [AUDIO CONTROL].
Press J / K to select an item, then press
2
To return to the previous setting item, press
AUDIO CONTROL
SUB-W LEVEL LEVEL –50 to LEVEL +10 (LEVEL 0): Adjusts the subwoofer
output level.
MANUAL EQ The sound elements (frequency level, tone level, Q factor) are
preset into each selection.
62.5HZ LEVEL
BASS EXTEND ON: Turns on the extended bass. ;
100HZ/160HZ/250HZ/ LEVEL –9 to LEVEL +9 (LEVEL 0): Adjusts the level to
400HZ/630HZ/1KHZ/ memorize for each source. (Before making an adjustment,
1.6KHZ/2.5KHZ/4KHZ/ select the source you want to adjust.)
6.3KHZ/10KHZ/16KHZ
Q FACTOR 1.35/1.50/2.00: Adjust the quality factor.
.
.
Default: XX
LEVEL –9 to LEVEL +9 (LEVEL 0): Adjusts
the level to memorize for each source.
(Before making an adjustment, select the
source you want to adjust.)
OFF: Cancels.
PRESET EQ NATURAL/ROCK/POPS/EASY/TOP40/JAZZ/POWERFUL/USER:
Selects a preset equalizer suitable to the music genre.
(Select [USER] to use the settings made in [MANUAL EQ].)
BASS BOOST LEVEL1/LEVEL2/LEVEL3/LEVEL4/LEVEL5: Selects your preferred
bass boost level. ; OFF: Cancels.
LOUDNESS LEVEL1/LEVEL2: Selects your preferred low and high frequencies
boost to produce a well-balanced sound at a low volume level. ;
OFF: Cancels.
SUBWOOFER SET ON: Turns on the subwoofer output. ; OFF: Cancels.
FADER R15 to F15 (0): Adjusts the rear and front speaker output balance.
BALANCE L15 to R15 (0): Adjusts the left and right speaker output balance.
VOLUME OFFSET –15 to +6 (0): Preset the initial volume level of each source.
(Before adjustment, select the source you want to adjust.)
SOUND EFFECT
SOUND RECNSTR (Not applicable for RADIO source, AUX source and SIRIUS XM source.)
(Sound ON: Creates realistic sound by compensating the high-frequency
reconstruction) components and restoring the rise-time of the waveform that are
lost in audio data compression. ; OFF: Cancels.
SPACE ENHANCE (Not applicable for RADIO source.)
SMALL/MEDIUM/LARGE: Virtually enhances the sound space. ;
OFF: Cancels.
SND REALIZER LEVEL1/LEVEL2/LEVEL3: Virtually makes the sound more realistic. ;
OFF: Cancels.
STAGE EQ LOW/MIDDLE/HIGH: Virtually adjust the sound position heard from
the speakers. ; OFF: Cancels.
DRIVE EQ ON: Boosts the frequency to reduce the noise heard from outside the
car or running noise of the tyres. ; OFF: Cancels.
29
ENGLISH
