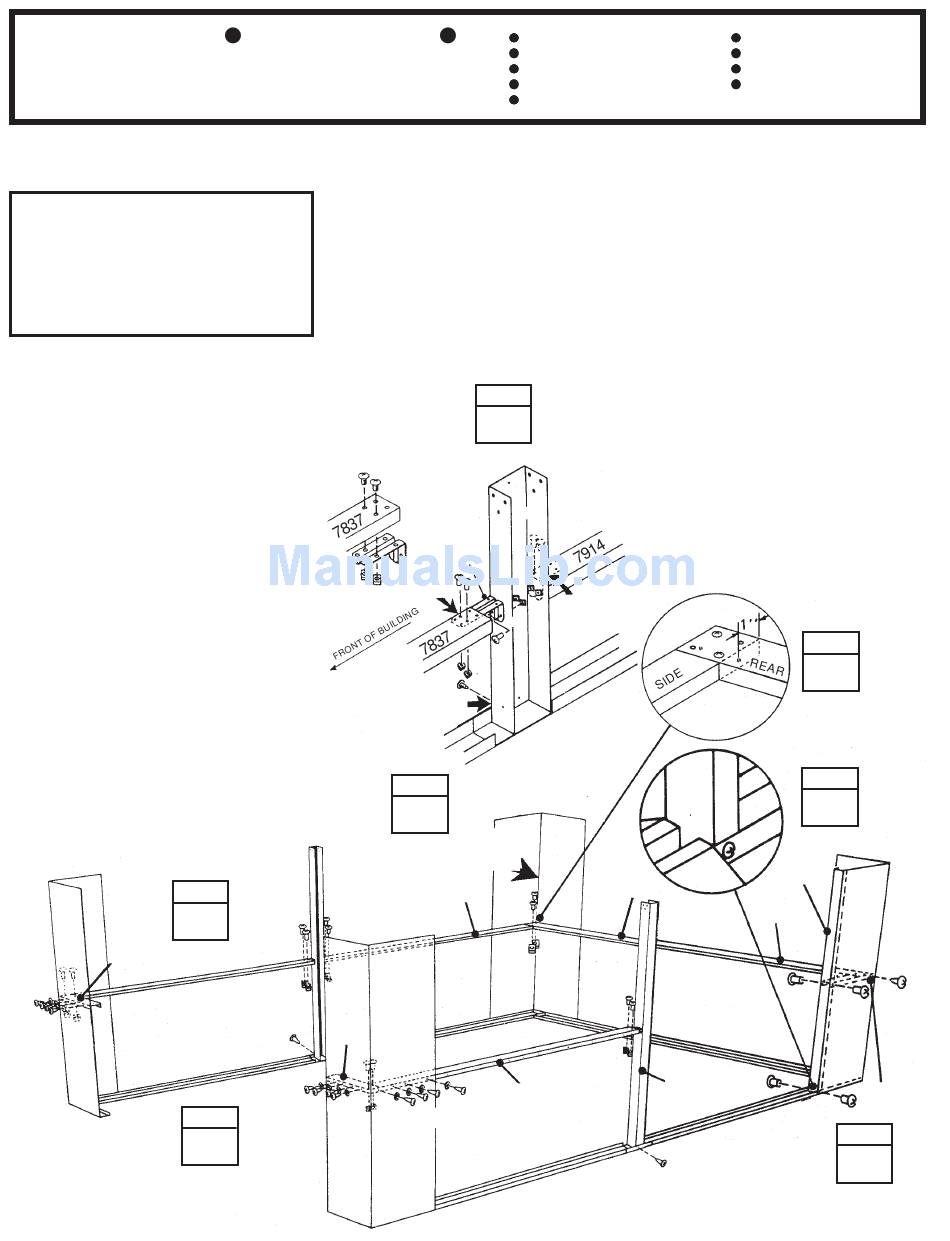

Step 8
BW20
The mid frame pieces give rigidity to
the side and rear wall.
NOTE
Before installing mid frames
decide at which location you
want the entrance door. Do not
install the 1x2 mid frame at 1 of 3
locations.
1
Fasten a rear frame assembly to
the main wall panels using screws.
2
Fasten a right and left front frame
to the front wall panels the same way.
3
Attach 4 frame supports to the
middle of the 2 truss columns using
2 bolts and nuts on each.
4
Fasten side frame 7914 to the rear
corner panel using screws. Be sure
set of holes 1" in from end of frame is
installed toward rear of building.
Where rear frame overlaps side frame
in corner, fasten using 2 bolts and
nuts. Fasten opposite end to frame
support on truss column, using 2 bolts
and nuts in the 1st set of holes. Fas-
ten truss support to truss column at
bottom with 1screw at the 1st hole on
column. Support column assembly
with step ladder.
STEP
7834
#10-32 Square Nut
STEP
20
Parts Needed For
Frames
12x17, 12x24 & 12x31
IF YOU ARE BUILDING A 12x24
Each side of building will have 2 column
assemblies and 2 extra side frames 7914.
IF YOU ARE BUILDING A 12x31
Each side of building will have 3 column
assemblies and 4 extra side frames 7914.
For a 12x24 building repeat
column procedure here
5
#10-32x7/16" Bolt
7835
2
Rear Frame Assembly (1)
7834 Right Front Frame (1)
7835 Left Front Frame (1)
7917 Truss Column (see below)
7914 Side Frame (see below)
STEP
3
7917
6228
2nd SET
OF HOLES
1st SET
OF HOLES
GAP
1st HOLE
ON COLUMN
GAP
STEP
4
7914
7837
#8Ax5/16" Screw
Support this truss column with a
7837 Side Frame (2)

6228 Frame Support (4)

7949 Side Wall Channel (1)
7951 Support Column (1)
5
Fasten side frame 7837 to the
front corner panel using screws. Fas-
ten overlap in corner. Fasten oppo-
site end to the frame support on truss
column, using 2nd set of holes. This
will leave a gap between side frame
and truss column.
6
Fasten side wall channel to the
rear corner panel using screws.
7
Fasten support column to side
frame and side wall channel using
bolts and nuts where shown. Fold
corner panel slightly away from col-
umn to fasten bolts from outside. See
Step 12 for rear door installation.
8532
8531
7917
step ladder until next step
STEP
1
STEP
7
7951
7949
STEP
6
