7855 Truss Lower Chord; 7856 Truss Upper Chord; 6382 Center Gable Brace 2; 7739 Truss Diagonal - Arrow VT1210-A Owner's Manual & Assembly Instructions

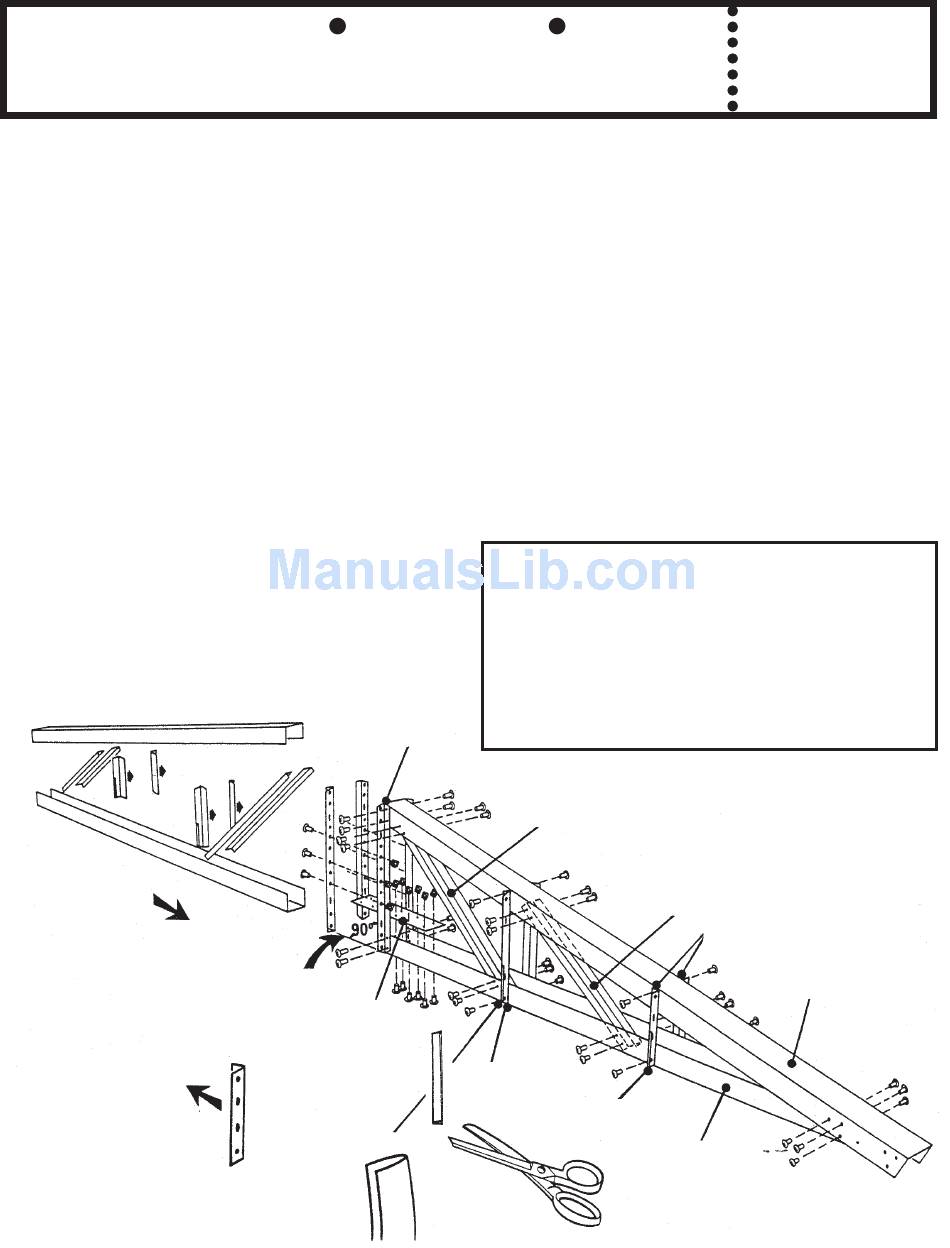

Step 1
BW14
1
Assemble 1/2 truss at a time, using
#10-32x7/16" bolts and square nuts,
on all connections loosely.
2
Attach truss lower chord to truss
upper chord.
3
Attach 2 center gable braces to
the upper and lower chords at the
opposite end of truss.
4
Attach 2 truss diagonals to upper
and lower chords.
5
Attach 2 mid gable braces to
upper and lower chords.
6
Attach 2 center gable braces to
upper and lower chords at middle of
truss.
7
Attach 2 outer gable braces to
upper and lower chords. Mount with
short leg of brace.
Mounting Flange of Brackets
Must Face Towards Center
Of Truss Assembly
14
Parts Needed For
Truss Assembly 12x17, 12x24 & 12x31
IMPORTANT:
Square Up
7738
Half Truss
Edge Trim
ONLY
The day before construction of the building, complete the sub-
assemblies so they will be ready. EXAMPLE: Truss, floor
frames, roof beams, gables, side and overhead doors. Set the
assemblies aside, so they will not get damaged.
The remainder of the building assembly requires more than
1 work session and more than 1 person. Do not continue
beyond this point if you do not have enough time to complete
the wall assembly and can tie down the assembly overnight.
6382 Complete the roof and doors on the following day.
7739
6381

7855 Truss Lower Chord (2)

7856 Truss Upper Chord (2)

6382 Center Gable Brace (8)

7739 Truss Diagonal (4)

6381 Mid Gable Brace (4)
6380 Outer Gable Brace (4)

7738 Splice Plate (1)

8
Square up 1/2 truss, adjust and
tighten.
9
Make other half and square.
10
Splice both halves together with
splice plate and fasten center gable
braces together, using 3 bolts and
nuts.
11
Cut the 4 pieces of edge trim in
half and slip over the bottom edges of
gable braces. This trim is a must to
protect against injury from the sharp
edge.
Make 1 assembly for the 12x17
Make 2 assemblies for the 12x24
Make 3 assemblies for the 12x31
NOTE
6382 Short
Mounting
Leg
6380
7855
#10-32x7/16" Bolt
7856
#10-32 Square Nut
