SOMFY EASY SUN IO Installation Manual

SOMFY EASY SUN IO Installation Manual

Hide thumbs Also See for EASY SUN IO:
Table of Contents

Advertisement

Quick Links

Enlarged version
www.somfy.com
5063082X00_EasySun_io.indb 1
www.somfy.com
Easy Sun io
EN
Installation guide
ES
Guía de instalación
PT
Guia de instalação
Οδηγός εγκατάστασης
EL
E
NGLISH
Somfy hereby declares that this product conforms to the essential requirements and other
relevant provisions of Directive 1999/5/CE. A Declaration of Conformity is available at www.
somfy.com/ce. Usable in EU, CH and NO. Images are not contractually binding
Caution!
Note
E
SPAÑOL
Por la presente, Somfy declara que el producto cumple con los requisitos básicos y demás
disposiciones de la directiva 1999/5/CE. Podrá encontrar una declaración de conformidad
en la página web www.somfy.com/ce. Aplicable para la UE, Suiza y Noruega. Fotos no
contractuales.
Atención!
Observación
P
ORTUGUÊS
Pelo presente documento, a Somfy declara que o aparelho está conforme às exigências
fundamentais e às outras disposições pertinentes da directiva 1999/5/CE. Uma Declaração
de Conformidade encontra-se disponível na Internet, em www.somfy.com/ce. Utilizável na
UE, Suíça e Noruega.Imagens não contratuais.
Atenção!
Observação
E
ΛΛΗΝΙΚΑ
Με το παρόν έγγραφο, η Somfy δηλώνει ότι η συσκευή συμμορφώνεται με τις ουσιώδεις
απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1999/5/ΕΕ. Μια δήλωση συμμόρφωσης
διατίθεται στην ιστοσελίδα www.somfy.com/ce. Μπορεί να χρησιμοποιηθεί στην ΕΕ, την
Ελβετία και τη Νορβηγία. Φωτογραφίες δεν είναι συμβατική.
Προσοχή!
Παρατήρηση
30/03/10 11:11:46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EASY SUN IO and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY EASY SUN IO

Summary of Contents for SOMFY EASY SUN IO

  • Page 1 Note SPAÑOL Por la presente, Somfy declara que el producto cumple con los requisitos básicos y demás disposiciones de la directiva 1999/5/CE. Podrá encontrar una declaración de conformidad en la página web www.somfy.com/ce. Aplicable para la UE, Suiza y Noruega. Fotos no contractuales.
  • Page 2 Somfy Worldwide THE EASY SUN IO IN DETAIL Description of the remote control France : Kuwait: South Korea: Argentina: Somfy France Somfy Kuwait Somfy JOO Somfy Argentina Orange/green indicator light Tel. : +33 (0) 820 374 374 Tel: +965 4348906...

  • Page 3: Table Of Contents

    5.3 Adjusting the sunlight sensitivity threshold 8 6. Installation 6.1 Recommendations 6.2 Fixing the wall bracket 7. Tips and recommendations 7.1 Questions about the Easy Sun io? 7.2 Replacement of the batteries 8. Technical data Copyright © 2009 Somfy SAS. All rights reserved. 5063082X00_EasySun_io.indb 1...

  • Page 4: Introduction

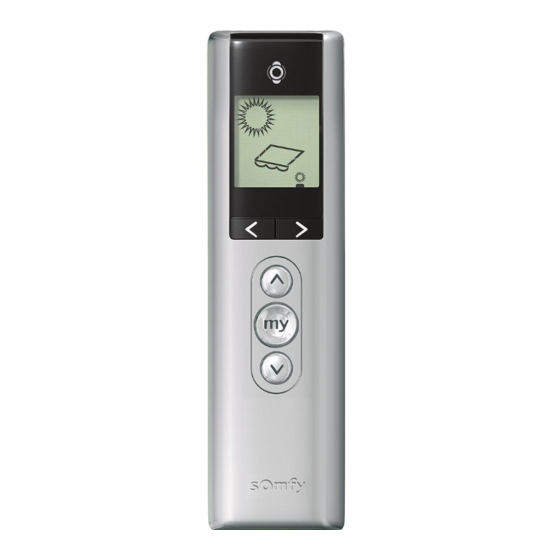

    1. INTRODUCTION The Easy Sun io is a remote control which allows the user to manage how much sun the facade receives using a sun sensor, and to obtain information on the sensors. It can be used to control up to 15 applications using io-homecontrol®...

  • Page 5: Safety

    Batteries 4. OPERATION The Easy Sun io can be used to control up to 5 groups of applications in manual mode, including 1 group (the 5th) which can also be controlled in automatic mode. The first 4 groups are numbered 1 to 4. The 5th group, known as the "Sun" group, is identified by the "...
  • Page 6 Easy Sun io 4.1.1 Selecting a group Hold the Easy Sun io (remove it from its magnetic bracket). It is now in manual mode. Select the group using The 5 groups drop down (4 manual groups and 1 automatic group).

  • Page 7: Operation In Automatic Mode

    This mode is used to activate the Sun function for applications in the "Sun" group. Make sure that a sun sensor is paired with the Easy Sun io to allow the applications linked to the "Sun" group to be controlled in automatic mode.

  • Page 8: Feedback

    The screen displays the “ ” symbol (alert) and the group of applications concerned. In automatic mode, the Easy Sun io gives a warning in the event of a breakdown or if the batteries for an associated sensor are run down.

  • Page 9: Setting

    The group of applications and the alert code appear. simultaneously to return to the standard screen. Press For the explanation of the alerts, see the section "Questions about the Easy Sun io?" 5. SETTING 5.1 Favourite position (“my”) It is recommended to program, modify or delete the individual favourite position for each application: •...

  • Page 10: Adjusting The Sunlight Sensitivity Threshold

    6. INSTALLATION 6.1 Recommendations The Easy Sun io wall bracket must be installed centrally between the products to be controlled. Choose an accessible location which allows easy consultation and use. The building in which the product is used might reduce the radio range. The radio range is 20m through 2 concrete walls.

  • Page 11: Fixing The Wall Bracket

    Easy Sun io 6.2 Fixing the wall bracket Affix the Easy Sun io bracket to the wall at a height that allows the display to be read easily. Drill two holes (5/6 mm in diameter) one above the other Ø 5/6 mm and approximately 37 mm apart.
  • Page 12 Local point. It is isolated from automatic control. Set it to automatic mode to control it automatically using the Easy Sun io. In manual mode: radio problem, the motor or receiver is not responding. The motor or receiver may be out of range or have no Radio power supply.

  • Page 13: Replacement Of The Batteries

    Safety level: Class III. Operating temperature: 0°C to +60°C. Dimensions of the Easy Sun io in mm (h x w x d): 165 x 45 x 22. Dimension of the bracket in mm (h x w): 77 x 29. Power supply: 2 AA (LR6) 1.5 V batteries.

  • Page 14: B. Sunis Wirefree™ Io And Sensor Box Io

    Once installed and paired to the Easy Sun io, the Sunis WireFree™ io detects the level of sunlight. The information is sent by the Sensor Box io to the Easy Sun io, which compares the level of sunlight with a preset sensitivity threshold to control the responses from the applications in the Sun group.

  • Page 15: Replacing The Batteries In The Sunis Wirefree™ Io

    Damaged electrical or electronic products, such as used batteries, should not be disposed of with household waste. Please take them to a collection point or an approved centre to ensure they are recycled correctly.. Copyright © 2009 Somfy SAS. All rights reserved. 5063082X00_EasySun_io.indb 13 30/03/10 11:12:07...
