Figure 6-3 MCB display after normal power-on
a: The keypad has display after power-on. If there is no display on the keypad, check whether the
power supply of the controller is normal.
b: If the input signal indicators shown in the preceding figure become ON, it indicates that the 24
VDC power supply is normal, and the X input terminals work properly. If none of the indicators is ON,
it indicates that the 24 VDC power supply is abnormal, and you need to eliminate the problem.
4.
Check the controller state and handle related faults accordingly as follows:
During commissioning especially at first-time power-on, certain faults may occur because the
conditions for automatic elevator running are not met and certain peripheral signals are not
connected.
Such faults include E41, E42, E35, E51, E52, and E58. The following part describes the MCB state
at fault and handling of these faults.
●
MCB state at occurrence of E41, E42, E35, E51, E52, and E58

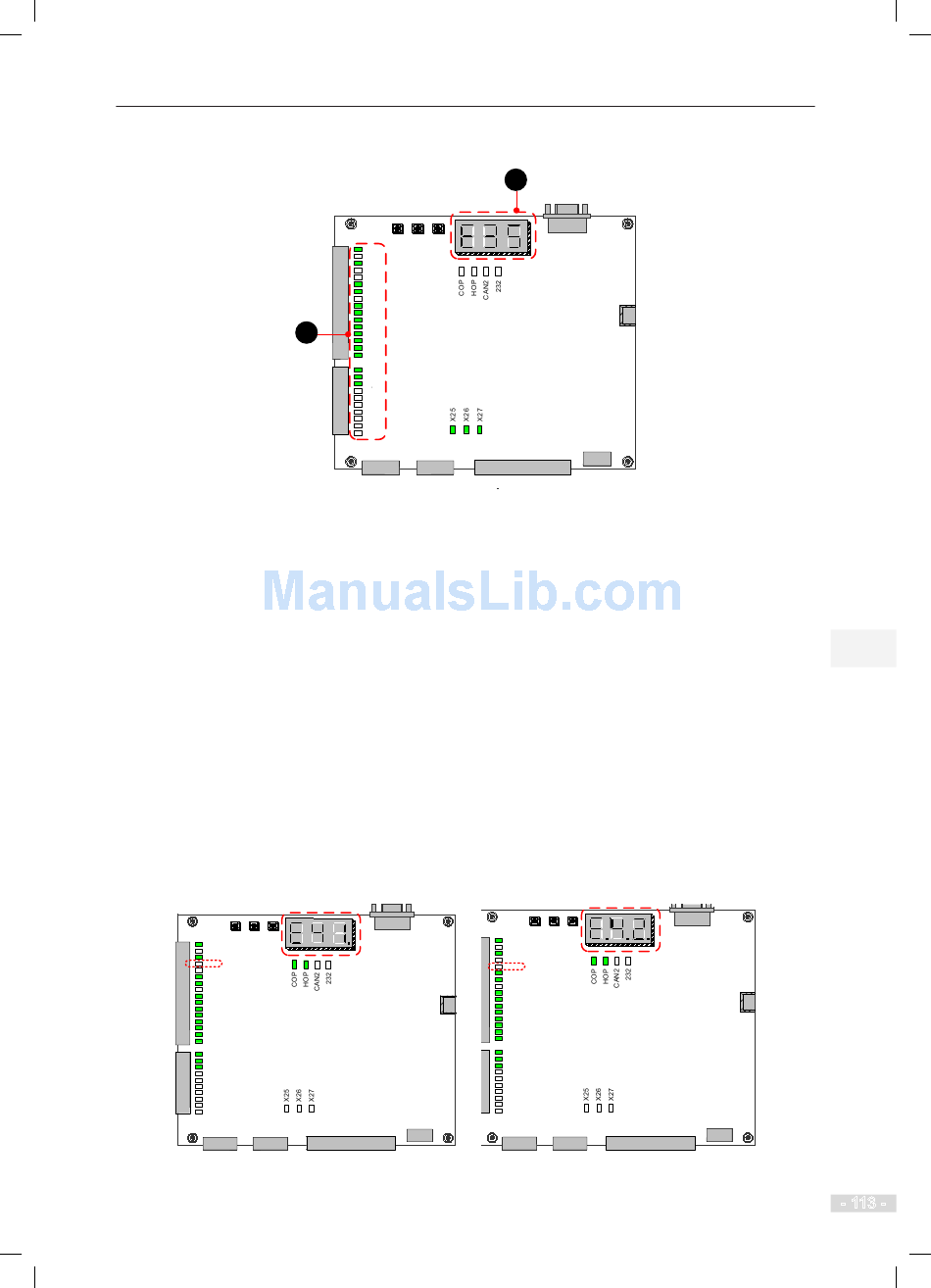

Figure 6-4 MCB state at faults during commissioning
CN1
PRG UP SET
X1
X2
X3
X4
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
X16
X17
X18
X19
X20
X21
X22
X23
X24
CN9
CN3
CN2
CN1
PRG UP SET
X1
X2
X3
X4
X5
X6
X7
X8
X9
X10
X11
X12
2
X13
X14
X15
MCTC-MCB-C2
X16
X17
X18
X19
X20
X21
X22
X23
X24
CN9
CN3
CN2
Note 1: There is display on the keypad.
Note 2: Certain inputs on the MCB are active.
MCTC-MCB-C2
CN4
CN7
6 System Commissioning and Functions
1
CN4
CN7
CN1
PRG UP SET
X1
X2
X3
X4
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
MCTC-MCB-C2
X16
X17
X18
X19
X20
X21
X22
X23
X24
CN9
CN3
CN2
CN7
6
CN4
