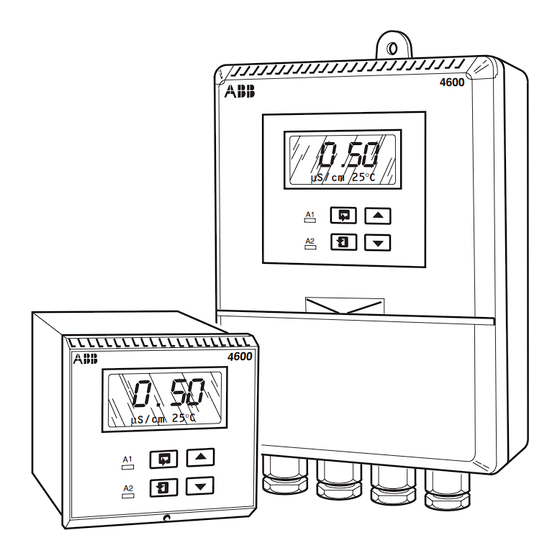

- Page 1 4600 Series Operating Instructions Models 4623 and 4628 Conductivity Transmitters To Meet United States Pharmacopœia (USP 23) Regulations 0 .50 µS/cm 25°C µS/ cm 25° C...
- Page 2 St Neots, U.K. – Cert. No. Q5907 environmental applications. Stonehouse, U.K. – Cert. No. FM 21106 As a part of ABB, a world leader in process automation technology, we offer customers application expertise, service and support worldwide. EN 29001 (ISO 9001) We are committed to teamwork, high quality manufacturing, advanced technology and unrivalled service and support.
-
Page 3: Table Of Contents
CONTENTS Section Page Section Page INTRODUCTION ............2 CONTROLS AND DISPLAYS ........14 Displays ............14 PREPARATION ............2 Control Familiarisation ........14 Checking the Code Number ......2 2.1.1 Wall-/Pipe-mounted Instruments ..2 OPERATION ............... 15 2.1.2 Panel-mounted Instruments ....2 Instrument Start-up ......... -
Page 4: Introduction
Pharmacopœia (USP 23) requirements for continuous monitoring and control of the conductivity of demineralised water, and de-ionised water. The 4623 model is a wall-mounted instrument and the 4628 4623/500 model a panel-mounted, DIN sized instrument. Both instruments have a single programmable conductivity input (Wall-Mounted Model) channel and a single temperature input channel. -
Page 5: Conductivity Cells
2 PREPARATION 2.1.3 Conductivity Cells – Fig. 2.3 Basic Type No. Version Constant (K) Process Temperature Connection Compensation Type Code Characters 1, 2 3, 4, 5 22 Electrolytic 78/ Stainless steel 0.05 2in. Tri-clover None conductivity Hygienic fitting measuring Pt100 cells resistance thermometer... -
Page 6: Mechanical Installation
3 MECHANICAL INSTALLATION 3.1 Siting Requirements 3.1.1 Instruments – Fig. 3.1 3.1.2 Conductivity Cells – Fig. 3.2 Caution. Caution. Ensure that the integral cable (where applicable) does not hang against hot or abrasive objects • Mount in a location free from excessive vibration. when the plug is connected to the bulkhead socket. -
Page 7: Mounting
3 MECHANICAL INSTALLATION… 3.2 Mounting 3.2.1 Wall-/Pipe-mounted Instruments – Figs. 3.3 and 3.4 Dimensions in mm (in) (1.65) 68 (2.68) 160 (6.3) (8.43) (9.13) (9.84) Allowance for 69 (2.72) 200 (7.9) Cable Bends Fixing Centres 61 (2 ) O.D. Vertical or Horizontal Post Fig. -
Page 8: Panel-Mounted Instruments
…3 MECHANICAL INSTALLATION …3.2 Mounting 3.2.2 Panel-mounted Instruments – Figs. 3.5 and 3.6 Dimensions in mm (in) +0.03 96 (3.78) 12 (0.47) 191 (7.52) +0.8 (3.62 –0 –0 +0.8 –0 Panel Cut-out +0.03 (3.78) (3.62 –0 Fig. 3.5 Overall Dimensions Cut a hole in the panel (see Fig. -
Page 9: Cleaning Conductivity Cells
3 MECHANICAL INSTALLATION 3.3 Cleaning Conductivity Cells 3.4.2 Model 2278 Cell Dimensions – Fig. 3.8 Before installing a conductivity cell, clean the electrodes as follows. Dimensions in mm Gasket 3.3.1 Stainless Steel Conductivity Cells Tri-Clamp Unscrew the outer electrode and thoroughly clean it with a Welded nylon-bristle brush (supplied) and a warm detergent solution. -
Page 10: Electrical Connections
4 ELECTRICAL CONNECTIONS Warning. Before making any connections, ensure that the power supply, any high voltage-operated control circuits and high common mode voltages are switched off. 4.1 Access to Terminals 4.1.1 Wall-/Pipe-mounted Instruments – Fig. 4.1 Remove protection cover slide Slacken down captive... -
Page 11: Connections, General
4 ELECTRICAL CONNECTIONS… 4.2 Connections, General Information. • Earthing (grounding) – stud terminal(s) is (are) fitted to the transmitter case for bus-bar earth (ground) connection – see Fig. 4.1 or 4.5. • Cable lengths – the integral cable may be extended using a suitable junction box but the total cable length must not exceed 164 ft. -
Page 12: Wall-/Pipe-Mounted Instrument Connections
…4 ELECTRICAL CONNECTIONS 4.3 Wall-/Pipe-mounted Instrument Connections – Fig. 4.4 ✶ Note. Refer to Fig. 4.1 for Access to Terminals. Caution. Slacken terminal screws fully before making connections. 5 6 7 – Channel 1 Channel 2 Serial Retrans. Relay 1 Power (If fitted) Relay 2... -
Page 13: Panel-Mounted Instrument Connections
4 ELECTRICAL CONNECTIONS… 4.4 Panel-mounted Instrument Connections – Fig. 4.5 ✶ Note. Refer to Fig. 4.2 for Access to Terminals. Caution. Slacken terminal screws fully before making connections. Earth (Ground)Stud Retransmission Rx– RS422/RS485 – Output Retrans output Serial Interface (if fitted) Tx–... -
Page 14: Selecting The Mains Voltage
…4 ELECTRICAL CONNECTIONS 4.5 Selecting the Mains Voltage 4.5.1 Wall-/Pipe-mounted Instruments – Fig. 4.6 Remove cap Information. Use a small, and screw flat-bladed screwdriver to remove the screw cap from the case. Remove front panel Slacken captive screws and remove protection covee Select the mains voltage required... -
Page 15: Conductivity Cell And Bulkhead Socket Connections
4 ELECTRICAL CONNECTIONS 4.6 Conductivity Cell and Bulkhead Socket Connections – Fig. 4.8 Information. Use only the recommended cables: J/0233/811 (cell electrodes) J/0233/819 (temperature compensator only) ✶ Note. Socket viewed from inside. Brown Black Green/Yellow White Blue 0233/819 Cable 0233/811 Cable Fig. -
Page 16: Controls And Displays
5 CONTROLS AND DISPLAYS 5.1 Displays – Fig. 5.1 The display comprises a 5-digit, 7-segment digital upper Advance to display line and a 16-character dot-matrix lower display line. next page The upper display line shows actual values of conductivity, Page 1 Page 2 temperature, alarm set points or programmable parameters. -
Page 17: Operation
6 OPERATION 6.1 Instrument Start-up Ensure all electrical connections have been made correctly and switch on. 6.2 Operating Page is a general use page in which parameters are viewed only and cannot be altered. To alter or program a Operating Page parameter refer to the programming pages in Section 7. -
Page 18: Programming
7 PROGRAMMING... -
Page 19: Access To Secure Parameters
7 PROGRAMMING… 7.1 Access to Secure Parameters A 5-digit security code is used to prevent tampering with the secure parameters. Security Code 0 0 0 0 0 Enter the required code number, between 00000 and 19999, to gain access to the secure parameters. -
Page 20: Set Up Alarms Page
…7 PROGRAMMING 7.4 Set Up Alarms Page – press to advance to next parameter – – – – – – press to advance to next page. SET UP ALARMS These two keys are used to advance to all subsequent parameters and pages. If a parameter is changed it is automatically stored on operation of either key. - Page 21 7 PROGRAMMING… …7.4 Set Up Alarms Page Alarm 2 Type – – – – – Repeat as for on the previous page. Alarm 1 type A2 Type USP – The alarm setpoint changes automatically with temperature – see table 7.1. Fail Temp Cond...
-
Page 22: Set Up Retransmission Page
…7 PROGRAMMING 7.5 Set Up Retransmission Page – press to advance to next parameter – – – – – – press to advance to next page. SET UP RETRANS These two keys are used to advance to all subsequent parameters and pages. If a parameter is changed it is automatically stored on operation of either key. - Page 23 7 PROGRAMMING …7.5 Set Up Retransmission Page Set Up Retransmission 2 – – – – – Note. Available only on 4623/800 and 4628/800 instruments. Set Up Retrans 2 Retransmission 2 Output Range – – – – – Set the retransmission output current range for retransmission channel 2.
-
Page 24: Calibration
8 CALIBRATION ✶ Note. The instrument is calibrated by the Company prior to despatch and recalibration should be carried out: • Only if the instrument's accuracy is suspect and suitably calibrated test equipment is available. • At 12 monthly intervals for re-validation provided suitably calibrated test equipment is available. 8.1 Equipment Required a) Decade resistance box (cell input simulator): 0 to 10KΩ... -
Page 25: Factory Settings Page
8 CALIBRATION… 8.3 Factory Settings Page xxxxx When carrying out the electrical calibration procedure, the actual values denoted by are unimportant and are used only to determine display reading stability. – – – – – FACTORY SETTINGS Factory Settings Access Code 0 0 0 0 0 Enter the required code number, between 00000 and 19999, to gain access to the factory settings. - Page 26 Note. The retransmission range selected in the does Set Up Retransmission Page not affect the reading. Advance to next parameter. Adjust Retransmission 2 Zero (available only on 4623/800 and 4628/800 instruments) – – – – – Set the milliammeter reading to 4mA. Adjust RTX Zero2 ✶...
-
Page 27: Simple Fault Finding
9 SIMPLE FAULT FINDING 9.1 Error Messages Failure to respond to the input indicates a fault with the instrument which must be returned to the Company for repair. If erroneous or unexpected results are obtained the fault may be indicated by an error message – see Table 9.1. However Correct response, but with incorrect readings, usually some faults may cause problems with instrument calibration or indicates an electrical calibration problem. -
Page 28: Specification
95% RH non-condensing. Red l.e.d. No. of relays: Mechanical Data Two. Mounting: Relay contacts: Model 4623 wall mounting, Model 4628 panel mounting. Single pole changeover Protection: Rating: 250V a.c. 50V d.c. max. Model 4623 IP66, Model 4628 IP66 (front only). -
Page 29: Appendices
However, models Fig. A1 Theoretical Ultra-pure Water Conductivity and 4623 and 4628 now utilize the computational ability of a High Purity Water Conductivity v Temperature microprocessor to achieve ultra-pure water temperature... - Page 30 NOTES...
-
