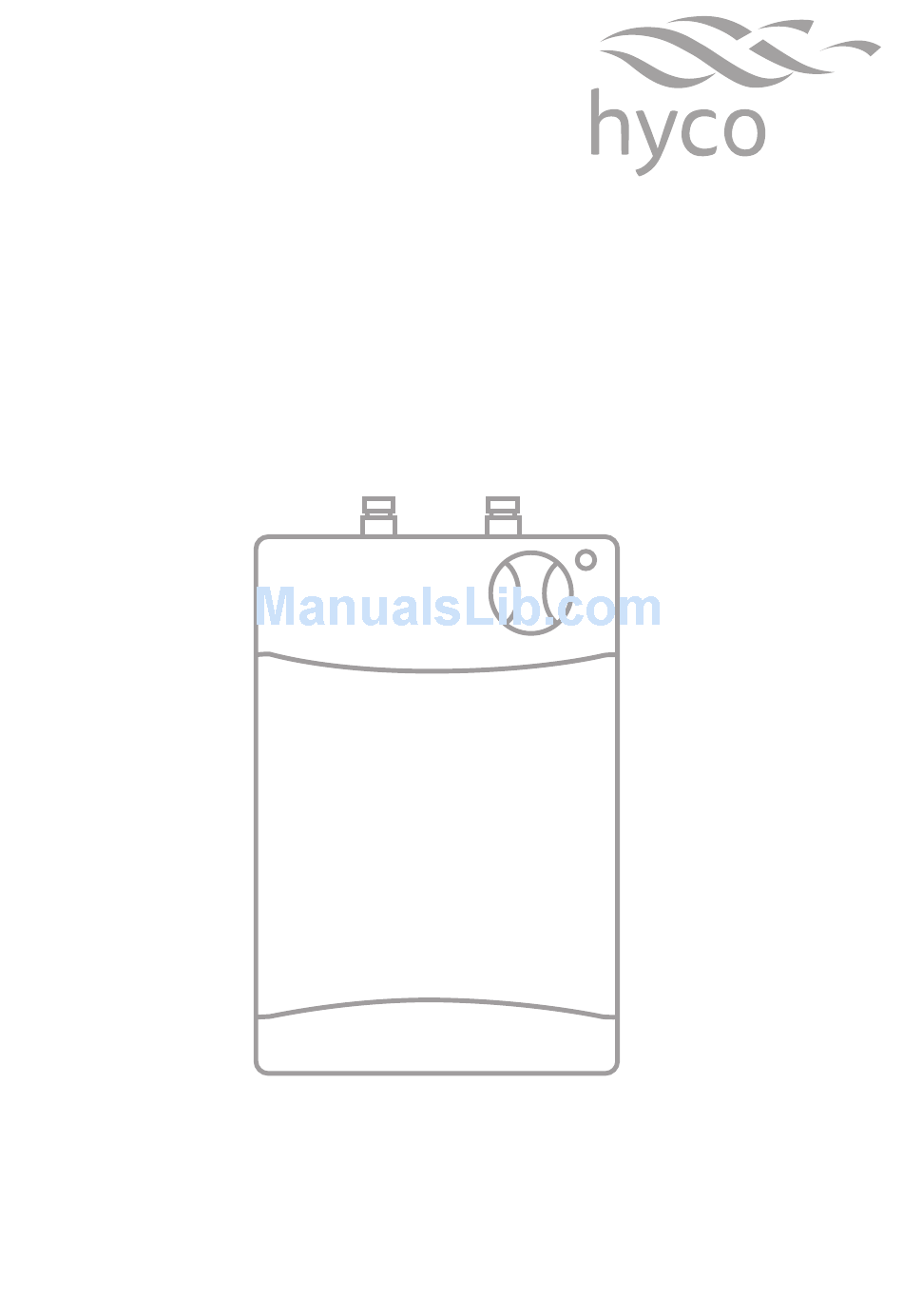

- Page 1 Product Instruction Manual Handyflow Undersink HF05MVC 5L vented point of use water heater Version 3.2 Jan 2015 V15.6/5...
- Page 2 Thank you for purchasing the Hyco Handyflow undersink water heater. The unit comes pre-wired and complete with a vented mixer tap and flexible hoses. The Handyflow is ideal for occasional use, light dishwashing at a single kitchen sink in the workplace, for example portable buildings, offices, shops, workshops, garages and other small commercial premises.
- Page 3 Tighten all connections to prevent from leaking. The diagram above shows a typical installation with the Hyco Vented mixer tap HFTAPQ. • All fittings are provided so connection can be made via 15mm compression fittings. • Please follow manufacturer’s instructions provided with the vented tap.
- Page 4 Electrical • The Electrical installation must be carried out by a qualified electrician in accordance with the current edition of the I.E.E. Wiring Regulations. • Only connect the appliance to a single phase supply with a mains voltage as specified on the rating plate. •...
- Page 5 3. Operation Switch on power to the unit and select the desired temperature setting 1. The indicator is lit when the element is on. Frost protection. Element will switch on when water temperature falls below 7°C Heats water to approx 25°C Economy position.
-
Page 6: Specifications
4. Specifications Voltage 230v~50Hz Power 2.0kW Capacity IP Rating IP24 Weight 3.5kg 400mm 180mm 270mm... - Page 7 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
- Page 8 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
