Preface
The purpose of this publication is to provide the service
technician with information for troubleshooting, testing,
and repair of major systems and components on the
Greensmaster 3250--D (Model 04383).
REFER TO THE TRACTION UNIT AND CUTTING
UNIT OPERATOR'S MANUALS FOR OPERATING,
MAINTENANCE AND ADJUSTMENT INSTRUC-
TIONS. Space is provided in Chapter 2 of this book to
insert the Operator's Manuals and Parts Catalogs for
your machine. Additional copies of the Operator's
Manuals and Parts Catalog are available on the internet
at www.Toro.com.
The Toro Company reserves the right to change product
specifications or this publication without notice.
E The Toro Company - - 2000, 2003, 2004, 2005, 2006, 2007, 2009, 2012
Greensmaster
This safety symbol means DANGER, WARNING,
or CAUTION, PERSONAL SAFETY INSTRUC-
TION. When you see this symbol, carefully read
the instructions that follow. Failure to obey the
instructions may result in personal injury.
Note: A Note will give general information about the
correct operation, maintenance, service, testing, or re-
pair of the machine.
IMPORTANT: The IMPORTANT notice will give im-
portant instructions which must be followed to pre-
vent damage to systems or components on the
machine.
Part No. 00062SL (Rev. J)

Service Manual

(Model 04383)
R
3250- -D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Greensmaster 3250-D 04383 and is the answer not in the manual?

Questions and answers

Paragalathan Govender
February 14, 2025

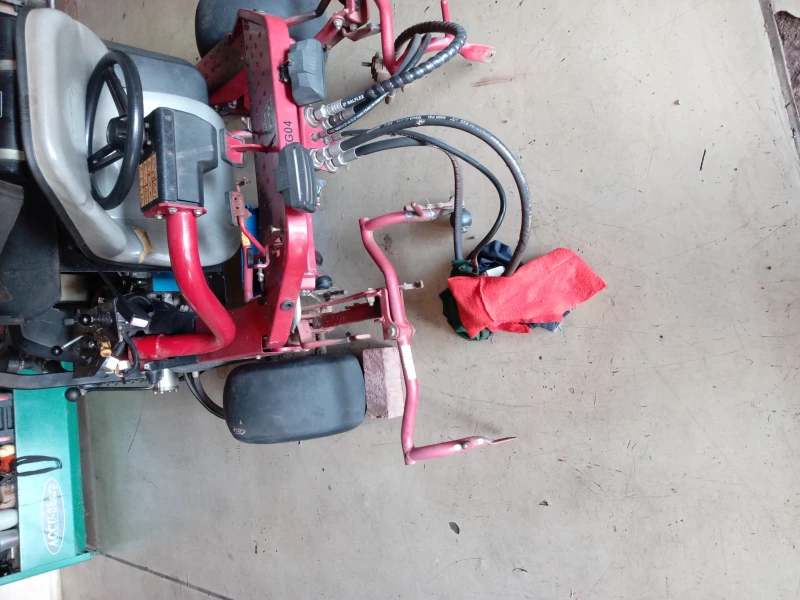

Toro 3250D units not picking up.
