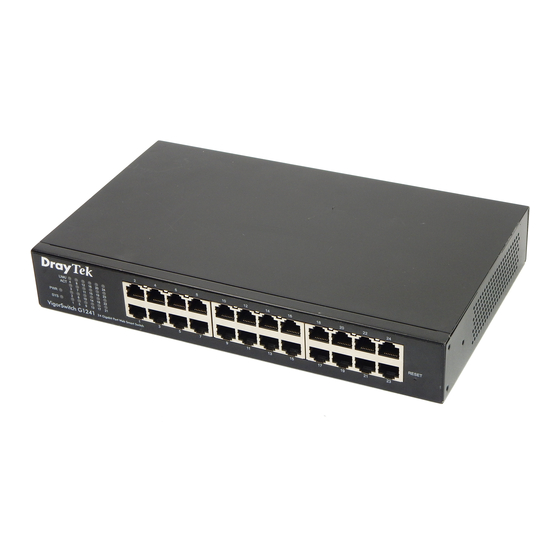

Summary of Contents for Draytek VigorSwitch G1241

  • Page 2 VigorSwitch G1241 User’s Guide...

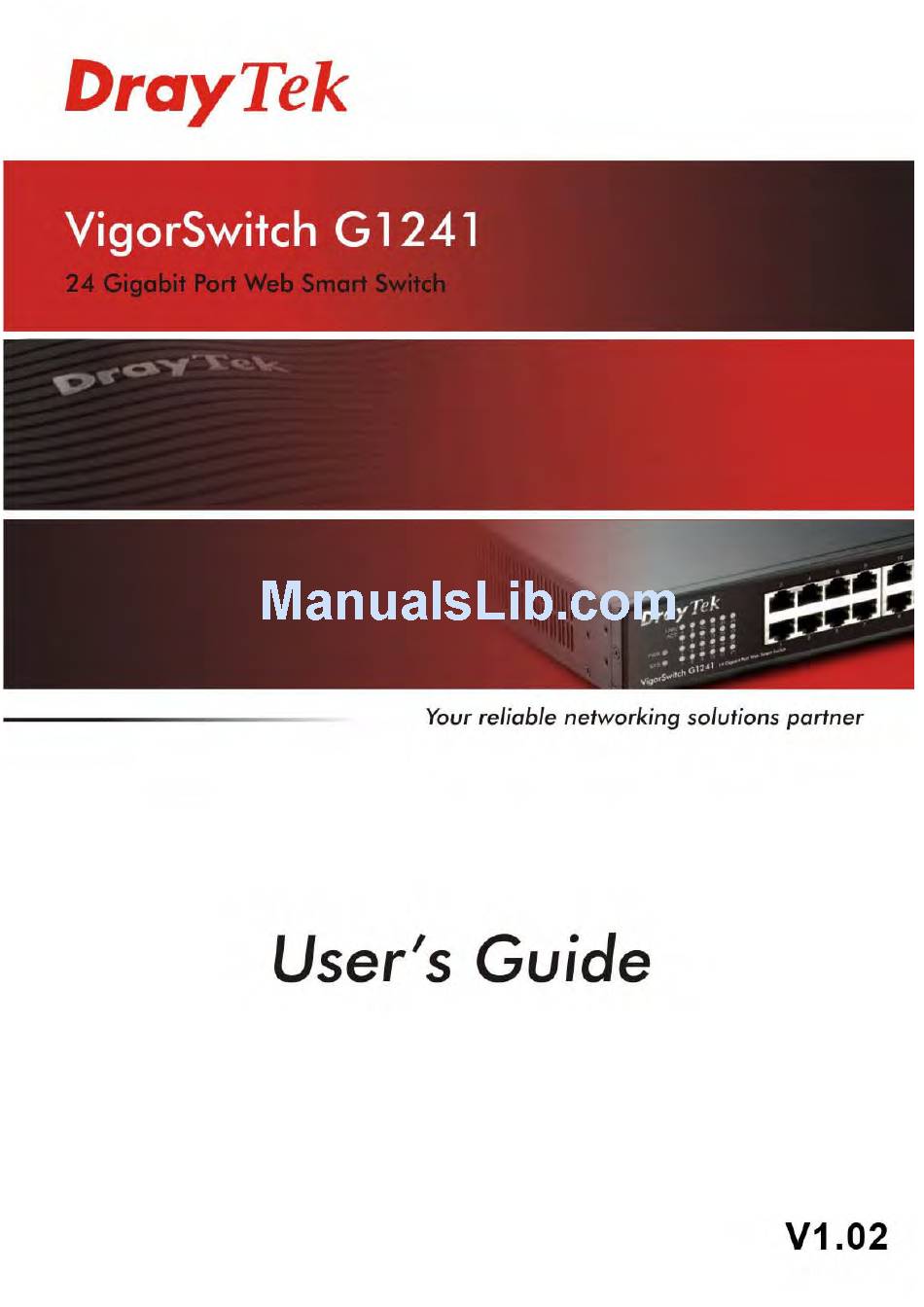

  • Page 3 VigorSwitch G1241 24 Gigabit Port Web Smart Switch User’s Guide Version: 1.02 Firmware Version: V1.2 Date: April 9, 2015 (For future update, please visit DrayTek web site for further information) VigorSwitch G1241 User’s Guide...
  • Page 4 Web registration is preferred. You can register your Vigor device via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all devices will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
  • Page 5 Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. All trade names and trademarks are the properties of their respective companies. VigorSwitch G1241 User’s Guide...

  • Page 6: Table Of Contents

    3.2.6 IGMP Snooping Statistics ....................39 3.3 Network ..........................41 3.3.1 IP Address ........................41 3.3.2 IPv6 Address ........................42 3.3.3 Management VLAN ......................43 3.3.4 Time Settings........................44 3.4 Switching..........................46 3.4.1 Port Setting ........................46 VigorSwitch G1241 User’s Guide...
  • Page 7 3.9.6 Reboot Switch....................... 108 3.10 Maintenance........................108 3.10.1 Backup Manager......................108 3.10.2 Upgrade Manager....................... 110 3.10.3 Configuration Manager ....................111 3.10.4 Account Manager......................112 Trouble Shooting..................113 4.1 Resolving No Link Condition....................113 4.2 Q & A ............................113 VigorSwitch G1241 User’s Guide...

  • Page 9: Introduction

    It could efficient to save the switch power and reduce the power consumption. The VigorSwitch G1241, a standalone off-the-shelf switch, provides the comprehensive features listed below for users to perform system network administration and efficiently and securely serve your network.

  • Page 10: Packing List

     VigorSwitch G1241  AC Power Cord  CD & Quick Start Guide  Rubber feet  Rack mount kit Please notify your sales representative immediately if any of the aforementioned items is missing or damaged. VigorSwitch G1241 User’s Guide...

  • Page 11: Led Indicators And Connectors

    Press the RESET button for three seconds and release. The switch automatically reboots and reloads its factory configuration file. The RESET button is on the front panel of the switch. LAN P1 – P24 Giga Ethernet Port. VigorSwitch G1241 User’s Guide...

  • Page 12: Hardware Installation

    Here VLAN area is defined by what VLAN you are using. The switch supports both port-based VLAN and tag-based VLAN. They are different in practical deployment, especially in physical location. The following diagram shows how it works and what the difference they are. VigorSwitch G1241 User’s Guide...
  • Page 13 Insert the screws and fully tighten with a suitable screwdriver. Repeat the two previous steps for the other side of the unit. Insert the unit into the rack and secure with suitable screws. Reconnect all the cables. VigorSwitch G1241 User’s Guide...
  • Page 14 To choose a suitable cable, please refer to the following table. Media Speed Wiring 10 Mbps Category 3,4,5 UTP/STP 10/100/1000 100Mbps Category 5 UTP/STP Mbps copper 1000 Mbps Category 5e, 6 UTP/STP VigorSwitch G1241 User’s Guide...

  • Page 15: Configuring The Management Agent Of Switch

    Users can monitor and configure the switch through the following procedures. Configuring the Management Agent of VigorSwitch G1241 through the Ethernet Port. There are two ways to configure and monitor the switch through the switch’s Ethernet port. They are Web browser and SNMP manager. We just introduce the first type of management interface.

  • Page 16: Ip Address Assignment

    IP address range between 192.0.0.0 and 223.255.255.255. Each class C network has a 24-bit network prefix followed 8-bit host address. There are 2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 –2) hosts per network. VigorSwitch G1241 User’s Guide...
  • Page 17 They are the addresses with all zero’s and all one’s host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast. VigorSwitch G1241 User’s Guide...
  • Page 18 In this case, subnet mask must be applied. For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. VigorSwitch G1241 User’s Guide...
  • Page 19 192.168.1.x must be set on your PC. Second, Subnet Mask: as shown above, enter “255.255.255.0”. Any subnet mask such as 255.255.255.x is allowable in this case. Note: The DHCP Setting is enabled in default. VigorSwitch G1241 User’s Guide...

  • Page 20: Typical Applications

    Peer-to-peer application is used in two remote offices The switch image is sample only.)  Office Network Connection The switch image is sample only.) VigorSwitch G1241 User’s Guide...

  • Page 21: Basic Concept And Management

    (MAC), and physical layer. The first two comprises Data link layer, which performs splitting data into frame for transmitting, receiving acknowledge frame, error checking and re-transmitting when not received correctly as well as provides an error-free channel upward to network layer. VigorSwitch G1241 User’s Guide...
  • Page 22 Information. The DSAP address field identifies the one or more service access points, in which the I/G bit indicates it is individual or group address. If all bit of DSAP is 1s, it’s a global address. The SSAP address field identifies the specific services indicated by C/R bit VigorSwitch G1241 User’s Guide...

  • Page 23: Media Access Control (Mac)

    In OSI model, each layer provides its own mean to identify the unique address in some form, for example, IP address in network layer. VigorSwitch G1241 User’s Guide...
  • Page 24 The SFD pattern is 10101011. Destination address (DA) - The DA field is used to identify which network device(s) should receive the packet. It is a unique address. Please see the section of MAC addressing. VigorSwitch G1241 User’s Guide...
  • Page 25 After the frame is assembled, when transmitting the frame, the preamble (PRE) bytes are inserted and sent first, then the next, Start of frame Delimiter (SFD), DA, SA and through VigorSwitch G1241 User’s Guide...
  • Page 26 Actually, the practice Gigabit Ethernet chips do not feature this so far. They all have their chips supported full-duplex mode only, as well as all network vendors’ devices. So this criterion should not exist at the present time and in the future. The switch’s Gigabit module supports only full-duplex mode. VigorSwitch G1241 User’s Guide...
  • Page 27 What will it be if receiving device is busy and a frame is coming at the same time? Can it use “backpressure” to tell the source device? A function flow control is introduced in the full-duplex operation. VigorSwitch G1241 User’s Guide...

  • Page 28: Flow Control

    When the times of collision is increased, the backoff time is getting long until the collision times excess 16. If this happens, the frame will be discarded and backoff time will also be reset. VigorSwitch G1241 User’s Guide...
  • Page 29 VLAN ID, which are explained respectively in the following table. Bits 15-13 User Priority 7-0, 0 is lowest priority Bit 12 CFI (Canonical Format Indicator) 1: RIF field is present in the tag header 0: No RIF field is present VigorSwitch G1241 User’s Guide...

  • Page 30: How Does A Switch Work

    LAN. When more than one station transmits data within the same slot time, the signals will collide, referred to as collision. The arbitrator will arbitrate who should gain the media. The arbitrator is a VigorSwitch G1241 User’s Guide...
  • Page 31 There is no need the access contention (e.g. Collision). They have their own access domain. But, collision still could happen between the host and the switch port.  When performing the full duplex, the collision vanishes.  The host owns a dedicated bandwidth of the port. VigorSwitch G1241 User’s Guide...
  • Page 32 MAC address has resided and keeps no update in the table for a long time, this means the traffic using that entry has yet come for a while. If this time period is more than the VigorSwitch G1241 User’s Guide...

  • Page 33: Virtual Lan

    MAC address and so on. In other words, they can communicate with each other between separated small physical LANs within a LAN but can not be between any two separated logical LANs. The switch image is sample only.) VigorSwitch G1241 User’s Guide...
  • Page 34 The traffic will not disturb among these logical networks. The users 1x (x denotes a ~ d) are members of VLAN 1. Any traffic within VLAN 1 does not flow to VLAN 2 and VigorSwitch G1241 User’s Guide...
  • Page 35 VLAN-tagged frame: An Ethernet frame, carrying VLAN tag field, contains VLAN identification without the value of 0 and 4095, and priority information. Priority-tagged frame: An Ethernet frame, carrying VLAN tag field, contains VLAN identification with the value of 0 and priority information. VigorSwitch G1241 User’s Guide...
  • Page 36 An egress list is used to make the tagging and forwarding decision on an outgoing port. It specifies the VLANs whose packets can be transmitted out and specifies if the packet should be tagged or not. It can be configured for port’s VLAN membership, and tagged or VigorSwitch G1241 User’s Guide...
  • Page 37 VLAN exists. If VLAN does not exist, then drop the packet, and if both DA and VLAN do not exist, forwards the packet. If just knows VLAN existed, then floods the packet to all the ports the VLAN covers. VigorSwitch G1241 User’s Guide...
  • Page 38 Because there are total four VLANs in the network, we must assign 4 IP blocks to each of them. Name Port Members Marketing 10.1.2.0/24 Service 10.1.3.0/24 Sales 10.1.4.0/24 Administration 10.1.1.0/24 Here we apply the subnet mask 255.255.255, and each VLAN is capable of supporting 254 nodes. VigorSwitch G1241 User’s Guide...

  • Page 39: Operation Of Web-Based Management

    <Apply> button. The login process now would be completed. Web Smart Switch supports a simplified user management function which allows only one administrator to configure the switch at one time. To optimize the display effect, we recommend Microsoft IE and 1024x768 display resolution. VigorSwitch G1241 User’s Guide...

  • Page 40: Web Management Home Overview

    As to the function names in normal type are the sub-functions. When clicking it, the function is performed. The following list is the main function tree for web user interface. VigorSwitch G1241 User’s Guide...

  • Page 41: Status

    IP address The IP address of the switch. Subnet Mask Display the active subnet mask of this switch. Display the active gateway of this switch. Gateway Loader Version Display the boot loader version in this switch. VigorSwitch G1241 User’s Guide...

  • Page 42: Logging Message

    Logs store in file. Severity Select severity to filter log messages. Select category to filter log messages. Category Logging Information Display the name and value selected.  Clear buffered messages Logging Messages  Refresh – Refresh current status page. VigorSwitch G1241 User’s Guide...

  • Page 43: Port

    Function name: Port Counters Function description: Display port summary and status information. Parameter description: Port This identifies the Ethernet port. VigorSwitch G1241 User’s Guide...
  • Page 44 Parameter description: Refresh the web page every period of seconds Refresh Period Inter frame gap in bandwidth calculation  Enable: Add inter frame gap to bandwidth calculation.  Disable: Remove inter frame gap to bandwidth calculation. VigorSwitch G1241 User’s Guide...

  • Page 45: Link Aggregation

    LAG are candidate ports. LACP determines which candidate ports are active member ports. Link State LAG port link status. Active Member Active member ports of the LAG. Standby Member Inactive or candidate member ports of the LAG. VigorSwitch G1241 User’s Guide...

  • Page 46: Lldp Statistics

    MSAP could not be entered into tables Drops associated with the remote systems because of insufficient resources. The number of times the complete set of information Age Outs advertised by MSAP has been deleted from tables VigorSwitch G1241 User’s Guide...

  • Page 47: Igmp Snooping Statistics

    By listening to these conversations the switch maintains a map of which links need which IP multicast streams. Multicasts may be filtered from the links which do not need them and thus controls which ports receive specific multicast traffic. VigorSwitch G1241 User’s Guide...
  • Page 48 General Query TX This field displays the total amount of Special Group Special Group Query TX query TX. Special Group & Source This field displays the total amount of Special Group& Source query TX. Query TX VigorSwitch G1241 User’s Guide...

  • Page 49: Network

    255.255.255.0. If static mode is enabled, enter subnet mask in this field. Gateway Enter the IP address of the gateway in dotted decimal notation. If static mode is enabled, enter gateway address in this field. VigorSwitch G1241 User’s Guide...

  • Page 50: Ipv6 Address

    DHCPv6 client state.  Enable: Enable DHCPv6 client function.  Disable: Disable DHCPv6 client function Apply Save the settings or changes to the switch. IPv6 Information Auto Configuration Display whether the auto configuration function is opened or not. VigorSwitch G1241 User’s Guide...

  • Page 51: Management Vlan

    Management stations that are on VLANs other than the one selected here will not be able to manage the Switch. The default management VLAN is VLAN 1. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 52: Time Settings

     USA: Using daylight saving time in the United States that starts on the second Sunday of March and ends on the first Sunday of November  European: Using daylight saving time in the VigorSwitch G1241 User’s Guide...
  • Page 53 SNTP Settings Function description: Parameter description: SNTP/NTP Server Input IP address or hostname of time server. Address Server port Input time server port number. Default is 123. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 54: Switching

    100M: Force speed with 100M ability.  1000M: Force speed with 1000M ability. Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port automatically to obtain the connection speed and duplex mode that both ends VigorSwitch G1241 User’s Guide...
  • Page 55 Save the settings or changes to the switch. Flow Control Config The Config column displays if Flow Control has been configured to be turned On or Off for the port. Flow Control Status The column displays the port’s current Flow Control status. VigorSwitch G1241 User’s Guide...

  • Page 56: Mirror

    “Monitor session state” is portbase-enabled mirror. Sniffer TX ports Select mirror session source TX ports only select port based-enabled state, this field is valid only when “Monitor session state” is portbase-enabled mirror. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 57: Link Aggregation

    MAC address for all packets  IP/MAC Address: Based on source and destination IP addresses for IP packet, and source and destination MAC address for non-IP packets. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 58 No more than eight ports are assigned to a LAG.  When a port is added to a LAG, the configuration of the LAG is applied to the port. When the port is removed from the LAG, its original configuration is reapplied. VigorSwitch G1241 User’s Guide...
  • Page 59 Inactive or candidate member ports of the LAG. Modify Click “Edit” button to edit LAG. Function name: LAG Port Setting Function description: Parameter description: LAG Port settings Select the LAG to be configured. Name LAG port description. Enabled Port admin state. VigorSwitch G1241 User’s Guide...
  • Page 60 LAG port admin state. Link Status LAG port link status. Speed Current LAG port speed. Current LAG port duplex. Duplex Flow Control Config LAG port flow control configuration. Flow Control Status Current LAG port flow control state. VigorSwitch G1241 User’s Guide...
  • Page 61 LACP Setting System Priority Configure the system priority of LACP. This decides the system priority field in LACP PDU. Apply Save the settings or changes to the switch. LACP Information System Priority LACP system priority value VigorSwitch G1241 User’s Guide...
  • Page 62 Enter the LACP priority value of the port Timeout Select the periodic transmissions of LACP PDUs.  Long: Transmit LACP PDU with slow periodic (30s).  Short: Transmit LACPP DU with fast periodic (1s). Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 63: Vlan Management

    This page allows a user to configure VLAN Interface related settings. A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a port so that the frames are forwarded to the VLAN group that the tag defines. VigorSwitch G1241 User’s Guide...
  • Page 64 Specify the acceptable-frame-type of the specified interfaces. It’s only available with Hybrid mode. Ingress Filtering Specify the status of ingress filtering. It’s only available with Hybrid mode. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 65 Untagged: Specify the port is untagged in the VLAN. PVID Check this checkbox to select the VLAN ID to be the port-based VLAN ID for this port. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 66 VLANs to delete for this port. Tagging-Select the VLAN membership of the specified left VLANs for this port. PVID-Check this checkbox to select the VLAN ID to be the port-based VLAN ID for this port. VigorSwitch G1241 User’s Guide...
  • Page 67 Select a value of vpt that will be advertised by LLDP-MED. 1p remark Select 1p remark state. Aging Time (30~65536 Select value of aging time. min) Apply Save the settings or changes to the switch. Function name: Voice VLAN >>Telephony OUI Mac Setting Function description: VigorSwitch G1241 User’s Guide...
  • Page 68 Description of the specified MAC address to the voice VLAN OUI table. Function name: Voice VLAN >>Telephony OUI Port Setting Function description: Parameter description: Port Select one or multiple ports to configure. State Ingress/Egress type value. VigorSwitch G1241 User’s Guide...

  • Page 69: Eee

    Port Select one or multiple ports to configure State Port EEE function.  Enabled: Enable EEE function  Disabled: Disable EEE function Apply Save the settings or changes to the switch. Function name: Multicast>>Properties Function description: VigorSwitch G1241 User’s Guide...
  • Page 70 By listening to these conversations the switch maintains a map of which links need which IP multicast streams. Multicasts may be filtered from the links which do not need them and thus controls which ports receive specific multicast traffic. VigorSwitch G1241 User’s Guide...
  • Page 71 Disabled: when IGMP Snooping disable or IGMP VLAN disable or multicast filtering disable. Router Ports Auto Learn Set the enabling status of IGMP router port learning.  Enable: Enable learning router port by query and PIM, DVRMP. VigorSwitch G1241 User’s Guide...
  • Page 72 IGMP router port learning.  Enable: Enable learning router port by query and PIM, DVRMP.  Disable: Disable learning dynamic router port. Robustness Variable-The Robustness Variable allows tuning for the expected packet loss on a subnet. VigorSwitch G1241 User’s Guide...
  • Page 73 This page allows user to configure querier settings on specific VLAN of IGMP Snooping. Parameter description: Select the VLANs to configure. VLAN ID Querier State Set the enabling status of IGMP Querier Election on the chose VLANs.  Enable: Enable IGMP Querier. VigorSwitch G1241 User’s Guide...
  • Page 74 Select the VLANs to configure. Group IP Address The IP address of this group. Member Ports The member ports of this group. Click Add to add IGMP Group to the switch. Edit Click Edit to edit the IGMP Static Group. VigorSwitch G1241 User’s Guide...
  • Page 75 The life time of this group. Function name: Multicast>>IGMP Snooping>>IGMP Router Table Function description: Parameter description: VLAN ID The VLAN ID of this group. Port The member ports of this group. Expiry Time(Sec) The expiry time of this group. VigorSwitch G1241 User’s Guide...

  • Page 76: Jumbo Frame

    This page allows user to configure switch port jumbo frame settings. Parameter description: Jumbo Frame (Bytes) Jumbo frame size. The valid range is 1526 bytes – 9216 bytes. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 77: Stp

    Specify the Cost Method of STP. PathCost Method Force Version Set the operating mode of STP:  STP-Compatible: IEEE 802.1D STP operation.  RSTP-Operation: IEEE 802.1w operation. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 78 Migrate understand the new BPDU formats have been removed from the LAN segment on the port(s). Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 79 Set the Transmit Hold Count used to limit BPDU Tx Hold Count transmission rate. Set the interval between periodic transmissions of BPDU Hello Time by Designated Ports. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 80 Set the Port Priority to the selected ports in the CIST Priority instance. Apply Save the settings or changes to the switch. Function name: STP Statistics Function description: This page allows user to browser general statistics of STP. VigorSwitch G1241 User’s Guide...
  • Page 81 It displays the configuration BDPUs received. BDPUs Received TCN BDPUs Received It displays the TCN BDPUs received. Configuration BDPUs It displays the configuration BDPUs transmitted. Transmitted It displays the Multiple Spanning Tree Protocol (MSTP) TCN BDPUs Transmitted BDPUs transmitted. VigorSwitch G1241 User’s Guide...

  • Page 82: Mac Address Table

    If Type is multicast, select the port list of the MAC entry. Click Add to add any port into the static MAC address table. This is the index number for the MAC address forwarding entries. Delete To delete any selected MAC address entries. VigorSwitch G1241 User’s Guide...

  • Page 83: Dynamic Address Setting

    Save the settings or changes to the switch. Function name: Dynamic Learned Function description: Parameter description: Select the port number to show or clear dynamic MAC Port entries. If not select any port, VLAN and MAC address, VigorSwitch G1241 User’s Guide...
  • Page 84 Static MAC Forwarding screen). This field displays the port where the MAC address will Port be forwarded. Click this button to add any port into the static MAC Add to Static MAC table table. VigorSwitch G1241 User’s Guide...

  • Page 85: Security

    Excluded: exclude preamble & IFG (20 bytes) when count ingress storm control rate.  Included: include preamble & IFG (20 bytes) when count ingress storm control rate. Apply Save the settings or changes to the switch. Function name: Port Setting Function description: VigorSwitch G1241 User’s Guide...
  • Page 86 Rate (Kbps) Value of storm control rate, Unit: pps (packet per-second) or Kbps. (Kbits per-second) depends on global mode setting. The range is from 0 to 1000000. Save the settings or changes to the switch. Apply VigorSwitch G1241 User’s Guide...

  • Page 87: Protected Ports

    Protected: Prevent protected ports from communicate with each other. Apply Save the settings or changes to the switch. Function name: DoS Global Setting Function description: This page allows user to configure DoS setting to enable/disable DoS function for Global Setting. VigorSwitch G1241 User’s Guide...
  • Page 88 Both the source and the destination UDP port are the UDP Blat same.  Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting. TCP Blat Both the source and the destination TCP port are the VigorSwitch G1241 User’s Guide...
  • Page 89  Disabled: Disable the item DoS setting.  Enabled: Enable the item DoS setting. TCP sequence number is zero, and the FIN/URG/PSH X-Mas Scan Attack flags are set.  Disabled: Disable the item DoS setting. VigorSwitch G1241 User’s Guide...
  • Page 90 Select one or multiple ports to configure. DoS Protection Configure port protect state  Disabled: Disable port DoS Protection function.  Enabled: Enable port DoS Protection function. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 91: Access

    Set Enabled to access telnet service or Disabled not to access telnet service. Apply Save the settings or changes to the switch. Disconnect Click Disconnect to disconnect Telnet connection. Function name: HTTP Function description: HTTP is the acronym of HyperText Transfer Protocol. VigorSwitch G1241 User’s Guide...
  • Page 92 Save the settings or changes to the switch. Function name: HTTPS Function description: HTTPS is the acronym of Hypertext Transfer Protocol over Secure Socket Layer. Parameter description: HTTPS Service Support HTTPS service Enable: Enable HTTPS service. Disable: Disable HTTPS service. VigorSwitch G1241 User’s Guide...

  • Page 93: Qos

    It is used to configure settings for both basic and advanced modes. Parameter description: QoS Mode Select the QoS operation mode.  Disable: Disable QoS.  Basic: Set QoS to basic mode. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 94 CoS Value Set default CoS/802.1p priority value for the selected ports. Remark CoS Enable/Disable CoS remark. Remark DSCP Enable/Disable DSCP remark. Remark IP Precedence Enable/Disable IP Precedence remark. Save the settings or changes to the switch. Apply VigorSwitch G1241 User’s Guide...
  • Page 95 Set queue to strict priority type. Set queue to Weight round robin type. If the queue type is WRR, set the queue weight for the Weight queue. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 96 Class of service value. Queue Select queue ID for the CoS value. Queue of CoS Mapping Queue ID. Queue Class of service Select CoS Value for the Queue ID. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 97 The DSCP range is 0 to 63. Queue Select queue ID for the DSCP value. Queue to DSCP Mapping Queue Queue ID. DSCP Select DSCP Value for the Queue ID. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 98 Queue Select queue ID for the IP Precedence value. Queue to IP Precedence Mapping Queue ID. Queue IP Precedence Select IP Precedence value for the queue ID. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 99: Qos Basic Mode

    IP Precedence field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.  None: All traffic is mapped to the lowest priority queue. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 100 Select the port trust state.  Enabled: Traffic from this port will follow the global trust type.  Disabled: Traffic will always go to the lowest priority queue. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 101: Rate Limit

    Function name: Ingress Bandwidth Control Function description: Parameter description: Port Select one or multiple ports to configure. State Enable/Disable ingress bandwidth control. Rate Rate value,<0-1000000>,unit:16 Kbps. Save the settings or changes to the switch. Apply VigorSwitch G1241 User’s Guide...
  • Page 102 Function name: Egress Bandwidth Control Function description: Parameter description: Port Select one or multiple ports to configure. State Enable/Disable egress bandwidth control. Rate Rate value,<0-1000000>,unit:16 Kbps. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...
  • Page 103 Function description: Parameter description: Port Select one or multiple ports to configure. Queue Select one queue to configure. State Enable/Disable egress bandwidth control. Rate value,<0-1000000>,unit:16 Kbps. CIR(Kbps) Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 104: Management

    Select the multiplier on the transmit interval to assign to TTL (range 2–10, default = 4). Reinitialization Delay Select the delay before a re-initialization (range 1–10 seconds, default = 2). Transmit Delay Select the delay after an LLDP frame is sent (range VigorSwitch G1241 User’s Guide...
  • Page 105 Save the settings or changes to the switch. Function name: LLDP Port Setting Function description: Select specified port or all ports to configure LLDP state. Parameter description: LLDP Port Configuration Port Select Select specified port or all ports to configure LLDP state. VigorSwitch G1241 User’s Guide...
  • Page 106 Select specified port or all ports to configure VLAN Name. VLAN Select Select the VLAN Name ID to be carried (multiple selection is allowed). Apply Save the settings or changes to the switch. Function name: LLDP Local Device VigorSwitch G1241 User’s Guide...
  • Page 107 This page is used to view LLDP local device information. Click “Detail” on the page to view detailed information of the selected port. Function name: LLDP Remote Device Function description: This page is used to view LLDP neighbors information. Parameter description: Detail Click “Detail” to view selected neighbor detailed information. VigorSwitch G1241 User’s Guide...

  • Page 108: Snmp

    SNMP is a component of the Internet Protocol Suite as defined by the Internet Engineering Task Force (IETF). It consists of a set of standards for network management, including an application layer protocol, a database schema, and a set of data objects. VigorSwitch G1241 User’s Guide...
  • Page 109 Parameter description: SNMP daemon state: State  Select Enabled to activate SNMP daemon.  Select Disabled to not use SNMP daemon. Apply Save the settings or changes to the switch. Function name: SNMP Community Function description: VigorSwitch G1241 User’s Guide...
  • Page 110 This page allow user to add or delete SNMP trap receiver IP address and community name. Parameter description: Enter the IP addresses to send your SNMP traps to. IP Address Community Name Enter a Community string, which is the password sent VigorSwitch G1241 User’s Guide...

  • Page 111: Diagnostics

    Use the Diagnostics pages to configure settings for the switch diagnostics feature or operating diagnostic utilities. Function name: Copper Test Function description: Parameter description: Port The Selected Port ID. Copper Test Click it to start the test. VigorSwitch G1241 User’s Guide...

  • Page 112: Ping Test

    Enter a number between 0 and 5120 as the size and the default configuration is 56. Ping Results After ping finished, results will show in this field. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 113: Ipv6 Ping Test

    Enter a number between 0 and 5120 as the size and the default configuration is 56. Ping Results After ping finished, results will show in this field. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 114: Logging Setting

    It is used to display the switch logs. Parameter description: Logging Service Enable / disable logging system. Apply Save the settings or changes to the switch. Function name: Local Logging Function description: It is used to display the switch logs. VigorSwitch G1241 User’s Guide...
  • Page 115 Enter a number between 1 and 65535 as the server port. Select severity of log messages which will be sent. Severity Facility Select facility of log messages which will be sent. Apply Save the settings or changes to the switch. VigorSwitch G1241 User’s Guide...

  • Page 116: Factory Default

    Function name: Backup Manager Function description: This page allows user to backup the firmware image or configuration file on the switch to remote TFTP server or host file system through HTTP protocol. Backup files with TFTP Page VigorSwitch G1241 User’s Guide...
  • Page 117 Select backup type:  Image: Firmware image of current system. Backup Type  Running Configuration: Running Configuration file.  Startup Configuration: Startup Configuration file. Click Backup to save the switch configuration/image to Backup the local address specified. VigorSwitch G1241 User’s Guide...

  • Page 118: Upgrade Manager

    If the HTTP upgrade method is selected, the browse file Browse File field allows you to select any file on host operating system. Select upgrade type: Upgrade Type  Image: Firmware image of current system. VigorSwitch G1241 User’s Guide...

  • Page 119: Configuration Manager

    Running configuration: Running configuration file.  Startup configuration: Startup configuration file. Destination File Select Upgrade Type.  Startup Configuration: Startup configuration file Apply Click Apply to save the running or the startup configuration to the startup configuration file. VigorSwitch G1241 User’s Guide...

  • Page 120: Account Manager

    Select privilege level for new account.  Admin: Allow to change switch settings.  User: See switch settings only. Not allow to change it. Apply Save the settings or changes to the switch. Modify Click Delete to delete the added user. VigorSwitch G1241 User’s Guide...

  • Page 121: Trouble Shooting

    STP --> STP Global Setting --> Global Setting --> BPDU Forward --> flooding to filter. Answer: RSTP equals to Rapid Spanning Tree. Please follow the following direction to choose it: STP --> STP Global Setting --> Global Setting --> Force Version --> RSTP. VigorSwitch G1241 User’s Guide...
