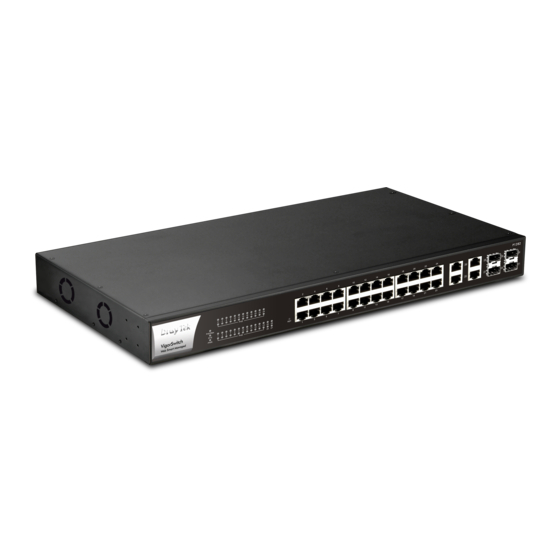

Draytek VigorSwitch P1282 Quick Start Manual
Web smart managed switch
Hide thumbs
Also See for VigorSwitch P1282:
- Quick start manual (9 pages) ,
- Quick start manual (14 pages) ,
- Quick start manual (14 pages)
Related Manuals for Draytek VigorSwitch P1282
Summary of Contents for Draytek VigorSwitch P1282
- Page 1 VigorSwitch P1282 / G1282 Web Smart Managed Switch Quick Start Guide Version: 1.0_(print) Firmware Version: V2.6.8_RC1 (For future update, please visit DrayTek web site) Date: July 06, 2021...
- Page 2 VigorSwitch P1282 (with PoE) VigorSwitch G1282 (without PoE) Rack Mount Kit (brackets) Quick Start Guide The type of the power cord depends on the country that the switch will be installed. UK-type Power Cord EU-type Power Cord USA/Taiwan-type Power Cord...
- Page 3 PoE for Port 1 to Port 24 Combo RJ45 (LNK/ACT) SFP (LNK/ACT) Ports Port 1 to Port 24 Status Explanation On (Green) Connected over the PoE maximum power PoE/Max budget. (for P1282) Connected within the PoE maximum power budget. The switch finishes system booting and the On (Green) system is ready.
- Page 4 SFP LNK/ACT Port 25 ~ 28 connection. Power inlet for AC input (100~240V/AC, 50/60Hz). Note The following limitation is suitable for VigorSwitch P1282 Power Output -- IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported PoE Power Budget –- 400 Watts (Max) ...
- Page 5 Before starting to configure the switch, you have to connect your devices correctly. Here, we take VigorSwitch P1282 as an example. Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1~24) of this switch.
- Page 6 In this section, we take VigorSwitch P1282 as an example: Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector.
-
Page 7: Gnu General Public License
Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com. & & Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com... - Page 8 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: PoE Web Smart Managed Switch Model number: VigorSwitch P1282 ...
- Page 9 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: Web Smart Managed Switch Model number: VigorSwitch G1282 ...
-
Page 10: Regulatory Information
ZIP Code 75234 E-mail rmesser@abptech.com Representative Contact Person Mr. Robert Messer Tel. 19728311600 Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. More updates, please visit www.draytek.com.
