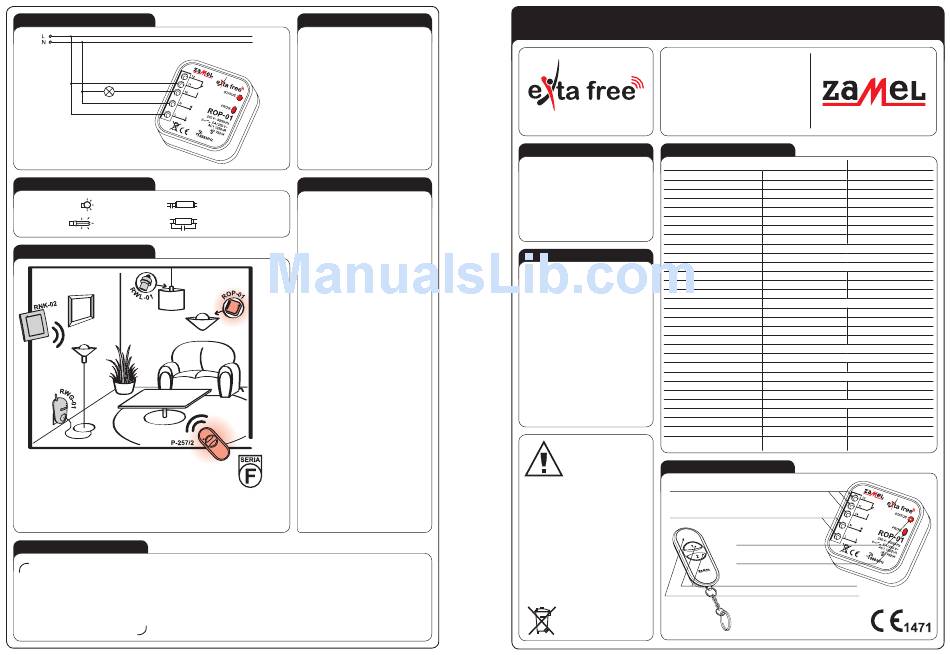

Zamel RZB-05 Manual Instruction

CONNECTION
CAPACITY
750W 500W
250W 375W
APPLICATION
2-channel remote controller P-257/2
operates radio flush receiver
ROP-01 and remote control socket
RWG-01. RNK-02 button radio
transmitter and RWL-01 radio
lighting switch are also EXTA FREE
system devices.
WARRANTY CARD
There is 24 months guarantee on the product
1. ZAMEL provides a two-year warranty for its products.
2. The ZAMEL warranty does not cover: a) mechanical defects resulting from transport, loading / unloading or other circumstances
b) defects resulting from incorrect installation or operation of ZAMEL products; c) defects resulting from any changes made by CUS-
TOMERS or third parties, to products sold or equipment necessary for the correct operation of products sold; d) defects resulting
from force majeure or other aleatory events for which ZAMEL is not liable; e) power supply (batteries) to be equipped with a device
in the moment of sale (if they appear);
3. All complaints in relation to the warranty must be provided by the CUSTOMER in writing to the retailer after discovering a defect.;
4. ZAMEL will review complaints in accordance with existing regulations.;
5. The way a complaint is settled, e.g. replacement of the product, repair or refund, is left to the discretion of ZAMEL.
6. Guarantee does not exclude, does not limit, nor does it suspend the rights of the PURCHASER resulting from the discrepancy
between the goods and the contract.
Salesman stamp and signature, date of sale
ROP-01 MOUNTING
1. Disconnect power supply by the phase
fuse, the circuit-breaker or the switch-
disconnector combined to the proper
circuit.
2. Check if there is no voltage on connec-
tion cables by means of a special meas-
ure equipment.
3. Connect the cables with the terminals in
accordance with the installing diagram.
4. Install ROP-01 device in installation ca-
ble box.
5. Switch on the power supply from the mains.
P-257/2 OPERATION
By pressing the P-257/2 push-button,
the remote controller sends a signal with
868,32 MHz frequency which controls
EXTA FREE receivers. Device program-
ming procedure (adding a transmitter
to a receiver's memory) is described in
particular EXTA FREE manual instruc-
tions. The device range (up to 250 m de-
pending on a receiver) can be increased
by means of a retransmitter or few RTN-01
retransmitters.
BATTERY CHANGE P-257/2
Battery discharge status is signalled
by several LED red diode flashes dur-
ing transmission time.
1. Remove the button (mounting - point 1).
2. By means of a screwdriver lever up the
printed-circuit board releasing the bot-
tom latch and remove it from the base.
3. Remove the battery from the latch.
4. Mount a new battery. Watch battery
polarisation marked on the latch.
Wrong battery mounting may cause
device damage.
5. Put the removed printed-circuit board
back in the base.
6. Put back the button.
CAUTION:
While changing the battery, it is sug-
gested to press any of the buttons for
about 5 seconds before putting it into
The ZAMEL company
a latch. Next press transmission button
devices which are
several times to check its operation.
characterised with this sign
If the transmitter does not work proper-
can cooperate
ly repeat the battery change procedure.
with each other.

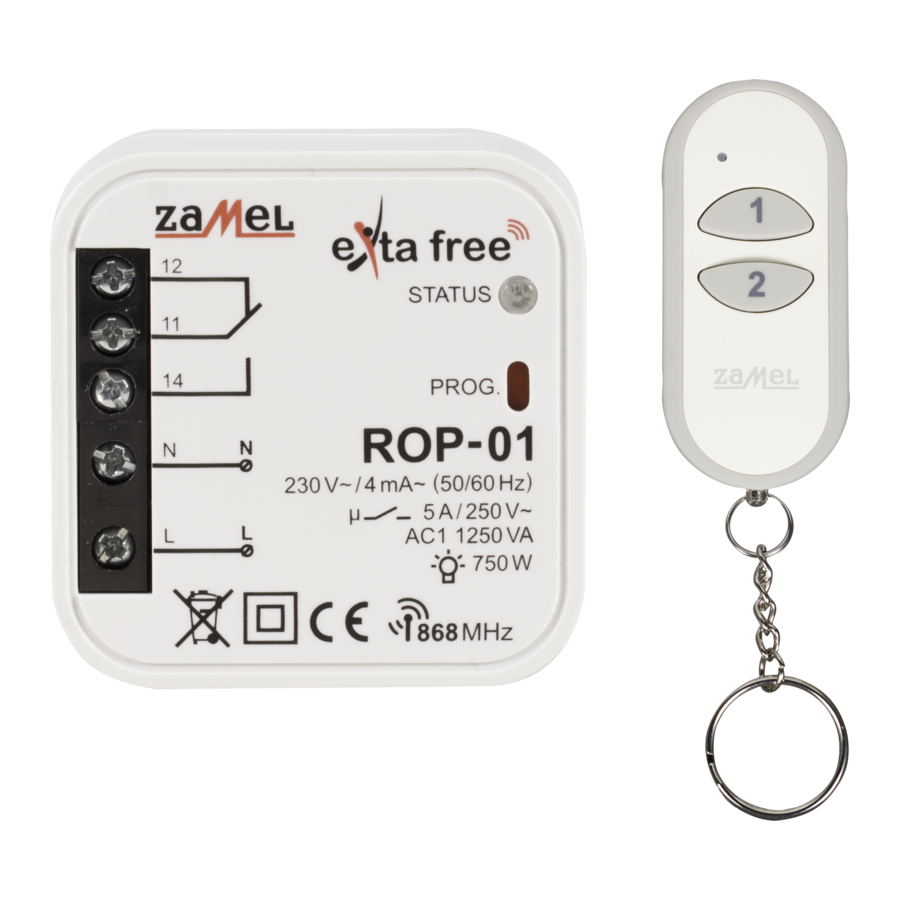

RZB-05 WIRELESS CONTROL SET
- UNIVERSAL
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
DESCRIPTION TECHNICAL DATA
Radio flush receivers are used both as
elements in mounting in flush and surface
installation cable boxes and as an actuator
built directly in lighting fitting casings and
other receivers). ROP-01 enables op-
eration in 5 different modes (switching on,
Nominal power consumption:
switching off, monostable mode, bistable
Number of operation modes:
mode, time mode.
FEATURES
● complete set of wireless control (2–chan-
Maximum number of remote controls:
nel remote controller P-257/2 and 1-chan-
nel radio flush receiver ROP-01),
● lighting, heating operation control, other
receivers control,
Optic signalling of transmitter's operation:
● easy installation in an electric-light fitting
or in Ø60 mm junction box,
● possibility to use the second remote con-
Number of terminal clamps:
troller's push-button to control other EXTA
Section of connecting cables:
FREE receivers,
● 5 operation modes: switching on, switch-
Ambient temperature range:
ing off, monostable mode, bistable mode,
time mode (switch off delay),
● wide operation range (up to 180 m),
● low current consumption, possibility of
constant operation,
● possibility of increasing operation range
by means of RTN-01 retransmitter.
The device is designed for
single-phase installation and
must be installed in accord-
ance with standards valid in
APPEARANCE
a particular country. The de-
vice should be connected
CAUTION!
according to the details in-
Relay output terminals
cluded in this operating manual. Installation,
(12, 11, 14)
connection and control should be carried out by
a qualified electrician staff, who act in accord-
ance with the service manual and the device
Input (supply) terminals (L, N)
functions.
In case of casing dismantling an electric shock
may occur, and the guarantee is lost then. Be-
fore installation make sure the connection ca-
bles are not under voltage. The cruciform head
screwdriver 3,5 mm should be used to instal the
device. Improper transport, storage, and use
of the device influence its wrong functioning.
It is not advisable to instal the device in the
following cases: if any device part is missing
or the device is damaged or deformed. In case
of improper functioning of the device contact
the producer.
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
MANUAL INSTRUCTION
ZAMEL Sp. z o.o.
P-257/2 ROP-01
Input (supply) terminals: -
Input rated voltage: 3 V DC (CR2032 battery)
Battery life: 3 ÷ 5 years
Input voltage tolerance: - -15 ÷ +10 %
Nominal frequency: - 50 / 60 Hz
-
-
Number of channels 2
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
-
Range: up to 180 m in the open area up to 180 m in the open area
Time adjustment: - 1 sec÷ 18 hours (every 1 sec)
LED red diode
Relay output terminals: -
Relay contact parameters: - 1NO/NC 5A / 250V AC AC1 1250 VA
-
- up to 2,5 mm
-10 ÷ +55 C
o
Operating position: free
Mounting: - installation cable box Ø60 mm
Casing protection degree: IP20 (EN 60529)
Protection level: III
Overvoltage category: -
Pollution degree: 2
Surge voltage: - 1 kV (PEN 61000-4-5)
Dimensions: 74 x 33 x 11,5 mm 47,5 x 47,5 x 20 mm
Weight 0,020 kg
Reference standard: ETSI EN 300 220-1 EN 60669, EN 60950
ETSI EN 300 220-2 EN 61000
Optic signalling
of receiver's operation
Programming push-button
Push-buttons
Optic signalling of transmitter's operation
L, N
230 V AC
-
0,29 W
5
1
32
12, 11, 14
5
2
II
II
0,043 kg
VER. 003_20.05.2011
