Zamel RWG-01K Quick Manual

TIME PROGRAMMING
Press PROG push-button of RWG-01 device for a longer time till LED red diode switches
on (constant signal). Next release PROG push-button. Wait (for about 5 seconds) till LED
red diode switches on (first signal pulsates, next the signal is constant).
Press PROG push-button of RWG-01 device and then release it. LED red diode switches
off and then switches on (signal pulsates). Every LED diode pulse equals 1 second.
After the adjusted time is finished (the number of LED red diode flashes) press PROG
push-button and then release it - TIME IS ADDED.
Maximum time is 18 hours.
RADIO TRANSMITTERS DELETION
Press PROG push-button of RWG-01 device for a longer time.
After 5 seconds LED red diode switches on (signal pulsates) and then it switches off.
Release the push-button in RWG-01 - MEMORY IS DELETED.
OPERATION RANGE
Symbol ROP-01 ROP-02 ROB-01 SRP-02 SRP-03 RWG-01 RWL-01 ROM-01 ROM-10 RDP-01 RTN-01
RNK-02 180 m 200 m 200 m 200 m
RNK-04 180 m 200 m 200 m 200 m
P-256/8 230 m 250 m 250 m 250 m
P-257/4 (2)
180 m 200 m 200 m 200 m
RNM-10 230 m 250 m 250 m 250 m
RNP-01 160 m 180 m 180 m 180 m
RNP-02 160 m 180 m 180 m 180 m
RNL-01 160 m 180 m 180 m no*
RTN-01 200 m 200 m 200 m 200 m
RCR-01 160 m 180 m 180 m no*
RTI-01 160 m 180 m 180 m 180 m
RXM-01 230 m 250 m 250 m 250 m
* - 1-channel transmitters do not cooperate with roller blind controllers
CAUTION: The given range concerns open area - an ideal condition without any
natural or artificial obstacles. If there are some obstacles between a transmitter
and a receiver, it is advisable to decrease the range according to: wood and plas-
ter: from 5 to 20 %, bricks: from 10 to 40 %, reinforced concrete: from 40 to 80 %,
metal: from 90 to 100% , glass: from 10 to 20 %, Over- and underground medium
and high electrical power lines, radio and television transmitters, GSM transmit-
ters set close to a device system have also a negative influence on the range.
200 m 250 m 180 m 250 m 250 m
200 m 250 m 180 m 250 m 250 m
250 m 300 m 200 m 300 m 300 m
200 m 250 m 180 m 250 m 250 m
250 m 300 m 200 m 300 m 300 m
180 m 200 m 160 m 200 m 200 m
180 m 200 m 160 m 200 m 200 m
no* 200 m 160 m 200 m 200 m
200 m 250 m 200 m 250 m 250 m
no* 200 m 160 m 200 m 200 m
180 m 200 m 160 m 200 m 200 m
250 m 300 m 200 m 300 m 300 m
GNIAZDO ZDALNIE STEROWANE Z PILOTEM P-257/2
RWG-01K
TECHNICAL DATA
Input voltage tolerance:
Nominal power consumption:
Optic signalling of supply voltage:
Number of operation modes:
Number of channels:
180 m 250 m
180 m 250 m
Maximum number of transmitters:
230 m 300 m
180 m 250 m
230 m 300 m
Optic signalling of transmitter's
160 m 200 m
160 m 200 m
Relay contact parameters:
160 m 200 m
Ambient temperature range:
200 m 250 m
160 m 200 m
160 m 200 m
Casing protection degree:
230 m 300 m
Overvoltage category:
DESCRIPTION

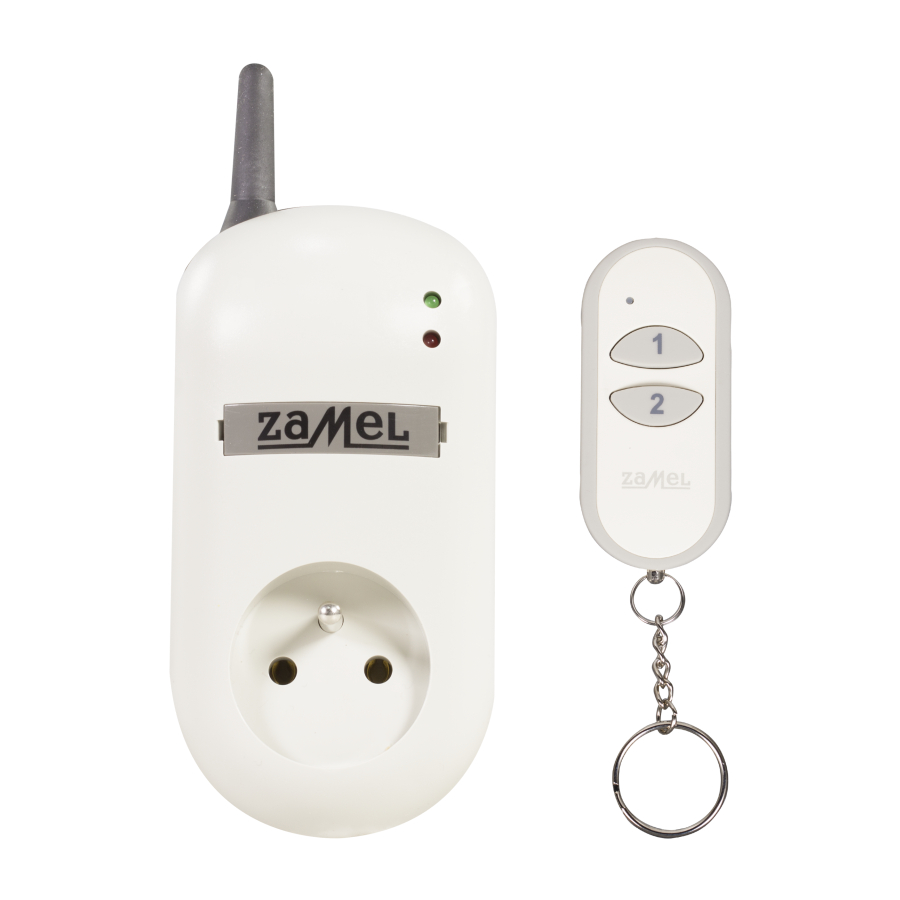

Remote control socket RWG-01 is used to connect any 230 V AC receiver of 4000 VA
and to wireless control by means of different EXTA FREE system transmitters. The
device can be mounted without any additional tools or interference in existing wiring - it
is directly mounted to 230 V AC socket.
P-257/2
Input rated voltage: 3 V (battery CR2032)
Battery life: 3 ÷ 5 years
-
Nominal frequency: -
-
-
-
2
Transmission:
Coding way:
Coding:
-
Range: up to 250 m in the open area
Time adjustment: -
operation:
-
Operating position:
Mounting: -
Protection level: III
-
Pollution degree:
Surge voltage: -
Dimensions: 74 x 33 x 11,5 mm
Weight: 0,020 kg
PN-ETSI EN 300 220-1
Reference standard:
PN-ETSI EN 300 220-2
RWG-01
230 V AC
-
-15 ÷ +10 %
50 / 60 Hz
0,29 W
LED green diode
5
1
radio 868,32 MHz
unidirectional
addressing transmission
32
up to 300 m in the open area
1 s ÷ 18 h (every second)
LED red diode
1NO 16A / 250V AC
AC1 4000 VA
-10 ÷ +55 C
o
free
230 V AC socket
IP20 (PN-EN 60529)
II
II
2
1 kV (PN-EN 61000-4-5)
160 x 66 x 90 mm
0,160 kg
PN-EN 60669, PN-EN 60950
PN-EN 61000
