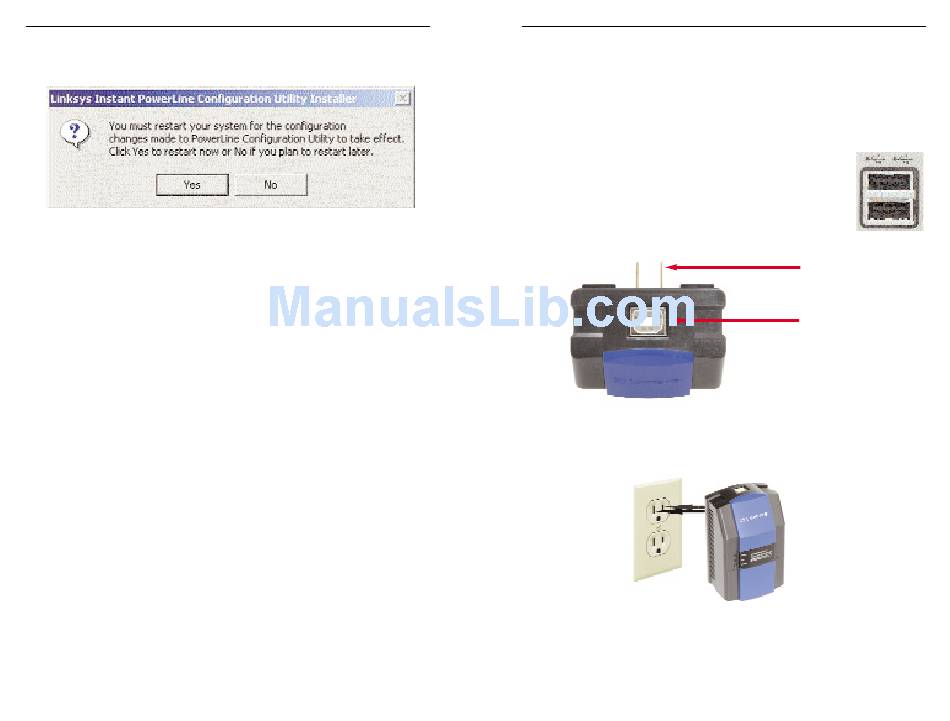

8. You will be asked to restart your computer (shown in Figure 4-10). Click
the Yes button to restart now, or click the No button to restart later.
Proceed to "Chapter 5: Connecting the USB Adapter."
10
Instant PowerLine
Figure 4-10
TM Series PowerLine USB Adapter
Chapter 5: Connecting the
PowerLine USB Adapter
1. Insert the end of the USB cable with the Type A connector
into the computer's USB port. Figure 5-1 shows two USB
ports as they might appear on your computer. Note the two
USB icons marking the ports.
2. Insert the standard USB cable's Type B connector into the
USB port on the USB Adapter. (See Figure 5-2.)
3. Plug the PowerLine USB Adapter into an electrical outlet. (See Figure 5-3.)
The hardware installation of the USB Adapter is complete. Proceed to
Figure 5-2
Figure 5-2
Chapter 6: Installing the Driver for the USB Adapter.
Figure 5-1
PLUG INTO
ELECTRICAL
OUTLET
INSERT THE
USB TYPE B
CABLE CON-
NECTOR
HERE
