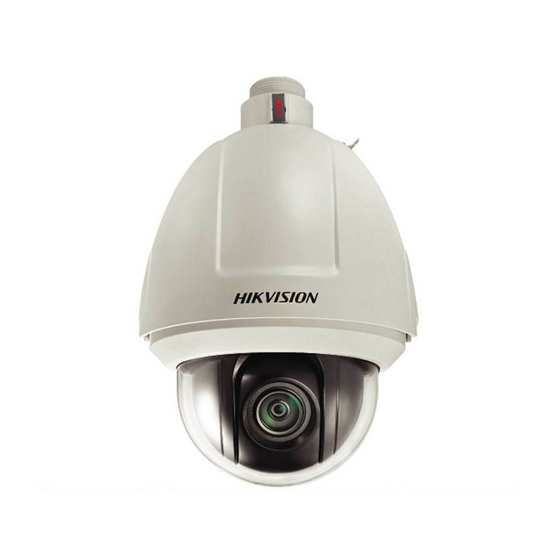

Network Speed Dome
User Manual
UD.6L0201D1599A01

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION Network Speed Dome

Summary of Contents for HIKVISION Network Speed Dome

  • Page 1 Network Speed Dome User Manual UD.6L0201D1599A01...
  • Page 2 Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. This manual applies to Network Speed Dome. This manual may contain several technical or printing errors, and the content is subject to change without notice.

  • Page 3: Regulatory Information

    User Manual of Network Speed Dome Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Safety Instruction

    User Manual of Network Speed Dome Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are neglected.
  • Page 5 User Manual of Network Speed Dome Cautions:  Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.

  • Page 6: Table Of Contents

    Overview........................8 System Requirement ........................ 8 Functions..........................8 Chapter 2 Network Connection ....................11 Setting the Network Speed Dome over the LAN ..............11 2.1.1 Wiring over the LAN ......................11 2.1.2 Detecting and Changing the IP Address ................12 Setting the Network Speed Dome over the WAN ..............
  • Page 7 User Manual of Network Speed Dome 6.3.1 Configuring TCP/IP Settings ....................46 6.3.2 Configuring Port Settings ....................48 6.3.3 Configuring PPPoE Settings ....................48 6.3.4 Configuring DDNS Settings....................49 6.3.5 Configuring SNMP Settings ....................51 6.3.6 Configuring 802.1X Settings ....................52 6.3.7...
  • Page 8 User Manual of Network Speed Dome Chapter 10 Others ........................107 10.1 Managing User Accounts ..................... 107 10.2 Configuring RTSP Authentication ..................108 10.3 Configuring Anonymous Visit ....................109 10.4 Configuring IP Address Filter ....................109 10.5 Configuring Security Service Settings................... 110 10.6...

  • Page 9: Chapter 1 Overview

    User Manual of Network Speed Dome Chapter 1 Overview 1.1 System Requirement System requirement of web browser accessing is as follows: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher...
  • Page 10 User Manual of Network Speed Dome continuity of tracking. This function can also be realized by auto mirror image depending on different camera models.  Privacy Mask This function allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing.
  • Page 11 User Manual of Network Speed Dome rendition function of the camera to adjust the color temperature according to the environment automatically.  Patrol A patrol is a memorized series of pre-defined preset function. The scanning speed between two presets and the dwell time at the preset are programmable.

  • Page 12: Chapter 2 Network Connection

     To test the network speed dome, you can directly connect the network speed dome to the computer with a network cable as shown in Figure 2-1.  Refer to the Figure 2-2 to set the network speed dome over the LAN via a switch or a router.

  • Page 13: Detecting And Changing The Ip Address

    2. Change the IP address and subnet mask to the same subnet as that of your computer. 3. Enter the IP address of network speed dome in the address field of the web browser to view the live video.  The default IP address is 192.0.0.64. The default user name is admin, and password is 12345.

  • Page 14: Setting The Network Speed Dome Over The Wan

    Before you start: Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network speed dome via a router or connect it to the WAN directly. Connecting the network speed dome via a router ...

  • Page 15: Dynamic Ip Connection

    User Manual of Network Speed Dome 5. Visit the network speed dome through a web browser or the client software over the internet. Network Network Network Cable Cable Cable Internet Router with Static IP Speed Dome Figure 2-4 Accessing the Speed Dome through Router with Static IP Connecting the network speed dome with static IP directly ...
  • Page 16 This speed dome supports the PPPoE auto dial-up function. The speed dome gets a public IP address by ADSL dial-up after the speed dome is connected to a modem. You need to configure the PPPoE parameters of the network speed dome. Refer to Section 6.3.3 Configuring PPPoE Settings for detailed configuration.
  • Page 17 Steps: 1. Install and run the IP Server software in a computer with a static IP. 2. Access the network speed dome through the LAN with a web browser or the client software. 3. Enable DDNS and select IP Server as the protocol type. Refer to Section 6.3.4 Configuring DDNS Settings for detailed configuration.

  • Page 18: Chapter 3 Access To The Network Speed Dome

    Steps: 1. Open the web browser. 2. In the address field, input the IP address of the network speed dome, e.g., 192.0.0.64 and press the Enter key to enter the login interface. 3. Select English as the interface language on the top-right of login interface.
  • Page 19 User Manual of Network Speed Dome Figure 3-2 Download and Install Plug-in Figure 3-3 Install Plug-in (1) Figure 3-4 Install Plug-in (2) © Hikvision...

  • Page 20: Accessing By Client Software

    User Manual of Network Speed Dome Figure 3-5 Install Plug-in (3) You may have to close the web browser to install the plug-in. Please reopen the web browser and log in again after installing the plug-in. 3.2 Accessing by Client Software The product CD contains the client software.
  • Page 21 User Manual of Network Speed Dome Figure 3-7 iVMS-4200 Live View Interface  If you use third party VMS software, please contact technical support of our branch for camera firmware.  For detailed information about client software of our company, please refer to the user manual of the software.

  • Page 22: Chapter 4 Live View

    The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network speed dome to enter the live view page, or you can click on the menu bar of the main page to enter the live view page.

  • Page 23: Starting Live View

    User Manual of Network Speed Dome Descriptions of the live view page: Menu Bar Show or hide PTZ Live View control panel Parameters PTZ Control Live View Window Toolbar Preset/Patrol/Pattern Figure 4-2 Live View Page Menu Bar: Click each tab to enter Live View, Playback, Log and Configuration page respectively.
  • Page 24 User Manual of Network Speed Dome Figure 4-3 Start Live View Table 4-1 Descriptions of the Toolbar Icon Description Icon Description Manually capture the Start/Stop Live view pictures / Mute / Audio on and Manual recording off/on adjust volume Enable / Disable Regional...
  • Page 25 User Manual of Network Speed Dome 1. Click the on the toolbar to enter the regional focus operation mode. 2. Click-and-drag the mouse to draw a rectangle on the image as the desired focus region. 3. Click the to exit the regional focus operation mode.

  • Page 26: Recording And Capturing Pictures Manually

    User Manual of Network Speed Dome Please refer to the following sections for more information:  Configuring remote recording in Section 7.3 Configuring Recording Schedule.  Setting the image quality of the live video in Section 6.1 Configuring Local Parameters and Section 6.4.1 Configuring Video Settings.

  • Page 27: Setting / Calling A Preset

    User Manual of Network Speed Dome Table 4-2 Descriptions of PTZ Control Panel Button Description Zoom in/out Focus near/far Iris +/- Adjust speed of pan/tilt movements 4.5.2 Setting / Calling a Preset Purpose: A preset is a predefined image position. For the defined preset, you can click the calling button to quickly view the desired image position.
  • Page 28 User Manual of Network Speed Dome  Calling a Preset: In the PTZ control panel, select a defined preset from the list and click to call the preset. Figure 4-6 Calling a Preset For convenient preset selection, refer to the following steps to navigate to the preset you want.

  • Page 29: Setting / Calling A Patrol

    User Manual of Network Speed Dome Start to set limit stops Figure 4-7 Special Preset You may need to use the OSD (On Screen Display) menu when controlling the speed dome remotely. To display the OSD menu on the live view screen, you can call the preset number 95.
  • Page 30 User Manual of Network Speed Dome 4. Configure the preset number, patrol time and patrol speed. Name Description Patrol Time It is the duration staying on one patrol point. The speed dome moves to another patrol point after the patrol time.

  • Page 31: Setting / Calling A Pattern

    User Manual of Network Speed Dome 4.5.4 Setting / Calling a Pattern Purpose: A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the pattern settings interface. There are up to 4 patterns for customizing.

  • Page 32: Configuring Live View Parameters

    User Manual of Network Speed Dome When configuring and calling the pattern, proportional pan is valid; the limit  stops and auto flip will be invalid; and the 3D positioning operation is not supported. 4.6 Configuring Live View Parameters  Main stream/Sub-stream: You can select as the stream type of live viewing.

  • Page 33: Chapter 5 Ptz Configuration

    User Manual of Network Speed Dome Chapter 5 PTZ Configuration 5.1 Configuring Initial Position Purpose: The initial position is the origin of PTZ coordinates. It can be the factory default initial position. You can also customize the initial position according to your own demand.
  • Page 34 User Manual of Network Speed Dome You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset speed, etc. 1. Enter the Basic PTZ Parameter Configuration interface: Configuration > Advanced Configuration > PTZ > Basic Figure 5-2 Basic PTZ Configuration Interface 2.

  • Page 35: Configuring Ptz Limit Stops

    User Manual of Network Speed Dome  PT Status: Set the azimuth angle display duration while panning and tilting as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.  Preset Status: Set the preset name display duration while calling the preset as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.

  • Page 36: Configuring Scheduled Tasks

    User Manual of Network Speed Dome manually only in the limited surveillance area.  Scan Stops: When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama scan is performed only in the limited surveillance area.
  • Page 37 User Manual of Network Speed Dome Figure 5-5 Edit the Schedule and Task Type (2) Choose the day you want to set the task schedule. (3) Click All Day to set the schedule as all day; or click Customize and input the Start Time and End Time for each task, and click Enter on your keyboard to enter the time.

  • Page 38: Configuring Park Actions

    User Manual of Network Speed Dome 5.5 Configuring Park Actions Purpose: This feature allows the dome to start a predefined park action (scan, preset, pattern and etc.) automatically after a period of inactivity (park time). Scheduled Tasks function is prior to Park Action function. When these two functions are set at the same time, only the Scheduled Tasks function takes effect.

  • Page 39: Configuring Privacy Mask

    User Manual of Network Speed Dome 5.6 Configuring Privacy Mask Purpose: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: 1. Enter the Privacy Mask Settings interface: Configuration >...

  • Page 40: Configuring Smart Tracking

    User Manual of Network Speed Dome Figure 5-11 Define Mask Color You can select a mask and click to delete it from the list. Check the checkbox of Enable Privacy Mask to enable this function. You are allowed to draw up to 24 areas on the same image.

  • Page 41: Configuring Ptz Control Priority

    User Manual of Network Speed Dome 4. Click to set the current zoom ratio as the tracking zoom ratio. 5. Set the tracking duration. The speed dome stops tracking when the duration time is up. The duration ranges from 0 to 300 seconds.
  • Page 42 User Manual of Network Speed Dome 3. Click to clear the settings. © Hikvision...

  • Page 43: Chapter 6 Speed Dome Configuration

    User Manual of Network Speed Dome Chapter 6 Speed Dome Configuration 6.1 Configuring Local Parameters The local configuration refers to the parameters of the live view and other operations using the web browser. Steps: 1. Enter the Local Configuration interface: Configuration >...

  • Page 44: Configuring Time Settings

    User Manual of Network Speed Dome  Live View Performance: Set the live view performance to Least Delay, Balanced or Best Fluency. Please set Live View Performance as Best Fluency for the high frame rate speed dome.  Rules: You can enable or disable the rules of dynamic analysis for events here.
  • Page 45 User Manual of Network Speed Dome To enter the Time Settings interface: Configuration > Basic Configuration > System > Time Settings Or Configuration > Advanced Configuration > System > Time Settings Figure 6-2 Time Settings  Configuring Time Synchronization by NTP Server Steps: (1) Check the radio button to enable the NTP function.
  • Page 46 User Manual of Network Speed Dome server for time synchronization.  Configuring Time Synchronization Manually Steps: (1) Check the Manual Time Sync radio button. (2) Click to set the system time from the pop-up calendar. (3) Click to save the settings.

  • Page 47: Configuring Network Settings

    User Manual of Network Speed Dome (1) Enter the DST interface by Configuration > Advanced Configuration > System > DST (2) Check to enable the DST function. (3) Set the date of the DST period. (4) Click to save the settings.
  • Page 48 Before utilizing this function, you have to enable the Multicast function of your router and configure the gateway of the network speed dome.  If the DNS server settings are required for some applications (e.g., sending email), you should properly configure the Preferred DNS Server and Alternate DNS server.

  • Page 49: Configuring Port Settings

    User Manual of Network Speed Dome Figure 6-8 DNS Server Settings The router must support the route advertisement function if you select Route Advertisement as the IPv6 mode. 6.3.2 Configuring Port Settings Purpose: If there is a router and you want to access the speed dome through Wide Area Network (WAN), you need to forward the 3 ports for the speed dome.

  • Page 50: Configuring Ddns Settings

    User Manual of Network Speed Dome Steps: 1. Enter the PPPoE Settings interface: Configuration >Advanced Configuration > Network > PPPoE Figure 6-10 PPPoE Settings 2. Check the Enable PPPoE checkbox to enable this feature. 3. Enter User Name, Password, and Confirm password for PPPoE access.
  • Page 51 User Manual of Network Speed Dome DynDNS:  Steps: (1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS website. (3) Enter the Port of DynDNS server. (4) Enter the User Name and Password registered on the DynDNS website.

  • Page 52: Configuring Snmp Settings

    User Manual of Network Speed Dome Figure 6-14 HiDDNS Settings NO-IP:  Steps: (1) Enter Server Address of NO-IP. (2) In the Domain text field, enter the domain name obtained from the NO-IP website. (3) Enter the Port of NO-IP server.

  • Page 53: Configuring 802.1X Settings

    User Manual of Network Speed Dome Figure 6-15 SNMP Settings 2. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to enable the feature. 3. Configure the SNMP settings. The configuration of the SNMP software should be the same as the settings you configure here.
  • Page 54 User Manual of Network Speed Dome the LAN. When devices connect to this network with IEEE 802.1X standard, the authentication is needed. If the authentication fails, the devices don’t connect to the network. The protected LAN with 802.1X standard is shown as follows:...

  • Page 55: Configuring Qos Settings

    User Manual of Network Speed Dome 3. Check the Enable IEEE 802.1X checkbox to enable it. 4. Configure the 802.1X settings, including user name and password. The EAP-MD5 version must be identical with that of the router or the switch.

  • Page 56: Configuring Ftp Settings

    User Manual of Network Speed Dome 6.3.8 Configuring FTP Settings Purpose: You can set a FTP server and configure the following parameters for uploading captured pictures. Steps: 1. Enter the FTP Settings interface: Configuration >Advanced Configuration > Network > FTP Figure 6-19 FTP Settings 2.

  • Page 57: Configuring Upnp™ Settings

    User Manual of Network Speed Dome Upload type: To enable uploading the captured picture to the FTP server.  3. Click to save the settings. If you want to upload the captured pictures to FTP server, you also have to enable the continuous snapshot or event-triggered snapshot in Snapshot interface.

  • Page 58: Configuring Email Settings

    User Manual of Network Speed Dome Choose And you can customize the value of the port No. by yourself. Figure 6-23 Configure the Port No. 2. Click to save the settings. 6.3.11 Configuring Email Settings Purpose: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss,...
  • Page 59 User Manual of Network Speed Dome Figure 6-24 Email Settings 2. Configure the following settings: Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

  • Page 60: Configuring Https Settings

    User Manual of Network Speed Dome 3. Click to save the settings. 6.3.12 Configuring HTTPS Settings Purpose: HTTPS provides authentication of the web site and associated web server that one is communicating with, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https.
  • Page 61 User Manual of Network Speed Dome Figure 6-26 Create Self-signed Certificate 2) Enter the country, host name/IP, validity and other information. 3) Click OK to save the settings. OPTION 2: Create the authorized certificate 1) Click the Create button to create the certificate request, and fulfill the required information.

  • Page 62: Configuring Video And Audio Settings

    User Manual of Network Speed Dome 6.4 Configuring Video and Audio Settings 6.4.1 Configuring Video Settings Steps: 1. Enter the Video Settings interface: Configuration >Basic Configuration > Video / Audio > Video Or Configuration > Advanced Configuration > Video / Audio > Video Figure 6-28 Configure Video Settings 2.

  • Page 63: Configuring Audio Settings

    User Manual of Network Speed Dome and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Max. Bitrate: Set the max. bitrate to 32~16384 Kbps. The higher value corresponds to the higher video quality, and the higher bandwidth is required as well.

  • Page 64: Configuring Roi Settings

    User Manual of Network Speed Dome will be. Sampling Rate: When the Audio Encoding is selected as AAC, you can configure the Sampling Rate in the dropdown list: 16kHz and 32kHz are selectable. The greater the value is, the better the audio quality will be.
  • Page 65 User Manual of Network Speed Dome Figure 6-30 Region of Interest Stream Type: You can set the ROI function for main stream or substream. Select a stream type and then configure the ROI settings. Fixed Region: The fixed region encoding is the ROI encoding for the manually ...

  • Page 66: Configuring Image Settings

    User Manual of Network Speed Dome 1. Check the checkboxes of desired functions, including Target Tracking, Face Tracking and License Plate Tracking.  Target Tracking: When a smart event is detected, e.g. line crossing detection, the object which trigger the pre-defined rule will be automatically tracked, and the image quality of the tracking target will be increased.

  • Page 67: Image Adjustment

    User Manual of Network Speed Dome Figure 6-31 Display Settings Image Adjustment  Brightness This feature is used to adjust brightness of the image. The value ranges from 0 to 100.  Contrast This feature enhances the difference in color and light between parts of an image.
  • Page 68 User Manual of Network Speed Dome The iris, shutter and gain values will be adjusted automatically according to the brightness of the environment.  Iris Priority: The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted automatically according to the brightness of the environment.
  • Page 69 User Manual of Network Speed Dome  Auto: The speed dome focuses automatically at any time according to objects in the scene.  Semi-auto: The speed dome focuses automatically only once after panning, tilting and zooming.  Manual: In Manual mode, you need to use on the control panel to focus manually.
  • Page 70 User Manual of Network Speed Dome Figure 6-37 Day Night Schedule  Smart IR If the IR light is on and the image center is overexposure, you can enable this function.  IR Light Mode IR light mode can be set to Auto and Manual.

  • Page 71: White Balance

    User Manual of Network Speed Dome dynamic level ranges from 0 to 100. Figure 6-38 WDR This function varies depending on the models of speed dome.  HLC HLC (High Light Compensation) makes the camera identify and suppress the strong light sources that usually flare across a scene.

  • Page 72: Image Enhancement

    User Manual of Network Speed Dome This function varies depending on the models of speed dome. Image Enhancement  Digital Noise Reduction The digital noise reduce function processes the noise in the video signal. You can set Digital Noise Reduction function to ON and adjust the Noise Reduction Level as shown in Figure 6-40.

  • Page 73: Configuring Osd Settings

    User Manual of Network Speed Dome This function varies depending on the models of speed dome. Capture Mode: You can set the Capture Mode to OFF, 1280*720@25fps, and 1280*960@25fps. Other  Lens Initialization The lens operates the movements for initialization when you check the check box of Lens Initialization.
  • Page 74 User Manual of Network Speed Dome Figure 6-42 OSD Settings 2. Check the corresponding checkbox to select the display of speed dome name, date or week if required. 3. Edit the speed dome name in the text field of Camera Name.

  • Page 75: Configuring Text Overlay Settings

    6.6 Configuring and Handling Alarms Purpose: This section explains how to configure the network speed dome to respond to alarm events, including motion detection, external alarm input, video loss, tamper-proof and exception. These events can trigger the alarm actions, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc.

  • Page 76: Configuring Motion Detection

    User Manual of Network Speed Dome 6.6.1 Configuring Motion Detection Purpose: Motion detection is a feature which can trigger alarm actions and actions of recording videos when the motion occurred in the surveillance scene. Steps: 1. Enter the motion detection setting interface: Configuration >...
  • Page 77 User Manual of Network Speed Dome  Expert Figure 6-46 Motion Detection Settings-Expert Steps: (1) Set the Day&Night switch mode, there are OFF, Auto-Switch and Scheduled-Switch selectable. If the Day&Night switch mode is enabled, you can configure the detection rule for the day and night separately.
  • Page 78 User Manual of Network Speed Dome Figure 6-47 Arming Schedule (2) Choose the day you want to set the arming schedule as shown in Figure 6-48. Figure 6-48 Arming Time Schedule (3) Click to set the time period for the arming schedule.
  • Page 79 User Manual of Network Speed Dome Figure 6-49 Linkage Method Check the checkbox to select the linkage method. Notify surveillance center, send email, upload to FTP, trigger channel and trigger alarm output are selectable.  Notify Surveillance Center Send an exception or alarm signal to remote management software when an event occurs.

  • Page 80: Configuring Video Loss Alarm

    User Manual of Network Speed Dome 6.6.2 Configuring Video Loss Alarm Steps: 1. Enter the Video Loss Setting interface: Configuration > Advanced Configuration> Basic Event > Video Loss Figure 6-50 Video Loss 2. Check the Enable Video Loss Detection checkbox to enable the video loss detection.

  • Page 81: Configuring External Alarm Input

    User Manual of Network Speed Dome You can configure the speed dome to trigger the alarm actions when the lens is covered. Steps: 1. Enter the video tampering Settings interface: Configuration > Advanced Configuration > Basic Event > Video Tampering Figure 6-51 Tampering Alarm 2.
  • Page 82 User Manual of Network Speed Dome 2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). 3. Edit the name in to set a name for the alarm input (optional).

  • Page 83: Configuring Alarm Output

    User Manual of Network Speed Dome Figure 6-53 Linkage Method 6.6.5 Configuring Alarm Output Steps: 1. Enter the Alarm Output Settings interface: Configuration>Advanced Configuration> Events > Alarm Output 2. Select one alarm output channel in the Alarm Output drop-down list.

  • Page 84: Handling Exception

    User Manual of Network Speed Dome Figure 6-54 Alarm Output Settings 6. You can copy the settings to other alarm outputs. 7. Click to save the settings. 6.6.6 Handling Exception The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the speed domes.

  • Page 85: Detecting Audio Exception

    User Manual of Network Speed Dome 6.6.7 Detecting Audio Exception Purpose: When you enable this function and audio exception occurs, the alarm actions will be triggered. Steps: 1. Enter the video audio exception detection interface: Configuration > Advanced Configuration > Smart Event > Audio Exception...

  • Page 86: Configuring Dual-Vca

    User Manual of Network Speed Dome Notify surveillance center, send email, trigger alarm output, etc. are selectable. Please refer to Step 3 in Section 6.6.1 Configuring Motion Detection. 7. Click to save the settings. 6.6.8 Configuring Dual-VCA Purpose: Enabling the Dual-VCA function will send the VCA event information (e.g. intrusion detection, line crossing detection, face detection, etc.) to the connected back-end...
  • Page 87 User Manual of Network Speed Dome Figure 6-57 Configuring Intrusion Area 3. The event triggered and park action related PTZ movement will be locked for 180 seconds after you enter the intrusion detection interface. Optionally, you can click the button to manually activate the movement, or lock the movement when the button turns to by clicking it.

  • Page 88: Configuring Line Crossing Detection

    User Manual of Network Speed Dome configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection. 7. Check the checkbox to select the linkage method taken for the intrusion detection.
  • Page 89 User Manual of Network Speed Dome Figure 6-58 Configuring Line 5. Draw area. (1) Click to draw a line on the image. (2) Click the line to switch to the editing mode. Click and drag an end to the desired place to adjust the length and angle of the line.

  • Page 90: Configuring Face Detection

    User Manual of Network Speed Dome 9. Click to save the settings. 6.6.11 Configuring Face Detection Purpose: After the face detection is enabled, a face appears in the surveillance area, it will be detected and certain actions may be triggered by the detection.
  • Page 91 User Manual of Network Speed Dome Region entrance detection function detects people, vehicle or other objects which enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered. Steps: 1. Enter the Region Entrance Detection settings interface: Configuration>...

  • Page 92: Region Exiting Detection

    User Manual of Network Speed Dome 6.6.13 Region Exiting Detection Purpose: Region exiting detection function detects people, vehicle or other objects which exit from a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

  • Page 93: Unattended Baggage Detection

    User Manual of Network Speed Dome 6.6.14 Unattended Baggage Detection Purpose: Unattended baggage detection function detects the objects left over in the pre-defined region such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when the alarm is triggered.

  • Page 94: Object Removal Detection

    User Manual of Network Speed Dome You can click the button to clear all pre-defined regions. 8. Click the button to set the arming schedule. Refer to Step 2 in Section 6.6.1 Configuring Motion Detection. 9. Select the linkage methods for unattended baggage detection, including Notify Surveillance Center, Send Email, Upload to FTP, Trigger Channel and Trigger Alarm Output.

  • Page 95: Chapter 7 Record Settings

    User Manual of Network Speed Dome Chapter 7 Record Settings Before you start: To configure record settings, please make sure that you have the network storage device within the network or the storage card has been inserted in the corresponding card slot.

  • Page 96: Initializing And Configuring Storage

    User Manual of Network Speed Dome 7.2 Initializing and Configuring Storage Steps: 1. Initialize the local disk or added network disk. (1) Enter the HDD Settings interface (Advanced Configuration > Storage > Storage Management), in which you can view the capacity, free space, status, type and property of the disk.

  • Page 97: Configuring Recording Schedule

    User Manual of Network Speed Dome 7.3 Configuring Recording Schedule Before you start: Please make sure a local storage card is inserted in the speed dome or the network storage is added to the speed dome, and the Purpose: There are two kinds of recording for the speed domes: manual recording and scheduled recording.
  • Page 98 User Manual of Network Speed Dome the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the speed dome starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.
  • Page 99 User Manual of Network Speed Dome  If you want to configure the all-day recording, please check the All Day checkbox.  If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time.

  • Page 100: Configuring Snapshot Settings

    User Manual of Network Speed Dome settings on the Audio Exception Detection interface. Please refer to Section 6.6.7 for detailed information.  Record Triggered by All Events If you select All Events, the video will be recorded when any event is detected.
  • Page 101 User Manual of Network Speed Dome Figure 7-10 Snapshot Settings 2. Check the Enable Timing Snapshot checkbox to enable continuous snapshot, and configure the schedule of timing snapshot. Check the Enable Event-triggered Snapshot checkbox to enable event-triggered snapshot. 3. Select the quality of the snapshot.
  • Page 102 User Manual of Network Speed Dome 2) Configure the FTP settings and check checkbox in FTP Settings interface. Please refer to Section 6.3.8 Configuring FTP Settings for more details to configure FTP parameters.  Upload event-triggered snapshots to FTP Steps: 1) Check the Enable Event-triggered Snapshot checkbox.

  • Page 103: Chapter 8 Playback

    User Manual of Network Speed Dome Chapter 8 Playback Purpose: This section explains how to view the remotely recorded video files stored in the network disks. Task 1: To play back the video files Steps: 1. Click on the menu bar to enter playback interface.
  • Page 104 User Manual of Network Speed Dome The toolbar on the bottom of Playback interface can be used to control playing process. Figure 8-3 Playback Toolbar Table 8-1 Description of the buttons Button Operation Button Operation Play/Pause Stop Speed down Speed up...
  • Page 105 User Manual of Network Speed Dome types as shown in Figure 8-6. Figure 8-6 Video Types Task 2: To download the video files Steps: 1. Click on the playback interface. The pop-up menu is shown in Figure 8-7. 2. Set the start time and end time. Click Search. The corresponding video files are listed on the left.
  • Page 106 User Manual of Network Speed Dome 5. Click to download the files. Figure 8-8 Picture Downloading interface © Hikvision...

  • Page 107: Chapter 9 Log Searching

    User Manual of Network Speed Dome Chapter 9 Log Searching Purpose: The operation, alarm, exception and information of the speed dome can be stored in log files. You can also export the log files on your demand. Before you start: Please configure network storage for the speed dome or insert a SD card in the speed dome.

  • Page 108: Chapter 10 Others

    User Manual of Network Speed Dome Chapter 10 Others 10.1 Managing User Accounts Enter the User Management interface: Configuration >Basic Configuration> Security > User Or Configuration > Advanced Configuration> Security > User The admin user has access to create, edit or delete other accounts. Up to 32 user accounts can be created.

  • Page 109: Configuring Rtsp Authentication

    User Manual of Network Speed Dome  Modify a User Steps: 1. Click to select the user from the list and click 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions.

  • Page 110: Configuring Anonymous Visit

    User Manual of Network Speed Dome Configuration> Advanced Configuration> Security > Authentication Figure 10-4 RTSP Authentication 2. Set the authentication mode for each authentication type.  RTSP Authentication: Select the authentication mode as basic or disable in the dropdown list to enable or disable the RTSP authentication.

  • Page 111: Configuring Security Service Settings

    Or Configuration > Advanced Configuration> System > Device Information In the Device Information interface, you can edit the Device Name. Other information of the network speed dome, such as Model, Device No., Serial No., Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed.

  • Page 112: Maintenance

    User Manual of Network Speed Dome future. Figure 10-9 Device Information 10.7 Maintenance 10.7.1 Rebooting the Speed Dome Steps: 1. Enter the Maintenance interface: Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance: 2. Click to reboot the network speed dome.

  • Page 113: Importing/Exporting Configuration File

    User Manual of Network Speed Dome Clicking restores all the parameters to default settings including the IP address and user information. Please use this button with caution. Figure 10-11 Restore Default Settings 10.7.3 Importing/Exporting Configuration File Steps: 1. Enter the Maintenance interface: Configuration >...

  • Page 114: Configuring Rs-485

    User Manual of Network Speed Dome Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance 2. Select Firmware or Firmware Directory.  Firmware: when you select Firmware, you need to find the firmware in your computer to upgrade the device.

  • Page 115: Configuring Ir Light

    User Manual of Network Speed Dome 2. Set the RS-485 parameters and click to save the settings. The Baud Rate, PTZ Protocol and PTZ Address parameters of the speed dome should be exactly the same as those of the control device.

  • Page 116: Appendix

    User Manual of Network Speed Dome Appendix Appendix 1 SADP Software Introduction  Description of SADP SADP (Search Active Devices Protocol) is a kind of user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices.
  • Page 117 User Manual of Network Speed Dome You can click on each column heading to order the information; you can click to expand the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.

  • Page 118: Appendix 2 Port Mapping

    User Manual of Network Speed Dome Appendix 2 Port Mapping The following settings are for TP-LINK router (TL-R410). The settings vary depending on different models of routers. Steps: 1. Select the WAN Connection Type, as shown below: Figure A.2.1 Select the WAN Connection Type 2.
  • Page 119 1. As the settings mentioned above, forward the port 80, 8000, 8200~8210 and 554 for the network speed dome at 192.168.1.23 2. Forward the port 81, 8001, 8201~8211 and 555 for the network speed dome at 192.168.1.24. 3. Enable ALL or TCP protocols.

  • Page 120: Appendix 3 Statics, Interference Lightning And Surge Protection

    User Manual of Network Speed Dome Appendix 3 Statics, Interference Lightning and Surge Protection This product adopts TVS plate lightning protection technology to avoid damage caused by pulse signal that is below 3000V, like instantaneous lighting stroke, surging, etc. According to the actual outdoor situation, necessary protection measures must be taken, besides ensuring the electrical safety.
  • Page 121 User Manual of Network Speed Dome the following figure. Power Power Display Power supply board Power supply board Video cable Operating center Control line Keyboard Cement pole/wall 1.5m underground Figure A-2 Grounding in Cement Pole/Wall Installation © Hikvision...
  • Page 122 User Manual of Network Speed Dome  Because the signal transmission media of fiber optical speed dome and network speed dome are isolated from the control center, they must be grounded locally to protect dome against damages.  If the dome is installed in strong thunderstorm area, it must be grounded locally to release lightening or suchlike high energy to protect dome against damages.
  • Page 123 User Manual of Network Speed Dome Grounding for Metal Pole Installation: When the speed dome is installed in environment where is conductive to the earth, e.g., metal pole, then the grounding of dome can be achieved by the properly grounded metal pole, meanwhile, the control center must be grounded locally as well.

  • Page 124: Appendix 4 Waterproof

    User Manual of Network Speed Dome Appendix 4 Waterproof  The long-arm wall mount is recommended for the outdoor application of speed dome.  You cannot use the short-arm wall mount or pendant mount for outdoor application, because it is not water-proof.

  • Page 125: Appendix 5 Bubble Maintenance

    User Manual of Network Speed Dome Appendix 5 Bubble Maintenance The bubble is a transparent plastic. The dust, oil and finger print, etc. will cause scratch or image blur. Please refer to the following method to clean the bubble.  Handling dust Use oil free soft brush or blowing dust ball to clean the dust.

  • Page 126: Appendix 6 Rs485 Bus Connection

    User Manual of Network Speed Dome Appendix 6 RS485 Bus Connection  General Property of RS485 Bus According to RS485 industry bus standard, RS485 is a half-duplex communication bus which has 120Ω characteristic impendence, the maximum load ability is 32 payloads (including controller device and controlled device).
  • Page 127 User Manual of Network Speed Dome Controller Figure A-9 Star Shape Connection For such case, the best way is adding a RS485 distributor. This product can effectively change the star-shape connection to which satisfies the requirement of RS485 industry standard, in order to avoid those problems and improve the communication reliability.
  • Page 128 User Manual of Network Speed Dome Problem Possible Reasons To Solve the Problem 2. RS485+ or RS485-wire is 2. Change a RS485 wire. controlled broken. but not 3. The speed dome is too far away 3. Add a terminal resistor.

  • Page 129: Appendix 7 24Vac Wire Gauge & Transmission Distance

    User Manual of Network Speed Dome Appendix 7 24VAC Wire Gauge & Transmission Distance The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable.

  • Page 130: Appendix 6 Table Of Wire Gauge Standards

    User Manual of Network Speed Dome Appendix 6 Table of Wire Gauge Standards American Cross-sectional Bare Wire British Wire Wire Gauge Area of Bare Gauge(mm) Gauge SWG Wire(mm 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000...

  • Page 131: Appendix 7 Alarm In/Out Connections

    User Manual of VCA Network Speed Dome Appendix 7 Alarm In/Out Connections This section is only for the speed domes with alarm in/out functions. The speed dome can be connected with alarm inputs (0~5VDC) and alarm outputs. Refer to the following diagrams for alarm output:...

This manual is also suitable for:

Ds-2df5286-ael

Table of Contents
