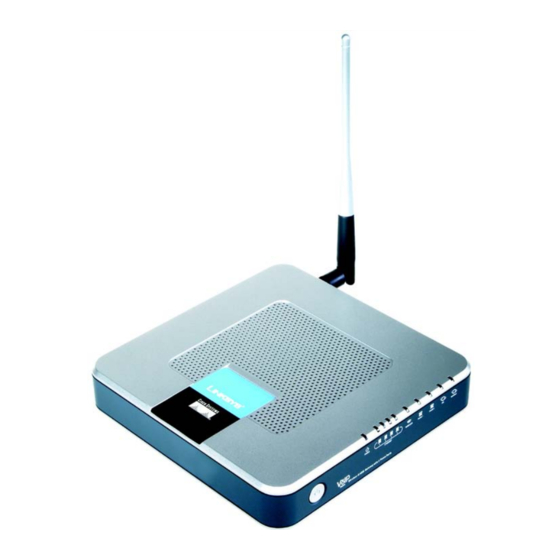

Linksys - WAG54GP2 Installation CD
This User Guide provides step-by-step instructions on how to configure
the Linksys – WAG54GP2 modem using the supplied Installation CD.
Why is this task performed?
Completing this task will assist you through configuring the Linksys –
WAG54GP2 modem using the Linksys - WAG54GP2 Installation CD.
For assistance in the following sections, click on the corresponding link:
•
Configuring User Details
•
Disabling Wireless
•
Enabling Wireless
Troubleshooting
If after completing this user guide you are unable to get online a factory
reset of the modem may be required. Please refer to the Linksys -
WAG54GP2 user manual for instructions on how to complete a factory
a
reset.
What tools are used to complete the task?
Linksys - WAG54GP2 modem, Linksys - WAG54GP2 User Manual,
Linksys - WAG54GP2 Installation CD, Ethernet cable and a PC.
Page 1 of 20
Advertisement
Related Manuals for Linksys WAG54GP2
Summary of Contents for Linksys WAG54GP2
- Page 1 Troubleshooting If after completing this user guide you are unable to get online a factory reset of the modem may be required. Please refer to the Linksys - WAG54GP2 user manual for instructions on how to complete a factory reset.
- Page 2 Linksys - WAG54GP2 Installation CD With the PC running, insert the Installation CD into the appropriate drive and in the Welcome screen which appears, complete the following step: Click Page 2 of 20...
- Page 3 Linksys - WAG54GP2 Installation CD In the End User License Agreement screen, complete the following steps: Read the Terms of the End User License Agreement. Click Page 3 of 20...
- Page 4 Linksys - WAG54GP2 Installation CD In the Disconnect the Modem from the PC screen, complete the following steps: Ensure you have disconnected all cables that connect your modem to the PC. Click Page 4 of 20...
- Page 5 Linksys - WAG54GP2 Installation CD In the Connect the Modem to the Router screen, complete the following steps: Ensure you have plugged the phone cable from the wall socket into the line port of the modem. Click Page 5 of 20...
- Page 6 Linksys - WAG54GP2 Installation CD In the Connect the Gateway to a PC screen, complete the following steps: Connect one end of the Ethernet cable to the PC. Click Page 6 of 20...
- Page 7 Linksys - WAG54GP2 Installation CD In the Connect the Gateway to a PC screen, complete the following steps: Connect the other end of the Ethernet cable to one of the Gateway’s ports numbered 1 - 4. Click Page 7 of 20...
- Page 8 Linksys - WAG54GP2 Installation CD In the Power on the Gateway screen, complete the following steps: Connect the power adapter into the gateway power port. Plug the other end into an electrical outlet.. Ensure the power switch on the back of the modem is switched...
- Page 9 Linksys - WAG54GP2 Installation CD In the Check the Gateway’s Status screen, complete the following steps: Ensure the following lights are lit on the modem: 1. Power 2. DSL 3. Ethernet: 1,2 3 or 4 At least one of the Ethernet LED lights for 1,2,3 or 4 needs to be lit.
- Page 10 Linksys - WAG54GP2 Installation CD In the Check the Gateway’s Status screen, complete the following steps: Wait for the Checking Computer settings, screen is complete. Click Page 10 of 20...
- Page 11 Linksys - WAG54GP2 Installation CD Configuring User Details In the Configure DSL screen, complete the following steps: Enter the username@isp.com.au in the User ID field. Refer to the Settings Page on our website for the username format. Enter the password in the Password field.
- Page 12 Linksys - WAG54GP2 Installation CD Configuring User Details In the Set the Gateway’s Password screen, complete the following steps: Enter the new password in the Password field. Reenter the new password in the Confirm field. Note: This changes the password to access the modem from the manufacturers default settings.
- Page 13 Linksys - WAG54GP2 Installation CD Disabling Wireless In the Wireless Settings screen, complete the following steps: In the Network Mode drop down menu select Disabled. Click Page 13 of 20...
- Page 14 Linksys - WAG54GP2 Installation CD Disabling Wireless In the Confirm New Settings screen, complete the following steps: Ensure the New settings are correct. Click Page 14 of 20...
- Page 15 Linksys - WAG54GP2 Installation CD Disabling Wireless In the Confirm New Settings screen, complete the following steps: Wait for the Configuring your Router, screen to complete. Click As you have selected to disable the wireless connection, click here to move to the next step.
- Page 16 Linksys - WAG54GP2 Installation CD Enabling Wireless In theWireless Settings screen, complete the following steps: In the Network Mode drop down menu select Mixed. Click Page 16 of 20...
- Page 17 Linksys - WAG54GP2 Installation CD Enabling Wireless In the Security Settings screen, complete the following steps: From the Security dropdown menu select the appropriate security. Refer to the User manual for further information on what security mode is best for your setup.
- Page 18 Linksys - WAG54GP2 Installation CD Enabling Wireless In the Security Settings screen, complete the following steps: Ensure the New settings are correct. Click Page 18 of 20...
- Page 19 Linksys - WAG54GP2 Installation CD Internet Security In the Norton Internet Secruity screen, complete the following steps: Click If you wish to download a 60-day free trial version of Norton Internet Security. Click Page 19 of 20...
- Page 20 Linksys - WAG54GP2 Installation CD In the Congratulations screen, complete the following step: Click You have now completed the Linksys-WAG54GP2 Installation CD Userguide. Page 20 of 20...
