A Division of Cisco Systems, Inc.

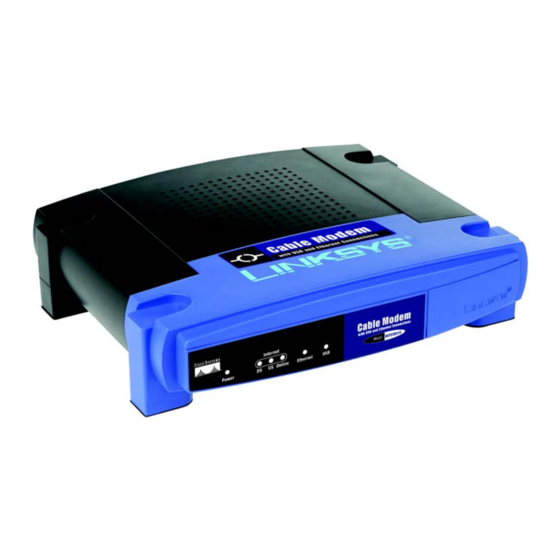

Cable Modem

with USB and
User Guide
WIRED
Ethernet Connections
BEFCMU10
Model No.

Advertisement

Table of Contents
loading

Related Manuals for Linksys BEFCMU10 - Cable Modem With USB

Summary of Contents for Linksys BEFCMU10 - Cable Modem With USB

  • Page 1: Cable Modem

    ® A Division of Cisco Systems, Inc. Cable Modem with USB and User Guide WIRED Ethernet Connections BEFCMU10 Model No.
  • Page 2 Cable Modem with USB and Ethernet Connections Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2003 Cisco Systems, Inc. All rights reserved.

  • Page 3: Table Of Contents

    Cable Modem with USB and Ethernet Connections Table of Contents Chapter 1: Introduction Welcome What’s in this Guide? Chapter 2: Getting to Know the Cable Modem Back Panel Ports Front Panel LEDs Chapter 3: Connecting the Cable Modem Overview Connection Using the Ethernet Port Connection Using the USB Port Chapter 4: Installing the USB Driver for Windows XP Overview...
  • Page 4 Cable Modem with USB and Ethernet Connections List of Figures Figure 2-1: Back Panel Figure 2-2: Front Panel Figure 3-1: Connect the Coaxial Cable Figure 3-2: Connect the Ethernet Network Cable Figure 3-3: Connect the Power Cable Figure 3-4: Connect the Coaxial Cable Figure 3-5: Connect the USB Cable Figure 3-6: Connect the Power Cable Figure 4-1: Welcome...

  • Page 5: Chapter 1: Introduction

    Thank you for choosing the Linksys Cable Modem. Experience the savings of owning your own cable modem! The Linksys Cable Modem is the easiest and most affordable way to get a blazing fast connection to the Internet -- far faster than a dial-up, and without tying up your phone line. The "always on" connection eliminates dial-up wait time and busy signals.
  • Page 6 • Appendix F: Regulatory Information This appendix supplies the regulatory information regarding the Cable Modem. • Appendix G: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 1: Introduction What’s in this Guide?

  • Page 7: Chapter 2: Getting To Know The Cable Modem

    Cable Modem with USB and Ethernet Connections Chapter 2: Getting to Know the Cable Modem Back Panel Ports The Cable Modem’s ports are located on the back panel. Figure 2-1: Back Panel Power Port The Power port is where you will connect the included power adapter. Reset Button The Reset button allows you to clear the Cable Modem’s connections and set the Cable Modem to the factory defaults.

  • Page 8: Front Panel Leds

    Cable Modem with USB and Ethernet Connections Front Panel LEDs The Cable Modem’s LEDs are located on the front panel. Figure 2-2: Front Panel Power Green. The Power LED lights up when the Cable Modem is powered on. It stays solid after the self-test.

  • Page 9: Chapter 3: Connecting The Cable Modem

    Cable Modem with USB and Ethernet Connections Chapter 3: Connecting the Cable Modem Overview NOTE: Make sure that you have TCP/IP installed on You can connect the Cable Modem to your PC using either the Ethernet port or the USB port. If you use the USB your computer.

  • Page 10: Connection Using The Usb Port

    Cable Modem with USB and Ethernet Connections Connection Using the USB Port 1. Power off your PC. If you have an existing cable modem that you are replacing, disconnect it at this time. 2. Connect the coaxial cable from your Internet Service Provider (ISP) or cable company to the Cable port on the back panel of the Cable Modem.

  • Page 11: Chapter 4: Installing The Usb Driver For Windows Xp

    Cable Modem with USB and Ethernet Connections Chapter 4: Installing the USB Driver for Windows XP Overview If you are connecting the Cable Modem to your computer using the USB port, follow these instructions to install the USB driver required for Windows XP. Instructions for Installing the Driver 1.

  • Page 12: Chapter 5: Installing The Usb Driver For Windows 2000

    Cable Modem with USB and Ethernet Connections Chapter 5: Installing the USB Driver for Windows 2000 Overview If you are connecting the Cable Modem to your computer using the USB port, follow these instructions to install the USB driver required for Windows 2000. Instructions for Installing the Driver 1.

  • Page 13: Figure 5-4: Driver Files Search Results

    Cable Modem with USB and Ethernet Connections 6. On the Driver Files Search Results screen, click the Next button. 7. When Windows 2000 has finished installing the driver, the Completing the Found New Hardware Wizard screen will appear. Click the Finish button. 8.

  • Page 14: Chapter 6: Installing The Usb Driver For Windows Millennium

    Cable Modem with USB and Ethernet Connections Chapter 6: Installing the USB Driver for Windows Millennium Overview If you are connecting the Cable Modem to your computer using the USB port, follow these instructions to install the USB driver required for Windows Millennium. Instructions for Installing the Driver 1.

  • Page 15: Chapter 7: Installing The Driver For Windows 98

    Cable Modem with USB and Ethernet Connections Chapter 7: Installing the Driver for Windows 98 Overview If you are connecting the Cable Modem to your computer using the USB port, follow these instructions to install the USB driver required for Windows 98. Instructions for Installing the Driver 1.

  • Page 16: Figure 7-4: Select Updated Driver

    Cable Modem with USB and Ethernet Connections 6. Select The updated driver (Recommended). Then click the Next button. 7. After Windows has found the driver, click the Next button. 8. When Windows 98 has finished installing the driver, click the Finish button. 9.

  • Page 17: Appendix A: Troubleshooting

    Appendix A: Troubleshooting This appendix provides solutions to problems that may occur during the installation and operation of the Cable Modem. Read the description below to solve your problems. If you can't find an answer here, check the Linksys website at www.linksys.com.
  • Page 18 Cable Modem with USB and Ethernet Connections • The signal from your cable company’s equipment may be too weak or the cable line may not be properly attached to the Cable Modem. If the cable line is properly connected to the Cable Modem, then call your cable company to verify whether a weak signal may be the problem.

  • Page 19: Appendix B: Windows Help

    Cable Modem with USB and Ethernet Connections Appendix B: Windows Help Most Linksys products require Microsoft Windows. Windows is the most used operating system in the world and comes with many features that help make networking easier. These features can be accessed through Windows Help and are described in this appendix.

  • Page 20: Appendix C: Glossary

    Cable Modem with USB and Ethernet Connections Appendix C: Glossary 802.11a - A wireless networking standard that specifies a maximum data transfer rate of 54Mbps and an operating frequency of 5GHz. 802.11b - A wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.
  • Page 21 Cable Modem with USB and Ethernet Connections Buffer - A shared or assigned memory area that is used to support and coordinate different computing and networking activities so one isn't held up by the other. Byte - A unit of data that is usually eight bits long Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the Internet.
  • Page 22 Cable Modem with USB and Ethernet Connections DTIM (Delivery Traffic Indication Message) - A message included in data packets that can increase wireless efficiency. Dynamic IP Address - A temporary IP address assigned by a DHCP server. EAP (Extensible Authentication Protocol) - A general authentication protocol used to control network access. Many specific authentication methods work within this framework.
  • Page 23 Cable Modem with USB and Ethernet Connections Infrastructure - A wireless network that is bridged to a wired network via an access point. IP (Internet Protocol) - A protocol used to send data over a network. IP Address - The address used to identify a computer or device on a network. IPCONFIG - A Windows 2000 and XP utility that displays the IP address for a particular networking device.
  • Page 24 Packet - A unit of data sent over a network. Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products. PEAP (Protected Extensible Authentication Protocol) - A mutual authentication method that uses a combination of digital certificates and another system, such as passwords.
  • Page 25 Cable Modem with USB and Ethernet Connections Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services. SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet. SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol.
  • Page 26 Cable Modem with USB and Ethernet Connections TFTP (Trivial File Transfer Protocol) - A version of the TCP/IP FTP protocol that has no directory or password capability. Throughput - The amount of data moved successfully from one node to another in a given time period. TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for each packet transmitted.

  • Page 27: Appendix D: Specifications

    Cable Modem with USB and Ethernet Connections Appendix D: Specifications Model BEFCMU10 v4 Standards DOCSIS 1.0, DOCSIS 1.1 Certified, DOCSIS 2.0 Certified, IEEE 802.3, IEEE 802.3u, USB 1.1 Ports Ethernet, USB, Cable Buttons Reset Cabling Type Cable: F-type female 75 ohm Ethernet: 10/100 RJ-45 Port USB: USB Type B Port LEDs...

  • Page 28: Appendix E: Warranty Information

    Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates.

  • Page 29: Appendix F: Regulatory Information

    Cable Modem with USB and Ethernet Connections Appendix F: Regulatory Information FCC STATEMENT This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 30: Appendix G: Contact Information

    Can't find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at: 800-546-5797 (LINKSYS) Or fax your request in to:...
