Summary of Contents for Safety Vision SAFESTOP-HD

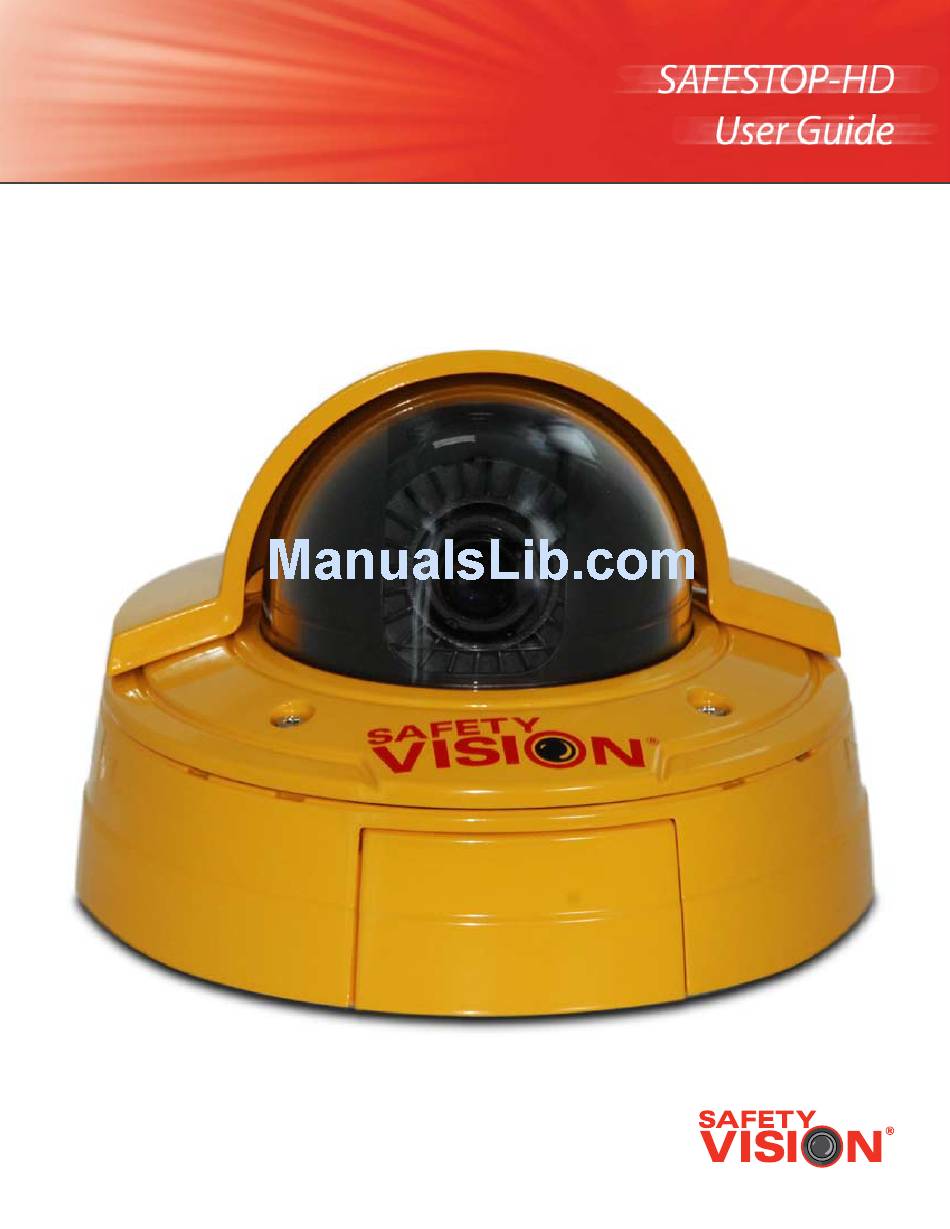

- Page 1 HigH Definition Stop Arm CAmerA SyStem...
-
Page 2: Important Notices
It is shared with your company for the sole purpose of helping you with the operation of the described equipment. Safety Vision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: Table Of Contents
Table of Contents Components External Housing Camera Module Installation Wiring Schematic Web Interface Live View Configuration Date & Time Focus & Zoom Video Retrieval Video Playback Appendix A: Specifications Appendix B: Dimensions... -
Page 4: Components
3 - LAN Ethernet - Connects to a Power over Ethernet (PoE) Injector to supply power to the SAFESTOP-HD. Use an Ethernet cable to connected to a PC to access the SAFESTOP-HD’s web interface (see the Web Interface chapter on page 5). -
Page 5: Installation
Installation Use the following procedure to install the SAFESTOP-HD. Using the included template, tap or otherwise mark the screw holes and passage for the cables in the desired mounting location. Use self-tapping screws or rivets to secure the base plate to the desired mounting location. -
Page 6: Wiring Schematic
4 SAfeStop-HD USer gUiDe Wiring Schematic... -
Page 7: Web Interface
The configuration web interface launches. Access different pages of the web interface by clicking on the links on the left side of the screen. The SAFESTOP-HD’s firmware version and MAC address are displayed below the basic setup instructions. -
Page 8: Live View
6 SAfeStop-HD USer gUiDe Live View The Live View provides a live image from the camera, for the purposes of adjusting the angle and checking that the image is unobstructed. The Live View screen appears when you first log in. It can also... -
Page 9: Configuration
MAC address are displayed Click Manage on the upper right corner of the screen to access on the Instructions page, under the Basic the SAFESTOP-HD’s configuration menus. Access different Setup menu. pages by clicking the links on the left side of the screen. -
Page 10: Focus & Zoom
8 SAfeStop-HD USer gUiDe Focus & Zoom The Focus & Zoom page provides an easy method to properly adjust the focus and zoom of the SAFESTOP-HD’s camera. Basic The Basic tab provides a quick and simple method of focusing the camera. Use the following procedure to focus the camera using the Basic method: Ensure the image is correctly aligned and centered. - Page 11 Advanced The Advanced tab allows access to a more advanced focusing method involving the camera’s iris. Using the Advanced focus procedure may allow the camera to more accurately adjust to varied lighting conditions encountered on bus routes. Use the following procedure to focus the camera using the Advanced method: Ensure the image is...
-
Page 12: Video Retrieval
Click the The selected video segments are automatically placed in a sin- gular .zip file entitled recordings.zip and downloaded. Follow your browser’s instructions regarding downloading files. Alternatively, click the Remove button to delete the selected recorded video off of the SAFESTOP-HD. -
Page 13: Video Playback
Video Playback Video is downloaded from the SAFESTOP-HD in a compressed .zip file. Use your preferred file compression software to uncompress or unzip the file. Safety Vision recommends WinRAR. Individual video files within the .zip file have a .safestop file extension. -
Page 14: Appendix A: Specifications
12 SAfeStop-HD USer gUiDe Appendix A: Specifications SPECIFICATIONS Image Sensor Progressive scan RGB CMOS 1/3” (effective) Minimum Illumination Color: 0.5 lux, F1.2, B/W: 0.08 lux, F1.2 Shutter Time Automatic Video Compressions H.264 (MPEG-4 Part 10/AVC) Motion JPEG Resolutions 1920x1080 (1080p) to 160x90... -
Page 15: Appendix B: Dimensions
Appendix B: Dimensions... - Page 16 Important Packing and Shipping Instructions When a product requires service, only the affected component must be returned. If returning the SAFESTOP-HD unit, please Safety Vision, LLC (“SV”) makes the following limited warranty, include the SD card and HDD that was in use at the time the which is effective at the time of the original end-user issue occured.
- Page 18 CORPORATE HEADqUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Toll Free: 800.880.8855 Main: 713.896.6600 Fax: 713.896.6640 www.safetyvision.com 9/12...
