1
.
3
H
a
r
d
w
a
r
e
1
.
3
H
a
r
d
w
a
r
e

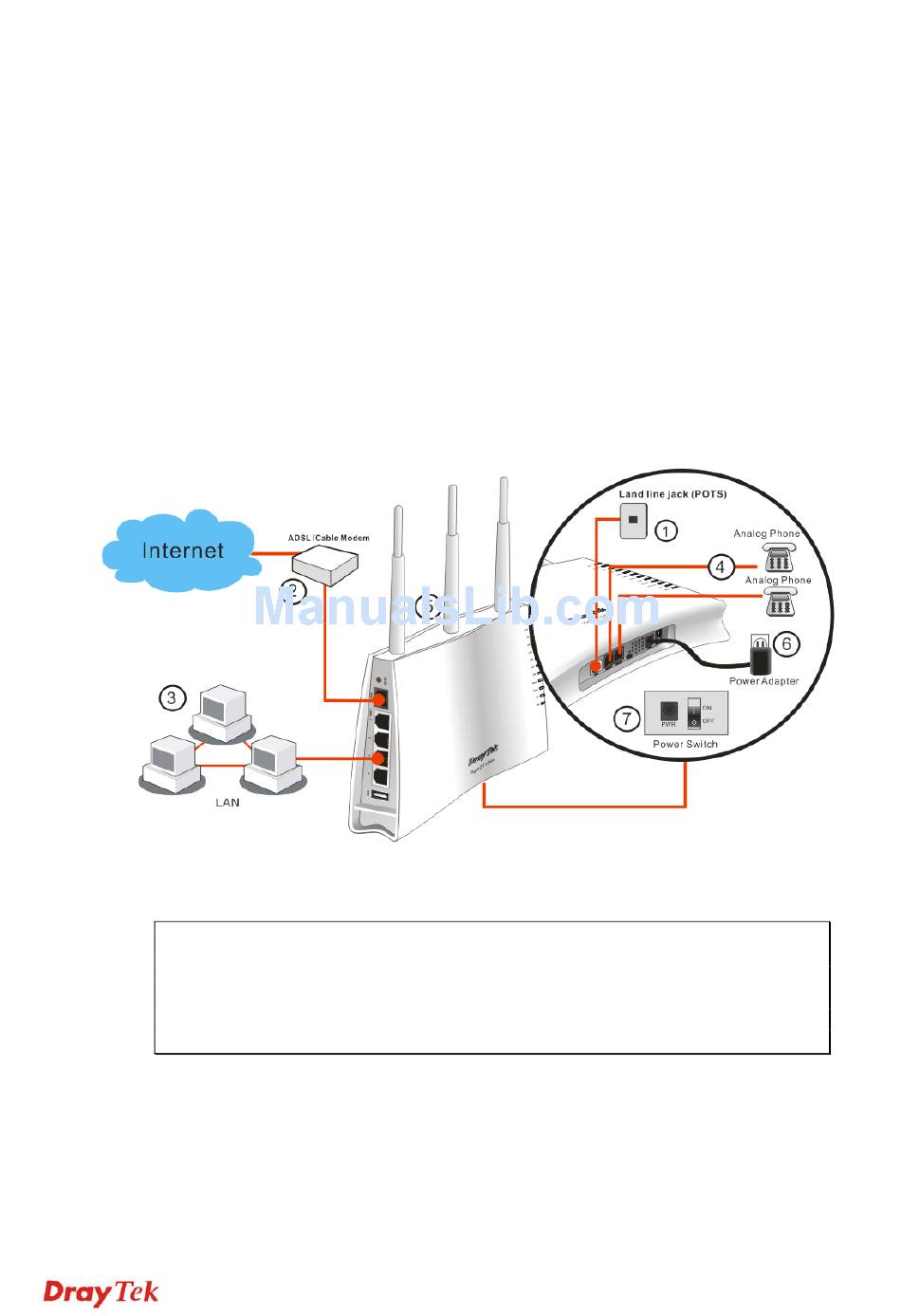

Before starting to configure the router, you have to connect your devices correctly.
1.
Connect Line port to land line jack with a RJ-11 cable (Vn model).
2.
Connect this device to a modem with a RJ-45 cable.
3.
Connect one port of 4-port switch to your computer with a RJ-45 cable. This device
allows you to connect 4 PCs directly.
4.
Connect Phone port to a conventional analog telephone.
5.
Connect detachable antennas to the router for Vigor2110 series (n model).
6.
Connect one end of the power cord to the power port of this device. Connect the other
end to the wall outlet of electricity.
7.
Power on the router.
8.
Check the ACT and WAN, LAN LEDs to assure network connections.
Caution:
1. Each of the Phone ports can be connected to an analog phone only. Do not connect
the phone ports to the land line jack. Such connection might damage your router.
2. When the power is shutdown, VoIP phone will be disconnected. However, a phone
set connected to Phone 2 port can be used as the traditional telephone for the line will be
guided to land line jack via the router (loop through).
I
n
s
t
a
l
l
a
t
i
o
n
I
n
s
t
a
l
l
a
t
i
o
n
8
Vigor2110 Series User's Guide
