Craftsman 675 Series Operator's Manual
Hide thumbs
Also See for 675 Series:
- Operator's manual (96 pages) ,
- Owner's manual (49 pages) ,
- Operator's manual (52 pages)
Advertisement
Quick Links
Download this manual
See also:

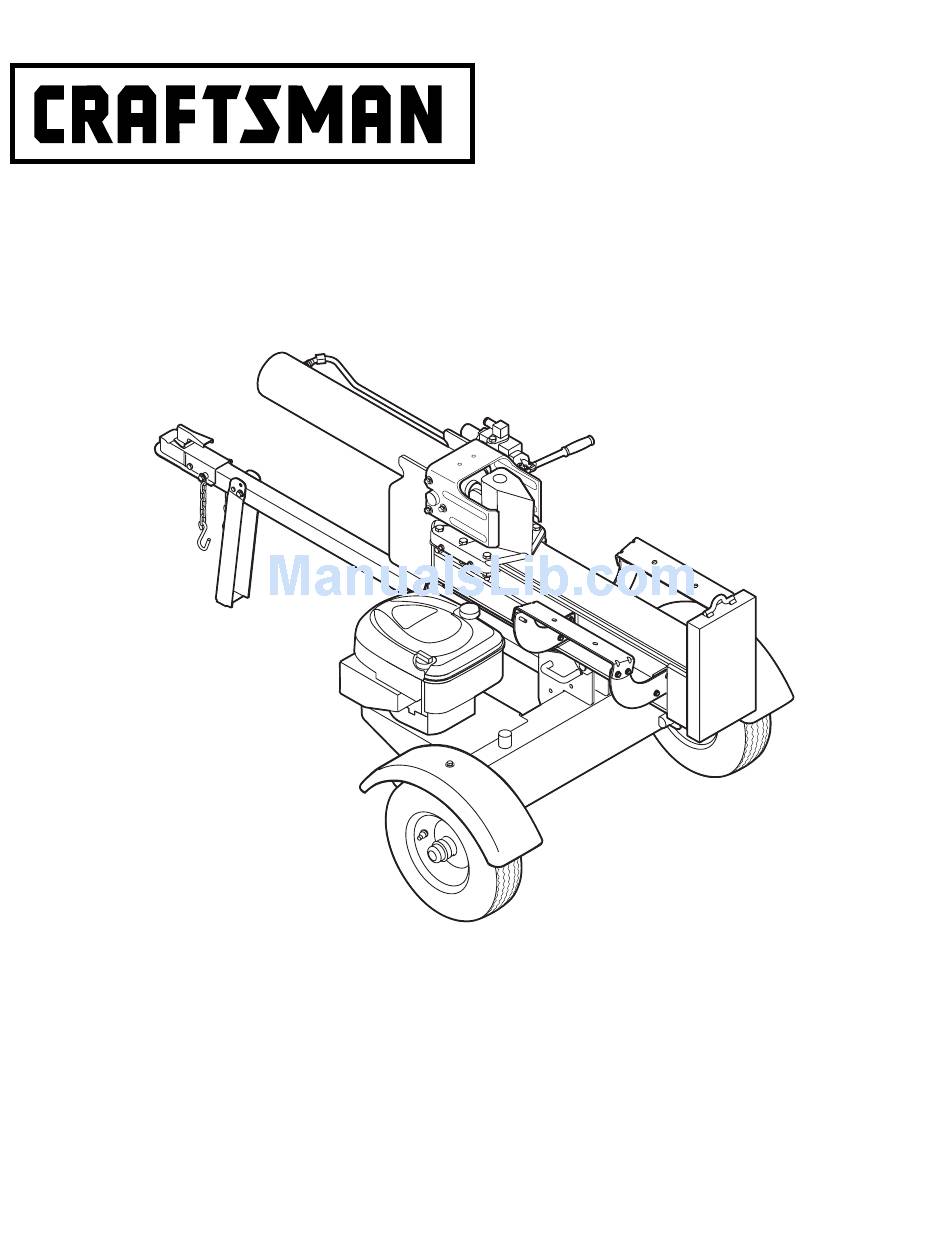

Operator's Manual
Operator's Manual
675 Series
LOG SPLITTER
Model No. 247.77641
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.
Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.
®
Visit our website: www.craftsman.com
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
• Español
FORM NO. 769-05240A
6/11/2010
Advertisement
Related Manuals for Craftsman 675 Series
Summary of Contents for Craftsman 675 Series
-
Page 1: Log Splitter
• MAINTENANCE • PARTS LIST CAUTION: Before using • Español this product, read this manual and follow all safety rules and operating instructions. Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A. FORM NO. 769-05240A Visit our website: www.craftsman.com 6/11/2010... -
Page 2: Parts List
PARTS LIST Craftsman log splitter Model 247.77641... - Page 3 Craftsman log splitter Model 247.77641 Ref. Part No. Description Ref. Part No. Description 918-0769A Hydraulic Cylinder 719-0353 Coupling Shield 727-04166 Hydraulic Tube 914-0122 Square Key 3/16” x.75 710-1018 Hex Cap Screw 1/2-20 x 2.75 710-1842 Screw, 1/4-20 x .38 737-0192 90 Degree Solid Adapter —...
- Page 4 PARTS LIST briggs & stratton engine Model 126l02 for Craftsman log splitter Model 247.77641 1330 rePair ManUal 1058 oPeraTor’s ManUal...
- Page 5 PARTS LIST briggs & stratton engine Model 126l02 for Craftsman log splitter Model 247.77641 633a 977 CarbUreTor gaskeT seT 633a 121 CarbUreTor oVerHaUl kiT 633a...
- Page 6 PARTS LIST briggs & stratton engine Model 126l02 for Craftsman log splitter Model 247.77641 1005 1059 1211 1210 1036 eMissions label...
- Page 7 PARTS LIST briggs & stratton engine Model 126l02 for Craftsman log splitter Model 247.77641 358 engine gaskeT seT 1329 rePlaCeMenT engine...
- Page 8 PARTS LIST briggs & stratton engine Model 126l02 for Craftsman log splitter Model 247.77641 Ref.No. PartNo. Description Ref.No. PartNo. Description BS-697322 Cylinder Assembly BS-697316 Starter Rope (Cut to Req’d Length) BS-399269 Bushing/Seal Kit BS-281434S Starter Rope Grip BS-299819S † Oil Seal (Magneto Side)
- Page 9 PARTS LIST briggs & stratton engine Model 126l02 for Craftsman log splitter Model 247.77641 Ref.No. PartNo. Description Ref.No. PartNo. Description 347. BS-691396 Rocker Switch 633A. BS-693867 ††* Choke/Throttle Shaft Seal 356. BS-693010 Stop Wire 635. BS-66538S Spark Plug Boot 358.
- Page 10 PARTS LIST Craftsman log splitter Model 247.77641 777S32061 WARNIN G 777D14914 CONTROL VALVE PERSON STABILIZING LOG ON SPLITTER MUST BE SAME PERSON WHO OPERATES CONTROL VALVE. REVERSE KEEP HANDS AWAY FROM WEDGE AND MOVING PARTS. NEUTRAL KEEP HANDS and FEET AWAY...
