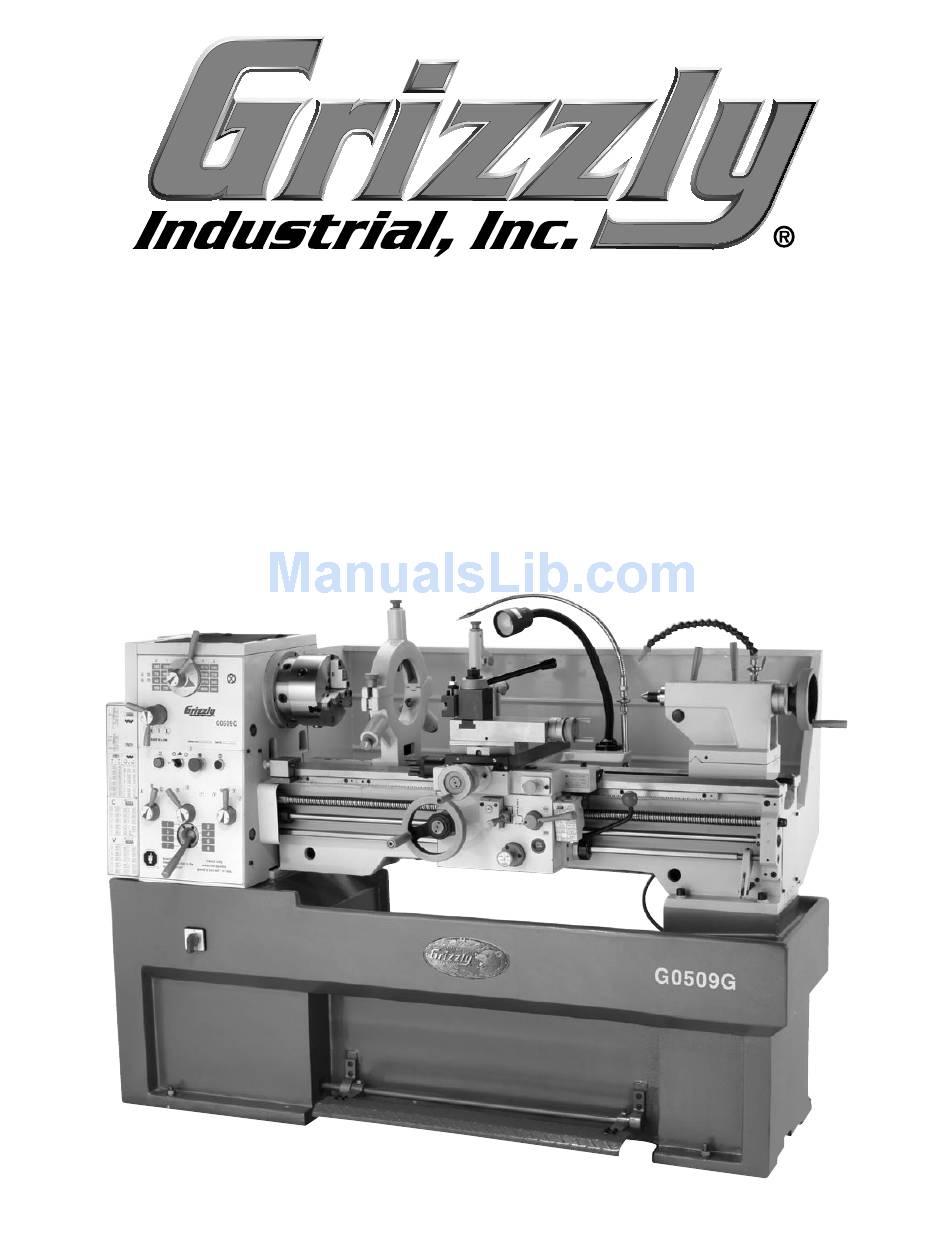

- Page 1 INSPECTION RECORD of Model G0509G Precision Lathe TJ9037...
- Page 2 Diagram of Measuring Method G0509G Precision Lathe Inspection Record Allowed Tolerances a. Alignment of longitudinal bed slide ways in vertical plane: 0.04mm (0.0015") b. Parallelism of transverse direction: 0.04mm (0.0015") in 1000mm (39.370") Parallelism of tailstock to longitudinal motion carriage: a.
- Page 3 Diagram of Measuring Method G0509G Precision Lathe Inspection Record Allowed Tolerances Parallelism of center line of tailstock spindle to longitudinal motion of carriage: a. In vertical plane: 0.02mm (0.0007") in 100mm (3.937") b. In horizontal plane: 0.015mm (0.0006") in 100mm...
- Page 4 Diagram of Measuring Method G0509G Precision Lathe Inspection Record Allowed Tolerances Lead screw cam action 0.015mm (0.0006") Accuracy of outside round cutting: a. Roundness: 0.005mm b. Cylindricity: 0.02mm (0.0007") in 200mm (7.874") Flatness of face for finishing cutting: 0.025mm (0.001") on the diameter of 300mm (11.811")
