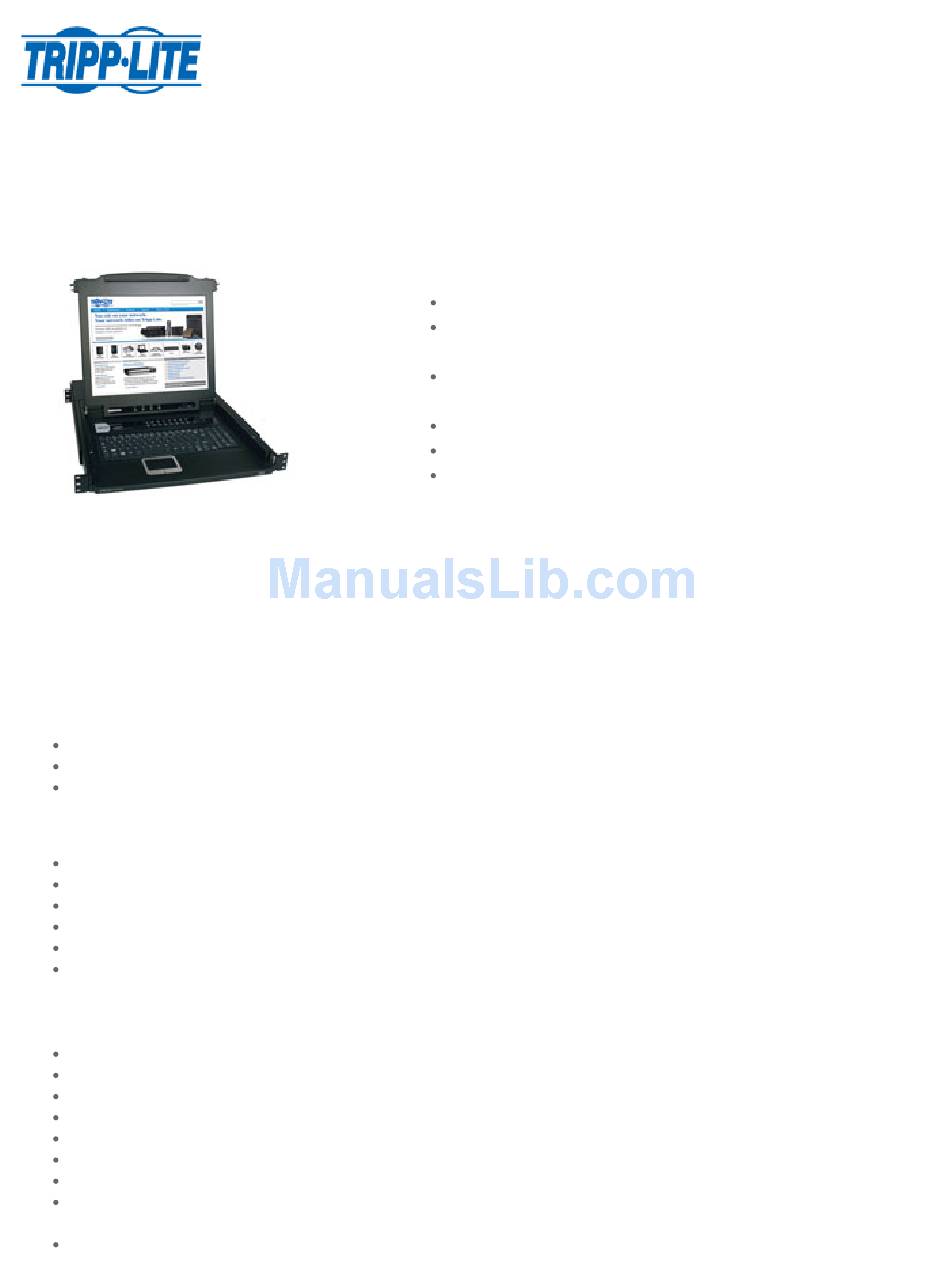

Tripp Lite B020-016-17 Quick Manual

Model Number: B020-016-17
Console KVM Switch - 16-Port NetDirector 1U Rackmount Console KVM Switch w/17" LCD
Description
Tripp Lite's 16-port Console KVM Switch with 17" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and
monitor. This single unit combines a 16 port KVM switch, keyboard, 17" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in
the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional B022-016 or B022-U16 16 port
KVM switches. Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Control PS/2 or
USB computers/servers using P774-Series (PS/2) and P776-Series (USB) KVM Cable kits. Includes an extra HD15 and (2) PS/2 ports on the rear of
the unit, which allows for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. Compatible with all major operating
systems except Mac and Sun.
System Requirements
PS/2 or USB computer
(1) P774-Series (PS/2) or P776-Series (USB) KVM Cable kit is required for each connected computer/server
Compatible with all major operating systems except Mac and Sun
Package Includes
16 Port Console KVM Switch w/17" LCD
6 ft. PS/2 KVM Cable Kit
6 ft. USB KVM Cable Kit
C13 to 5-15P power cord
RJ11 to DB9 Firmware upgrade cable
Owners Manual CD
Features
Control an entire network in just 1U of rack space
Combines a 16 port KVM switch, 17" LCD screen, keyboard and touchpad in a 1U rackmountable drawer
Control up to 512 computers by daisychaining additional B022-016 or B022-U16 KVM switches
Supports video resolutions up to 1280 x 1024
Switch between ports via pushbuttons, OSD or keyboard hot key commands
Includes autoscan feature
Multi-level password security (administrator/user) to ensure only those with authorization can access connected computers/servers
Includes additional VGA monitor and PS/2 keyboard/mouse ports, allowing for the connection of an external console, or a Tripp Lite
B051-000 IP Remote Access Unit
Hot pluggable; add or remove computers without having to power down the switch
Auto-sensing of station position on daisy chained installations; no need for manual DIP switch setting, front panel LED indicates station
Highlights
Control an entire network in just 1U rack space
Combines a 16 port KVM switch, 17" LCD screen, keyboard, and touchpad in
a 1U rackmountable drawer
Control up to 512 computers by daisychaining additional B022-016 or
B022-U16 KVM switches
Supports video resolutions up to 1280 x 1024
Two level password security (administrator/user)
Compatible with all major operating systems except Mac and Sun
