ZDW24 WW
White Wine Chiller
ZDW24 BB
Black Wine Chiller
Front ventilation allows the beverage center

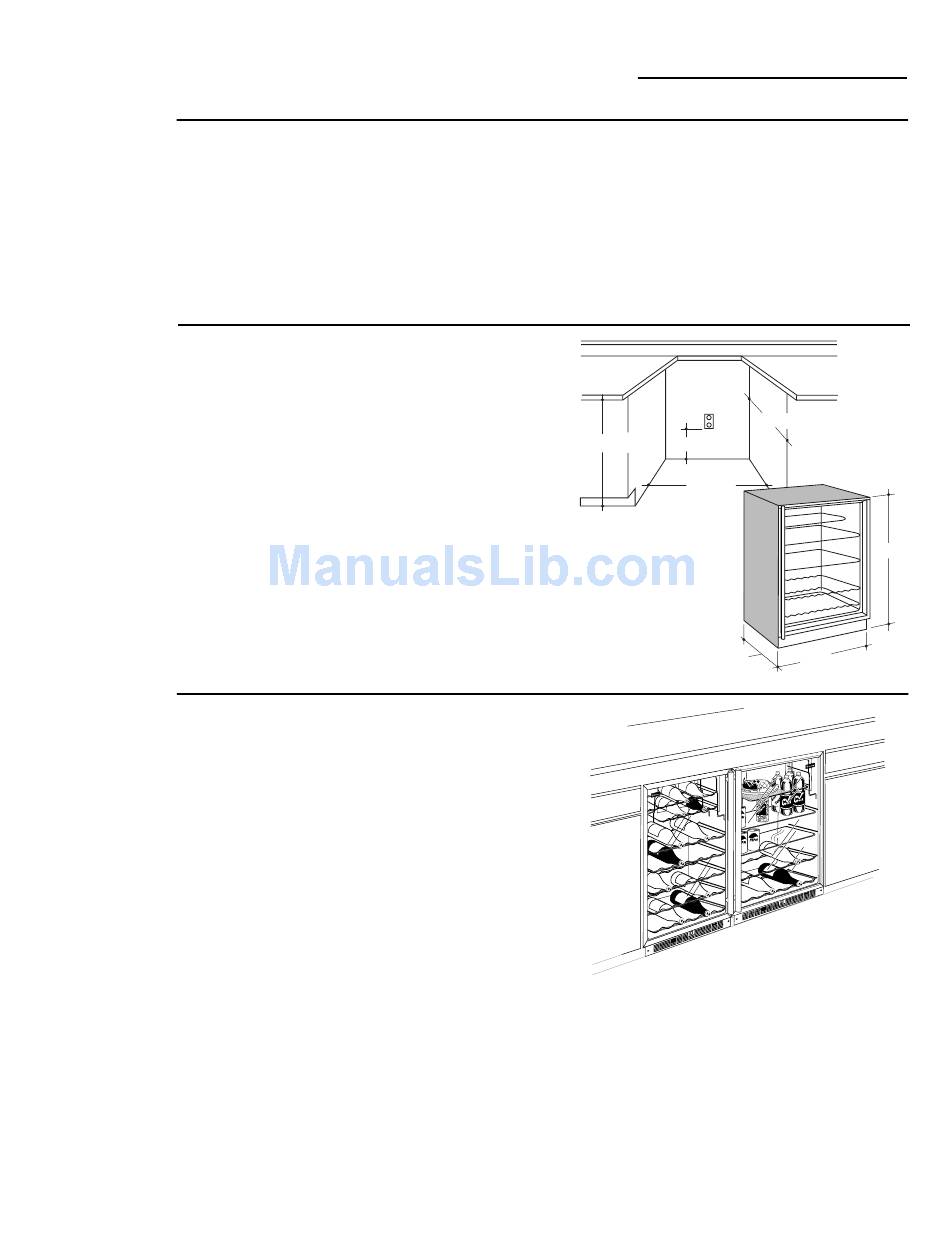

Dimensions
or wine chillder to be installed as a built-in
& Clearances
and still operate efficiently.
The bottom front grille area must remain
unobstructed for proper air circulation and
operation.
Cutout dimensions shown allow for a full door
swing and access to the pull-out racks.
Increase storage capacity by installing two
Installation
Monogram beverage centers side by side or
Options
two Monogram wine chillers side by side.
Or, install a Monogram beverage center next
to a Monogram wine chiller for a complete
refreshment center.
A side by side installation requires a 48" wide
opening. No trim kits required.
• The glass door fronts should align evenly
Frameless Cabinets:
• If installing between frameless cabinets, a
Provide two separate properly grounded
electrical outlets for a side by side installation.
Each electrical outlet should have a voltage
rating that matches the rating plate.
The Monogram beverage center or the wine
chiller adds an eloquent statement of style,
convenience and flexibility.
The Monogram beverage center and wine
chiller can be used freestanding or as a
built-in.
with adjacent cabinet door fronts.
1/2" wide filler strip or side panel may be
required. The filler strip will act as a spacer
between the door case and adjacent cabinet
and will prevent interference with cabinet
door swing. The width of the opening must
include filler panels.
Design Information
Beverage Center & Wine Chiller
Locate
Outlet
34-1/2"-35"
5"
24" Min.
24-1/8"
24" Min.
34-1/2"
23-7/8"
