GE
Measurement & Control

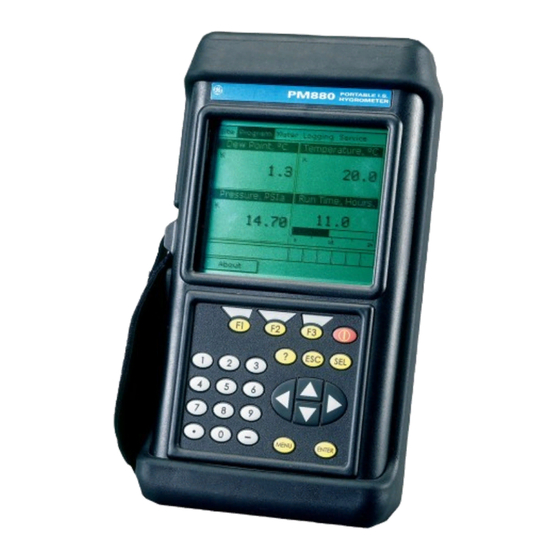

PM880
Panametrics Portable
Hygrometer
Applications
This rugged, intrinsically safe, portable hygrometer
measures moisture in gases and non-aqueous
liquids. It is used in conjunction with Moisture
®
Series (MIS), TF and M Series moisture
probes for applications including:
• Natural gas
• Chemical and petrochemical gases
• Non-aqueous liquid applications
• Air separation plants
• Tanker preparation and filling
• Industrial gases
• Gas cylinder preparation and filling
• Shipboard applications
• SF6 circuit breakers
• Furnace gases/heat treating
• General plant/facility maintenance
Features
• Hand-held portable design
• Intrinsically safe
• IP67 rated
• Large graphic display
• Internal data logger
®
• IrDA
communication with PC
• Stores up to 60 log/site files
• Simple programming via graphic user interface
• Compatible with all GE moisture probes
• Lightweight hand-held sample system
• Convenient carrying bag to store hygrometer and
all accessories
• Self-paced e-learning class provides
comprehensive review of features and operation
Advertisement
Related Manuals for GE PM880
Summary of Contents for GE PM880
- Page 1 Measurement & Control PM880 Panametrics Portable Hygrometer Applications This rugged, intrinsically safe, portable hygrometer measures moisture in gases and non-aqueous liquids. It is used in conjunction with Moisture ® Image Series (MIS), TF and M Series moisture Features probes for applications including: • Natural gas...
- Page 2 4 MIS probe electronics module battery pack and battery charger make this the ideal go- anywhere moisture analyzer. 5 TF moisture probe The PM880 comes in a soft carrying case with zippered 6 M Series moisture probe with probe cable compartments, a handle, and a shoulder strap. The case accommodates the PM880, a sample system, flexible...
- Page 3 FLASH memory Display Functions Displays measurements and logged data in alphanumeric or graphic format. Operating Temperature 14° to 122°F (–10° to 50°C) Display Units To ensure maximum battery life, GE does not recommend • Moisture: DP temperature, ppmv, ppmw, % RH, storing at temperatures exceeding 95°F (35°C) for longer lb/MMSCF, and others than one month. • Temperature: °F, °C, and °K • Pressure: psig, bar, kPa (gauge), kg/cm (gauge), and...
-
Page 4: Sample System
Moisture Measurement Pressure Measurement Optional pressure sensor available for TF Series and Compatibility Moisture Image Series moisture probes Compatible with all GE aluminum oxide moisture probes: M Series, TF Series, and Moisture Image Series. Each probe type requires a different type of I/O cable. Ranges • 30 to 300 psig (3 to 21 bar) • 50 to 500 psig (4 to 35 bar) Calibration • 100 to 1000 psig (7 to 69 bar) GE moisture sensors are computer-calibrated to National • 300 to 3000 psig (21 to 207 bar) Institute of Standards and Technology (NIST) traceable • 500 to 5000 psig (35 to 345 bar) moisture concentrations. Accuracy Dew/Frost Point Temperature ±1% at full scale Overall Calibration Range Capability Proof Pressure -166°F to 140°F (–110°C to 60°C)
