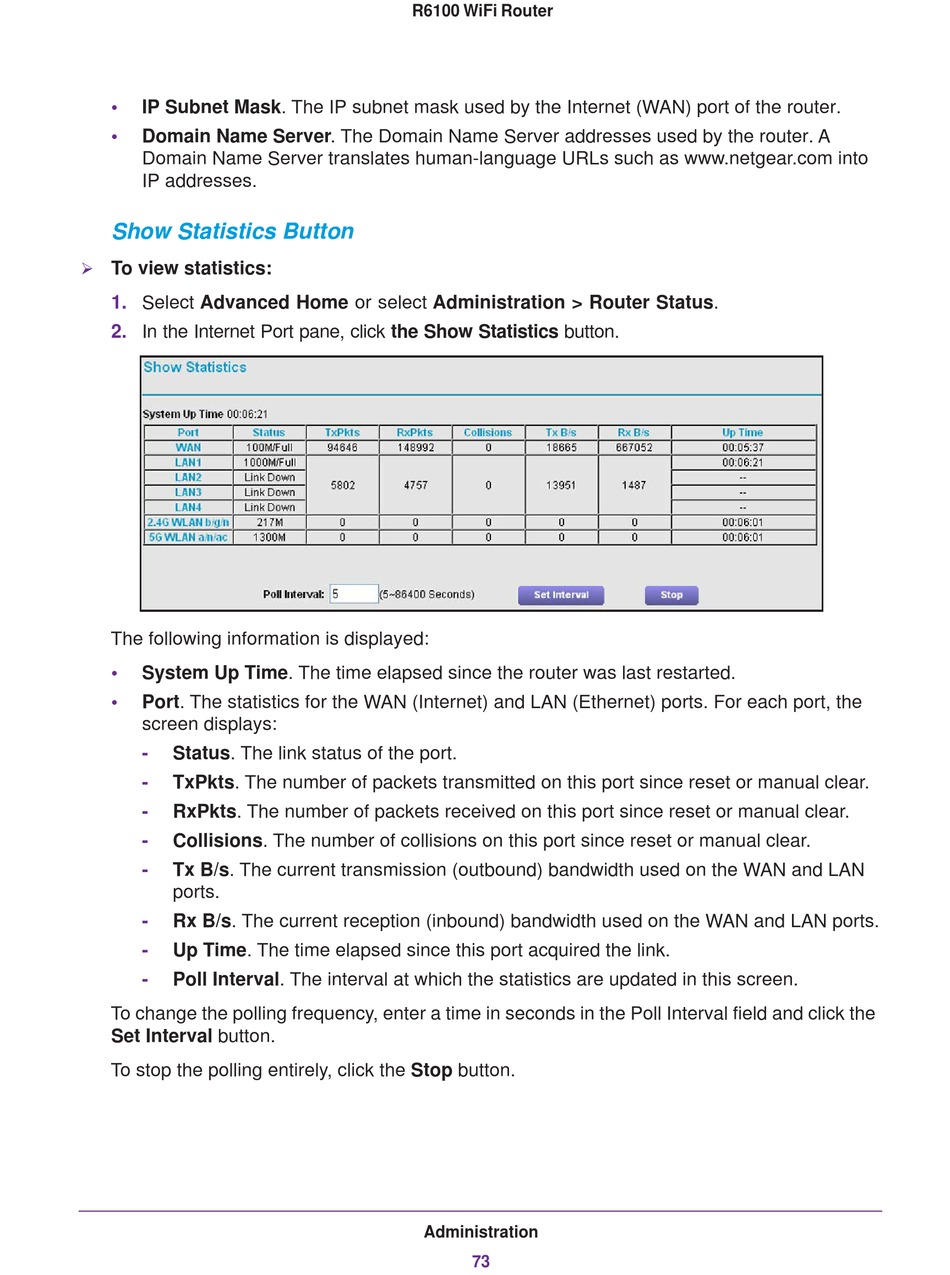

IP Subnet Mask. The IP subnet mask used by the Internet (WAN) port of the router.
•
Domain Name Server. The Domain Name Server addresses used by the router. A
Domain Name Server translates human-language URLs such as www.netgear.com into
IP addresses.
Show Statistics Button
To view statistics:
1.
Select Advanced Home or select Administration > Router Status.
2.
In the Internet Port pane, click the Show Statistics button.
The following information is displayed:
•
System Up Time. The time elapsed since the router was last restarted.
•
Port. The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the
screen displays:
-
Status. The link status of the port.
-
TxPkts. The number of packets transmitted on this port since reset or manual clear.
-
RxPkts. The number of packets received on this port since reset or manual clear.
-
Collisions. The number of collisions on this port since reset or manual clear.
-
Tx B/s. The current transmission (outbound) bandwidth used on the WAN and LAN
ports.
-
Rx B/s. The current reception (inbound) bandwidth used on the WAN and LAN ports.
-
Up Time. The time elapsed since this port acquired the link.
-
Poll Interval. The interval at which the statistics are updated in this screen.
To change the polling frequency, enter a time in seconds in the Poll Interval field and click the
Set Interval button.
To stop the polling entirely, click the Stop button.
