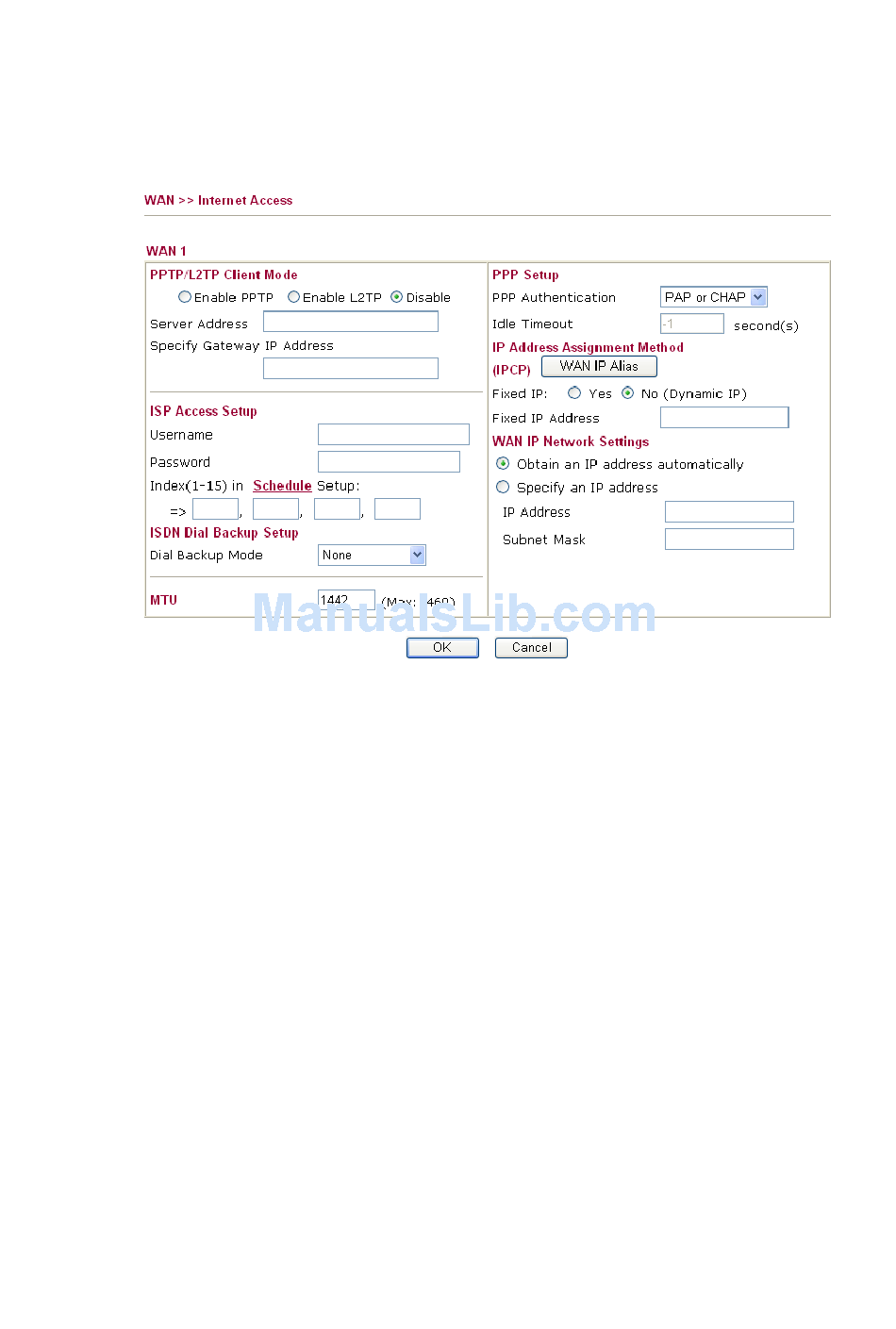

To use PPTP/L2TP as the accessing protocol of the internet, please choose Internet Access
from WAN menu. Then, select PPTP/L2TP mode for WAN2/WAN2. The following web
page will be shown.
PPTP/L2TP Client
Mode
ISP Access Setup
ISDN Dial Backup
Setup
28
P a g e f o r P P T P / L
s P a g e f o r P P T P / L
Click Enable PPTP to enable a PPTP client to establish a tunnel
to a DSL modem on the WAN interface.
Click Enable L2TP to enable a L2TP client to establish a tunnel
to a DSL modem on the WAN interface.
Click Disable to disable PPTP/L2TP client mode. All the settings
configured in this page will be invalid.
Server Address - Specify the IP address of the PPTP server.
Specify Gateway IP Address - Specify the WAN IP address for
the router if the server is not in the same subnet.
Username -Type in the username provided by ISP in this field.
Password -Type in the password provided by ISP in this field.
Index (1-15) in Schedule Setup - You can type in four sets of time
schedule for your request. All the schedules can be set previously
in Application – Schedule web page and you can use the number
that you have set in that web page.
This setting is available for the routers supporting ISDN function
only. Before utilizing the ISDN dial backup feature, you must
create a dial backup profile (configured in ISDN>>Dial to a
Single ISP or Dial to Dual ISPs) first.
None - Disable the backup function.
Packet Trigger -The backup line is not on until a packet from a
local host triggers the router to establish a connection.
This setting is available for i model only.
2 T P
2 T P
