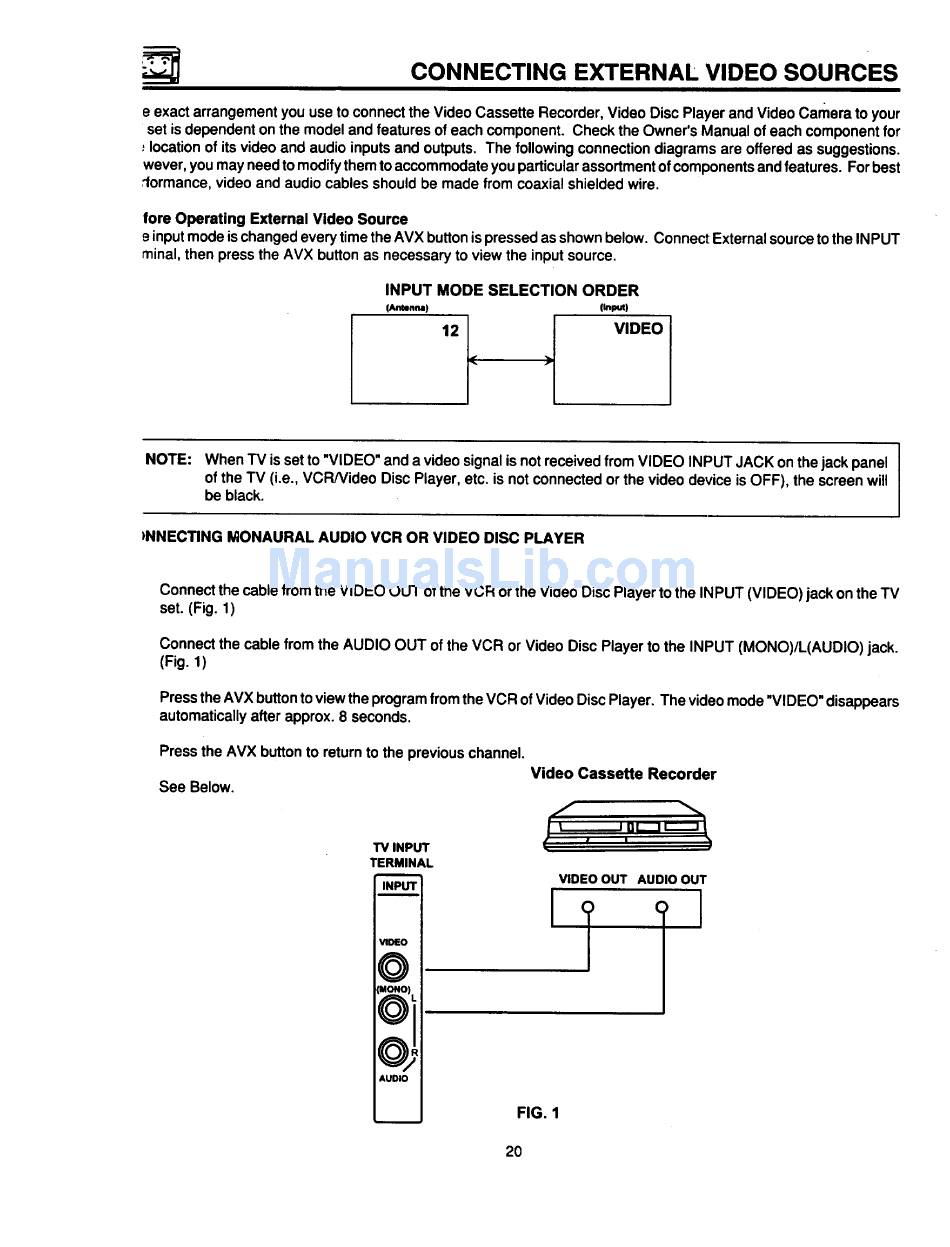

CONNECTING
EXTERNAL
VIDEO SOURCES
e exact arrangement you use to connect the Video Cassette Recorder, Video Disc Player and Video camera to your
set is dependent on the model and features of each component. Check the Owner's Manual of each component for
: location of its video and audio inputs and outputs. The following connection diagrams are offered as suggestions.
wever, you may need to modify them to accommodate you particular assortment of components and features. For best
_ormance, video and audio cables should be made from coaxial shielded wire.
fore Operating External Video Source
s inputmode ischangedeverytimetheAVX buttonispressedas shownbelow. ConnectExternalsourcetothe INPUT
minal, then press the AVX buttonas necessaryto view the inputsource.
INPUT MODE SELECTION ORDER
(/_nna)
|Input)
NOTE:
When TV is set to "VIDEO" and a video signal is not received from VIDEO INPUT JACK on the jack panel
of the TV (i.e., VCR/Video Disc Player, etc. is not connected or the video device is OFF), the screen will
be black.
)NNECTING
MONAURAL AUDIO VCR OR VIDEO DISC PLAYER
Connectthe cable fromthe VIDEO OUT of theVCR or the Video Disc Playerto the INPUT (VIDEO) jack on the TV
set. (Fig. 1)
Connect the cable from the AUDIO OUT of the VCR or Video Disc Player to the INPUT (MONO)/L(AUDIO) jack.
(Fig. 1)
Pressthe AVXbuttonto viewtheprogramfromtheVCR of VideoDiscPlayer. The videomode"VIDEO"disappears
automaticallyafter approx. 8 seconds.
Press the AVX button to return to the previous channel.
See Below.
Video Cassette
Recorder
TV INPUT
TERMINAL
INPUT
VIDEO
fMONO_
AUDIO
VIDEO OUT AUDIOOUT
II I I
FIG. 1
2O
