Tripp Lite B095-003-1E-M Quick Start Manual

Console server

Hide thumbs Also See for B095-003-1E-M:

Download this manual See also: Owner's Manual

B095-003-1E-M and B095-004-1E

This Quick Start walks you through installation, configuration and local operation. For more details

please refer to the User Manual on the CD-ROM.

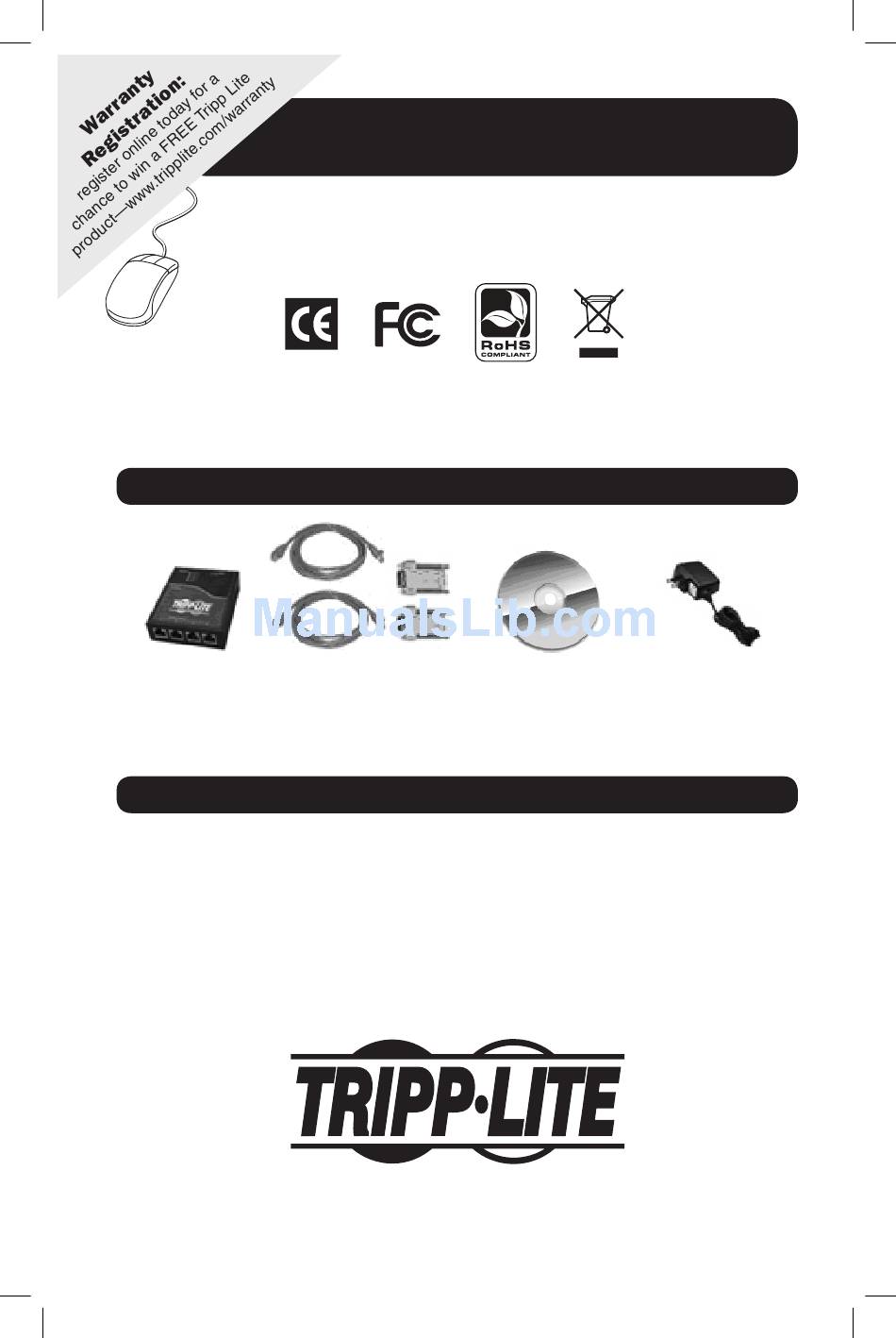

Check Kit Contents

B095 Console Server

Connect the Hardware

• Plug the console server into a power supply (PDU, surge or UPS) using the provided AC power

adapter.

• Connect the NETWORK port on the console server to your network, connect your serial devices

to any of the console server's SERIAL ports.

• For out-of-band (OoB) dial-in access on the B095-003-1E-M, connect the internal MODEM

port to the phone line. For out-of-band (OoB) dial-in access on the B095-004-1E, you can

connect an external modem to either the USB Type A port or one of the serial ports.

201102195 93-2977.indd 1

Quick Start Guide

UTP Cables (2) and

DB9F-RJ45F Straight

and Cross-Over

Adapters

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Quick Start Guide &

CD-ROM

AC Power Adapter

3/1/2011 11:05:14 AM

Page 1 USB Type A port or one of the serial ports. 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support Copyright © 2011 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners. 201102195 93-2977.indd 1 3/1/2011 11:05:14 AM...
Page 2 Setup the B095 Console Server The default console server IP address is 192.168.0.1 (subnet mask 255.255.255.0). With a web browser on any computer that is LAN connected to the console server: • Enter https://192.168.0.1 into the address bar. • Log in using the default system user name root and the default password default, a Welcome screen listing the basic configuration steps is displayed.
Page 3 Add New Users Note: It is recommended that you set up a new Administrator user (in the admin group with full access privileges) and login as this new user for all ongoing administration functions (rather than continuing as root). • For each new user, select Serial & Network: Users & Groups and click Add User. • Enter a Username and enter and confirm a Password, and nominate the Accessible Hosts and Ports the user is allowed to access, then click Apply.
Page 4 2-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products.
