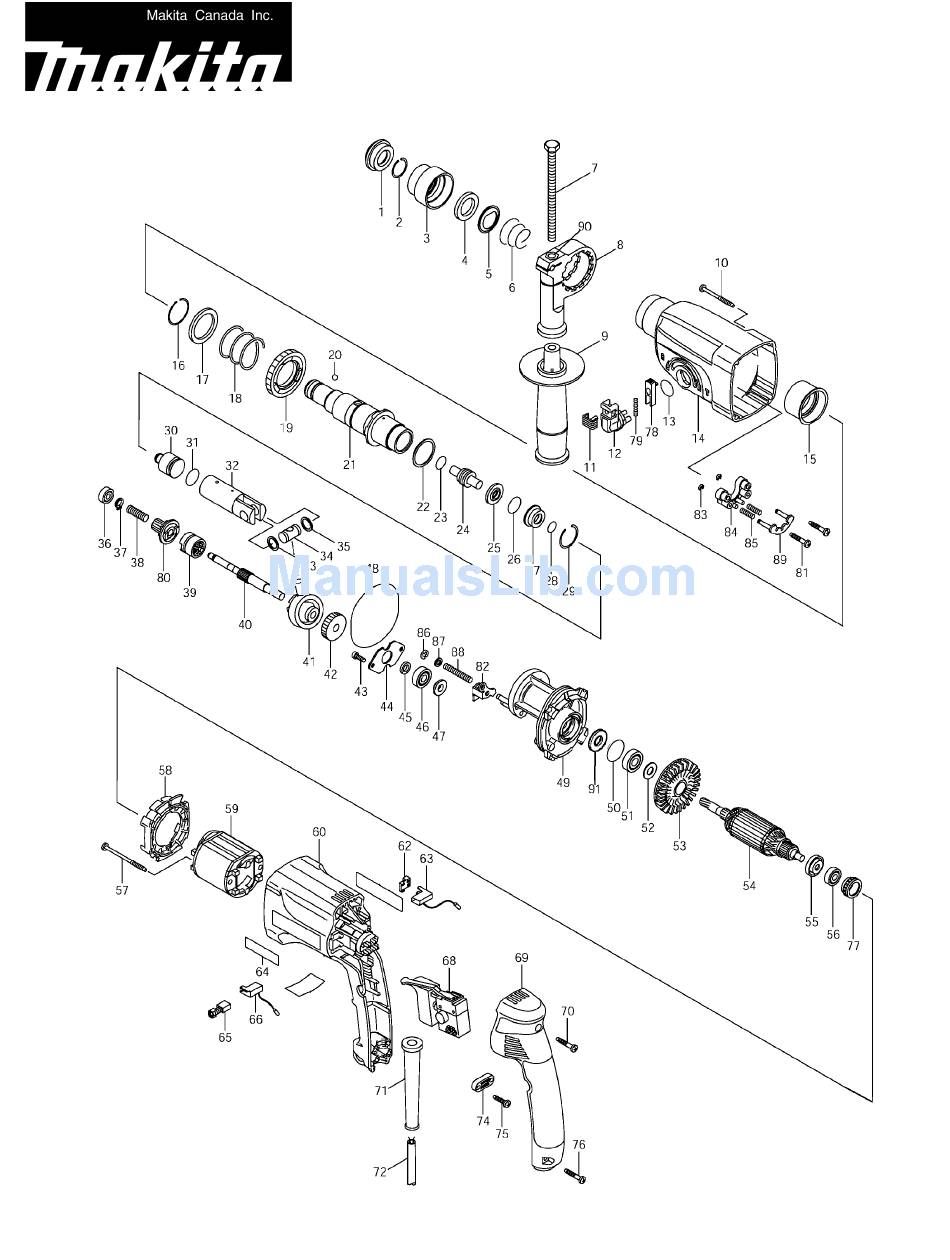

Page 1: Parts View
1” ROTARY HAMMER V.S. SDS-PLUS Model HR2450 (MCC) 04-2004... -
Page 2: Wiring Diagram
324216-6 O Ring Case 689111-0 Spacer 213073-6 O Ring 9 643988-7 Brush Holder 233917-4 Ring Spring 28 819063-3 Makita Label 324214-0 Striker 191927-6 Carbon Brush CB-407 (2pcs/Set) 213227-5 O Ring 16 643989-5 Brush Holder 331632-5 Piston Cylinder (Silver, Flat -->... - Page 3 181490-7 Hammer Grease 30cc 345280-4 Hex. Washer A-86642 Core Bit Adaptor (SDS Plus) 267271-4 Flat Washer 9 (Add) 191686-A Makita Safety Glasses 251425-3 (-) Flat Head Screw M6X22 752031-2 Center Bit 256806-6 Rod (For 25-40mm) Accessories 256815-5 Rod (For 45-118mm)
-
Page 4: Service Note
Fig. 4 All steps for removal of re-use parts have now been completed. Fig. 6 7. Replace the current Inner Housing complete by the new one. 8. Apply 5g of Makita Grease RA No.1 as (Fig. 6) 4 Model HR2450... - Page 5 9. Install O-Ring 24 and O-Ring 68 as (Fig. 4) Fig. 4 10. Set the new Change plate to the new Inner housing complete (Fig. 10). Fig. 10 11. Fix The Current Shaft Section And PIston Cylinder with Inner Housing, and then secure them by screwing the new M4x12 Hex.
