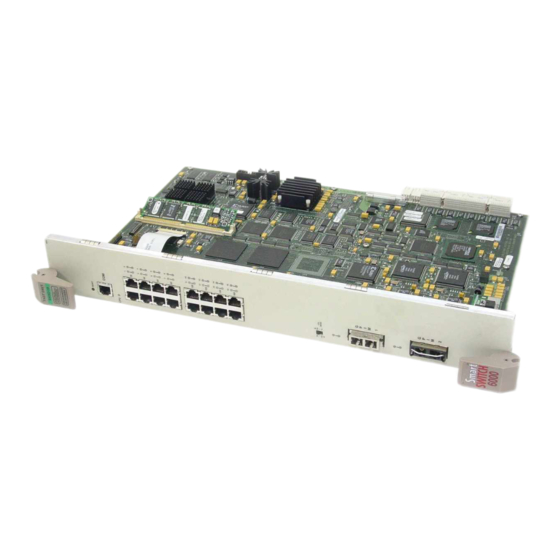

Cabletron Systems SmartSwitch 6000 Management Manual
  1. Manuals
  2. Brands
  3. Cabletron Systems Manuals
  4. Network Hardware
  5. SmartSwitch 6000
  6. Management manual

Cabletron Systems SmartSwitch 6000 Management Manual

Using mmac-plus remote management
Hide thumbs Also See for SmartSwitch 6000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installer and User Manual
Cabletron Systems
™
Using MMAC-Plus

Remote Management

Guide
TM
The Complete Networking Solution

Advertisement

Table of Contents
loading

Related Manuals for Cabletron Systems SmartSwitch 6000

Summary of Contents for Cabletron Systems SmartSwitch 6000

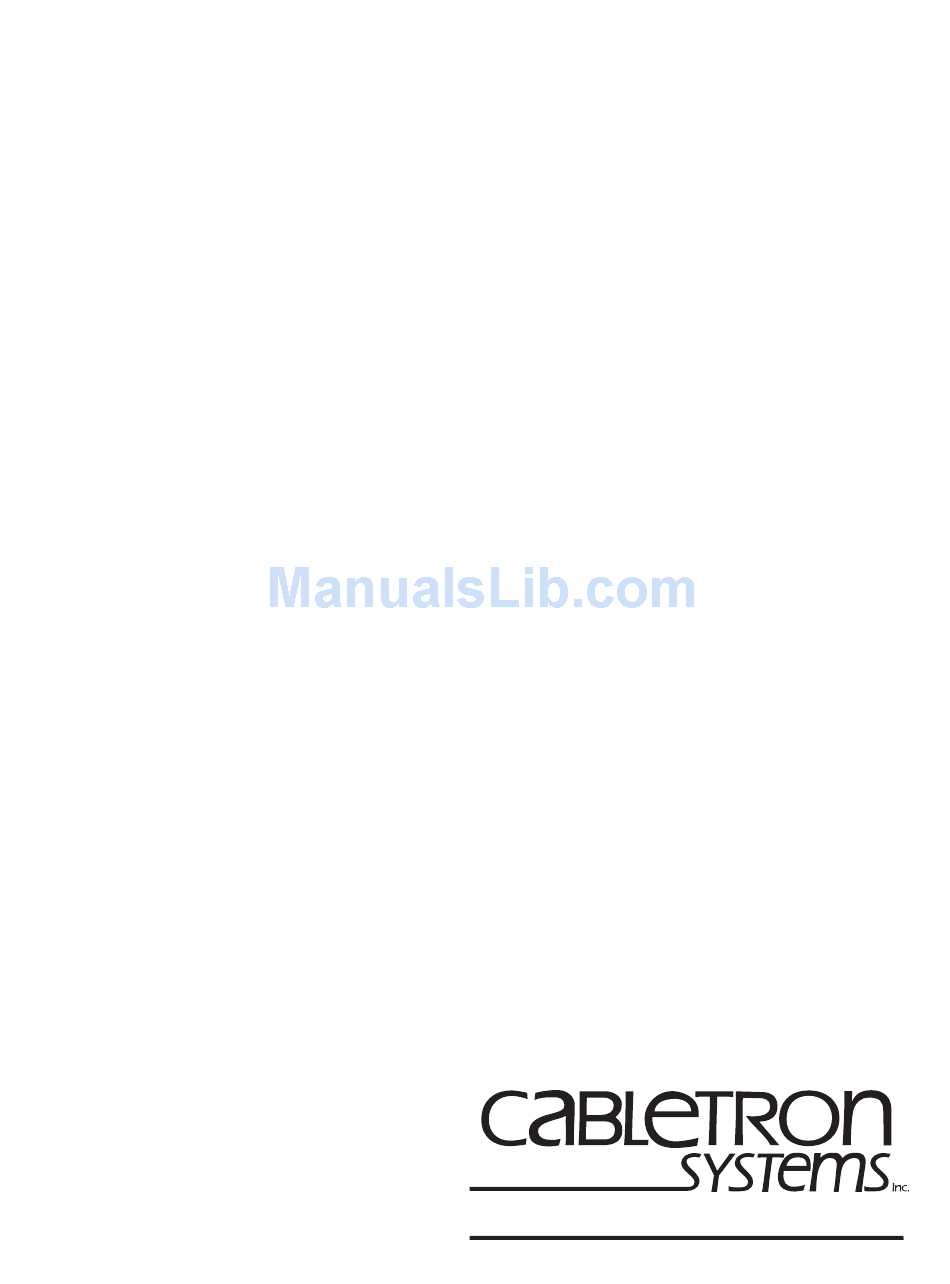

  • Page 1: Remote Management

    Cabletron Systems ™ Using MMAC-Plus Remote Management Guide The Complete Networking Solution...
  • Page 3 Notice Notice Cabletron Systems reserves the right to make changes in speciÞcations and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, Þrmware, or software described in this manual is subject to change without notice.
  • Page 4 Notice Banyan and VINES are registered trademarks of Banyan Systems, Inc. cisco, ciscoSystems, and AGS+ are registered trademarks; and cBus, cisco Router, CRM, IGS, and MGS are trademarks of cisco Systems, Inc. GatorBox is a registered trademark; and GatorMail, GatorMIM, GatorPrint, GatorShare, GatorStar, GatorStar GX-M, and XGator are trademarks of Cayman Systems, Inc.
  • Page 5 Notice ANNEX, ANNEX-II, ANNEX-IIe, ANNEX-3, ANNEX-802.5, MICRO-ANNEX-XL, and MICRO- ANNEX-ELS are trademarks of Xylogics, Inc. MAXserver and Xyplex are trademarks of Xyplex, Inc. Restricted Rights Notice (Applicable to licenses to the United States Government only.) Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.
  • Page 6 Notice Virus Disclaimer Cabletron has tested its software with current virus checking technologies. However, because no anti-virus system is 100% reliable, we strongly caution you to write protect and then, prior to installing, verify that the Licensed Software is virus-free with an anti-virus system in which you have conÞdence. Cabletron Systems makes no representations or warranties to the effect that the Licensed Software is virus-free.

  • Page 7: Table Of Contents

    Contents Chapter 1 Introduction Using This Manual......................1-2 Getting Help ........................1-3 Using On-line Help....................1-3 Getting Help from Cabletron Systems Technical Support....... 1-3 MMAC-Plus Remote Management Features ............1-3 Related Documentation....................1-4 Chapter 2 Getting Started Initiating MMAC-Plus Remote Management............2-1 Chapter 3 MMAC-Plus Management Views An Overview of Management Views.................
  • Page 8 Contents The BackPlane ConÞguration View................3-16 ConÞguring the 9E133-36 Module..............3-17 ConÞguring the 9F120-08 FDDI Concentrator Module........3-19 ConÞguring the 9F116-01 Module ..............3-20 ConÞguring the 9T122 Series Token Ring MicroLAN Module ..... 3-22 The FNB Ring ConÞguration Window ............. 3-23 Accessing Module-speciÞc Management Windows ..........

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction How to use this guide; getting help; special features of MMAC-Plus Remote Management; related reading Welcome to the Cabletron Systems Using MMAC-Plus¨ Remote Management Guide. We have designed this manual to serve as a simple reference tool for remotely managing a Cabletron Systems MMAC-Plus Chassis with an installed 9C300-1 Environmental Modulesª...

  • Page 10: Using This Manual

    Introduction MMAC-Plus Remote Management capability for the chassis includes: ¥ A Chassis View, which allows you to see at a glance the connection status of any installed MMAC-Plus client modules, as well as basic information about the Environmental Module, including the status of its communication ports, Ethernet EPIM port, and LCD read-out, and environmental conditions for the chassis as a whole.

  • Page 11: Getting Help

    Introduction Getting Help There are different methods of getting help for questions or concerns you may have while using MMAC-Plus Remote Management. Using On-line Help You use the Help buttons in the MMAC-Plus windows, or client module management windows, to obtain information speciÞc to the window you are currently viewing.

  • Page 12: Related Documentation

    Introduction In addition, from the chassis management windows, you can access all management windows for the individual client modules, as well as the utilities that you can use with all modules. Related Documentation Use the following documents to supplement the procedures and other technical data provided in this manual.

  • Page 13: Chapter 2 Getting Started

    Chapter 2 Getting Started Configuring the Chassis Setup window to run MMAC-Plus Remote Management This chapter describes setting up the Chassis View to run remote management. Initiating MMAC-Plus Remote Management For this release of MMAC-Plus Remote Management, Þrmware limitations of the MMAC-PlusÕs on-board System Management Bus components do not allow an individual IP address to be assigned to the chassis as a whole.
  • Page 14 Getting Started To initiate an MMAC-Plus Remote Management session: 1. Select Utilities —> MMAC-Plus from your Cabletron management application’s main menu. 2. The Chassis Entry window (Figure 2-1) will appear, with a drop-down menu list of configured chassis that are available for management. When you initially launch MMAC-Plus Remote Management, only the default entry of “Chassis”...
  • Page 15 Getting Started Figure 2-2. Sample Chassis Setup Window Click on the Module Type drop down list box, and drag to select the appropriate module type for the device installed in the corresponding slot (currently the 9E132 and 9E133 series Ethernet MicroLAN Module, 9F120 series FDDI Concentrator Module, 9F116 series FDDI Bridge/Router Module, and 9T-122 series Token Ring MicroLAN Module.
  • Page 16 Getting Started Each module must be correctly set up in the Chassis Setup window with the correct slot number, type, IP address, and community string. CAUTION If you do not conÞgure these parameters correctly for a module, and then exit the Chassis Setup window, the module will not be displayed in the Chassis window.

  • Page 17: Chapter 3 Mmac-Plus Management Views

    Chapter 3 MMAC-Plus Management Views An overview of MMAC-Plus Management views; changing the current view; changing the default start- up view; the Chassis View; the Environmental View — the Module Power View, the Module Temperature View; the BackPlane Configuration View; initializing individual module management applications.

  • Page 18: General View Information

    MMAC-Plus Management Views General Information Section Environmental Module Section System Status Section Client Module Section View Change Menu Status Bar Slot IP Field Figure 3-1. View Overview General View Information The following Þelds appear in the general section of each management view. The other three sections of the window vary with each management view and are described in the individual view sections.

  • Page 19: Changing The Current View

    MMAC-Plus Management Views Location An administratively assigned description of the Þrst detected client moduleÕs location (set via the MIBIIÑ>SystemÑ>sysLocation object). Refer to your client moduleÕs MMAC-Plus Guide for information on changing the moduleÕs location name. Up Time The duration, in a days hh:ss:mm format, that the Þrst module detected in the MMAC-Plus chassis has been powered up.

  • Page 20: The Chassis View

    MMAC-Plus Management Views The Chassis View The Chassis View (Figure 3-2) provides you with an overview of the environmental module status, backplane status, and operating status of any installed client modules. It also allows you to enable or disable front panel interfaces on individual client modules.

  • Page 21: System Status

    MMAC-Plus Management Views EPIM This color-coded Þeld displays the operating status of the Environmental ModuleÕs Ethernet Port Interface Module (EPIM) interface: gray if not used, green if operational, or red if malfunctioning. This Þeld is not operational for this release of MMAC-Plus Remote Management. Temperature This Þeld displays the room temperature (in Fahrenheit) as measured by the external ambient temperature sensor.

  • Page 22: Client Modules

    MMAC-Plus Management Views Client Modules When Chassis View is selected, the Client Module portion of the window will display the operational status of each installed module and its supported ports. Chassis slots are indexed from 1 to 14 in the middle of the Chassis window. If a module is installed, its slot index will be color-coded to reßect operational status, a module description will appear above the index, and a color-coded port display will appear (the color-coding will vary, depending on which type of module is...

  • Page 23: Fddi Concentrator Module Port Display

    MMAC-Plus Management Views FDDI Concentrator Module Port Display Color coding for FDDI concentrator modules indicates the Administrative/Link state of each interface. Refer to the individual MMAC-Plus Remote Management module manual for more information on FDDI concentrator operations. Green The port is active. It has been enabled by management and has successfully established a link.

  • Page 24: Environmental Module Status

    MMAC-Plus Management Views Click here to display the Power window for the Module. Click here to display the Temperature window for the Module. Figure 3-3. The Environmental Status View It also provides access to the Module Power and Module Temperature windows, which let you check the power supply status and operating temperature for each module installed in your MMAC-Plus Chassis.
  • Page 25 MMAC-Plus Management Views Fan Status/Speed The Environmental Module adjusts the speed of the four system cooling fans based on the external ambient temperature. Fan speed increases to ensure adequate system cooling as ambient temperature rises; conversely, it decreases as ambient temperature falls. If the ambient temperature sensor Ñ or the Environmental Module itself Ñ...
  • Page 26 MMAC-Plus Management Views Redund MMAC-Plus chassis. If this power supply fails, the system will revert to battery back-up (if the chassis is so equipped) or it will shut down. 3-10 The Environmental Status View...

  • Page 27: Client Modules

    MMAC-Plus Management Views Redund Two or more power supplies are installed in the MMAC-Plus Available chassis. The system is using load sharing, in which each installed power supply provides equal power (±5%) to the system. The MMAC-Plus chassis also has a redundant source of power, since if one power supply fails, the other installed supplies assume the load (assuming that the total power draw on all power supplies prior to failure did not exceed 100% capacity of the remaining supplies).

  • Page 28: Module Power View

    MMAC-Plus Management Views Power Gauge The Power gauge graphically indicates the current power draw by each client module as a percentage of its normal maximum power consumption (from the 57 volt DC Intelligent Power Supply). It is color-coded, as follows: Green Up to 100% of normal maximum draw from power subsystem.
  • Page 29 MMAC-Plus Management Views Figure 3-4. Module Power View A status Þeld below the gauge will read NORM if the backplane power supply and power drawn by the module are within expected operating limits, UNDER VOLT if the Main Power Bus is experiencing too low a voltage, OVER VOLT if the Main Power Bus is experiencing too high a voltage, or OVER CURRENT if the module is drawing too much power from the Bus.
  • Page 30 MMAC-Plus Management Views Output Power Gauge — 12 Volt The 12 Volt Output Power gauge indicates the following: Volts The current voltage being supplied by the moduleÕs DC-to-DC converter for use by the moduleÕs 12 volt line. Priority Number The Priority Number component of the module power system lets you assign the moduleÕs priority in terms of the total MMAC-Plus power subsystem.

  • Page 31: Module Temperature View

    MMAC-Plus Management Views Auto Disable On Alarms The Auto Disable on Alarms function is a built-in safeguard for MMAC-Plus modules. If Auto Disable is activated, the module will shut down its DC-to-DC power converter should it detect any abnormal power condition in itself, or on the Main Power Bus.
  • Page 32 MMAC-Plus Management Views Figure 3-5. Module Temperature View Module Temperature This Þeld displays the current operating temperature of the board, in both Fahrenheit and Celsius, as monitored by the managed module. Each moduleÕs current temperature is related to a status condition, based on pre-programmed operating temperature ranges (dependent upon module type).

  • Page 33: The Backplane Conþguration View

    MMAC-Plus Management Views automatically shut down its DC-to-DC power converter. (The diagnostic controller will remain operative). ¥ Blue Ñ The temperature above ambient cannot be detected (unknown) ¥ Green Ñ The module temperature above ambient is normal ¥ Yellow Ñ The module temperature above ambient is warm ¥...

  • Page 34: Conþguring The 9E133-36 Module

    MMAC-Plus Management Views The following sections detail how to use the BackPlane ConÞguration view to manipulate modules with respect to the FNB, and how to segment the FNB to form smaller rings. Figure 3-6. BackPlane ConÞguration View Configuring the 9E133-36 Module The 9E133-36 Ethernet MicroLAN module provides three 12 port ÒMicroLANsÓ...
  • Page 35 MMAC-Plus Management Views A physical switch at the back of the module connects it to FNB-1 (primary and secondary ring), FNB-2 (primary and secondary), or bypasses it from either or both FNBs to form a separate FDDI ring. The BackPlane Configuration View 3-19...
  • Page 36 MMAC-Plus Management Views To alter its backplane attachment: 1. In the BackPlane Configuration view, click the left mouse button on either FNB-1 or FNB-2 in the middle of the 9E133-36 module front panel display. The FNB Configuration window (Figure 3-7) will appear. Figure 3-7.

  • Page 37: Conþguring The 9F120-08 Fddi Concentrator Module

    MMAC-Plus Management Views Configuring the 9F120-08 FDDI Concentrator Module The 9F120-08 is an FDDI concentrator for use with single attached FDDI nodes, such as a UNIX workstation or Þleserver. It has eight industry standard FDDI MIC MMF Master ports. A MUX on the 9F120-08 allows the module to dual- attach to FNB-1 primary or secondary and FNB-2 primary or secondary.
  • Page 38 MMAC-Plus Management Views 4. Associate the MAC encoding with one of the two FNB rings to which the module is connected: a. Click the left mouse button on the MAC field to the right of the FNB configuration window. A pull-down menu will appear. b.
  • Page 39 MMAC-Plus Management Views Figure 3-9. FNB ConÞguration Window - 9F116-01 2. The 9F116-01 can bridge between a front panel connection, FNB-1, and FNB-2 via two MAC-encoded bridge interfaces. When you open the FNB Configuration window, the current bridging configuration will be indicated via color-coded sets of dual lines: Between FNB-1 and FNB-2 (two intersecting sets of dual lines —...

  • Page 40: Conþguring The 9T122 Series Token Ring Microlan Module

    MMAC-Plus Management Views To change the connection from the 9F116-01 to the backplane: a. Click the left mouse button on the Bridge Interface 1 field. A pull-down menu will appear. b. Drag down and to the right to select Connect FNB1 —> MAC on Primary or MAC on Secondary;...

  • Page 41: The Fnb Ring Conþguration Window

    MMAC-Plus Management Views Figure 3-10. FNB ConÞguration Window - 9T122 To change the connection from the 9T122 to the backplane: a. Click the left mouse button on the Bridge Interface 1 field. A pull-down menu will appear. b. Drag down and to the right to select Connect FNB1 —> MAC on Primary or MAC on Secondary, Connect FNB2 —>...
  • Page 42 MMAC-Plus Management Views The Flexible Network Bus itself is represented by two sets of concentric rings; the top set representing FNB-1(blue ring is primary; green is secondary) and the bottom set FNB-2 (magenta ring is primary; yellow is secondary). Figure 3-11. Sample FNB ConÞguration Window Each moduleÕs MAC encoding is also indicated on the display.
  • Page 43 MMAC-Plus Management Views Figure 3-12. Wrap FNB 1 Left Example - Module 1 2. If you want, you can continue configuring FNB multiplexers, as shown in Figure 3-13 (FNB-1 Right multiplexer wrapped at slot 1) and Figure 3-14 (FNB-1 Right multiplexer wrapped at slot 4). By wrapping multiplexers, you can create two or more individual rings on each FNB (note that the rings will not have redundancy, however).

  • Page 44: Accessing Module-Speciþc Management Windows

    MMAC-Plus Management Views Accessing Module-specific Management Windows You can access module-speciÞc management windows from any MMAC-Plus Chassis view: 1. Click the left mouse button on a module index. You can be sure that it is the module of interest by checking the Slot IP field in the lower right corner of the view.
  • Page 45 Index EPIM 3-5 Ethernet Bridging Modules Port Display 3-6 accessing module-speciÞc management 3-26 external ambient temperature sensor 3-5 Auto Disable on Alarms 3-14 Auto Disable on Temperature Alarms 3-16 Fan Status/Speed 3-8 FDDI Bridging Modules Port Display 3-6 BackPlane ConÞguration View 3-1, 3-16 FDDI Concentrator Module Port Display 3-7 Battery Run Time 3-10 Flexible Network Bus 1-1, 3-16...
  • Page 46 Index Name 3-2 View drop-down list 3-3 Net Address 3-2 Volts 3-11, 3-12, 3-13 9E133 Ethernet MicroLAN module 3-17 9F116 FDDI Bridge Router 3-20 9F120 FDDI concentrator 3-19 Watts 3-11, 3-12 9T122 Token Ring MicroLAN Modules 3-22 Non Redund 3-9 Output Power Gauge Ð...
