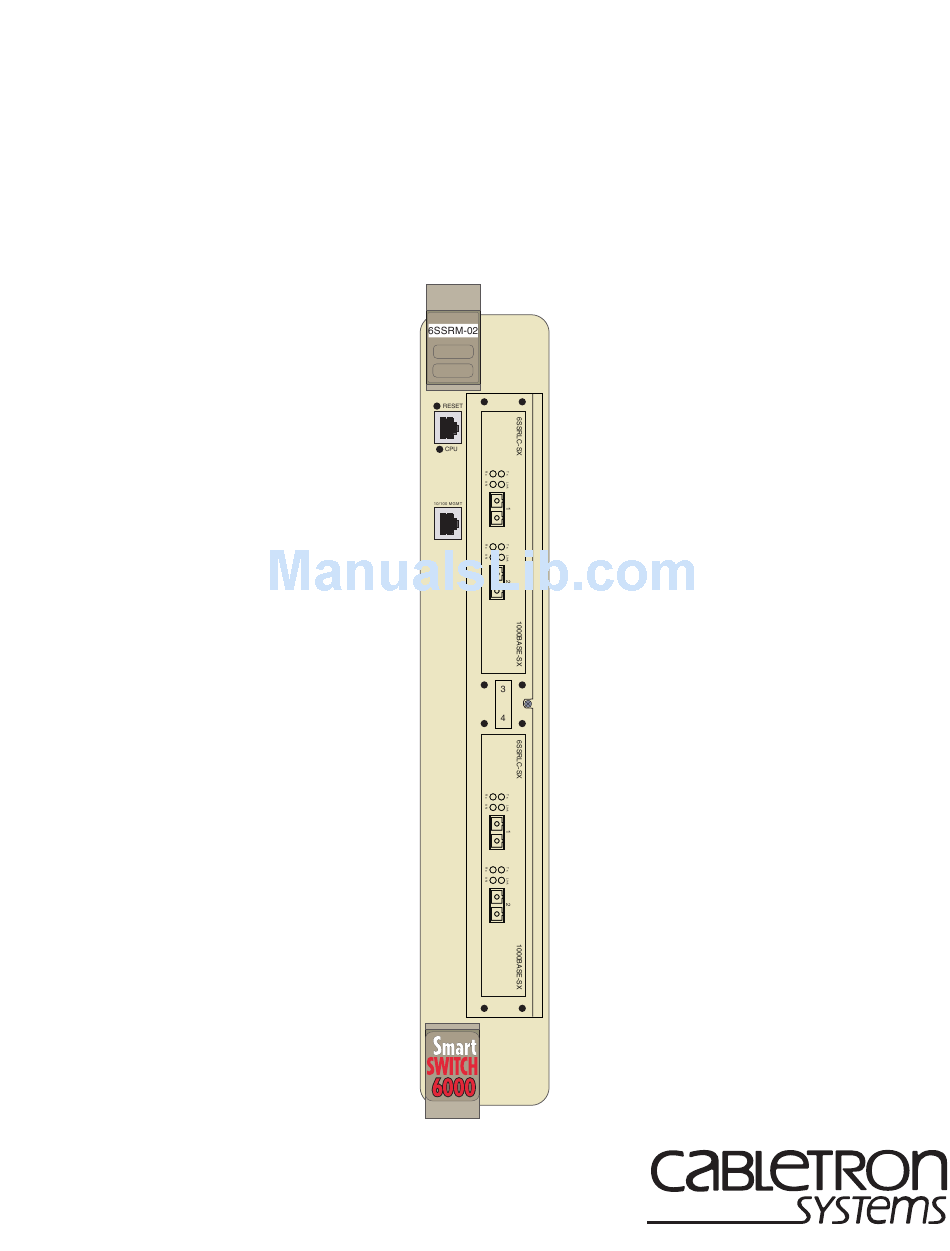

  • Page 1 SmartSwitch 6000 Advanced Router Module Installation/User’s Guide 9033295-01...

  • Page 3: Fcc Notice

    NOTICE Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice. IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN...

  • Page 4: Industry Canada Notice

    INDUSTRY CANADA NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté...
  • Page 5 PROGRAM LICENSE AGREEMENT IMPORTANT:THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: CANADA MEXICO CENTRAL AMERICA SOUTH AMERICA BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
  • Page 6 If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be...
  • Page 7 CABLETRON SYSTEMS SALES AND SERVICE, INC. PROGRAM LICENSE AGREEMENT IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE UNITED STATES OF AMERICA AND BY UNITED STATES OF AMERICA GOVERNMENT END USERS. BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT.
  • Page 8 UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was developed solely at private expense; (ii) contains “restricted computer software” submitted with restricted rights in accordance with section 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers.
  • Page 9 PROGRAM LICENSE AGREEMENT IMPORTANT: THIS LICENSE APPLIES FOR THE USE OF THE PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: EUROPE MIDDLE EAST AFRICA ASIA AUSTRALIA PACIFIC RIM BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Limited (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
  • Page 10 If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be...

  • Page 11: Declaration Of Conformity

    DECLARATION OF CONFORMITY Application of Council Directive(s): 89/336/EEC Manufacturer’s Name: Cabletron Systems, Inc. Manufacturer’s Address: European Representative Name: Mr. J. Solari European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: Networking Equipment, for use in a Commercial We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.

  • Page 13: Table Of Contents

    Chapter 1 Introduction Specifications ... 1-1 TCP/UDP Services... 1-4 Features ... 1-4 Bridging ... 1-4 Port and Protocol VLANs ... 1-5 Routing... 1-5 Layer-4 Switching... 1-7 Security ... 1-7 Quality of Service ... 1-8 Statistics... 1-8 Management Platforms ... 1-8 Hardware Overview...
  • Page 14 Contents Chapter 3 Software Installation and Setup Powering On and Booting the Software ... 3-1 Starting the Command Line Interface ... 3-2 Access Modes... 3-2 Basic Line Editing Commands ... 3-3 Setting Basic System Information ... 3-4 Setting Up SNMP Community Strings... 3-7 Setting Up Passwords ...

  • Page 15: Chapter 1 Introduction

    The Cabletron Systems SmartSwitch 6000 Advanced Router Module, the 6SSRM-02, provides non-blocking, high-speed Layer-2 (switching), Layer-3 (routing), and Layer-4 (application) switching. This chapter provides a basic overview of the 6SSRM-02 software and hardware feature set. • If you want to install the 6SSRM-02 now, see •...
  • Page 16 Specifications The following table lists the basic hardware and software specifications for the 6SSRM-02. Table 1-1 Basic hardware and software specifications Feature Throughput • • Capacity • • • • • • • Routing protocols • • • Bridging and •...
  • Page 17 Table 1-1 Basic hardware and software specifications (Continued) Feature Management • • • Port mirroring • • This guide and other 6SSRM-02 documentation refers to the 6SSRM-02’s Layer-2, Layer-3, and Layer-4 switching and routing. These layers are based on the International Standards Organization (ISO) 7-layer reference model.

  • Page 18: Tcp/Udp Services

    Features TCP/UDP Services The following table lists some well known TCP/UDP services provided by the 6SSRM-02. TCP Port Features This section describes the following 6SSRM-02 features: • Address-based and flow-based bridging • Port-based VLANs and protocol-based VLANs • IP and IPX routing •...

  • Page 19: Port And Protocol Vlans

    6SSRM-02s. To simplify VLAN administration, the 6SSRM-02 supports 802.1q trunk ports, which allow you to use a single port to “trunk” traffic from multiple VLANs to another 6SSRM-02 or switch which supports 802.1q. Routing The 6SSRM-02 provides high-speed routing for the following protocols: •...

  • Page 20: Ip Routing

    Features each IPX interface. When the 6SSRM-02 receives a packet whose destination MAC address is one of the 6SSRM-02’s IP or IPX interface MAC addresses, the port that received the packet from the network uses information in the module’s L3 lookup tables (or information supplied by the motherboard) to route the packet to its IP destination(s).

  • Page 21: Layer-4 Switching

    Layer-4 Switching In addition to Layer-2 bridging and Layer-3 routing, the 6SSRM-02 performs Layer-4 switching. Layer-4 switching is based on applications and flows. • Layer-4 applications – The 6SSRM-02 understands the application for which an IP or IPX packet contains data and therefore enables you to manage and control traffic on an application basis.

  • Page 22: Quality Of Service

    Features Quality of Service Although the 6SSRM-02 supplies non-blocking high-speed throughput, you can configure the 6SSRM-02 to apply Quality of Service (QoS) policies during peak periods to guarantee service to specific hosts, applications, and flows (source-destination pairs). This is especially useful in networks where the traffic level can exceed the network medium’s capacity.

  • Page 23: Hardware Overview

    on Solaris 2.x. Chapter SNMP on the 6SSRM-02. how to access the 6SSRM-02’s SNMP agents. Hardware Overview This section describes the 6SSRM-02’s hardware specifications. guide describes how to install the hardware. This section describes the following hardware: • Module and external controls •...
  • Page 24 Hardware Overview Figure 1-1 Front View of 6SSRM-02 1-10 Introduction...

  • Page 25: External Controls

    A Reset switch. Use this switch to reboot the 6SSRM-02’s motherboard from the internal boot flash in the event of a system failure. The Reset switch is recessed in the 6SSRM-02’s chassis, so you will have to use a tool like a small allen wrench to activate the switch.

  • Page 26: Line Cards

    6SSRLC-SERC • 6SSRLC-SERCE Note: Due to a power restriction with the SmartSwitch 6000, the 6SSRM-02 can only support one linecard when either 6SSRLC-FX or 6SSRLC-TX is installed. Any other combination of two linecards is fully supported in the SmartSwitch 6000.
  • Page 27 Cabling and Connector Specifications The following table lists the media specifications for the 10/100BASE-TX line card. Table 1-3 10/100BASE-TX Line Card specifications Port Type 10Base-T 100Base-TX Specification • 802.3 standard • RJ-45 connector wired as Media Data Interface Crossed (MDIX); see “10/100BASE-TX Line Card”...

  • Page 28: 100Base-Fx Line Card

    Hardware Overview LEDs The 10/100BASE-TX line card uses the following LEDs. Link Activity 100BASE-FX Line Card The 100BASE-FX line card provides the same features as the 10/100BASE-TX line card but uses multimode fiber-optic cable (MMF) to connect to the network. Figure 1-3 shows the front panel of the 100BASE-FX line card.
  • Page 29 Cabling and Connector Specifications The following table lists the media specifications for the 100BASE-FX line card. Port type 100Base-FX LEDs The 100BASE-FX line card uses the following LEDs. Table 1-5 100BASE-FX Line Card specifications • 802.3u standard • SC-style Media Interface Connector (MIC); either connection pin in the MIC can be used for transmit or receive.

  • Page 30: 1000Base-Sx Line Card

    Hardware Overview 1000BASE-SX Line Card The 1000BASE-SX line card contains two independent Gigabit (1000-Mbps) Ethernet ports. The ports connect to multimode-mode fiber (MMF) cables. 1000BASE-SX line card. Figure 1-4 Front panel of 1000BASE-SX Line Card Cabling and Connector Specifications The following table lists the media specifications for the 1000BASE-SX line card. Table 1-7 1000BASE-SX Line Card specifications Port type 1000Base-SX...
  • Page 31 LEDs The 1000BASE-SX line card uses the following LEDs. Per-port Link Table 1-8 1000BASE-SX Line Card LEDs Description • Green – indicates that the port hardware detects a cable plugged into the port and a good link is established. • Red (intermittent) –...

  • Page 32: 1000Base-Lx Line Card

    Hardware Overview Table 1-8 1000BASE-SX Line Card LEDs (Continued) Per-port Rx Per-port Tx Per-port AN 1000BASE-LX Line Card The 1000BASE-LX line card provides the same features as the 1000BASE-SX line card, and supports both single-mode fiber (SMF) and MMF. 1000BASE-LX line card. 1-18 Introduction Description...
  • Page 33 Figure 1-5 Front panel of 1000BASE-LX Line Card Cabling and Connector Specifications The following table lists the media specifications for the 1000BASE-LX line card. Table 1-9 1000BASE-LX Line Card specifications Port type 1000Base-LX 1. Patch cord required. Specification • 802.3z standard (also uses 802.3x for flow control) •...
  • Page 34 Hardware Overview LEDs The 1000BASE-LX line card uses the following LEDs. Per-port Link 1-20 Introduction Table 1-10 1000BASE-LX Line Card LEDs Description • Green – indicates that the port hardware detects a cable plugged into the port and a good link is established. •...

  • Page 35: 1000Base-Llx (70Km)

    Table 1-10 1000BASE-LX Line Card LEDs (Continued) Per-port Rx Per-port Tx Per-port AN 1000BASE-LLX (70KM) The 1000BASE-LLX line card supports a single port and contains 16 MB of memory. Advanced optical drivers have been added to the existing SSR Gigabit line cards to increase distance support to between 15 and 70 Km over 10 um Single Mode Fiber.
  • Page 36 Hardware Overview Figure 1-6 Front Panel of the 1000BASE-LLX Line Card 1-22 Introduction...

  • Page 37: Dual Serial And Quad Serial - C/Ce Expansion Modules

    Hardware Overview Dual Serial and Quad Serial – C/CE Expansion Modules The Dual Serial line card contains a single dual serial WAN port (two serial ports located on one high density connector). The Quad Serial – C and Quad Serial – CE line cards each contain two dual serial WAN ports.
  • Page 38 Hardware Overview Cabling and Connector Specifications The following table lists the media specifications for the Dual Serial and Quad Serial – C/CE line cards. Table 1-11 Dual Serial and Quad Serial – C/CE WAN Line Card specifications Port Type Dual serial 1.

  • Page 39: Getting Help

    Getting Help For additional support related to this device or document, contact Cabletron Systems using one of the following methods: World Wide Web Phone Internet mail Login Password To send comments or suggestions concerning this document, contact the Cabletron Systems Technical Writing Department via the following email address: TechWriting@cabletron.com Make sure to include the document Part Number in the email message.
  • Page 40 Getting Help 1-26 Introduction...

  • Page 41: Chapter 2 Installation

    This chapter provides the instructions to install the 6SSRM-02. A Phillips screwdriver is required to install options into the module. Follow the order of the sections listed below to correctly install the module. • Unpacking the Module • Installing Options •...

  • Page 42: Unpacking The Module

    Unpacking the Module Unpacking the Module Unpack the module as follows: Open the box and remove the packing material protecting the 6SSRM-02. Verify the contents of the carton as listed in Table 2-1 Contents of 6SSRM-02 Carton Item 6SSRM-02 Antistatic Wrist Strap Manual Accessory Kit Remove the tape seal on the non-conductive bag to remove the 6SSRM-02.

  • Page 43: Installing The Module Into The 6C105 Chassis

    Installing the Module into the 6C105 Chassis Caution: Failure to observe static safety precautions could cause damage to the 6SSRM-02. Follow static safety handling rules and wear the antistatic wrist strap provided with the 6C105 chassis. Do not cut the non-conductive bag to remove the module. Sharp objects contacting the board or components can cause damage.
  • Page 44 Installing the Module into the 6C105 Chassis Figure 2-1 Installing an Interface Module Installation...

  • Page 45: Completing The Installation

    Examine the module for damage. If any damage exists, DO NOT install the module. Immediately contact Cabletron Systems. Caution: To prevent damaging the backplane connectors in the following step, take care that the module slides in straight and properly engages the backplane connectors. Ensure that the top plastic locking tab lines up with the desired slot number located on the front panel of the chassis.
  • Page 46 Completing the Installation Installation...

  • Page 47: Chapter 3 Software Installation And Setup

    This chapter provides the following software installation and basic setup procedures: • Powering on and booting the software • Starting the Command Line Interface (CLI) • Setting basic system information • Setting up SNMP community strings • Setting up passwords •...

  • Page 48: Starting The Command Line Interface

    Starting the Command Line Interface As the software boots, the management console attached to the 6SSRM-02’s COM port displays messages related to the phases of the boot sequence. When the software is fully booted, the following message appears on the management console: Press RETURN to activate console...

  • Page 49: Basic Line Editing Commands

    The command prompt will show the name of the 6SSRM-02 in front of the mode Note: character(s). The default name is “ssr”. The procedure in Information” on page 3-4 When you are in Configure or Enable mode, use the exit command or press Ctrl+Z to exit to the previous access mode.

  • Page 50: Setting Basic System Information

    Setting Basic System Information Setting Basic System Information Use the procedure in this section to set the following system information: • System time and date • System name • System location • Contact name (the person to contact regarding this 6SSRM-02) Some of the commands in this procedure accept a string value.
  • Page 51 Here is an example: ssr(config)# system set name "ctron-ssr-1" ssr(config)# system set location "Sunnyvale, CA" ssr(config)# system set contact "John Smith" Use the interface add ip command to set the IP address and netmask for the en0 Ethernet interface, as shown in the following example:: ssr(config)# interface add ip en0 address-netmask 10.50.11.22/16 The en0 interface is automatically created by the system and is reserved for the Note:...
  • Page 52 Setting Basic System Information If you exit Configure mode (by entering the exit command or pressing Ctrl+Z) before activating any of your changes in the scratchpad, the CLI will ask you whether you want to make the changes in the scratchpad active by displaying the following message: Do you want to make the changes Active [yes]? Enter yes or y to activate the changes.

  • Page 53: Setting Up Snmp Community Strings

    Setting Up SNMP Community Strings To use SNMP to manage the 6SSRM-02, you need to set up an SNMP community on the 6SSRM-02. Otherwise, the 6SSRM-02’s SNMP agent runs in local trap process mode until you disable it using the snmp stop command. In addition, if you want to be able to access the SNMP traps issued by the 6SSRM-02’s SNMP agent, you need to specify the IP address of the target for the SNMP traps.
  • Page 54 Setting Up SNMP Community Strings Here is an example of the commands and output for configuring SNMP and saving the changes. ctron-ssr-1# config ctron-ssr-1(config)# snmp set community public privilege read-only ctron-ssr-1(config)# snmp set target 10.50.11.12 community public ctron-ssr-1(config)# save active ctron-ssr-1(config)# exit ctron-ssr-1# snmp show all SNMP Agent status:...

  • Page 55: Setting Up Passwords

    After verifying the SNMP configuration, save the changes to the Startup configuration file by entering the copy active to startup command. Remember to enter yes or y when the CLI asks you whether you want to overwrite the Startup configuration. Setting Up Passwords You can password protect CLI access to the 6SSRM-02 by setting up passwords for login access and Enable access.

  • Page 56: Setting The Dns Domain Name And Address

    Setting the DNS Domain Name and Address Here is an example of the commands in the previous steps: ctron-ssr-1(config)# system set password login demo ctron-ssr-1(config)# system set password enable demo ctron-ssr-1(config)# save active ctron-ssr-1# exit ctron-ssr-1# system show active-config Running system configuration: ! Last modified from Console on Mon Jan 19 12:12:19 1998 1 : system set name "ctron-ssr-1"...
  • Page 57 Use the following command to verify that the 6SSRM-02 can reach the DNS server by pinging the server, as shown in the following example: ctron-ssr-1# ping 10.50.11.12 PING 10.50.11.12 (10.50.11.12): 56 data bytes 64 bytes from 10.50.11.12: icmp_seq=0 ttl=255 time=0 ms --- 10.50.11.12 ping statistics --- 1 packets transmitted, 1 packets received, 0% packet loss round-trip min/avg/max = 0/0/0 ms...

  • Page 58: Setting Syslog Parameters

    Setting SYSLOG Parameters Here is an example of the commands above featuring the addition of two DNS server IP addresses: ctron-ssr-1# config ctron-ssr-1(config)# system set dns domain "mktg.cabletron.com" ctron-ssr-1(config)# system set dns server "10.50.11.12 10.50.12.11" ctron-ssr-1(config)# save active Enter the system show dns command to verify the new DNS settings, as shown in the following example: ctron-ssr-1# system show dns DNS domain: cabletron.com, DNS server(s): 10.50.11.12 10.50.12.11...
  • Page 59 The 6SSRM-02 writes the SYSLOG messages to a SYSLOG daemon on UDP port 514. You can set the CLI to send all or only some of the message types. By default, the CLI sends warning, error, and fatal messages but not informational messages to the specified SYSLOG server. Use the following procedure to specify the SYSLOG server and the types of messages you want the CLI to log on the server.

  • Page 60: Loading System Image Software

    Loading System Image Software Enter the show command to show the commands you just entered. Because you have not activated these configuration changes yet, they are listed in the scratchpad section of the output. Here is an example: show -1(config)# Running system configuration: ! Last modified from Console on Mon Jan 19 12:37:21 1998 1 : interface add ip en0 address-netmask 10.50.11.22/16...
  • Page 61 Images currently available: ssr1200 Use the following command to select the image file the 6SSRM-02 will use the next time you reboot the switch. system image choose <IPaddr-of-TFTP-host> <image-file-name> <file-name> Loading System Image Software...

  • Page 62: Loading Boot Prom Software

    Loading Boot PROM Software Here is an example: ctron-ssr-1# system image choose ssr1200 Making image ssr1200 the active image for next reboot Enter the system image list command to verify the change. You do not need to activate this change. Note: Loading Boot PROM Software The SmartSwitch boots using the boot PROM software installed in the 6SSRM-02’s internal...

  • Page 63: Activating Configuration Changes And Saving The Configuration File

    Here is an example: ctron-ssr-1# system promimage upgrade 10.50.11.12 prom2 Downloading image ’prom-1.1.0.0’ from host ’10.50.11.12’ to local image prom-1.1.0.0 (takes about 3 minutes) kernel: 100% Image checksum validated. Image added. Enter the system show version command to verify that the new boot PROM software is on the internal memory of the 6SSRM-02.

  • Page 64: Activating The Configuration Commands In The Scratchpad

    Activating Configuration Changes and Saving the Configuration File Activating the Configuration Commands in the Scratchpad The configuration commands you have entered using procedures in this chapter are in the Scratchpad but have not yet been activated. Use the following procedure to activate the configuration commands in the scratchpad: Ensure that you are in Enable mode by entering the enable command in the CLI.

  • Page 65: Viewing The Current Configuration

    Viewing the Current Configuration If you want to view the current configuration: Ensure that you are in Enable mode by entering the enable command in the CLI. Enter the following command to display the status of each command line: system show active-config The CLI displays the active configuration file with the following possible annotations: •...
  • Page 66 Activating Configuration Changes and Saving the Configuration File 3-20 Software Installation and Setup...

  • Page 67: Chapter 4 Installing And Starting Cabletron Corewatch

    Installing and Starting Cabletron CoreWatch This chapter: • Provides an overview of Cabletron CoreWatch, a Java-based graphical user interface (GUI) you can use to monitor and configure your SmartSwitch Router • Discusses the browser and hardware requirements of CoreWatch • Explains installing the CoreWatch software •...

  • Page 68: System Requirements

    System Requirements System Requirements CoreWatch can run in the Solaris, Windows NT, and Windows 95/98 environments. As shown in the following table, CoreWatch’s system requirements depend on your operating system. The table identifies which browser to use with each operating system and gives the minimum hardware requirements for each environment.

  • Page 69: Installing On A Windows Nt Or Windows 95/98 System

    Ensure that you are in the appropriate subdirectory to access the CD-ROM by entering the following command: # cd /cdrom/cdrom0 Run the CoreWatch installation script by entering the following command: # install.sh CoreWatch is installed on your system in the /opt/CScw directory. Add /opt/CScw/bin to your environment path.

  • Page 70: Starting Corewatch

    Starting CoreWatch Click Next. Specify a name for the CoreWatch program group, which is Cabletron Systems CoreWatch by default. Then click Next. 10. When the browser window reappears, close it. 11. Specify whether you want to view the CoreWatch readme file, then click Finish. Options with a check mark will be performed.

  • Page 71: Starting Corewatch In Windows Nt Or Windows 95/98

    Starting CoreWatch in Windows NT or Windows 95/98 To start CoreWatch in the Windows NT or Windows 95/98 environment: Select the Start menu, choose Programs, choose Cabletron Systems CoreWatch, and then choose CoreWatch. The Login Dialog dialog box appears. If you installed the program in a startup folder other than Programs > Cabletron Note: Systems CoreWatch, select that folder from the Start menu and then select CoreWatch.

  • Page 72: Starting Corewatch From Within Hp Openview 5.X

    Starting CoreWatch Starting CoreWatch from within HP OpenView 5.x HP OpenView 5.x is network node management software for the Solaris and Windows NT environments. If HP OpenView is integrated with CoreWatch, you may use HP OpenView to start CoreWatch and recognize your SmartSwitchs. HP OpenView is automatically integrated with CoreWatch when you install CoreWatch while the HP OpenView daemon is running.

  • Page 73: Chapter 5 Troubleshooting

    If you experience difficulty with the basic hardware or software setup procedures in this guide, check the following table to see whether the difficulty you are experiencing is described. If you find a description of the difficulty you are experiencing, try the resolution(s) recommended for the difficulty.
  • Page 74 Troubleshooting If you experience this difficulty CoreWatch cannot access the 6SSRM-02. The 6SSRM-02 is not resolving DNS names. An SNMP manager cannot access the 6SSRM-02. You are unable to ping a certain host. Troubleshooting Try this remedy Make sure you have properly installed CoreWatch and check the network connection between the CoreWatch management station and the 6SSRM-02.
