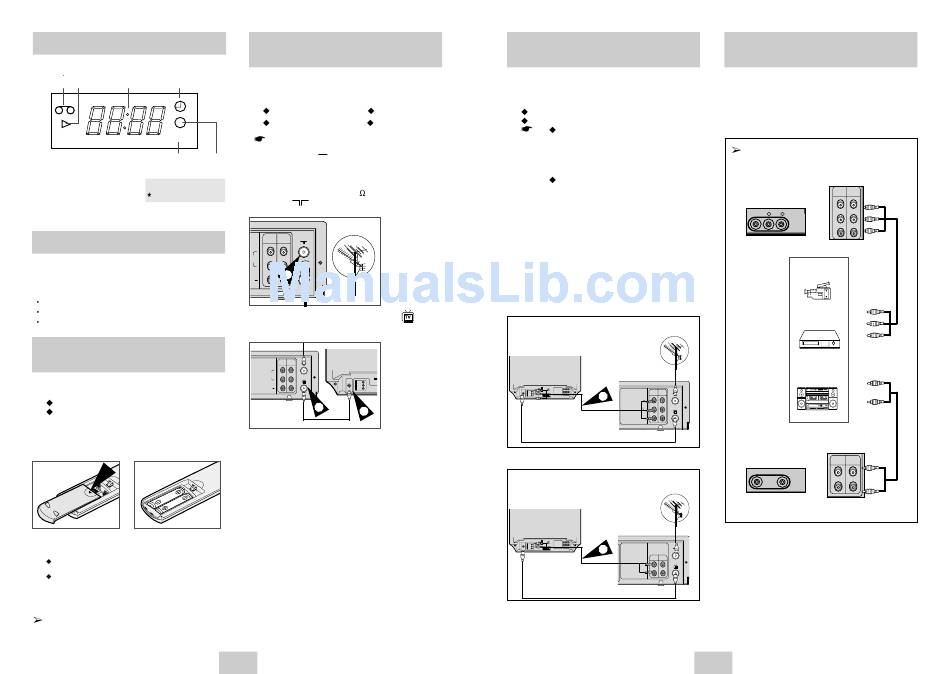

Display Indicator
1
2
3
4
VIDEO
STEREO
5
1 Cassette loaded
4 Timer indicator
indicator
5 STEREO indicator
2 PLAY indicator
(SV-M625K Only)
3 Multi-function display
6 Rec indicator
Accessories
You have just purchased a SAMSUNG Video
Cassette Recorder (VCR). Together with your VCR,
you will find the following accessories in the box.
REMOTE CONTROL
OWNER'S INSTRUCTIONS
COAXIAL CABLE
Inserting Batteries in the Remote
Control
You must insert or replace the batteries in the remote
control when you:
Purchase the video cassette recorder
Find that the remote control is no longer
working correctly
1
Push the tab in the direction of the arrow to release
the battery compartment cover on the rear of the
remote control.
2
Insert two AA, R6 or equivalent batteries, taking
care to respect the polarities:
+ on the battery with + on the remote control
– on the battery with – on the remote control
3
Replace the cover by aligning it with the base of
the remote control and pushing it back into place.
Do not mix different battery types (manganese
and alkaline for example).
Connecting Your VCR to the TV
using the Coaxial Cable
To receive television programmes a signal must be
received from one of the following sources:
An outdoor aerial
An indoor aerial
A cable television network
A satellite receiver
Make sure that both the television and the VCR
are switched off before connecting the cables.
6
1
Remove the aerial or network input cable from
the television.
2
Connect this cable to the 75 coaxial socket
marked
on the rear of your VCR.
LINE
LINE
OUT
IN 1
R
DIO
L
TV
2
EO
3
Plug the coaxial cable supplied into the
on your VCR.
TV
LINE
LINE
OUT
IN 1
R
AUDIO
L
TV
VIDEO
3
4
4
Plug the other end of the coaxial cable into the
connector previously used for the aerial on the
television.
5
To obtain better quality pictures and sound on
your television, you can also connect your VCR
to the television via the RCA cable (see section
below) if your television is equipped with this
type of connection.
ENG-8
Connecting Your VCR to the TV
using the RCA Cable
You can connect your VCR to the television using the
RCA cable if the appropriate input is available on the
television. You thus:
Obtain better quality sound and pictures
Simplify the setting up procedure of your VCR
Regardless of the type of connection
chosen, you must always connect the
coaxial cable supplied. Otherwise, no
picture will be visible on the screen
when the VCR is switched off.
Make sure that both the television and
the VCR are switched off before
connecting the cables.
1
Connect the coaxial cable as indicated in the above
section.
2
Connect one end of the RCA Audio/Video cable to
the Video output and Audio output socket on the
rear of the VCR.
3
Plug the other end into the appropriate connector
on the television.
socket
SV-M625K
TV
RF
coaxial cable
SV-M85K/SV-M35K
TV
RF
coaxial cable
Connecting Other Equipment to
Your VCR
You can connect other audio and/or video equipment
to your VCR in different ways. The following
illustrations give a few examples of the connection
possibilities.
The RCA input/output connectors on the front
of the VCR are used for equipment, such as
camcorders, VCRs or sound systems.
SV-M625K
VIDEO
L AUDIO R
FRONT OF THE VCR
Aerial
LINE
LINE
OUT
IN 1
2
R
AUDIO
L
TV
VIDEO
SV-M85K/SV-M35K
VIDEO
AUDIO
Aerial
FRONT OF THE VCR
2
LINE
LINE
OUT
IN 1
AUDIO
TV
VIDEO
ENG-9
LINE
LINE
OUT
IN 1
R
L
LINE IN 2
REAR OF THE VCR
Camcorder
VCR
Sound system
LINE
LINE
OUT
IN 1
LINE IN 2
REAR OF THE VCR
