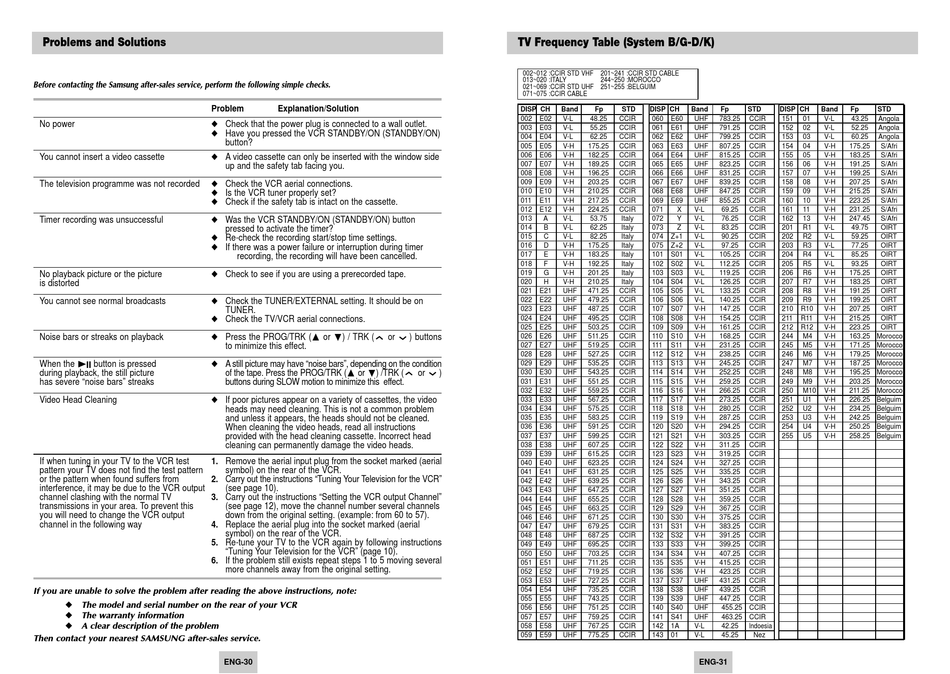

Problems And Solutions; Tv Frequency Table (System B/G-D/K) - Samsung SV-M35K Instruction Manual

Problems and Solutions

Before contacting the Samsung after-sales service, perform the following simple checks.
Problem
No power
You cannot insert a video cassette
The television programme was not recorded
Timer recording was unsuccessful
No playback picture or the picture
is distorted
You cannot see normal broadcasts
Noise bars or streaks on playback
When the ❿ II button is pressed
during playback, the still picture
has severe "noise bars" streaks
Video Head Cleaning
If when tuning in your TV to the VCR test 1. Remove the aerial input plug from the socket marked (aerial
pattern your TV does not find the test pattern
or the pattern when found suffers from 2. Carry out the instructions "Tuning Your Television for the VCR"
interference, it may be due to the VCR output
channel clashing with the normal TV 3. Carry out the instructions "Setting the VCR output Channel"
transmissions in your area. To prevent this
you will need to change the VCR output
channel in the following way 4. Replace the aerial plug into the socket marked (aerial
5. Re-tune your TV to the VCR again by following instructions
6. If the problem still exists repeat steps 1 to 5 moving several
If you are unable to solve the problem after reading the above instructions, note:
The model and serial number on the rear of your VCR
The warranty information
A clear description of the problem
Then contact your nearest SAMSUNG after-sales service.
Explanation/Solution
Check that the power plug is connected to a wall outlet.
Have you pressed the VCR STANDBY/ON (STANDBY/ON)
button?
A video cassette can only be inserted with the window side
up and the safety tab facing you.
Check the VCR aerial connections.
Is the VCR tuner properly set?
Check if the safety tab is intact on the cassette.
Was the VCR STANDBY/ON (STANDBY/ON) button
pressed to activate the timer?
Re-check the recording start/stop time settings.
If there was a power failure or interruption during timer
recording, the recording will have been cancelled.
Check to see if you are using a prerecorded tape.
Check the TUNER/EXTERNAL setting. It should be on
TUNER.
Check the TV/VCR aerial connections.
or ❷) / TRK (
Press the PROG/TRK ( or
to minimize this effect.
A still picture may have "noise bars", depending on the condition
or ❷) /TRK (
of the tape. Press the PROG/TRK (
buttons during SLOW motion to minimize this effect.
If poor pictures appear on a variety of cassettes, the video
heads may need cleaning. This is not a common problem
and unless it appears, the heads should not be cleaned.
When cleaning the video heads, read all instructions
provided with the head cleaning cassette. Incorrect head
cleaning can permanently damage the video heads.
symbol) on the rear of the VCR.
(see page 10).
(see page 12), move the channel number several channels
down from the original setting. (example: from 60 to 57).
symbol) on the rear of the VCR.
"Tuning Your Television for the VCR" (page 10).
more channels away from the original setting.
ENG-30

TV Frequency Table (System B/G-D/K)

002~012 :CCIR STD VHF 201~241 :CCIR STD CABLE
013~020 :ITALY
021~069 :CCIR STD UHF 251~255 :BELGUIM
071~075 :CCIR CABLE
DISP CH Band
002 E02 V-L
003 E03 V-L
004 E04 V-L
005 E05 V-H 175.25
006 E06 V-H 182.25
007 E07 V-H 189.25
008 E08 V-H 196.25
009 E09 V-H 203.25
010 E10 V-H 210.25
011 E11 V-H 217.25
012 E12 V-H 224.25
013 A V-L
014 B V-L
015 C V-L
016 D V-H 175.25
017 E V-H 183.25
018 F V-H 192.25
019 G V-H 201.25
020 H V-H 210.25
021 E21 UHF 471.25
022 E22 UHF 479.25
023 E23 UHF 487.25
024 E24 UHF 495.25
025 E25 UHF 503.25
) buttons 026 E26 UHF 511.25
027 E27 UHF 519.25
028 E28 UHF 527.25
029 E29 UHF 535.25
or ) 030 E30 UHF 543.25
031 E31 UHF 551.25
032 E32 UHF 559.25
033 E33 UHF 567.25
034 E34 UHF 575.25
035 E35 UHF 583.25
036 E36 UHF 591.25
037 E37 UHF 599.25
038 E38 UHF 607.25
039 E39 UHF 615.25
040 E40 UHF 623.25
041 E41 UHF 631.25
042 E42 UHF 639.25
043 E43 UHF 647.25
044 E44 UHF 655.25
045 E45 UHF 663.25
046 E46 UHF 671.25
047 E47 UHF 679.25
048 E48 UHF 687.25
049 E49 UHF 695.25
050 E50 UHF 703.25
051 E51 UHF 711.25
052 E52 UHF 719.25
053 E53 UHF 727.25
054 E54 UHF 735.25
055 E55 UHF 743.25
056 E56 UHF 751.25
057 E57 UHF 759.25
058 E58 UHF 767.25
059 E59 UHF 775.25
244~250 :MOROCCO
Fp STD DISP CH Band Fp STD
48.25 CCIR 060 E60 UHF 783.25 CCIR
55.25 CCIR 061 E61 UHF 791.25 CCIR
62.25 CCIR 062 E62 UHF 799.25 CCIR
CCIR 063 E63 UHF 807.25 CCIR
CCIR 064 E64 UHF 815.25 CCIR
CCIR 065 E65 UHF 823.25 CCIR
CCIR 066 E66 UHF 831.25 CCIR
CCIR 067 E67 UHF 839.25 CCIR
CCIR 068 E68 UHF 847.25 CCIR
CCIR 069 E69 UHF 855.25 CCIR
CCIR 071 X V-L 69.25 CCIR
53.75 Italy 072 Y V-L 76.25 CCIR
62.25 Italy 073 Z V-L 83.25 CCIR
82.25 Italy 074 Z+1 V-L 90.25 CCIR
Italy 075 Z+2 V-L 97.25 CCIR
Italy 101 S01 V-L 105.25 CCIR
Italy 102 S02 V-L 112.25 CCIR
Italy 103 S03 V-L 119.25 CCIR
Italy 104 S04 V-L 126.25 CCIR
CCIR 105 S05 V-L 133.25 CCIR
CCIR 106 S06 V-L 140.25 CCIR
CCIR 107 S07 V-H 147.25 CCIR
CCIR 108 S08 V-H 154.25 CCIR
CCIR 109 S09 V-H 161.25 CCIR
CCIR 110 S10 V-H 168.25 CCIR
CCIR 111 S11 V-H 231.25 CCIR
CCIR 112 S12 V-H 238.25 CCIR
CCIR 113 S13 V-H 245.25 CCIR
CCIR 114 S14 V-H 252.25 CCIR
CCIR 115 S15 V-H 259.25 CCIR
CCIR 116 S16 V-H 266.25 CCIR
CCIR 117 S17 V-H 273.25 CCIR
CCIR 118 S18 V-H 280.25 CCIR
CCIR 119 S19 V-H 287.25 CCIR
CCIR 120 S20 V-H 294.25 CCIR
CCIR 121 S21 V-H 303.25 CCIR
CCIR 122 S22 V-H 311.25 CCIR
CCIR 123 S23 V-H 319.25 CCIR
CCIR 124 S24 V-H 327.25 CCIR
CCIR 125 S25 V-H 335.25 CCIR
CCIR 126 S26 V-H 343.25 CCIR
CCIR 127 S27 V-H 351.25 CCIR
CCIR 128 S28 V-H 359.25 CCIR
CCIR 129 S29 V-H 367.25 CCIR
CCIR 130 S30 V-H 375.25 CCIR
CCIR 131 S31 V-H 383.25 CCIR
CCIR 132 S32 V-H 391.25 CCIR
CCIR 133 S33 V-H 399.25 CCIR
CCIR 134 S34 V-H 407.25 CCIR
CCIR 135 S35 V-H 415.25 CCIR
CCIR 136 S36 V-H 423.25 CCIR
CCIR 137 S37 UHF 431.25 CCIR
CCIR 138 S38 UHF 439.25 CCIR
CCIR 139 S39 UHF 447.25 CCIR
CCIR 140 S40 UHF 455.25 CCIR
CCIR 141 S41 UHF 463.25 CCIR
CCIR 142 1A V-L 42.25 lndoesia
CCIR 143 01 V-L 45.25 Nez
ENG-31
DISP CH Band Fp STD
151 01 V-L 43.25 Angola
152 02 V-L 52.25 Angola
153 03 V-L 60.25 Angola
154 04 V-H 175.25 S/Afri
155 05 V-H 183.25 S/Afri
156 06 V-H 191.25 S/Afri
157 07 V-H 199.25 S/Afri
158 08 V-H 207.25 S/Afri
159 09 V-H 215.25 S/Afri
160 10 V-H 223.25 S/Afri
161 11 V-H 231.25 S/Afri
162 13 V-H 247.45 S/Afri
201 R1 V-L 49.75 OIRT
202 R2 V-L 59.25 OIRT
203 R3 V-L 77.25 OIRT
204 R4 V-L 85.25 OIRT
205 R5 V-L 93.25 OIRT
206 R6 V-H 175.25 OIRT
207 R7 V-H 183.25 OIRT
208 R8 V-H 191.25 OIRT
209 R9 V-H 199.25 OIRT
210 R10 V-H 207.25 OIRT
211 R11 V-H 215.25 OIRT
212 R12 V-H 223.25 OIRT
244 M4 V-H 163.25 Morocco
245 M5 V-H 171.25 Morocco
246 M6 V-H 179.25 Morocco
247 M7 V-H 187.25 Morocco
248 M8 V-H 195.25 Morocco
249 M9 V-H 203.25 Morocco
250 M10 V-H 211.25 Morocco
251 U1 V-H 226.25 Belguim
252 U2 V-H 234.25 Belguim
253 U3 V-H 242.25 Belguim
254 U4 V-H 250.25 Belguim
255 U5 V-H 258.25 Belguim
