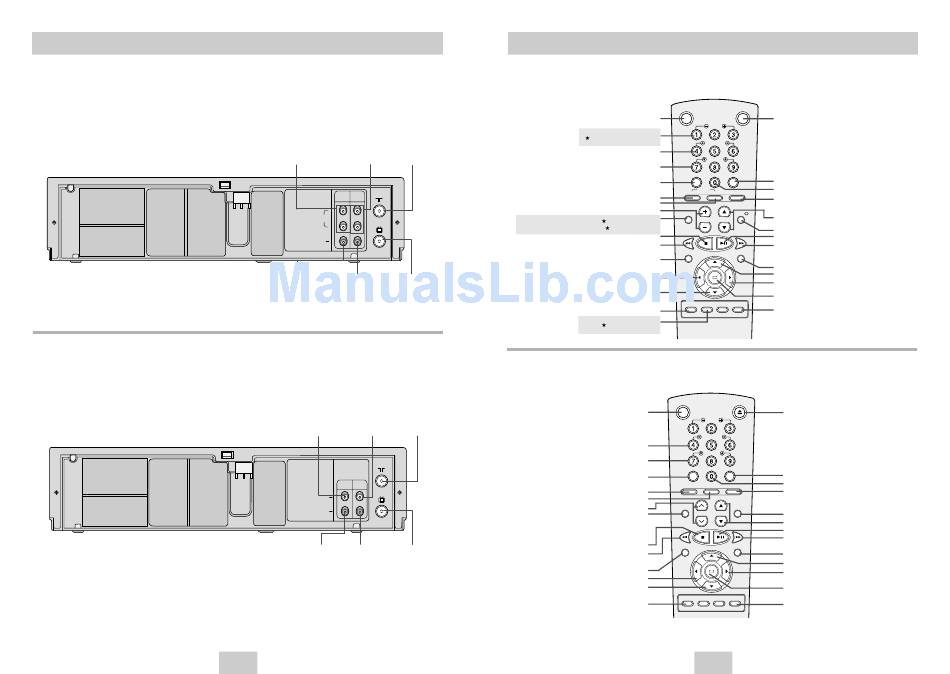

Rear View of the VCR

SV-M625K
SV-M85K/SV-M35K
AUDIO L, R OUTPUT AUDIO L, R AERIAL IN
SOCKETS INPUT SOCKETS
CONNECTOR
LINE LINE
OUT IN 1
R
AUDIO
L
TV
VIDEO
VIDEO INPUT VIDEO OUTPUT OUT TO TV
SOCKET SOCKET CONNECTOR
AERIAL IN
AUDIO OUTPUT AUDIO INPUT
CONNECTOR
SOCKET SOCKET
LINE LINE
OUT IN 1
AUDIO
TV
VIDEO
VIDEO OUTPUT VIDEO INPUT
OUT TO TV
SOCKET
SOCKET CONNECTOR
ENG-6

Infrared Remote Control

SV-M625K/SV-M85K
VCR STANDBY/ON
VCR STANDBY/ON BUTTON
SLOW BUTTON
(SV-4000 SV-940 ONLY)
SHUTTLE BUTTON
V-LOCK BUTTON
CLEAR AND RESET BUTTON
TV BUTTON
VCR BUTTON
VOLUME BUTTONS
AUDIO
AUDIO MODE SELECTION BUTTON
(SV-M625K ONLY)
AUDIO MUTE BUTTON (SV-M85K ONLY)
STOP BUTTON
REWIND/REVERSE PICTURE
SEARCH BUTTON
REC
RECORD BUTTON
MENU SELECTION BUTTON
MENU SELECTION DOWN BUTTON
SPEED
RECORDING SPEED SELECTION BUTTON
AUDIO DUBBING BUTTON
(SV-M625K ONLY)
SV-M35K
STANDBY/ON
STANDBY/ON BUTTON
SHUTTLE BUTTON
V-LOCK BUTTON
CLR/RST
CLEAR AND RESET BUTTON
A.TRK
AUTO TRACKING BUTTON
IPC BUTTON
TRACKING BUTTONS AUDIO
AUDIO MUTE BUTTON
STOP BUTTON
REC
REWIND/REVERSE PICTURE
SEARCH BUTTON
RECORD BUTTON
MENU SELECTION BUTTON
MENU SELECTION DOWN BUTTON
SPEED
RECORDING SPEED SELECTION
BUTTON
TV STANDBY/ON
TV STANDBY/ON BUTTON
SLOW
SHUTTLE
V-LOCK
CLR/RST F.ADV INDEX
INDEX BUTTON
-/--
FRAME ADVANCE BUTTON
SELECT
TV VCR INPUT
TUNER, LINE IN 1, LINE IN 2 SELECTION /
REPEAT REPEAT SELECTION BUTTON
DISP./
PROGRAMME SELECTION /
VOL PROG/TRK
TRACKING BUTTONS
DISPLAY BUTTON
PLAY/PAUSE/STILL BUTTON
FAST-FORWARD/FORWARD
SEARCH BUTTON
MENU
MENU BUTTON
MENU SELECTION UP BUTTON
OK
MENU SELECTION BUTTON
OK BUTTON
DUB TV/VCR TIMER
TIMER BUTTON
EJECT
EJECT BUTTON
SLOW
SHUTTLE
V-LOCK
F.ADV INDEX
INDEX BUTTON
FRAME ADVANCE BUTTON
IPC INPUT
TUNER, LINE IN 1SELECTION /
REPEAT REPEAT SELECTION BUTTON
DISPLAY
DISPLAY BUTTON
TRK PROG
PROGRAMME SELECTION BUTTON
PLAY/PAUSE/STILL BUTTON
FAST-FORWARD/FORWARD
SEARCH BUTTON
MENU
MENU BUTTON
MENU SELECTION UP BUTTON
OK MENU SELECTION BUTTON
OK BUTTON
DUB TV/VCR TIMER
TIMER BUTTON
