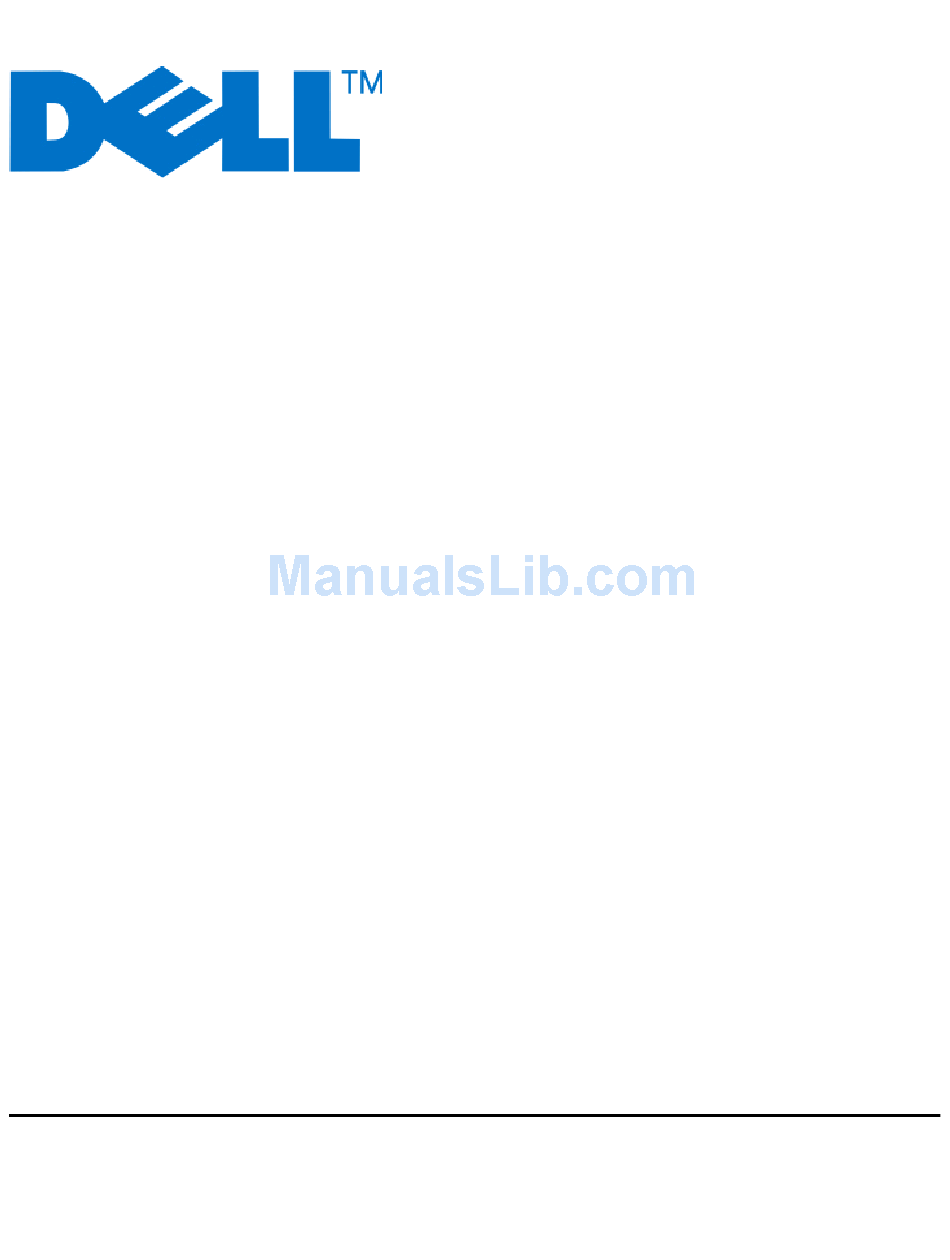

Dell V515w User's Guide
August 2010
www.dell.com | support.dell.com
Machine type(s):
4443
Model(s):
2dw, 6dw

Advertisement

Table of Contents
loading

Related Manuals for Dell V515W

Summary of Contents for Dell V515W

  • Page 1 Dell V515w User's Guide August 2010 www.dell.com | support.dell.com Machine type(s): 4443 Model(s): 2dw, 6dw...
  • Page 2 DELL logo are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to the entities claiming the marks and names of their products. Dell Inc. disclaims any proprietary interest...

  • Page 3: Table Of Contents

    Understanding the parts of the printer........................11 Ordering and replacing supplies...........13 Ordering ink cartridges..............................13 Replacing ink cartridges..............................13 Recycling Dell products..............................15 Using the printer control panel buttons and menus....16 Using the printer control panel............................16 Changing temporary settings into new default settings..................18 Changing the Power Saver timeout..........................19 Saving energy with Eco-Mode............................20...
  • Page 4 Printing....................33 Tips for printing..................................33 Printing basic documents..............................33 Printing specialty documents............................37 Working with photos................................40 Printing from a Bluetooth-enabled device.........................45 Printing on both sides of the paper (duplexing)......................48 Managing print jobs................................50 Copying....................54 Tips for copying..................................54 Making copies..................................54 Copying photos..................................54 Enlarging or reducing images............................55 Adjusting copy quality...............................55 Making a copy lighter or darker.............................55 Collating copies using the printer control panel.....................56...
  • Page 5 Creating a contact list................................78 Sending faxes..................................80 Receiving faxes..................................81 Faxing FAQ.....................................82 Networking..................90 Installing the printer on a wireless network......................90 Advanced wireless setup..............................95 Networking FAQ................................101 Maintaining the printer..............113 Maintaining ink cartridges.............................113 Cleaning the exterior of the printer..........................115 Cleaning the scanner glass............................115 Troubleshooting................116 Before you troubleshoot..............................116 Using the Service Center to solve printer problems....................116 If Troubleshooting does not solve your problem....................116...

  • Page 7: Safety Information

    Safety information Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible. Do not place or use this product near water or wet locations. Use only the power supply and power cord provided with this product or the manufacturer's authorized replacements.

  • Page 8: About Your Printer

    About your printer Thank you for choosing this printer! We've worked hard to make sure it will meet your needs. To start using your new printer right away, use the setup materials that came with the printer, and then skim the User’s Guide to learn how to perform basic tasks.

  • Page 9: Finding Information About The Printer

    Viewing and printing documents and photos • Setting up and using printer software • Setting up and configuring the printer on a network, For updates, check our Web site at support.dell.com. depending on your printer model • Caring for and maintaining the printer •...
  • Page 10 Installation software CD • Software and Drivers—Certified drivers for your printer and installers for Dell printer software Note: If you purchased your Dell computer and printer • Readme files—Last-minute technical changes, or advanced at the same time, then documentation and drivers for your printer are already installed on your computer.

  • Page 11: Understanding The Parts Of The Printer

    Understanding the parts of the printer Use the Paper support Load paper. Wi-Fi indicator Check wireless status. Memory card slots Insert a memory card. PictBridge and USB port Connect a PictBridge-enabled digital camera, USB Bluetooth adapter, or a flash drive to the printer. Card reader light Check card reader status.
  • Page 12 Use the Top cover Access the scanner glass. Scanner glass Scan and copy photos and documents. Security slot Install an anti-theft cable on your printer. Power supply with port Connect the printer to a power source. EXT Port Connect additional devices (telephone or answering machine) to the printer and the telephone line.

  • Page 13: Ordering And Replacing Supplies

    Series 23R Color cartridge, high yield Licensed for a single use only. After use, return this cartridge to Dell for remanufacturing, refilling, or recycling. To know more about recycling Dell products, visit www.dell.com/recycling. Available only on the Dell Web site at www.dell.com/supplies.
  • Page 14 Press the release tab, and then remove the used ink cartridge or cartridges. Warning—Potential Damage: Do not remove the old cartridges until you have the new cartridges available, or the ink remaining in the printhead may dry out and clog the nozzles. Unpack the cartridges.

  • Page 15: Recycling Dell Products

    Note: Install the new ink cartridges immediately after removing the protective cap to avoid exposing the ink to air. Close the printer. Recycling Dell products To return Dell products to Dell for recycling: Click or Start. Click All Programs or Programs, and then select the printer program folder from the list.

  • Page 16: Using The Printer Control Panel Buttons And Menus

    Using the printer control panel buttons and menus Using the printer control panel The following diagrams explain the sections of the printer control panel: Use the: Power button • Turn the printer on and off. • Switch to Power Saver mode. Note: When the printer is on, press to switch to Power Saver mode.
  • Page 17 Use the: Display View: • Printer status Note: The display is turned off in Power Saver mode. • Messages • Menus Arrow buttons Choose a menu or submenu item that appears on the display. Select button • Select menu options. •...

  • Page 18: Changing Temporary Settings Into New Default Settings

    Use the: Dial the telephone number manually using the keypad before sending the fax. Dialtone Color/Black Switch to color mode or black-and-white mode. Start button Start a print, scan, fax, or copy job, depending on which mode is selected. Cancel button •...

  • Page 19: Changing The Power Saver Timeout

    Photo menu The following Photo options will not time out after two minutes of inactivity or after you turn off the printer, but they will return to the factory default settings when a memory card or flash drive is removed. •...

  • Page 20: Saving Energy With Eco-Mode

    Saving energy with Eco-Mode The Eco-Mode feature optimizes energy efficiency and saves money. When Eco-Mode is enabled, the printer automatically switches to the following settings: • The printer display is dimmed. • The printer changes to Power Saver mode after ten minutes. Notes: •...
  • Page 21 Using a button combination (if you cannot read the current language) Turn off the printer. Note: If you have set the Power Saver timeout in the Setup menu, then press and hold for three seconds to turn off the printer. From the printer control panel, press and hold , and then press and release to turn the printer on.

  • Page 22: Using The Printer Software

    Linux openSUSE 11.0 and 11.1 (Web only) • Linux Fedora 10 (Web only) The printer driver for this operating system is available only at support.dell.com. Note: Updated printer firmware may be available at support.dell.com. Using the Windows printer software Software installed during printer installation When you set up the printer using the installation software CD, all the necessary software was installed.

  • Page 23: Printer Software

    Add, edit, or delete contacts in the built-in phone book. • Access the Dell Fax Setup Utility. Use the Fax Setup Utility to set the Speed Dial and Group Dial numbers, set Ringing and Answering, and print fax history and status reports.

  • Page 24: Using The Macintosh Printer Software

    Dell All-In-One Center • Scan photos and documents. (referred to as All-In-One Center) • Customize settings for scan jobs. Dell AIO Setup Utility • Customize settings for fax jobs. (referred to as AIO Setup Utility) • Create and edit the Contacts list.

  • Page 25: Finding And Installing Optional Software

    Use the Dell Network Card Reader • View the contents of a memory device inserted into a network printer. (referred to as Network Card Reader) • Transfer photos and PDF documents from a memory device to the computer over a network.

  • Page 26: Updating The Printer Software (Windows Only)

    Updating the printer software (Windows only) Checking for software updates Click or Start. Click All Programs or Programs, and then select the printer program folder from the list. Select Printer Home. Choose your printer from the printer drop-down list. From the Support tab, select Check for updates. Follow the instructions on the computer screen.

  • Page 27: Installing The Printer Software

    Close all open applications. Download the latest installer from the printer Web site. Launch the printer installation software, and then follow the instructions on the computer screen. Using the Internet Updated printer software may be available at support.dell.com. Using the printer software...

  • Page 28: Loading Paper And Original Documents

    Loading paper and original documents Loading paper Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges of the stack on a level surface. Center the paper on the paper support. Adjust the paper guides so they rest against the edges of the paper.

  • Page 29: Paper And Specialty Media Guidelines

    Paper and specialty media guidelines Load up to: Make sure that: 100 sheets of plain paper • The paper guides rest against the edges of the paper. • You load letterhead paper with the print side faceup and the top of the letterhead going into the printer first. 25 sheets of heavyweight matte paper •...
  • Page 30 Load up to: Make sure that: 10 envelopes • The print side of the envelope is faceup. • The paper guides rest against the edges of the envelopes. • You print the envelopes with Landscape orientation. Note: If you are mailing within Japan, then the envelope can be printed in Portrait orientation with the stamp in the lower right corner or in Landscape orientation with the stamp in the lower left corner.

  • Page 31: Saving Paper Default Settings

    Load up to: Make sure that: 25 sheets of photo/glossy paper • The print side of the paper is faceup. • The paper guides rest against the edges of the paper. • You select Automatic, Normal, or Photo print quality. Note: Draft mode is available but is not recommended for use with expensive paper such as heavyweight matte, labels, photo cards and glossy paper.

  • Page 32: Loading Original Documents On The Scanner Glass

    Loading original documents on the scanner glass Open the scanner lid and place the document facedown on the scanner glass. Close the scanner lid. Loading original documents into the ADF You can load up to 35 sheets of an original document into the ADF for scanning, copying, and faxing. You can load A4-, letter-, or legal-size paper into the ADF.

  • Page 33: Printing

    Printing Tips for printing • Use the appropriate paper for your print job. • Select a higher print quality for better prints. • Make sure there is enough ink in the ink cartridges. • Remove each sheet as it is printed when printing photos or when working with specialty media. •...

  • Page 34: Collating Printed Copies

    Collating printed copies When printing multiple copies of a document, you can choose to print each copy as a set (collated) or to print the copies as groups of pages (not collated). Collated Not collated Notes: • The collate option is available only when you are printing multiple copies. •...

  • Page 35: Printing Multiple Pages On One Sheet

    From the Copies area of the Print Setup tab, select a page order: • To print the last page first, select Print Last Page First. • To print the first page first, clear the Print Last Page First check box. Note: If two-sided printing is enabled, then you cannot print the last page first.

  • Page 36: Printing Documents From A Memory Card Or Flash Drive (Windows)

    From the print options pop-up menu, choose Layout. From the Pages per Sheet pop-up menu, choose the number of page images to print on each page. Adjust other settings as needed. Click Print. Printing documents from a memory card or flash drive (Windows only) To enable the File Print function: •...

  • Page 37: Printing Specialty Documents

    Printing specialty documents Printing envelopes For Windows users With a document open, click File > Print. Click Properties, Preferences, Options, or Setup. Navigate to: Print Setup tab > Paper Type list > select Plain Paper Navigate to: Paper Size list > select your envelope size If no size matches the envelope size, then set a custom size.

  • Page 38: For Macintosh Users

    Navigate to: Print Setup tab > Paper Type list > select your paper type Navigate to: Paper Size list > select your paper size If no paper size matches the label sheet size, then set a custom size. Click OK to close any printer software dialogs. Click OK or Print.
  • Page 39 Click OK to close any printer software dialogs. Click OK or Print. For Macintosh users With a document open, choose File > Page Setup. From the “Format for” pop-up menu, choose your printer. From the Paper Size pop-up menu, choose Manage Custom Sizes. Adjust the settings as needed to create a custom size, and then click OK.

  • Page 40: Working With Photos

    Working with photos Using a memory card or flash drive with the printer Memory cards and flash drives are storage devices frequently used with cameras and computers. You can remove the memory card from the camera or the flash drive from the computer and insert it directly into the printer. Insert a memory card into the card slot or a flash drive into the USB port.

  • Page 41: Printing Photos Using The Printer Control Panel

    Notes: • If the printer does not recognize the memory device, then remove and reinsert it. • If a flash drive or a digital camera set to mass storage mode is inserted into the USB port while a memory card is in the card slot, then a message appears on the display prompting you to choose which memory device to use.

  • Page 42: Printing Photos From A Memory Device Using The Printer Software

    Adjust the print settings: • If you are in the Easy Photo menu, then press the arrow buttons to select the paper size and photo size. Press each time you make a selection. • If you are in the Print Photos menu, then press the arrow buttons to select the photo size, paper size, paper type, layout, photo effects, and quality of the photos, and to adjust the brightness and color effects of the photos.

  • Page 43: Printing Photos From A Pictbridge-Enabled Digital Camera

    Printing photos from a PictBridge-enabled digital camera PictBridge is a technology available in most digital cameras that lets you print directly from your digital camera without using a computer. Insert one end of the USB cable into the camera. Note: Use only the USB cable that came with the camera. Insert the other end of the cable into the PictBridge port on the front of the printer.

  • Page 44: Printing Photos From A Memory Device Using The Proof Sheet

    Press the arrow buttons to select the paper size, paper type, photo size, and layout of the photos that you want to print. Press each time you make a selection. See the documentation for your camera to begin printing. Note: If you insert the camera while the printer is performing another job, then wait for the job to finish before printing from the camera.

  • Page 45: Printing From A Bluetooth-Enabled Device

    Printing photos from a digital camera using DPOF If your camera supports Digital Print Order Format (DPOF), then you can specify which photos to print, how many of each, and the print settings while the memory card is still in the camera. The printer recognizes these settings when you insert the memory card into the printer or connect the camera to the printer.
  • Page 46 To set up a connection between the printer and a Bluetooth-enabled device: Insert a USB Bluetooth adapter into the USB port located on the front of the printer. Bluetooth Dongle Connected appears on the display. Note: A Bluetooth adapter is not included with the printer. From the printer control panel, press Press the arrow buttons to scroll to Bluetooth Setup, and then press Press the arrow buttons to scroll to Discovery, and then press...

  • Page 47: Setting The Bluetooth Security Level

    Setting the Bluetooth security level Insert a Bluetooth USB adapter into the USB port. Bluetooth Dongle Connected appears on the display. Note: A Bluetooth adapter is not included with the printer. From the printer control panel, press Press the arrow buttons to scroll to Bluetooth Setup, and then press button Press the arrow buttons to scroll to Security Level, and then press Press the arrow buttons to select the security level, and then press •...

  • Page 48: Printing On Both Sides Of The Paper (Duplexing)

    Insert a USB Bluetooth adapter into the USB port. Bluetooth Dongle Connected appears on the display. Warning—Potential Damage: Do not touch cables, any network adapter, any connector, the USB Bluetooth adapter, or the printer in the areas shown while actively printing, reading, or writing from a Bluetooth-enabled device.
  • Page 49 Navigate to: Advanced tab > 2-Sided Printing area > select Manual Note: The “Print Instruction Page to Assist in Reloading” item is selected automatically. Click OK. The printer prints the odd-numbered pages and the instruction sheet. Flip and reload the paper, following the directions on the instruction sheet to complete the print job. To return to single-sided printing, navigate to: Advanced tab >...

  • Page 50: Managing Print Jobs

    Repeat steps 4 through 6. From the Print or “Pages to Print” pop-up menu, choose to print the even-numbered pages. Click Print. Managing print jobs Setting your printer as the default printer Your printer should be selected automatically from the Print dialog when you send a print job. If you have to manually select your printer, then it is not the default printer.

  • Page 51: Pausing Print Jobs

    For Macintosh users With a document open, choose File > Print. From the printer pop-up menu, choose the printer. From the print options pop-up menu, choose Print Settings or Quality & Media, depending on your operating system. From the Print Quality pop-up menu, choose Draft or Quick Print as the printing mode. From the Presets pop-up menu, choose Save as, and then type a name for your setting configuration.

  • Page 52: Resuming Print Jobs

    For Macintosh users Click the printer icon on the Dock. The print queue dialog appears. Pause the print job: • If you want to pause a particular print job, then choose the document name, and then click Hold. • If you want to pause all print jobs in the queue, then click Pause Printer or Stop Jobs, depending on your operating system.
  • Page 53 Press Enter, or click OK. The printer folder opens. Right-click the printer, and then select Open or See what's printing. Cancel the print job: • If you want to cancel a particular print job, then right-click the document name, and then select Cancel. •...

  • Page 54: Copying

    Copying Scanner glass Use the ADF for multiple-page documents. Use the scanner glass for single pages, small items (such as Note: The ADF is available only on select models. If you postcards or photos), transparencies, photo paper, or thin purchased a printer without an ADF, then load original media (such as magazine clippings).

  • Page 55: Enlarging Or Reducing Images

    Press until Photo Reprint appears. Press the arrow buttons to scroll to Yes, and then press Press the arrow buttons to select the desired photo size, and then press Press Note: For best results, allow the prints to dry at least 24 hours before stacking, displaying, or storing. Enlarging or reducing images Load paper.

  • Page 56: Collating Copies Using The Printer Control Panel

    Press until Lighter/Darker appears. Press the arrow buttons to adjust the slider. Note: Pressing the left arrow button makes the copy lighter, and pressing the right arrow button makes the copy darker. Press Collating copies using the printer control panel If you print multiple copies of a document, then you can choose to print each copy as a set (collated) or to print the copies as groups of pages (not collated).

  • Page 57: Copying Multiple Pages On One Sheet

    Copying multiple pages on one sheet The Pages per Sheet setting lets you copy multiple pages on one sheet by printing smaller images of each page. For example, you can condense a 20-page document into five pages if you use this setting to print four page images per sheet.

  • Page 58: Canceling Copy Jobs

    Remove the paper from the paper exit tray, and then reload the paper to print the other side of the document. Press Canceling copy jobs To cancel a copy job, press Scanning stops and the printer returns to the previous menu. Copying...

  • Page 59: Scanning

    Scanning Scanner glass Use the ADF for multiple-page documents. Use the scanner glass for single pages, small items (such as Note: The ADF is available only on select models. If you postcards or photos), transparencies, photo paper, or thin purchased a printer without an ADF, then load original media (such as magazine clippings).

  • Page 60: Scanning To A Flash Drive Or Memory Card

    Press the arrow buttons to select an application, and then press Press the arrow buttons to select the resolution quality and the original image size. Press each time you make a selection. Press to start scanning. The scan is complete when the application you selected in step 5 opens on the destination computer, and the scan appears within the application as a new file.

  • Page 61: Scanning Documents Into An Editing Application

    For Macintosh users Load a photo or photos. From the Finder desktop, double-click the printer program folder. Double-click the printer Center to open the All-In-One Center. From the “What is being scanned?” area of the All-In-One Center, select Photo. From the “How will the scanned image be used?” pop-up menu, choose To be printed or To be viewed on monitor/Web page.

  • Page 62: Scanning Directly To E-Mail Using The Printer Software

    From the “What is being scanned?” area of the All-In-One Center, select a document type other than Photo. From the “How will the scanned image be used?” pop-up menu, choose To be edited (OCR). From the “Send scanned image to” menu, choose a word-processing application to use for editing. Click Scan.

  • Page 63: Scanning To A Pdf

    Scanning to a PDF For Windows users Load an original document. Click or Start. Click All Programs or Programs, and then select the printer program folder from the list. Navigate to: Printer Home > select your printer > PDF Scanning starts and the scan progress dialog appears. Save the document as a PDF.

  • Page 64: Canceling Scan Jobs

    Why am I being asked for a PIN? PINs are a security measure used to restrict the scanned information from going into certain locations, or to keep what is being scanned from being seen or used by others. You may be prompted to enter a PIN if the network computer you are scanning to requires one.

  • Page 65: Faxing

    Faxing CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling connections, such as the power supply cord or telephone, during a lightning storm. Setting up the printer to fax Scenario 1: Standard telephone line Check the scenarios below and follow the setup that is applicable to your telephone line.
  • Page 66 Setup 2: Printer is sharing the line with an answering machine Connected to the same telephone wall jack Connected to different wall jacks Tips for this setup: • If you have only one telephone number on your line, or if you do not subscribe to a distinctive ring service, then you need to set the printer to receive faxes automatically (Auto Answer On).
  • Page 67 • If you subscribe to a distinctive ring service provided by your telephone company, then make sure that you set the correct ring pattern for the printer. Otherwise, the printer will not receive faxes even if you have set it to receive faxes automatically.
  • Page 68 Scenario 2: Digital Subscriber Line (DSL) Follow this setup if you have a Digital Subscriber Line (DSL). A Digital Subscriber Line splits your regular telephone line into two channels: voice and Internet. Telephone and fax signals travel through the voice channel, and Internet signals pass through the other channel. This way, you can use the same line for analog voice calls (including faxing) and digital Internet access.
  • Page 69 Scenario 3: VoIP telephone service Follow this setup if you have telephone service from a Voice over Internet Protocol (VoIP) provider. Tips for this setup: • Connect the printer to the port labeled Phone Line 1 or Phone Port on the VoIP adapter. The port labeled Phone Line 2 or Fax Port is not always active.
  • Page 70 Scenario 4: Digital telephone service through a cable provider Setup 1: Printer is connected directly to a cable modem Follow this setup if you normally connect your telephone to a cable modem. Tips for this setup: • Connect the printer to the port labeled Phone Line 1 or Phone Port on the cable modem. The port labeled Phone Line 2 or Fax Port is not always active.
  • Page 71 Setup 2: Printer is connected to a wall jack; cable modem is installed elsewhere in the house Follow this setup if your cable provider activated the wall jacks in your house so that you do not have to plug your devices into the cable modem.
  • Page 72 Connecting the printer to a non-RJ-11 wall jack To connect: Connect one end of a telephone cable to the port of the printer. Connect the other end of the cable to the RJ-11 adapter, and then connect the adapter to the wall jack. If you want to connect another device (telephone or answering machine) to the same wall jack, and if the device has a non-RJ 11 connector, then connect it directly to the wall jack.
  • Page 73 If the additional device (telephone or answering machine) has an RJ-11 connector, then you can remove the wrap plug and connect the device to the port of the printer. Connecting the printer in countries or regions that use serial connection In some countries or regions, you need to plug all devices into the wall jack.
  • Page 74 To connect: Connect the cable from the wall jack to the port of the printer. Connecting the printer to a wall jack in Germany The German wall jack has two kinds of ports. The N ports are for fax machines, modems, and answering machines. The F port is for telephones.

  • Page 75: Entering Your User Information

    Connect the printer to any of the N ports. To connect: Connect one end of a telephone cable to the port of the printer. Connect the other end of the cable to the RJ-11 adapter, and then connect the adapter to an N port. If you want to connect a telephone and answering machine to the same wall jack, then connect the devices as shown.

  • Page 76: Configuring The Fax Settings

    Press the arrow buttons to scroll to Your Fax Number, and then press Use the keypad to enter your fax number or your telephone number, and then press Setting the fax footer Press Press the arrow buttons to scroll to Fax Printing, and then press Press the arrow buttons to scroll to Fax Footer, and then press Press again to select On.
  • Page 77 From here You can Ringing and Answering • Set the printer to receive faxes automatically or manually. Turn Auto Answer to On or Off. • Adjust the ringing volume. • Set the number of rings. This is important if you choose to receive faxes automatically (Auto Answer On).

  • Page 78: Creating A Contact List

    Navigate to: Printer Home > Fax tab > Set up the printer to fax The Fax Setup Wizard opens. Run the Fax Setup Wizard. Make sure you select the correct telephone service and connection. The wizard configures optimal fax settings based on your connection. Note: If you want to configure the advanced fax settings, then click Configure the advanced fax settings in the Fax tab of the Printer Home.
  • Page 79 Enter a fax number in the Enter Number field, and then press If you want to add another contact to the group, press the arrow buttons to scroll to Yes, and then press Repeat step 5d as necessary. You can enter up to 30 fax numbers for the group. If you do not want to add another fax number, then press to select No.

  • Page 80: Sending Faxes

    Sending faxes Scanner glass Use the ADF for multiple-page documents. Use the scanner glass for single pages, small items (such as Note: The ADF is available only on select models. If you postcards or photos), transparencies, photo paper, or thin purchased a printer without an ADF, load original media (such as magazine clippings).

  • Page 81: Receiving Faxes

    Sending faxes using the computer For Windows users With a document open, click File > Print. From the Printer Name menu, select the fax version of your printer, and then click OK. The Send Fax Wizard appears. Follow the instructions on the computer screen. For Macintosh users With a document open, choose File >...

  • Page 82: Faxing Faq

    When the number of rings you set is detected, the printer automatically receives the incoming fax. Warning—Potential Damage: Do not touch the cables or the ports while actively receiving a fax. Tips: • If the printer is sharing the line with other analog devices (telephone, answering machine), then set the printer to pick up calls two rings after the answering machine.
  • Page 83 For Windows users Click or Start. Click All Programs or Programs, and then select the printer program folder from the list. Navigate to: Printer Home > Fax tab > Set up the printer to fax The Fax Setup Wizard opens. Run the Fax Setup Wizard.
  • Page 84 When do I need to set Auto Answer to On? Set Auto Answer to On if you want the printer to receive faxes automatically. If the printer is connected to the same telephone line with an answering machine, then you must set Auto Answer to On so that you can receive both your voice calls and your faxes.

  • Page 85: Adjusting The Ringer Volume

    How can I check the dial tone? A dial tone lets you know if the telephone line is working or if the printer is properly connected to the telephone line. If you encounter problems sending and receiving faxes, then make sure you can hear a dial tone on the line and through the printer.

  • Page 86: How Do I Send A Fax At A Scheduled Time

    How can I make sure that fax calls go to the printer and voice calls go to the answering machine? To make sure the printer picks up incoming faxes, set Auto Answer to On, and then set the printer to pick up after a greater number of rings than the answering machine.

  • Page 87: How Do I Know That The Fax Was Sent Successfully

    Press to scroll to Schedule Fax. Press the arrow buttons to scroll to Send Later, and then press Enter the time you want to send the fax, and then press If the printer is not set to the 24-hour mode, press the arrow buttons to select AM or PM, and then press Press to start scanning the document and save the scheduled fax.

  • Page 88: How Do I Forward A Fax

    To set when to print fax activity reports, press the arrow buttons to choose whether to print the fax activity reports after 40 faxes or on request only. To print fax activity reports, press the arrow buttons to scroll to Print Reports, and then press •...
  • Page 89 Block unidentified faxes (faxes without a Caller ID number). Press the arrow buttons to scroll to Block No-ID, and then press Press the arrow buttons to scroll to On, and then press to save the setting. Can I retrieve failed faxes? The printer saves an incoming fax to the printer memory before it prints the fax.

  • Page 90: Networking

    Networking Installing the printer on a wireless network Wireless network compatibility Your printer may contain an IEEE 802.11b, IEEE 802.11g, or IEEE 802.11n wireless print server. Your printer is compatible with IEEE 802.11 b/g/n routers that are Wi-Fi certified. Note: If your printer has an IEEE 802.11g wireless print server and you are having issues with an n router, then verify with your router manufacturer that the current mode setting is compatible with g devices, as this setting varies depending on the router brand or model.

  • Page 91: Printing A Network Setup Page

    A valid WPA passphrase has: • Exactly 64 hexadecimal characters. Hexadecimal characters are A–F, a–f, and 0–9. • From 8 to 63 ASCII characters. ASCII characters are letters, numbers, punctuation, and symbols found on a keyboard. ASCII characters in a WPA passphrase are case-sensitive. Every device on the wireless network must use the same WPA passphrase.

  • Page 92: Installing The Printer On Other Computers

    If your wireless network is not using security, then you will not have a security key. Note: If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility of the computer network adapter and look for the network name. If you cannot find the SSID or the security information for your network, then see the documentation that came with the access point, or contact your system support person.

  • Page 93: Special Wireless Installation Instructions

    For Macintosh users Close all open applications. Download the latest installer from the printer Web site. Launch the printer installation software, and then follow the instructions on the computer screen. Interpreting the colors of the Wi-Fi indicator light The colors of the Wi-Fi indicator light show the network status of the printer. •...

  • Page 94: Assigning A Static Ip Address

    From the wireless networks list that appears, select your network, and then click Continue. If your wireless network does not appear in the list: Connect to another wireless network. For Windows users Click Unlisted Network. For Macintosh users Select Other Wireless Network from the list, and then click Continue. Enter the details about your wireless network.

  • Page 95: Advanced Wireless Setup

    For Macintosh users From the Finder, navigate to: Applications > select your printer folder Double-click Wireless Setup Assistant. Follow the instructions on the computer screen. Advanced wireless setup Creating an ad hoc wireless network You can set up an ad hoc network if you: •...
  • Page 96 WEP keys must be: • Exactly 5 or 13 ASCII characters. ASCII characters are letters, numbers, and symbols found on a keyboard. • Exactly 10 or 26 hexadecimal characters. Hexadecimal characters are A–F, a–f, and 0–9. Write down the password for your network. Make sure you copy it exactly, including any capital letters. Windows Vista will enable the ad hoc network for you.
  • Page 97 Write down the WEP key you chose so you can refer to it when running the wireless setup. Make sure you copy it exactly, including any capital letters. In the “Confirm network key” box, type the same WEP key. Select This is a computer-to-computer (ad hoc) network; wireless access points are not used. Click OK twice to close the two open windows.

  • Page 98: Adding A Printer To An Existing Ad Hoc Wireless Network

    Adding a printer to an existing ad hoc wireless network Note: The printer can communicate on only one wireless network at a time. Configuring the printer for an ad hoc wireless network will remove it from any other wireless network, either ad hoc or infrastructure, for which it is configured.
  • Page 99 Close all open applications. Download the latest installer from the printer Web site. Double-click Dell Extras > Dell Setup Assistant. Follow the instructions on the computer screen for configuring the printer wirelessly. Note: There is no need to remove the USB cable connecting the printer to the computer during wireless configuration.

  • Page 100: Sharing A Printer In A Windows Environment

    From the Printer List dialog, choose the printer you want to use, and then click Add. From the Printer Browser, select your printer, and then click Add. A second print queue will be created. Remove the wireless queue if you do not want to switch back to accessing the printer over a wireless connection.

  • Page 101: Networking Faq

    Sharing a printer in a Macintosh environment From the Finder, choose Help > Mac Help. In the Search field, type sharing the printer on a network, and then press return. Select only one of the following: • Sharing your printer with Mac OS X users—Let other Macintosh computers on the network that use Mac OS X version 10.4 or later use any printer connected to your Macintosh computer.

  • Page 102: Where Do I Find My Ssid

    • See the documentation that came with your access point (wireless router). If your access point is using the default settings, then you can find the information in the documentation. • View the security settings on the access point. Open a Web browser, and then type the IP address of the access point in the address field. Notes: –...

  • Page 103: How Are Home Networks Configured

    If you are not using a password, then choose No Security. Characters Security type Exactly 10 or 26 hexadecimal characters Exactly 5 or 13 ASCII characters Exactly 64 hexadecimal characters WPA or WPA2 From 8 to 63 ASCII characters Notes: –...
  • Page 104 • The network is connected to the Internet through a DSL or cable modem. Scenario 2: Wireless network with Internet access • All computers and printers connect to the network using a wireless access point or wireless router. • The wireless access point connects the network to the Internet through a DSL or cable modem. Scenario 3: Wireless network with no Internet access •...

  • Page 105: Why Do I Need An Installation Cable

    Scenario 4: Computer connected wirelessly to a printer without Internet access • A computer is directly connected to a printer without going through a wireless router. • This configuration is referred to as an ad hoc network. • The network has no connection to the Internet. Note: Most computers can connect to only one wireless network at a time.

  • Page 106: How Are Infrastructure And Ad Hoc Networks Different

    Attach the small, square connector to the back of the printer. Continue following the on-screen instructions. How are infrastructure and ad hoc networks different? Wireless networks can operate in one of two modes: infrastructure or ad hoc. In infrastructure mode, all devices on a wireless network communicate with each other through an access point (wireless router).

  • Page 107: Finding The Signal Strength

    We recommend setting up a network in infrastructure mode using the installation software CD. Infrastructure mode provides: • Increased network security • Increased reliability • Faster performance • Easier setup Finding the signal strength Wireless devices have built-in antennas that transmit and receive radio signals. The signal strength listed on the printer network setup page indicates how strongly a transmitted signal is being received.
  • Page 108 EMOVE OBSTACLES BETWEEN THE ACCESS POINT AND THE PRINTER The wireless signal from your access point will pass through most objects. Most walls, floors, furniture, and other objects will not block the wireless signal. However, there are materials that are too dense for the signal to pass through, such as objects containing metal and concrete.
  • Page 109 In the Wireless settings section, look for the SSID. Write down the SSID. Note: Make sure you copy it exactly, including any capital letters. Obtain the SSID of the network that the printer is connected to: From the printer, print a network setup page. In the Wireless section, look for SSID.

  • Page 110: What Is A Mac Address

    Can I use my printer on a USB and a network connection at the same time? Yes, the printer supports a simultaneous USB and network connection. The printer can be configured in the following ways: • Locally attached (connected to a computer using a USB cable) •...

  • Page 111: What Is An Ip Address

    The MAC address of the internal print server is a series of letters and numbers. Other devices sometimes use a type of MAC address called Universally Administered Address (UAA). Note: A list of MAC addresses can be set on an access point (router) so that only devices with matching MAC addresses are allowed to operate on the network.

  • Page 112: How Are Ip Addresses Assigned

    For Macintosh users From the Apple menu, navigate to: About This Mac > More Info From the Contents pane, choose Network. If you are connected over a wireless network, then choose AirPort from the Active Services list. Locating the printer IP address •...

  • Page 113: Maintaining The Printer

    Maintaining the printer Maintaining ink cartridges In addition to the following tasks that you can perform, your printer performs an automatic maintenance cycle every week if it is plugged into an electrical outlet. It will briefly come out of Power Saver mode or will temporarily power on if it is turned off.

  • Page 114: Cleaning The Printhead Nozzles

    Press the arrow buttons to scroll to Align Printer, and then press Press again. An alignment page prints. Note: Do not remove the alignment page until printing is finished. Using the printer software For Windows users Load plain paper. Click or Start.

  • Page 115: Cleaning The Exterior Of The Printer

    Press the arrow buttons to scroll to Clean Printhead, and then press Press to clean the printhead nozzles. A cleaning page prints. Using the printer software For Windows users Click or Start. Click All Programs or Programs, and then select the printer program folder from the list. Select Printer Home.

  • Page 116: Troubleshooting

    Select Printer Home. From the Support tab, select Service Center. If Troubleshooting does not solve your problem Visit our Web site at support.dell.com to find the following: • Live online technical support • Contact numbers for telephone technical support Setup troubleshooting •...

  • Page 117: Incorrect Language Appears On The Display

    • “Printer is printing blank pages” on page 121 • “Printer is busy or does not respond” on page 122 • “Cannot delete documents from the print queue” on page 122 • “Cannot print through USB” on page 122 Incorrect language appears on the display If the "Before you troubleshoot"...
  • Page 118 EMOVE AND REINSERT THE PRINTHEAD Open the printer and lift the latch. Remove the printhead. Warning—Potential Damage: Do not touch the printhead ink filter or the printhead nozzles. Wipe the contacts using a clean, lint-free cloth. • On the printhead Troubleshooting...
  • Page 119 • On the printhead carrier Warning—Potential Damage: Do not touch the printhead ink filter or the printhead nozzles. Reinsert the printhead, and then close the latch until it clicks. Close the printer. Note: If removing and reinserting the printhead does not resolve the error, then contact customer support. Troubleshooting...

  • Page 120: Software Did Not Install

    Software did not install If you encountered problems while installing, or if your printer does not appear in the list in the Printers folder or as a printer option when sending a print job, then try removing and reinstalling the software. Before you reinstall the software, do the following: AKE SURE THAT YOUR COMPUTER MEETS THE MINIMUM SYSTEM REQUIREMENTS LISTED ON THE PRINTER BOX...

  • Page 121: Printer Is Printing Blank Pages

    ECONNECT THE PRINTER POWER SUPPLY Turn off the printer, and then unplug the power cord from the wall outlet. Gently remove the power supply from the printer, and then reinsert it. Plug the power cord into the wall outlet, and then turn on the printer. EMOVE AND RECONNECT THE CABLE CONNECTED TO YOUR PRINTER HECK THE...

  • Page 122: Printer Is Busy Or Does Not Respond

    Printer is busy or does not respond If the "Before you troubleshoot" checklist does not solve the problem, then try one or more of the following: AKE SURE THE PRINTER IS NOT IN OWER AVER MODE If the power light is blinking on and off slowly, then the printer is in Power Saver mode. Press to wake up the printer.

  • Page 123: Jams And Misfeeds Troubleshooting

    Press Enter, or click OK. The Device Manager opens. Click the plus sign (+) beside Universal Serial Bus controllers. If USB Host Controller and USB Root Hub are listed, then the USB port is enabled. For more information, see the computer documentation. EMOVE AND REINSTALL THE PRINTER SOFTWARE Jams and misfeeds troubleshooting •...

  • Page 124: Paper Or Specialty Media Misfeeds

    Press to turn off the printer. Firmly grasp the paper, and then gently pull it out. Note: Be careful not to tear the paper while removing it. Press to turn the printer back on. Paper jam in the ADF (selected models only) Note: The parts inside the printer are sensitive.

  • Page 125: Print Troubleshooting

    • Check the loading instructions for your paper or specialty media. EMOVE EACH PAGE AS IT IS PRINTED DJUST THE PAPER GUIDES TO FIT THE LOADED PAPER Print troubleshooting • “Poor quality at the edges of the page” on page 125 •...

  • Page 126: Print Speed Is Slow

    If you have already specified the printer, paper size, and orientation in step 1, then you may have to choose your printer again from the Printer pop-up menu before going to step 3. Otherwise, set them: From the Printer pop-up menu, choose your printer. From the Paper Size pop-up menu, choose a paper size that has “(Borderless)”...

  • Page 127: Copy And Scan Troubleshooting

    ELECT A LOWER PRINT QUALITY FROM THE PRINTER SOFTWARE ANUALLY SELECT A PAPER TYPE THAT MATCHES THE TYPE OF PAPER YOU ARE USING EMOVE AND REINSTALL THE PRINTER SOFTWARE Computer slows down when printing These are possible solutions. Try one of the following: F YOU ARE USING A CONNECTION THEN TRY A DIFFERENT...

  • Page 128: Scan Was Not Successful

    Poor copy or scanned image quality If the "Before you troubleshoot" checklist does not solve the problem, then try one or more of the following: LEAN THE SCANNER GLASS DJUST THE SCAN QUALITY FROM THE PRINTER SOFTWARE EVIEW THE TIPS FOR COPYING SCANNING AND IMPROVING PRINT QUALITY SE A CLEARER VERSION OF THE ORIGINAL DOCUMENT OR IMAGE...

  • Page 129: Fax Troubleshooting

    Scanning takes too long or freezes the computer If the "Before you troubleshoot" checklist does not solve the problem, then try one or more of the following: LOSE OTHER SOFTWARE PROGRAMS THAT ARE NOT BEING USED SE A LOWER SCANNING RESOLUTION Cannot scan to a computer over a network If the "Before you troubleshoot"...

  • Page 130: Cannot Send Faxes

    Check the cable connections for the following hardware, if applicable: – Power supply – Telephone – Answering machine – VoIP adapter – DSL filter – Splitter – Cable modem • If the printer is connected to a Digital Subscriber Line, install a DSL filter for the printer. A DSL filter minimizes interference between the fax signals and Internet signals on the line.
  • Page 131 ET THE PRINTER TO SCAN THE ORIGINAL DOCUMENT BEFORE DIALING THE NUMBER The printer does not automatically redial if you set it to scan the original document after dialing the number. Set the printer to scan before dialing so that you do not have to scan the document again if the fax fails. The scanned document is saved in the printer memory.

  • Page 132: Cannot Receive Faxes

    AKE SURE THAT THE REFIX SETTING IS CORRECT The dialing prefix is the number or series of numbers that you press before you can dial the actual fax number or telephone number. If the printer is in an office setting or in a private branch exchange, this can be a specific number that you need to press so you can make a call outside the office.

  • Page 133: Cannot Run The Fax Software

    AKE SURE THAT ORWARDING IS DISABLED You may have turned on Fax Forwarding. Disable this option so that the printer can receive the fax. From the printer control panel, press Press the arrow buttons to scroll to Fax Setup, and then press Press the arrow buttons to scroll to Ringing and Answering, and then press Press the arrow buttons to scroll to Fax Forward, and then press Press the arrow buttons to scroll to Off, and then press...

  • Page 134: Fax Error Messages On The Printer Control Panel

    Fax error messages on the printer control panel Error Message: What it indicates: Possible solutions: Remote Fax Error The receiving fax machine cannot • Resend the fax. There may have receive the fax. The error on the been a problem with the quality of receiving end could be due to several the connection.

  • Page 135: Memory Card Troubleshooting

    Error Message: What it indicates: Possible solutions: Failed to Connect The printer cannot detect a dial tone. See the “Fax troubleshooting checklist.” Phone Line Error Phone Line Not Connected Your telephone line or the telephone Phone Line Busy • Set the printer to redial. line of the receiving fax machine is •...

  • Page 136: Nothing Happens When A Memory Card Is Inserted

    Memory card troubleshooting checklist Before you troubleshoot, use the following checklist to solve most memory card problems: • Make sure that the memory card you are using can be used in the printer. • Make sure the memory card is not damaged. •...

  • Page 137: Wireless Troubleshooting

    Photos do not transfer from a memory card across a wireless network If the "Memory card troubleshooting checklist" does not solve the problem, then try one or more of the following: AKE SURE THAT BOTH THE PRINTER AND THE DESTINATION COMPUTER ARE TURNED ON AND READY ELECT THE CORRECT COMPUTER NAME FROM THE LIST ON THE PRINTER AKE SURE YOUR WIRELESS NETWORK IS CONNECTED AND ACTIVE...

  • Page 138: Resetting The Wireless Settings To Factory Defaults

    • Your WEP key or WPA passphrase is correct (if your network is secure). Log into the wireless access point (wireless router) and check the security settings. A security key is like a password. All devices on the same wireless network using WEP, WPA, or WPA2 share the same security key.
  • Page 139 AKE SURE ODE IS TURNED OFF Certain printer features are not available when Demo Mode is turned on. From the printer control panel, navigate to: > Demo Mode > Off > save the setting HECK YOUR KEY OR PASSPHRASE If your access point is using WEP security, then the WEP key should be: •...
  • Page 140 HECK YOUR ADVANCED SECURITY SETTINGS • If you are using MAC (Media Access Control) address filtering to limit access to your wireless network, then you must add the printer MAC address to the list of addresses allowed to connect to the access point. •...
  • Page 141 For Macintosh users with an AirPort base station In Mac OS X version 10.5 or later From the Apple menu, navigate to: System Preferences > Network > AirPort The SSID of the network that the computer is connected to is displayed in the Network Name menu. Write down the SSID.

  • Page 142: The Continue Button Is Unavailable

    The Continue button is unavailable Try the following solutions in the order they appear until the Continue button becomes active and can be clicked: HECK IF THE CABLE IS SECURELY PLUGGED INTO THE PORTS ON BOTH THE COMPUTER AND THE PRINTER USB ports are marked with the symbol.

  • Page 143: Cannot Print And There Is A Firewall On The Computer

    Notes: • When you get to the Software Already Installed screen, make sure you select Install a printer. • If you have already set up your printer, select Additional Computer when you get to the Setting up a new printer? screen to skip the hardware setup wizard. HECK THAT YOUR COMPUTER IS ABLE TO ACKNOWLEDGE ACTIVITY ON THE PORT...

  • Page 144: Wi-Fi Indicator Light Is Green But The Printer Does Not Print (Windows Only)

    Wi-Fi indicator light is green but the printer does not print (Windows only) If you have completed the configuration for wireless printing and all of the settings appear to be correct, but the printer does not print, then try one or more of the following: LLOW THE WIRELESS INSTALLATION TO COMPLETE Do not attempt to print, remove the installation CD, or detach the installation cable until you see the Wireless Setup Successful screen.

  • Page 145: Wi-Fi Indicator Light Is Still Orange

    Click the Ports tab. Locate the selected port. The selected port has a check beside it in the Port column. If the Description column of the selected port indicates that it is a USB port, scroll through the list and select the port with Printer Port in the Description column.

  • Page 146: Wi-Fi Indicator Light Is Blinking Orange During Installation

    OVE THE COMPUTER AND OR PRINTER CLOSER TO THE WIRELESS ACCESS POINT WIRELESS ROUTER The possible distance between devices in 802.11b or 802.11g networks is 300 feet, while the wireless network range potentially doubles in 802.11n networks. The range of your wireless network depends on many factors, including the abilities of your router and network adapters.
  • Page 147 If your access point is using WPA or WPA2 security, then the WPA passphrase should be: • Exactly 64 hexadecimal characters. Hexadecimal characters are A–F, a–f, and 0–9. • From 8 to 63 ASCII characters. ASCII characters are letters, numbers, and symbols found on a keyboard. ASCII characters in a WPA passphrase are case-sensitive.
  • Page 148 For Macintosh users Make sure AirPort is turned on: From the Apple menu, navigate to: System Preferences > Network The AirPort status indicator should be green. Notes: • Yellow means the port is active but not connected. • Red means the port has not been configured. Obtain the IP address of the access point: From the Apple menu, navigate to: About This Mac >...
  • Page 149 Press Enter. If the printer responds, then you will see several lines that display the number of bytes received from the printer. This ensures that your computer is communicating with your printer. If the printer does not respond, then “Request timed out.” appears. •...

  • Page 150: Wireless Print Server Not Installed

    Navigate to: Printer Home > select your printer > Settings tab > Wireless setup utility Note: You may be prompted to connect the printer to the computer again using the installation cable as part of the setup process. Follow the instructions on the computer screen. For Macintosh users From the Finder, navigate to: Applications >...
  • Page 151 Press Enter, or click OK. Type ipconfig, and then press Enter. The IP address appears as four sets of numbers separated by periods, such as 192.168.0.100. For Macintosh users From the Apple menu, navigate to: About This Mac > More Info From the Contents pane, choose Network.

  • Page 152: Communication With Printer Lost When Connected To Virtual Private Network (Vpn)

    Right-click the printer, and then select Properties or Printer properties from the menu. Click the Ports tab. Locate the selected port. The selected port has a check beside it in the Port area. If the Description area of the selected port indicates that it is a USB port, then scroll through the list and select the port with Printer Port in the Description area.
  • Page 153 If you would like to have the ability to connect to your local network and to a VPN at the same time, then request the system support person for the VPN to allow split tunneling. Be aware that some organizations will not allow split tunneling due to security or technical concerns.
  • Page 154 SSIGN STATIC ADDRESSES TO ALL DEVICES IN THE NETWORK Most wireless networks use a DHCP server (Dynamic Host Configuration Protocol) built in to the wireless router to assign IP addresses to clients on the wireless network. DHCP addresses are assigned when they are needed, as when a new device is added to the wireless network or when it is powered on.

  • Page 155: Notices

    Notices Product information Product name: Dell V515 Series Machine type: 4443 Model(s): 2dw, 6dw Edition notice August 2010 This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

  • Page 156: Noise Emission Levels

    Federal Communications Commission (FCC) compliance information statement This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 157: Power Consumption

    Temperature information Ambient temperature 15–32° C (60–90° F) Shipping temperature -40–60° C (-40–140° F) Storage temperature 1–60° C (34–140° F) Product disposal Do not dispose of the printer or supplies in the same manner as normal household waste. Consult your local authorities for disposal and recycling options.

  • Page 158: Off Mode

    inactivity. The Power Saver Mode is automatically engaged after this product is not used for a specified period of time, called the Power Saver Timeout. Factory default Power Saver Timeout for this product (in minutes): By using the configuration menus, the Power Saver Timeout can be modified between 1 minute and 240 minutes. Setting the Power Saver Timeout to a low value reduces energy consumption, but may increase the response time of the product.
  • Page 159 Notice to users of the US telephone network: FCC requirements This equipment complies with Part 68 of the FCC rules and the requirements adopted by the Administrative Council for Terminal Attachments (ACTA). On the back of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX.

  • Page 160: Notice To Users Of The Canadian Telephone Network

    of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.) See your user documentation in order to program this information into your fax machine. South Africa telecommunications notice This modem must be used in conjunction with an approved surge protection device when connected to the PSTN.

  • Page 161: Using This Product In Switzerland

    telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom's network services. This equipment shall not be set up to make automatic calls to the Telecom's 111 Emergency Service. This equipment may not provide for the effective hand-over of a call to another device connected to the same line.

  • Page 162: Regulatory Notices For Wireless Products

    relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain voltage limits and on radio equipment and telecommunications terminal equipment. Compliance is indicated by the CE marking. The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA. The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.
  • Page 163 The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specifications were met. Industry Canada (Canada) Cet appareil est conforme à la norme RSS-210 d'Industry Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d'interférences et (2) il doit accepter toute interférence reçue, y compris celles risquant d'altérer son fonctionnement.
  • Page 164 The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA. The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.
  • Page 165 Latviski Ar šo Lexmark International, Inc. deklarē, ka šis izstrādājums atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių Šiuo Lexmark International, Inc. deklaruoja, kad šis produktas atitinka esminius reikalavimus ir kitas 1999/5/EB direktyvos nuostatas. Malti Bil-preżenti, Lexmark International, Inc., jiddikjara li dan il-prodott huwa konformi mal-ħtiġijiet essenzjali u ma dispożizzjonijiet oħrajn relevanti li jinsabu fid-Direttiva 1999/5/KE.

  • Page 166: Index

    Index setting the security level 47 changing wireless settings after setting up a connection 45 installation (Mac) 94 ad hoc broadcast fax, sending changing wireless settings after SSID 95 immediately 80 installation (Windows) 94 WEP 95 buttons, printer control panel checking an unresponsive ad hoc network 106 Address Book 17...
  • Page 167 poor scanned image quality 128 scanning using the printer control Phone Line Busy 135 scan not successful 128 panel 59 Phone Line Error 135 scanning takes too long or freezes DSL filter 68 Phone Line is connected to the the computer 129 duplex incorrect jack on the back of the copy job...
  • Page 168 pick up on 84 information loading receiving automatically 81 finding 9 documents into the Automatic receiving manually 82 information needed for setting up Document Feeder (ADF) 32 rings 84 printer on wireless network 91 documents on scanner glass 32 scheduling 86 infrastructure network 106 envelopes 37 sending a broadcast fax...
  • Page 169 sharing the printer with a Automatic Document Feeder Power Saver timeout Macintosh computer 101 (ADF) tray 11 changing 19 sharing the printer with a Windows duplex cover 11 power supply port 12 computer 101 memory card slots 11 print job no wireless network 95 paper exit tray 11 canceling 52...
  • Page 170 120 tips 81, 82 to a network 59 software updates recycling 8 using the printer control checking 26 Dell products 15 panel 59 enabling 26 redial attempts, fax scanning takes too long or freezes software, optional setting 76...
  • Page 171 152 Edition 22 scans 128 Wi-Fi indicator light is not lit 143 Dell Ink Management System 22 poor scanned image quality 128 Wi-Fi indicator light is still Fast Pics 22 scan not successful 128 orange 145...
  • Page 172 Wireless Setup Utility 22 Wi-Fi indicator light shows limited wireless 98, 110 connection 146 printer does not print 143 Wi-Fi indicator 11 troubleshooting 144, 152 description of colors 93 wireless network light is not lit 143 adding a printer to existing ad hoc Wi-Fi indicator light is green network 98 printer does not print 144...

Table of Contents
