Removing and Replacing the Power Supply
Figure 5-46
Figure 5-47
If the power supply bay is to remain empty, install a blank power supply filler plate (Cisco part number
700-03104-01) over the opening, and secure it with the captive installation screws.

Installing DC-Input Power Supplies

This section covers the DC-input power supply installation procedure for the Cisco 7600 series routers:
•
•
•
Cisco 7600 Series Router Installation Guide
5-42

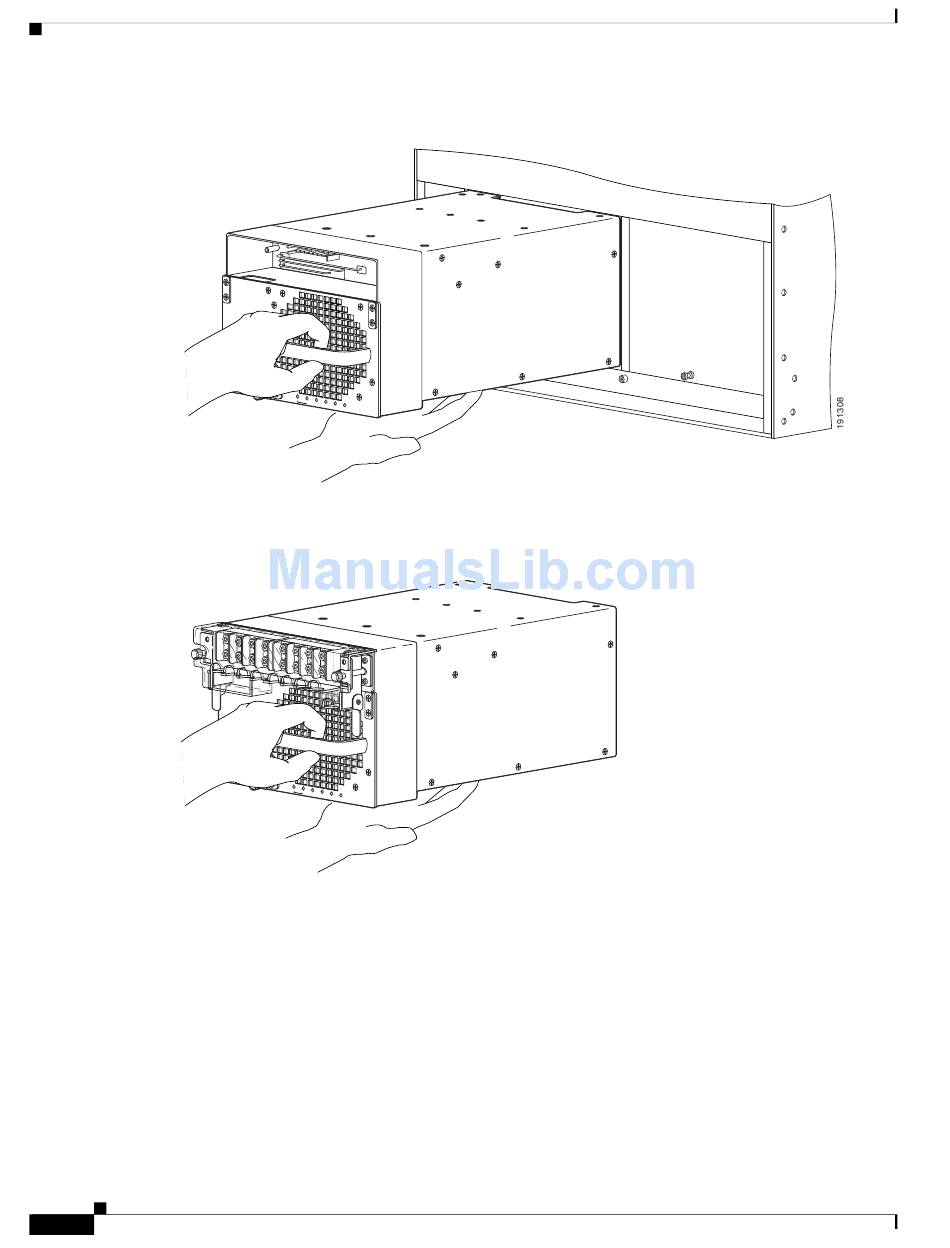

Handling a DC-Input Power Supply without IPM
CIS CO SY
ST EM S, INC
1
2
3
INP UT 4
OK
FAN
OU TPU
OK T
FAI L
Handling a DC-Input Power Supply with IPM
CIS CO SY
ST EM S, INC
1
2
3
INP UT
OK 4
FAN
OU TPU
OK
T
FAI L
Installing a PWR-950-DC Power Supply in a Cisco 7603 Router, page 5-43
Installing a PWR-1500-DC Power Supply in a Cisco 7603-S Router, page 5-45
Installing a PWR-2700-DC/4 Power Supply in a Cisco 7604 Router, page 5-46
