NAC-3310, NAC-3350, and NAC-3390

Rear Panel Features

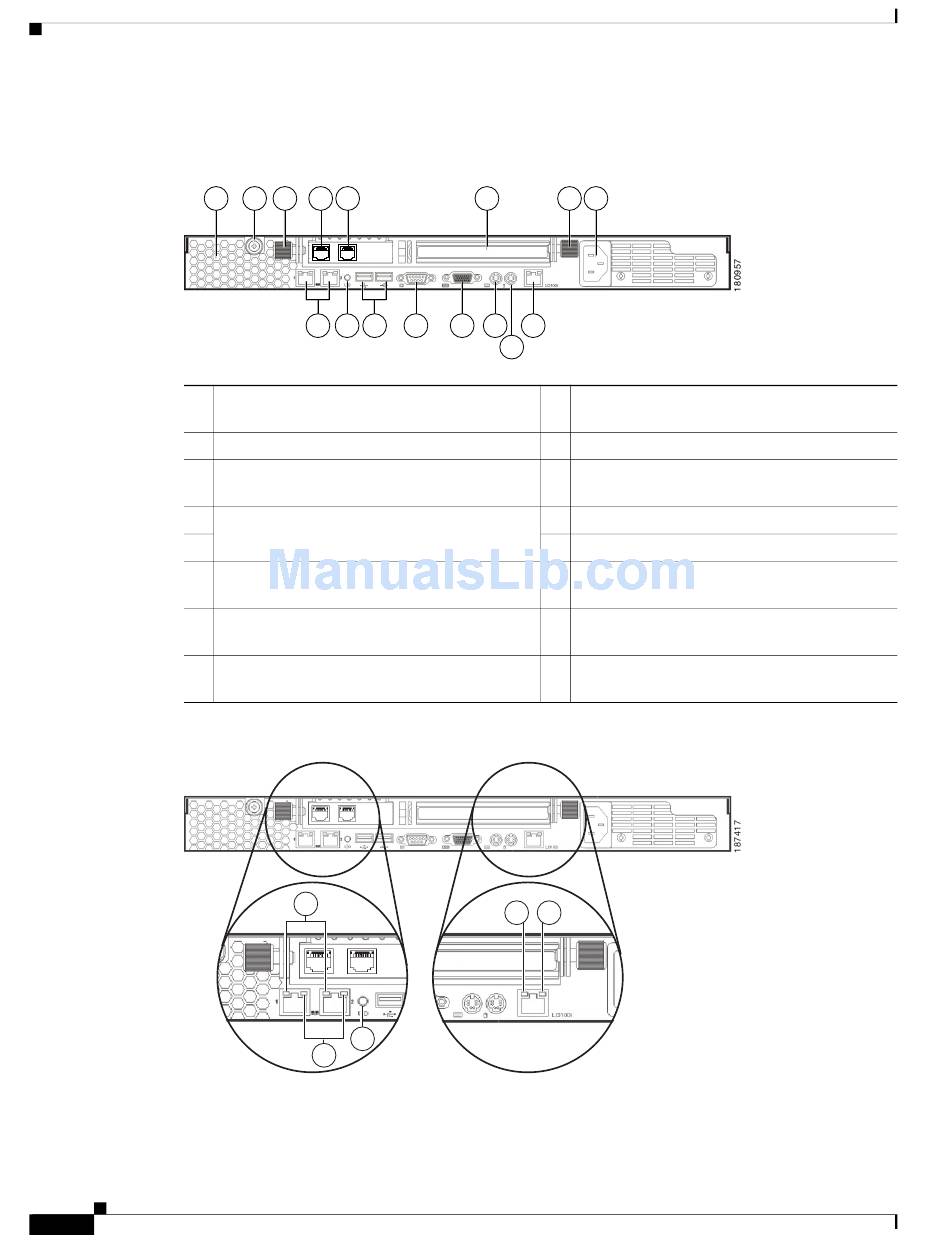

Figure 1-18
1
2
3
4
5
6
7
8
Figure 1-19
Cisco NAC Appliance Hardware Installation Guide
1-20
Cisco NAC-3310 Rear Panel
1 2 3 4 5
8 9 10
Ventilation holes
Thumbscrew for the top cover
Thumbscrews for the PCI riser board
assembly
NIC 3 (eth2) and NIC 4 (eth3) PCI Express
GbE LAN (RJ-45) ports (Intel)
Standard height/full-length PCI Express
x16/PCI-X riser board slot cover
Power supply cable socket
NIC 1 (eth0) and NIC 2 (eth1) integrated GbE
LAN (RJ-45) ports (Broadcom)
Cisco NAC-3310 Rear Panel LEDs
1
3
2
Chapter 1
6 3 7
11 12 13 15
14
9
UID button with recessed LED indicator
(blue)
10
Rear USB ports (black)
11
Video port (blue)
12
Serial port
13
PS/2 keyboard port (purple)
14
PS/2 mouse port (green)
15
10/100 Mbps iLO LAN port for IPMI
management (RJ-45)
4 5
Cisco NAC Appliance Hardware Platforms
