Expansion Board Installation - NEC POWERMATE VE - SERVICE MANUAL 08-1996 Service Manual

PCI/ISA Slot
ISA Slot

Expansion Board Installation

Install expansion boards in the system as follows.
1. Remove the system unit cover as previously described.
2. Follow any preinstallation instructions that come with the expansion board (such
as setting switches or jumpers on the board).
3. If installing a board in the inside expansion slot (next to the power supply), see
"Inside Slot Expansion Board Installation." Otherwise, continue to the next step.
4. Remove the screw securing an expansion slot cover and remove the cover (see
Figure 3-4).
Save the screw for installing the expansion board. Save the slot cover for future
use.
PCI Slot

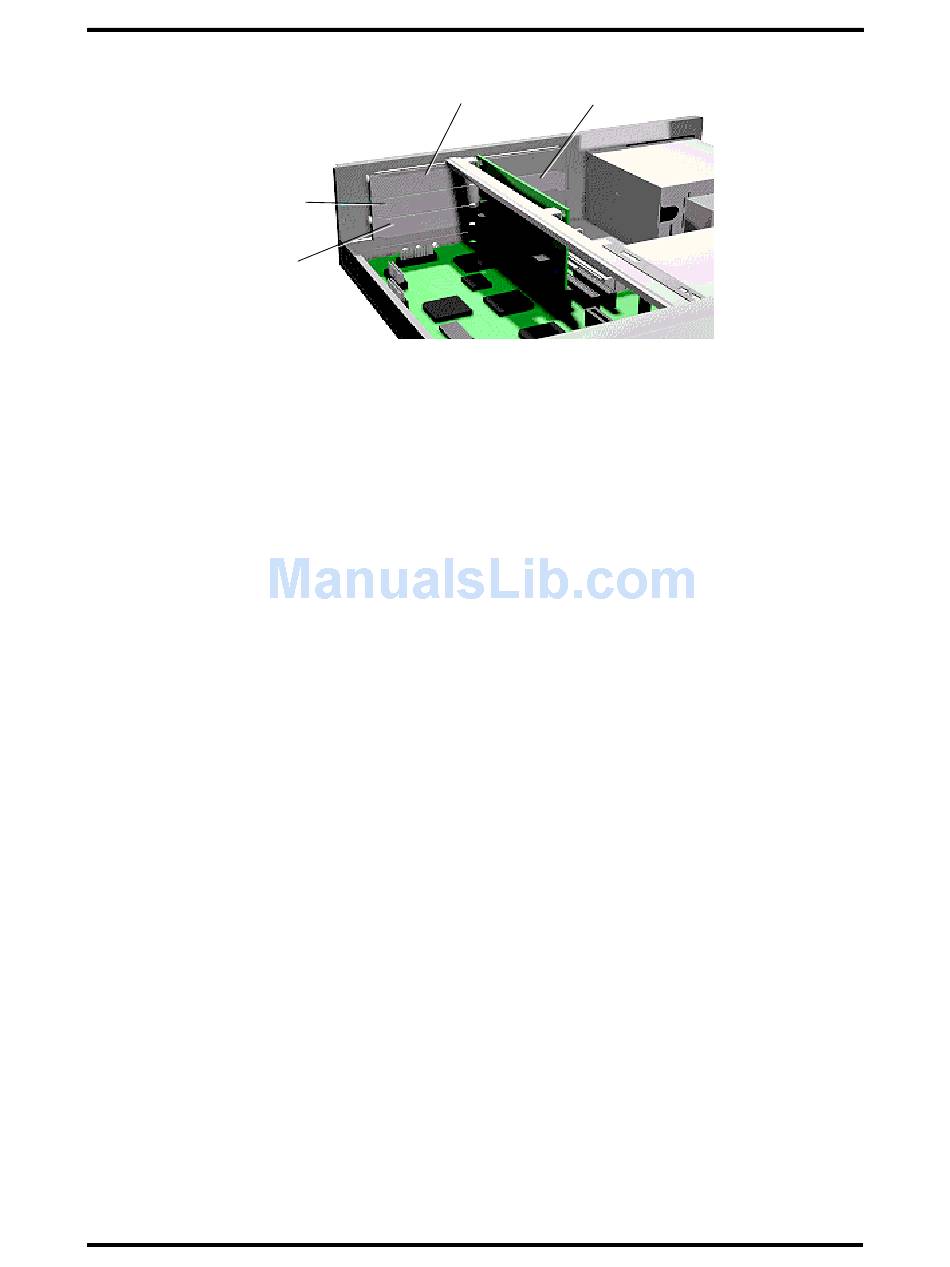

Figure 3-3 Locating Expansion Slots
Option Installation
ISA Slot
3-5
