Grizzly G0609 Owner's Manual

12" parallelogram jointer

Hide thumbs Also See for G0609:

Parts breakdown (8 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

This update covers improvements made to this machine after the owner's manual was printed. Keep this

update with your owner's manual for future reference. If you have questions, contact Tech Support at (570)

546-9663 or by email at techsupport@grizzly.com.

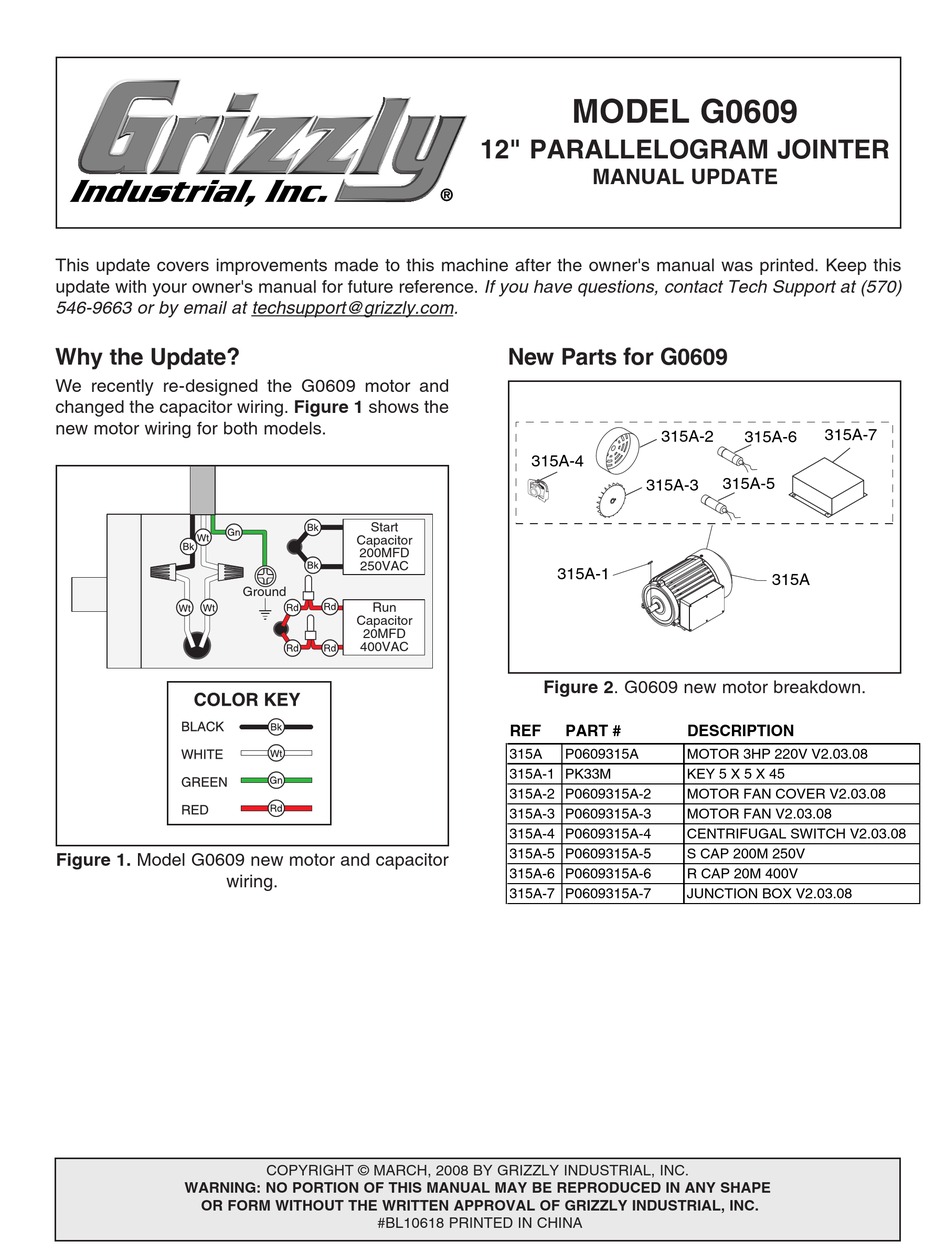

Why the Update?

We recently re-designed the G0609 motor and

changed the capacitor wiring. Figure 1 shows the

new motor wiring for both models.

Figure 1. Model G0609 new motor and capacitor

wiring.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

��

#BL10618 PRINTED IN CHINA

MODEL G0609

12" PARALLELOGRAM JOINTER

MANUAL UPDATE

New Parts for G0609

��

Figure 2. G0609 new motor breakdown.

REF

PART #

315A

P0609315A

315A-1 PK33M

315A-2 P0609315A-2

315A-3 P0609315A-3

315A-4 P0609315A-4

315A-5 P0609315A-5

315A-6 P0609315A-6

315A-7 P0609315A-7

��

DESCRIPTION

MOTOR 3HP 220V V2.03.08

KEY 5 X 5 X 45

MOTOR FAN COVER V2.03.08

MOTOR FAN V2.03.08

CENTRIFUGAL SWITCH V2.03.08

S CAP 200M 250V

R CAP 20M 400V

JUNCTION BOX V2.03.08
