GENERAL
The CRT-2 Terminal provides an extremely practical and
attractive method of displaying system events and activity
reports for the AM2020, AFP1010, NFS-640, AFC-600, AFP-
400, AFP-300, and AFP-200 intelligent fire alarm control
systems, or the intelligent network annunciators INA or NCA
for NOTI·FIRE·NET™. The CRT-2 keyboard may be used
to program the AM2020/AFP1010 system, change the sta-
tus (on or off) of controlled outputs, or to acknowledge,
silence, and reset the control panel.
With the NFS-640, AFP-400, AFP-300, and AFP-200, the
CRT-2 can control and view events, point and history re-
ports, control the system (acknowledge, signal silence, and
reset), and change important system operating parameters,
such as: Enable/Disable of addressable points, change
alarm and pre-alarm sensitivities, clear verification counters,
clear history, and set the pre-alarm action level. With the
NCA (Network Control Annunciator), the CRT-2 can per-
form Acknowledge, Silence, and Reset.
FEATURES
• Auto-sensing power supply.
• NOTIFIER keyboard layout.
• Up to 25 CRTs per system.
• The CRT-2 complies with the Swedish magnetic emis-
sion and x-radiation guidelines MPR 1990:10.
CRT-2 OPERATION
The CRT-2 in the "All Systems Normal" mode indicates the
custom 40-character message that is displayed on the con-
trol panel with a time and date indication. When an alarm
or trouble is received by the control, the CRT-2 moves the
"All Systems Normal" message up on the screen display
and new custom messages are displayed at the bottom of
the screen with a time-and-date indication. An optional
(programmed by the control panel) terminal status line may
be displayed at the far bottom of the screen. This line in-
dicates a count on each of the following events: new alarms,
total alarms, new troubles, and total troubles.
The keyboard and monitor are two separate parts joined
by a telephone-style coiled cord. The monitor provides an
auxiliary port which may be used to connect one or more
additional monitors connected in "daisy-chain" fashion. Up
to 25 CRTs may be connected in this fashion.
The CRT-2 keyboard may be disconnected and held in a
secure place during unattended periods. The first CRT-2
may be located up to 50 feet (15.24 m) from the control
panel. The CRT-2 is connected electrically to the serial
interface via the EIA port on the CRT-2 using cable speci-
fied in the control panel Installation Instruction Manual .
NOTIFIER® is a Honeywell company.
This document is not intended to be used for installation purposes. We try to keep our
product information up-to-date and accurate. We cannot cover all specific applications
or anticipate all requirements. All specifications are subject to change without notice.
For more information, contact NOTIFIER. Phone: (203) 484-7161 FAX: (203) 484-7118
12 Clintonville Road, Northford, Connecticut 06472
April 8, 2005

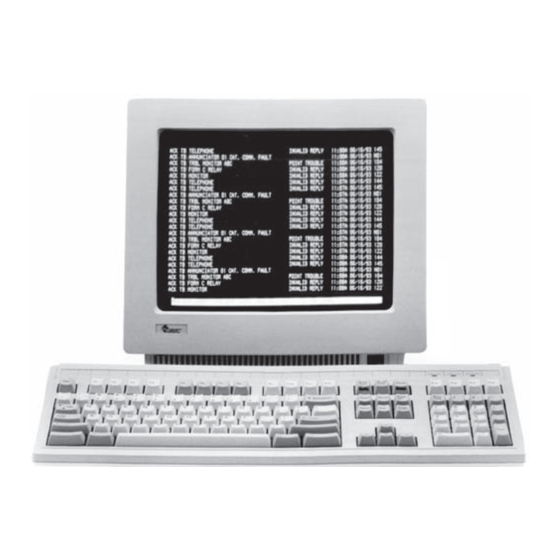

CRT-2
Keyboard and Monitor
Section: Peripheral Devices
MEA
261-93-E
17-96-E
447-99-E
317-01-E
E155835
CS100
IMPORTANT NOTE: Provision for battery backup of primary
power is NOT provided. If CRT-2 operation is required during
failure of primary power, then a separate Uninterruptable Power
Supply (UPS) is required.
SPECIFICATIONS
Display Screen
• 14-inch (35.56 cm), flat-screen CRT.
• White phosphor.
• Fully overscanned video.
• Tilt and swivel adjustments.
Display Format
• 26 lines, 80 columns.
TPI-232/Standard EIA-232 Interfaces
• Separate EIA-232 Transmit and Receive LEDs.
• EIA-232 protocol: 2400 baud, 7/8 data bits, 1 stop bit,
even/no parity.
NOTI•FIRE•NET™ is a trademark of NOTIFIER, 1994.
DN-3756 • G-154
California
State Fire
Marshal
7165-0028:141
7165-0028:164
7165-0028:181
7165-0028: 214
7170-0028: 153
7170-0028: 182
7170-0028: 216
U.S. Coast Guard
161.002/23/3
(AFP-200)
161.002/27/3
(AM2020)
Made in the U.S.A.
DN-3756 • 04/08/05 — Page 1 of 2
