3.4.

Responsibilities of the Purchaser

The purchaser is responsible for completion of "Pre-Installation". This includes the procurement and installation of
all required materials and services to get the room ready for installation of the product.
This responsibility includes providing:
• A clean and safe work environment for installation of the product (finished floor, ceiling, walls, and proper room
lighting).
• A location suitable for the installation of the product. See Chapter 2 - Suite/Room Requirements.
- Suitable support structures in the floor, walls, or ceiling necessary for the mounting of the product and/or its
components. Installation of conduit, ducts and/or raceways necessary to route cables safely. See Chapter 3 -
System Physical Characteristics and Chapter 4 - Planning Electrical Connections
- Electrical power and grounds of specified quality and reliability. See Chapter 6 – System Facility Power &
Grounds.
* Electrical power of the required voltage, including an emergency-off safety switch in the room. Power and ground
cables to the PDU.
* Properly installed and sized junction boxes, including covers and fittings at locations required and called out in
architectural drawings.
3.5.

What You Will Receive (System Components)

The Precision RXi R&F System is divided into sub-systems:
Precision RXi Remote R&F Table with SFD and Positioner Cabinet
Compact Generator Cabinet
Digital or Analog Imaging System
The following options are also available:
Integrated Console (in case the integrated console is not required the different elements will be delivered
separately. Then a support needs to be provided by the customer); supports Positioner Console, Digital
Imaging PC and LCD Monitor and Generator Touch Screen
Overhead Tube Suspension
Vertical Wallstand, Tilting or Non-tilting
Single or Double Overhead Monitor Suspension
Single Monitor Cart

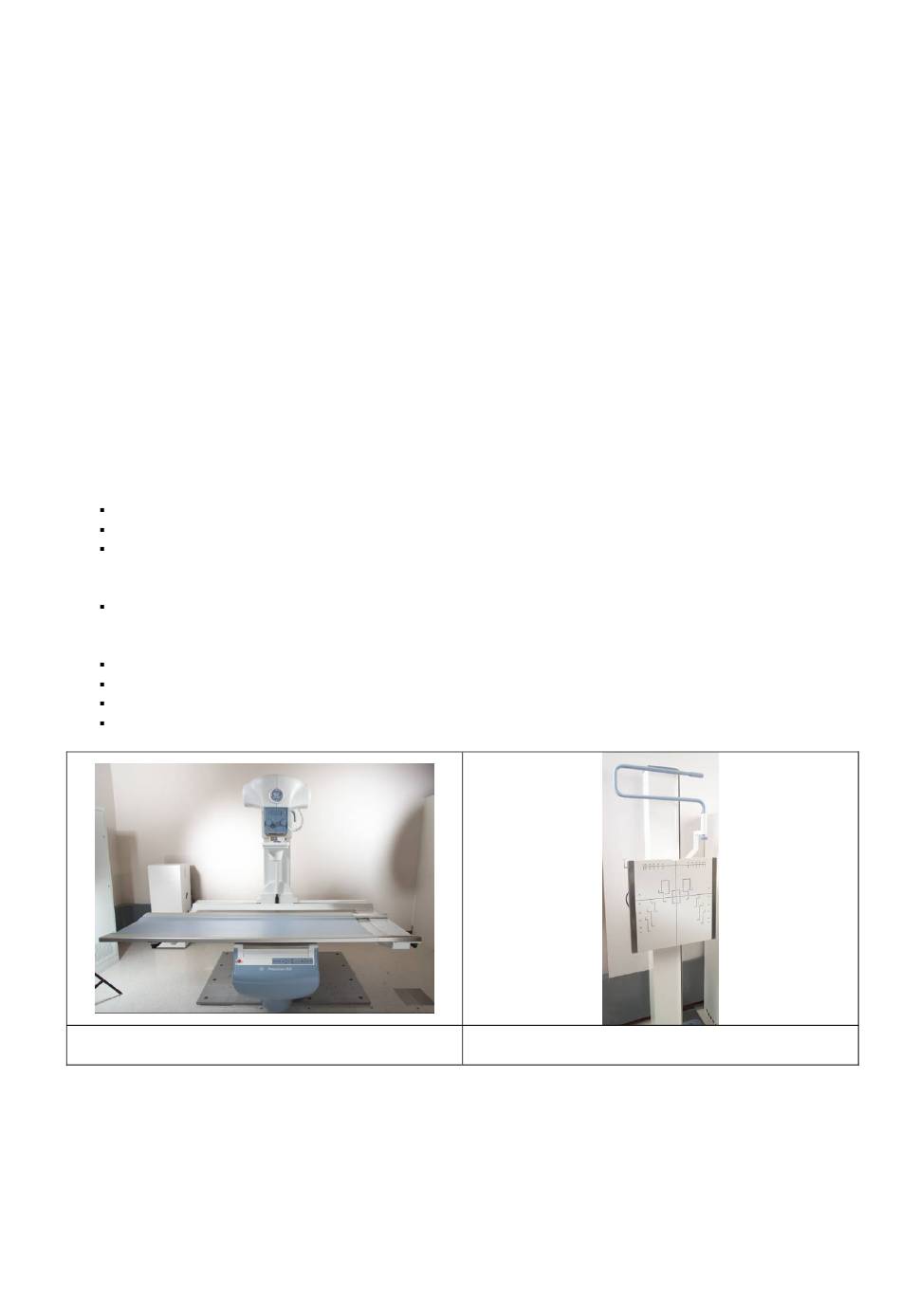

Table assembly with table cabinet (far left) and
generator (rear left)
12
EVISION
June 2009
