- Page 1 Wireless Bridge Quick Start Guide...
-
Page 2: Legal Information
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/). -
Page 3: Applicable Models
Preface Applicable Models This manual is applicable to the DS-3WF Series wireless bridge. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. - Page 4 In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. The socket-outlet shall be installed near the device and shall be easily accessible. Do not connect several devices to one power adapter as adapter overload may cause overheating or a fire hazard.
-
Page 5: Chapter 1 Introduction

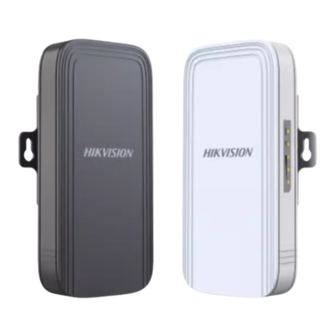

Chapter 1 Introduction The 5 GHz wireless bridge (hereinafter referred to as the device) is used for long-distance wireless connection, which is suited for elevator wireless video transmission between sites in a LAN. Interface/Button The devices consist of the AP and CPE. The following introduces the interfaces/buttons of the AP and CPE respectively. - Page 6 The 10/100 Mbps adaptive RJ45 port, also can be PoE/LAN 1 used as a PoE port. LAN 2/LAN 3 The 10/100 Mbps adaptive RJ45 port. Indicator Device Indicator Device Indicator Description Indicator Description The devices are matched. Solid red, yellow, and green: The wireless signal is strong.
-
Page 7: Packing List
The device is powered on normally. Solid Green Power Indicator No power supply connected or power Unlit supply is abnormal. Packing List Please check if there is any damage of the package first. According to the packing list, make sure no item is lost. - Page 8 Application Scenes...
-
Page 9: Chapter 2 Installation & Connection
Chapter 2 Installation & Connection Preparation for Installation To avoid device damage or personal injury caused by improper usage of the device, please follow the preparations below. Use the attached power adapter and PoE injector to power the device. ... - Page 10 Magnetic Mounting Manner 2 The bracket should be prepared by yourself. Align screw holes of the wall mount bracket to those of the device back, and insert screws into the aligned screw holes and tighten the screws to fasten the bracket and the AP device. Fasten Bracket and AP Device Align screw holes at the joint part of the bracket to those of the bracket arm, and insert the matched screw into the aligned hole and tighten the screw to fasten the bracket and the...
- Page 11 Fasten Bracket and Bracket Arm Install the device onto the chosen wall by tightening screws inserted into the holes that are drilled according to the bottom holes of the bracket arm. Adjust the direction of the device manually to keep the device installed horizontally. Install Device onto Wall CPE Installation The CPE should be installed in pole-mounted manner.
-
Page 12: Device Connection
Thread Cable Ties Fix and fasten the cable ties on the pole. Fix Device Adjust the direction of the device manually to keep the device installed horizontally. Device Connection Based on the actual situations, the device can be set to work in the AP mode or CPE mode. Refer to Chapter 4 Remote Management for detailed configuration of the device working scene. - Page 13 Use the attached power adapter and PoE injector to power on the device. The PoE injector must be connected to an earthed socket outlet. The devices in the package should be used in pair and cannot be used arbitrarily together with another incompatible device.
- Page 14 Routing Mode AP Connection (Routing Mode) CPE Connection See 1.2 Indicator for details after device connection, to check device working status, network connection, and signal strength.
-
Page 15: Chapter 3 Activation
Chapter 3 Activation For the first-time access, you need to activate the device by setting a password. The device can be activated and managed via multiple tools, such as web browser, iVMS-4200 client, SADP software, and HikCentral Professional clients. The following part introduces the activation steps of the device on the web browser and on the iVMS-4200 client. - Page 16 Click OK to finish the activation. Activation Using iVMS-4200 Client Before you start: Make sure you have downloaded the latest iVMS-4200 client from the official website. Make sure the device is powered on and connected to the network correctly. ...
-
Page 17: Chapter 4 Remote Management
Chapter 4 Remote Management After the device activation, you can manage the device remotely using the web browser, iVMS- 4200 client, SADP software, and HikCentral Professional clients. Web Browser Operations Scan the QR code below for detailed guidance. Web User Manual iVMS-4200 Client Operations Scan the QR code below for detailed guidance. - Page 18 HikCentral Professional Operations Scan the QR code below for detailed guidance. HikCentral Professional Web Client User Manual HikCentral Professional Control Client User Manual HikCentral Professional Mobile Client Function List...
- Page 19 UD34248B...
