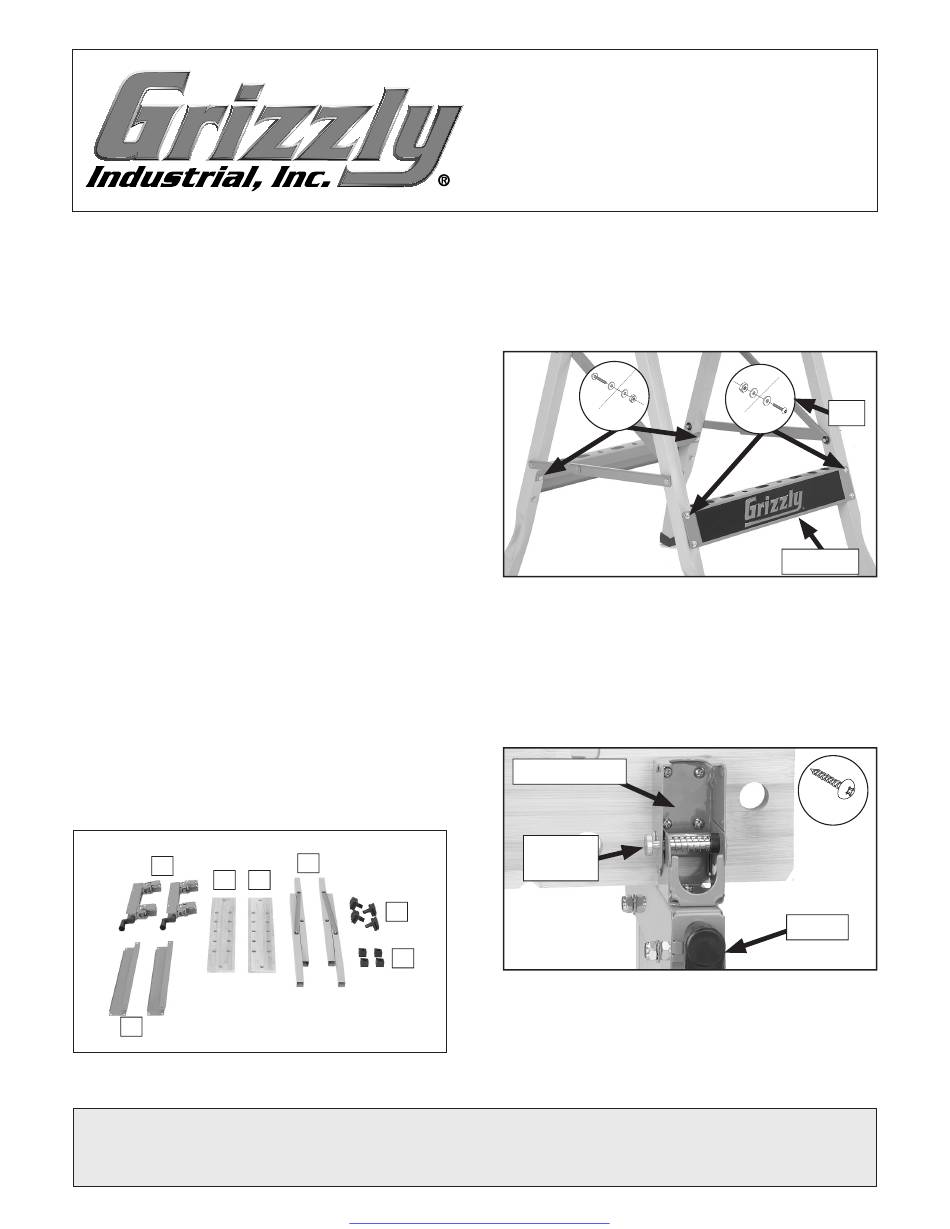

Grizzly G8586 Instructions

Introduction
This workbench features four adjustable clamping
dogs for securing flat work, independently adjust-
able hand screws for irregular clamping, and fold-
ing capability for convenient storage.
Specifications
Weight ......................................................18 lbs.
Dimensions ...................... 31
Clamping Capacity ........................................4
Work Surface ....................................... 24" x 9
Inventory
A.. Front Table Top .......................................... 1
B.. Rear Table Top .......................................... 1
C.. Table Brackets ........................................... 2
D.. Crossbars ................................................... 2
E.. Leg Frames ................................................ 2
F.. Clamping Dogs ........................................... 4
G.. Rubber Feet ............................................... 4
H.. Hardware Bag (not shown)
—Tap Screws 5 x 14mm ...................... 16
—Phillip Head Screws M6-1 x 40 .......... 8
—Hex Nuts M6-1 ................................... 8
—Flat Washers 6mm ........................... 16
—Hex Bolts M8-1.25 x 45 ...................... 4
—Lock Nuts M8-1.25 ............................. 4
—Flat Washers 8mm ............................. 8
C
A
D
Figure 1. Model G8586 inventory.
WARNING: NO PORTION OF THIS MANUAL MAy BE REPRODUCED IN ANy SHAPE
OR FORM WITHOUT THE WRITTEN APPROvAL OF GRIzzLy INDUSTRIAL, INC..
/ "H x 24"W x 25"D
1
4
⁄
1
4
⁄
1
2
Qty
e
B
F
G
CoPyRiGHT © MAy, 2008 By GRizzLy iNDuSTRiAL, iNC.
#BL10763 PRiNTeD iN CHiNA
Get other manuals https://www.bkmanuals.com
MODEL G8586
PORTABLE CLAMPING
WORKBENCH
INSTRUCTIONS
Assembly
1..
Attach the crossbars to the leg braces with (8)
M6-1 x 40 Phillips head screws, hex nuts and
(16) 6mm flat washers, as show in Figure 2.
x 4
"
"
Figure 2. Crossbars and legs assembled.
2..
Press the release button on a table bracket
(Figure 3), swing it open, then place the
bracket on the bottom of the front table top.
Position the handle on the side of the table
top with the measuring scale.
Table Bracket
Release
Button
Figure 3. Table bracket installed on bottom of
3. Secure the table bracket to the front table top
with (4) tap screws, as shown in Figure 3.
x 4
Crossbar
Handle
front table top.
Leg
x 4
